KDN145L-TRMDYW (2001)
Toyota Hilux
Production
Aug 2001
-
Aug 2005
Engine
2KDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9708- )KDN145,LN145

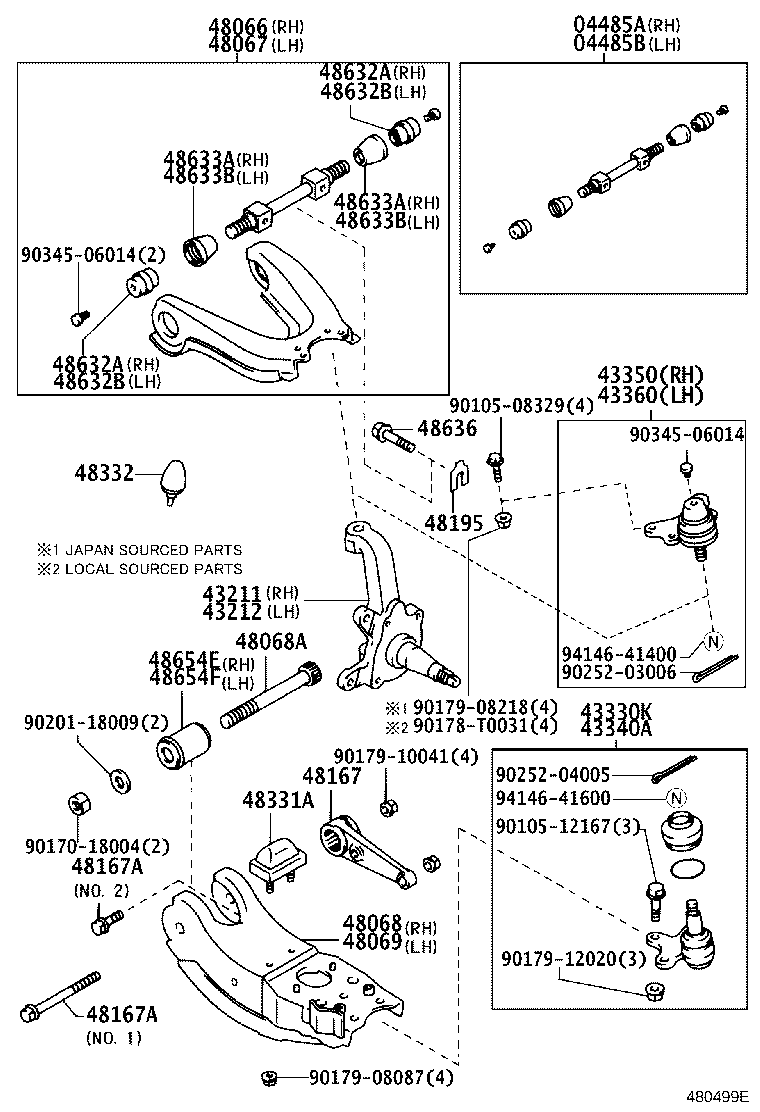

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485A - SHAFT KIT, FRONT SUSPENSION UPPER ARM, RH | ||||
| 04485-35020 |
KDN145 |
1 | ||
| 04485-35020 |
KDN145 |
1 | ||
| 04485B - SHAFT KIT, FRONT SUSPENSION UPPER ARM, LH | ||||
| 04485-35020 |
KDN145 |
1 | ||
| 04485-35020 |
KDN145 |
1 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-35200 |
KDN145,150 |
1 | ||
| 43211-35210 |
KDN145,150 W(ABS) |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-35160 |
KDN145,150 |
1 | ||
| 43212-35170 |
KDN145,150 W(ABS) |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39445 |
KDN145,150 |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-39445 |
KDN145,150 |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43350-39125 |
KDN145,150 |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43350-39125 |
KDN145,150 |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-35130 |
KDN145 W(ABS) |
1 | ||
| 48066-35050 |
KDN145 |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48066-35050 |
KDN145 |
1 | ||
| 48066-35130 |
KDN145 W(ABS) |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48605-35181 |
KDN145,150 |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90114-18003 |
KDN145,150 |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48606-35181 |
KDN145,150 |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48167-35040 |
KDN145,150 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 91512-81025 |
KDN145,150 NO.2 |
2 | ||
| 90105-10087 |
KDN145,150 NO.1 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 91512-81025 |
KDN145,150 NO.2 |
2 | ||
| 90105-10087 |
KDN145,150 NO.1 |
2 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-12004 |
KDN145,150 T=4.0 |
1 | ||
| 90565-12008 |
KDN145,150 T=1.6 |
1 | ||
| 90565-12009 |
KDN145,150 T=1.2 |
1 | ||
| 48331A - BUMPER, FRONT SPRING, NO.1 | ||||
| 48304-35160 |
KDN145,150 |
2 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
KDN145,150 |
4 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-30012 |
KDN145 |
4 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-30012 |
KDN145 |
4 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-30012 |
KDN145 |
4 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-30012 |
KDN145 |
4 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-35010 |
KDN145 |
4 | ||
| 48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH | ||||
| 48633-35010 |
KDN145 |
4 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-35010 |
KDN145 |
4 | ||
| 48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH | ||||
| 48633-35010 |
KDN145 |
4 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 90105-12080 |
KDN145,150 |
4 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-35100 |
KDN145,150 |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-35100 |
KDN145,150 |
1 | ||
| Common parts | ||||
| 90105-08329 | ||||
| 90105-12167 | ||||
| 90170-18004 | ||||
| 90178-T0031 | ||||
| 90179-08087 | ||||
| 90179-08218 | ||||
| 90179-10041 | ||||
| 90179-12020 | ||||
| 90201-18009 | ||||
| 90252-03006 | ||||
| 90252-04005 | ||||
| 90345-06014 | ||||
| 94146-41400 | ||||
| 94146-41600 | ||||
