KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )LHD

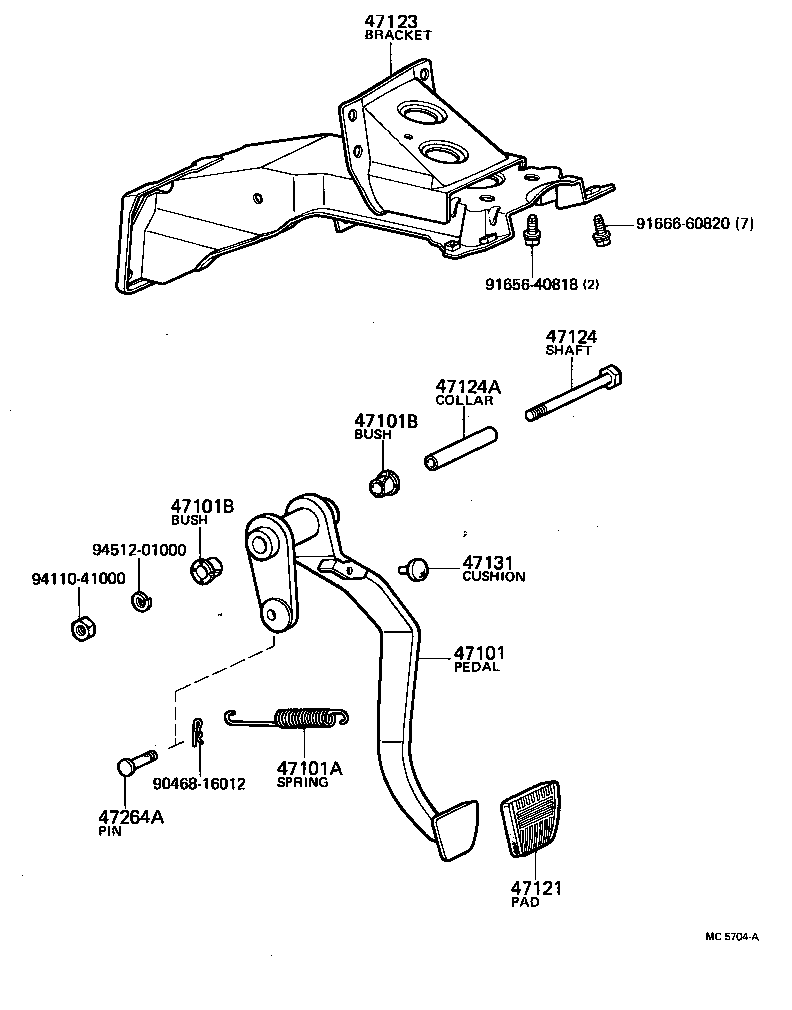

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47264A 9046816012 9165640818 9166660820 9411041000 9451201000
Part # Description Qty Price
Common parts
90468-16012
91656-40818
91666-60820
94110-41000
94512-01000

(9708- )LHD

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47124 47124A 47131 47264A 55106 90119T0083 9012908009 9046816012 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35361

KDN145,150,165,170..LHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90507-17002

KDN145,150,165,170,190

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KDN145,150,165,170,190

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13015

KDN145,150,165,170,190

 2
47121 - PAD, BRAKE PEDAL
31321-52010

KDN145,150,165,170..LHD

 1
47124 - SHAFT, BRAKE PEDAL
90101-10194

KDN145,150,165,170,190..LHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-35030

KDN145,150,165,170,190..LHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06036

KDN145,150,165,170,190..LHD

 1
47264A - PIN(FOR PUSH ROD)
47148-35010

KDN145,150,165,170,190

 1
55106 - SUPPORT SUB-ASSY, BRAKE PEDAL
55106-35120

KDN145,150,165,170,190..LHD

 1
Common parts
90119-T0083
90129-08009
90468-16012
94512-01000
