KDN145L-TRMDYW (2001)
Toyota Hilux
ILLUST NO. 2 OF 3(9708- )
W(POWER STEERING)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-35120 |
KDN145,150 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-35090 |
KDN145,150 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-35340 |
KDN145,150..LHD |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-35470 |
KDN145,150..LHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
KDN145,150,165,170,190 NO.1 |
1 | ||
| 90171-14042 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| Common parts | ||||
| 90101-12152 | ||||
| 90101-12153 | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90170-12027 | ||||
| 90179-12020 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||

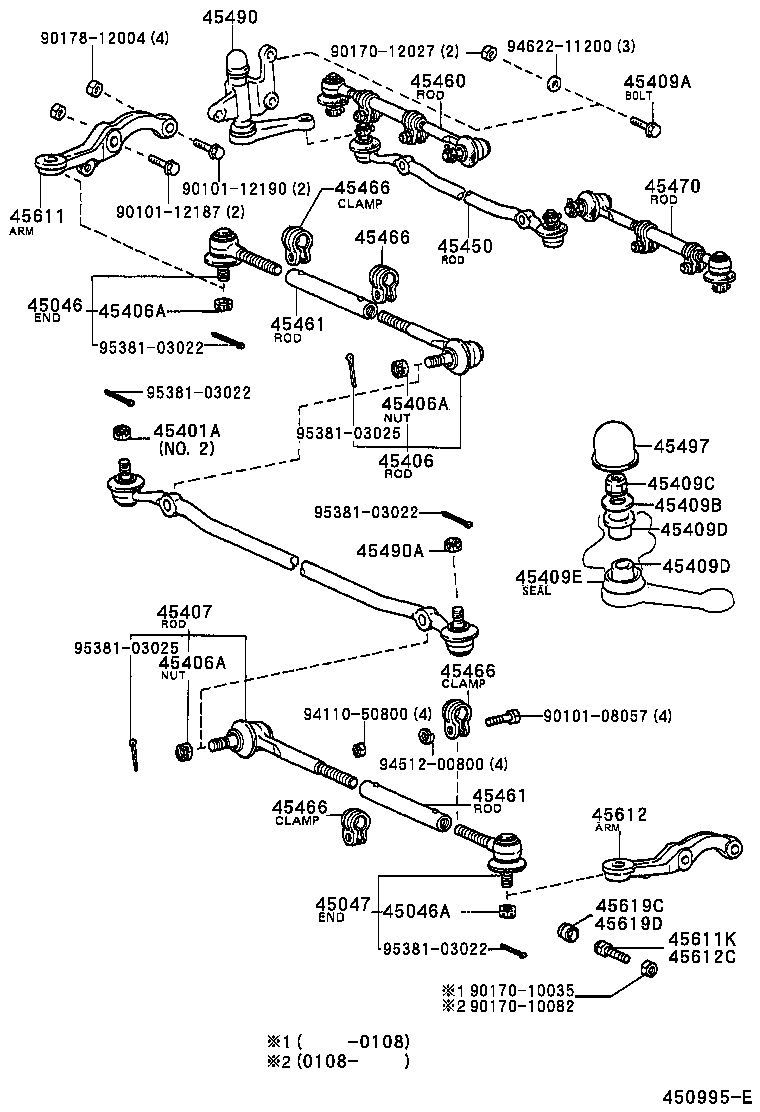

ILLUST NO. 1 OF 3(9708- )KDN145,150,LN145,150..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-39375 |
KDN145,150 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
KDN145,150,165,170,190 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-39375 |
KDN145,150 |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
KDN145,150,165,170,190 NO.1 |
1 | ||
| 90171-14042 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-39115 |
KDN145,150 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
KDN145,150 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
KDN145,150 |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
KDN145,150 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-39115 |
KDN145,150 |
1 | ||
| 45409A - BOLT, HEXAGON(FOR IDLER ARM SUPPORT SETTING) | ||||
| 90101-12153 |
KDN145,150 *12-1.25PX35-26 |
1 | ||
| 90101-12152 |
KDN145,150 *12-1.25PX95-25 |
2 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14010 |
KDN145,150,165,170,190 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
KDN145,150 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
KDN145,150 |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
KDN145,150 |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
KDN145,150,165,170,190 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-39305 |
KDN145,150..LHD |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-39485 |
KDN145,150 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35060 |
KDN145,150 |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35060 |
KDN145,150 |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
KDN145,150,165,170,190 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-39485 |
KDN145,150 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-39476 |
KDN145,150..LHD |
1 | ||
| 45490-39475 |
KDN145,150..LHD |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
KDN145,150,165,170,190 |
1 | ||
| 45497 - CAP, IDLER ARM BRACKET | ||||
| 45497-28010 |
KDN145,150,165,170,190 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-35230 |
KDN145,150 |
1 | ||
| 45611K - BOLT(FOR STEERING KNUCKLE STOPPER RH) | ||||
| 90106-10003 |
KDN145,150 |
1 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-35250 |
KDN145,150 |
1 | ||
| 45612C - BOLT(FOR STEERING KNUCKLE STOPPER LH) | ||||
| 90106-10003 |
KDN145,150 |
1 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90101-12187 | ||||
| 90101-12190 | ||||
| 90170-10035 | ||||
| 90170-10082 | ||||
| 90170-12027 | ||||
| 90178-12004 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||
| 94622-11200 | ||||
| 95381-03022 | ||||
| 95381-03025 | ||||

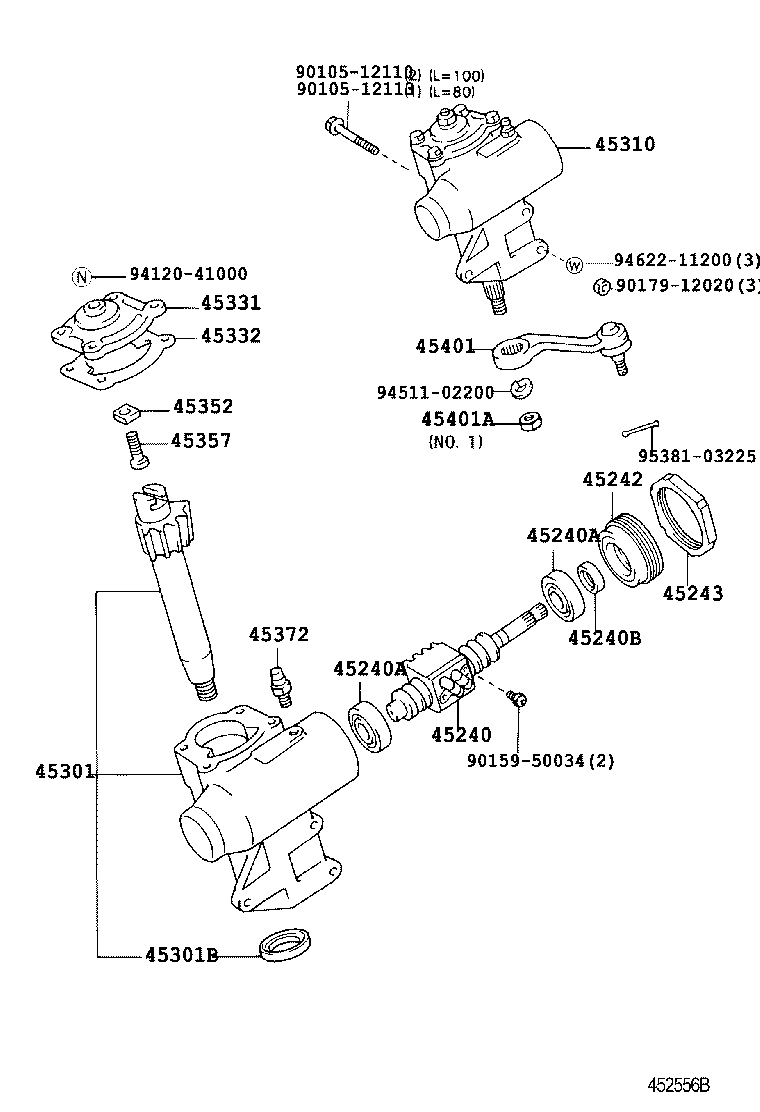

ILLUST NO. 2 OF 3(9708- )KDN145,150,LN145,150..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-60030 |
KDN145,150,165,170,190 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-35470 |
KDN145,150..LHD |
1 | ||
| 45401A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90170-22058 |
KDN145,150,165,170,190 NO.1 |
1 | ||
| 90171-14042 |
KDN145,150,165,170,190 NO.2 |
1 | ||
| Common parts | ||||
| 90105-12110 | ||||
| 90105-12113 | ||||
| 90159-50034 | ||||
| 90179-12020 | ||||
| 94120-41000 | ||||
| 94511-02200 | ||||
| 94622-11200 | ||||
| 95381-03225 | ||||
