KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

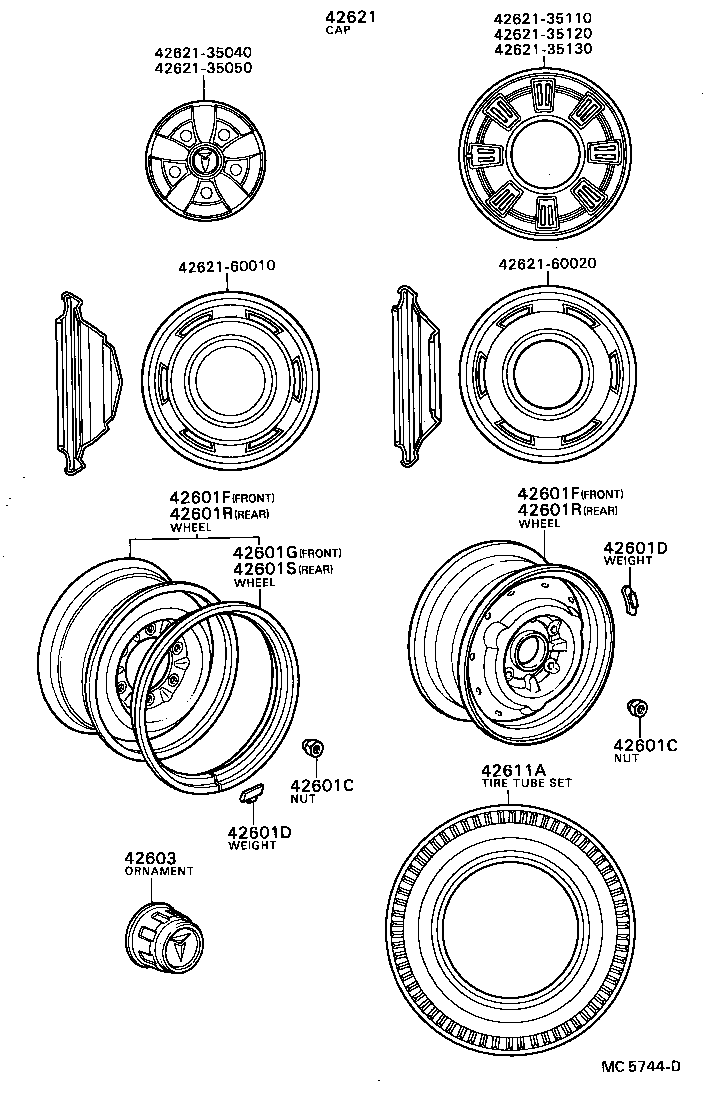

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601D 42601F 42601F 42601G 42601R 42601R 42601S 42603 42611A 42621 4262135040 4262135050 4262135110 4262135120 4262135130 4262160010 4262160020
Part # Description Qty Price
Common parts
42621-35040
42621-35050
42621-35110
42621-35120
42621-35130
42621-60010
42621-60020

ILLUST NO. 1 OF 3(9708- )

Click highlighted areas on diagram

diagram 42601A 42601C 42601F 42601R 42611G 42611J 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42601-35760

KDN145

14X5.5J,TYPE D:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01082

KDN145

TYPE B:REFER ILLUST.

 20
42601F - WHEEL, DISC (FOR FRONT)
42601-35760

KDN145

14X5.5J,TYPE D:REFER ILLUST.

 2
42601R - WHEEL, DISC (FOR REAR)
42601-35760

KDN145

14X5.5J,TYPE D:REFER ILLUST.

 2
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

KDN145,150,165,170,190

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

KDN145,150,165,170,190

 1
42652 - TIRE
42652-3D011

KDN145;KDN150..LHD..CBU

185R14C-8PR *B/S

 4
42652-3D021

KDN145;KDN150..LHD..CBU

185R14C-8PR *Y/H

 4
42652-35403

KDN145;KDN150..LHD..CBU

185R14C *D/L

 4
42652-35401

KDN145;KDN150..LHD..CBU

185R14C-8PR *D/L

 4
42652-3D022

KDN145;KDN150..LHD..CBU

185R14C-8PR *Y/H

 4
42652-35630

KDN145,150

195R14C-8PR

 4
42652-35402

KDN145;KDN150..LHD..CBU

185R14C *D/L

 4
42652-35631

KDN145,150

195R14C-8PR

 4
42652-3D012

KDN145;KDN150..LHD..CBU

185R14C-8PR *B/S

 4
42652A - TIRE (FOR SPARE)
42652-3D021

KDN145;KDN150..LHD..CBU

185R14C-8PR *Y/H

 1
42652-35630

KDN145,150

195R14C-8PR

 1
42652-3D011

KDN145;KDN150..LHD..CBU

185R14C-8PR *B/S

 1
42652-35402

KDN145;KDN150..LHD..CBU

185R14C *D/L

 1
42652-35401

KDN145;KDN150..LHD..CBU

185R14C-8PR *D/L

 1
42652-3D022

KDN145;KDN150..LHD..CBU

185R14C-8PR *Y/H

 1
42652-35631

KDN145,150

195R14C-8PR

 1
42652-35403

KDN145;KDN150..LHD..CBU

185R14C *D/L

 1
42652-3D012

KDN145;KDN150..LHD..CBU

185R14C-8PR *B/S

 1

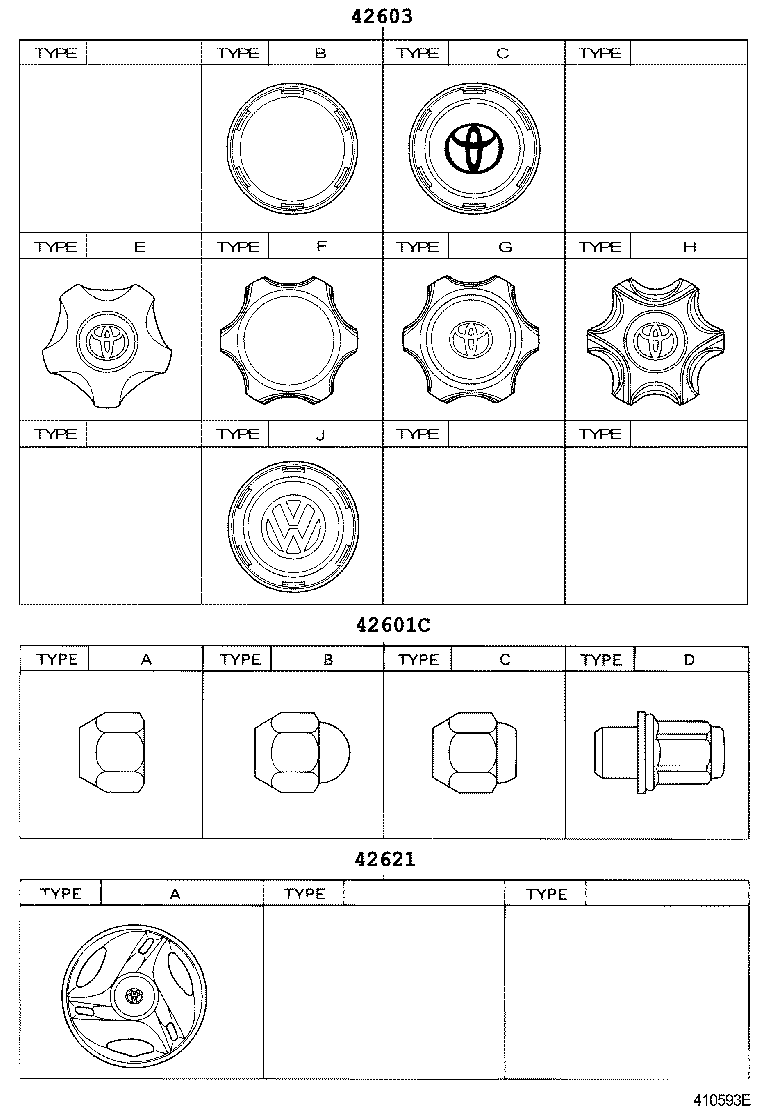

ILLUST NO. 2 OF 3(9708- )

Click highlighted areas on diagram

diagram 42601C 42603 42621
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01082

KDN145

TYPE B:REFER ILLUST.

 20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35680

KDN145

*STE,TYPE E:REFER ILLUST.

 4

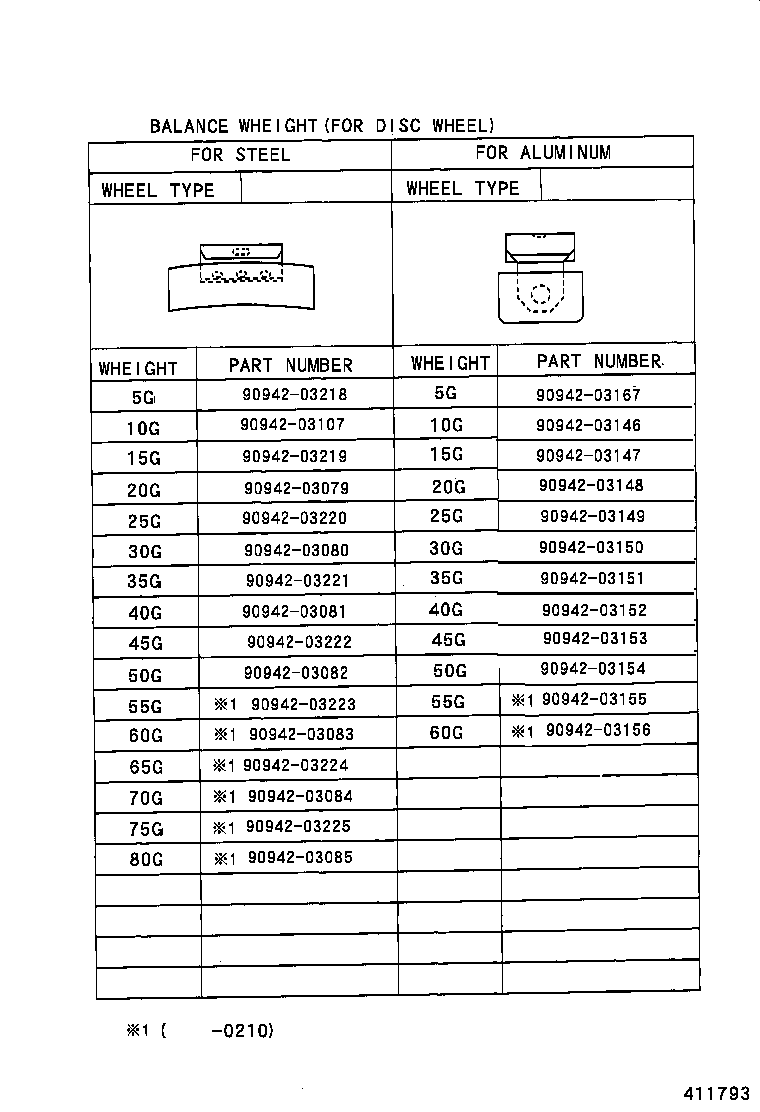

ILLUST NO. 3 OF 3(9708- )

Click highlighted areas on diagram

diagram 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203167 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03167
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225
