KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 42311 42311A 42311C 42311D 42311E 42403 42403B 42423 42424 42424A 42441 42443 42444R 42454 42611E
Part # Description Qty Price

(9708- )KDN145,150,LN145,150

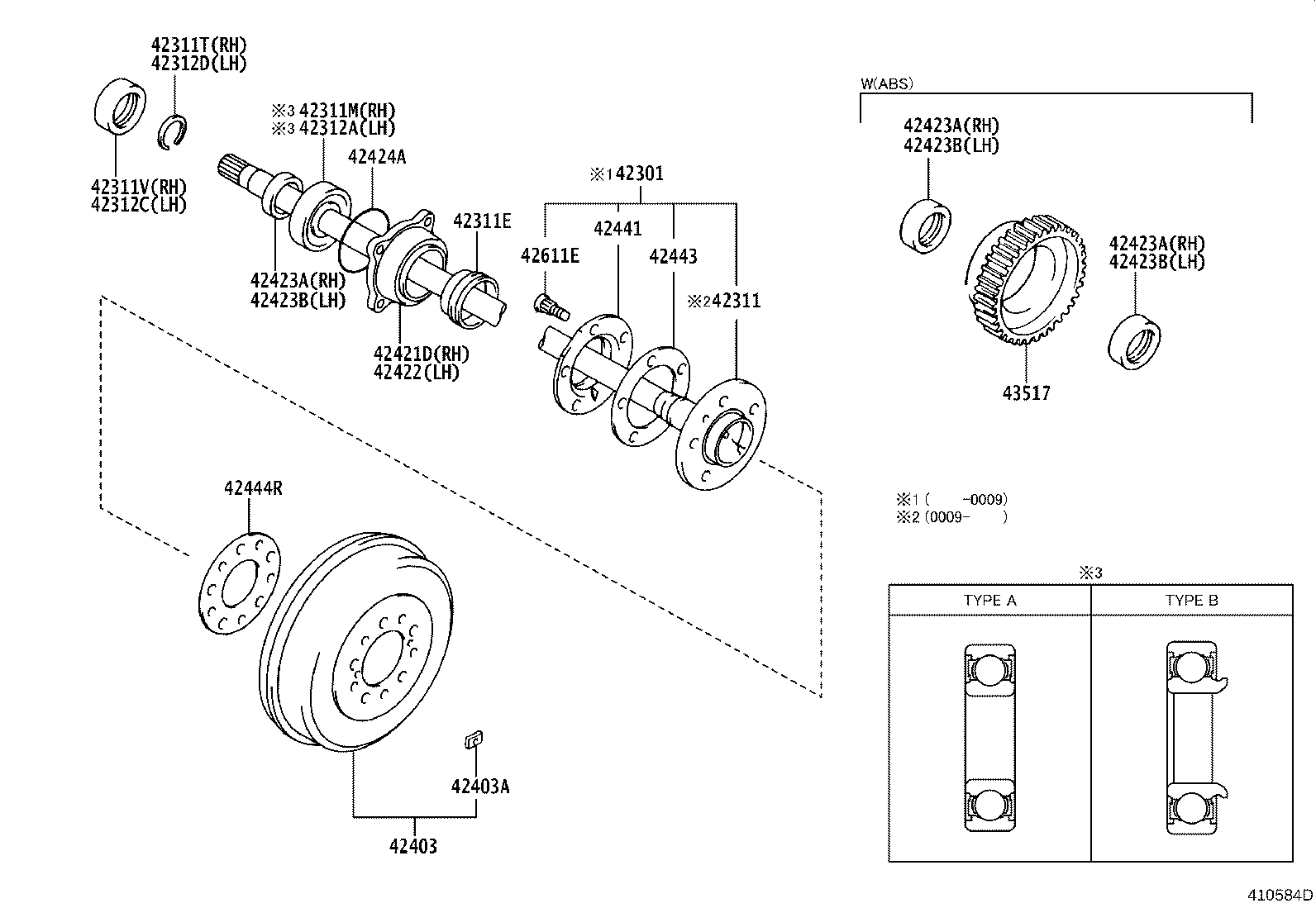

Click highlighted areas on diagram

diagram 42301 42311 42311E 42311M 42311T 42311V 42312A 42312C 42312D 42403 42403A 42421D 42422 42423A 42423A 42423A 42423B 42423B 42423B 42424A 42441 42443 42444R 42611E 43517
Part # Description Qty Price
42311 - SHAFT, REAR AXLE
42311-35410

KDN145,150

 2
42311-35420

KDN145,150

W(ABS)

 2
42311E - SEAL, OIL (FOR REAR AXLE SHAFT OUTER)
90313-54001

KDN145,150,165,170,190

 2
42311M - BEARING (FOR REAR AXLE SHAFT RH)
90363-40068

KDN145,150,165,170,190

TYPE B:REFER ILLUST.

 1
42311T - RING, SNAP (FOR REAR AXLE SHAFT RH)
90520-36045

KDN145,150,165,170,190

 1
42311V - SEAL, OIL (FOR REAR AXLE SHAFT RH)
90310-50006

KDN145,150,165,170,190

 1
42312A - BEARING (FOR REAR AXLE SHAFT LH)
90363-40068

KDN145,150,165,170,190

TYPE B:REFER ILLUST.

 1
42312C - SEAL, OIL (FOR REAR AXLE SHAFT LH)
90310-50006

KDN145,150,165,170,190

 1
42312D - RING, SNAP (FOR REAR AXLE SHAFT LH)
90520-36045

KDN145,150,165,170,190

 1
42403 - DRUM SUB-ASSY, REAR BRAKE
42431-35151

KDN145,150

 2
42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM)
90937-01100

KDN145,150

40.5G

 1
90937-01288

KDN145,150

20G

 1
90937-01289

KDN145,150

30G

 1
90937-01287

KDN145,150

10G

 1
42421D - CASE, REAR AXLE BEARING, RH
42421-34010

KDN145,150

 1
42422 - CASE, REAR AXLE BEARING, LH
42421-34010

KDN145,150

 1
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-20010

KDN145,150,165,170

 1
42423-20010

KDN145,150,165,170,190

W(ABS)

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-20010

KDN145,150,165,170

 1
42423-20010

KDN145,150,165,170,190

W(ABS)

 2
42423A - RETAINER, REAR AXLE BEARING, INNER RH
42423-20010

KDN145,150,165,170

 1
42423-20010

KDN145,150,165,170,190

W(ABS)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-20010

KDN145,150,165,170

 1
42423-20010

KDN145,150,165,170,190

W(ABS)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-20010

KDN145,150,165,170

 1
42423-20010

KDN145,150,165,170,190

W(ABS)

 2
42423B - RETAINER, REAR AXLE BEARING, INNER LH
42423-20010

KDN145,150,165,170

 1
42423-20010

KDN145,150,165,170,190

W(ABS)

 2
42424A - RING, O (FOR BEARING RETAINER SET)
90301-88077

KDN145,150,165,170,190

 2
42441 - DEFLECTOR, BRAKE DRUM OIL
42441-26010

KDN145,150

 2
42443 - GASKET, BRAKE DRUM OIL DEFLECTOR
42443-30010

KDN145,150

 2
42444R - GASKET, BRAKE DRUM (FOR REAR AXLE)
42444-35070

KDN145,150

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02049

KDN145,150

 10
43517 - ROTOR, SKID CONTROL, REAR
43517-35010

KDN145,150,165,170,190

 2
