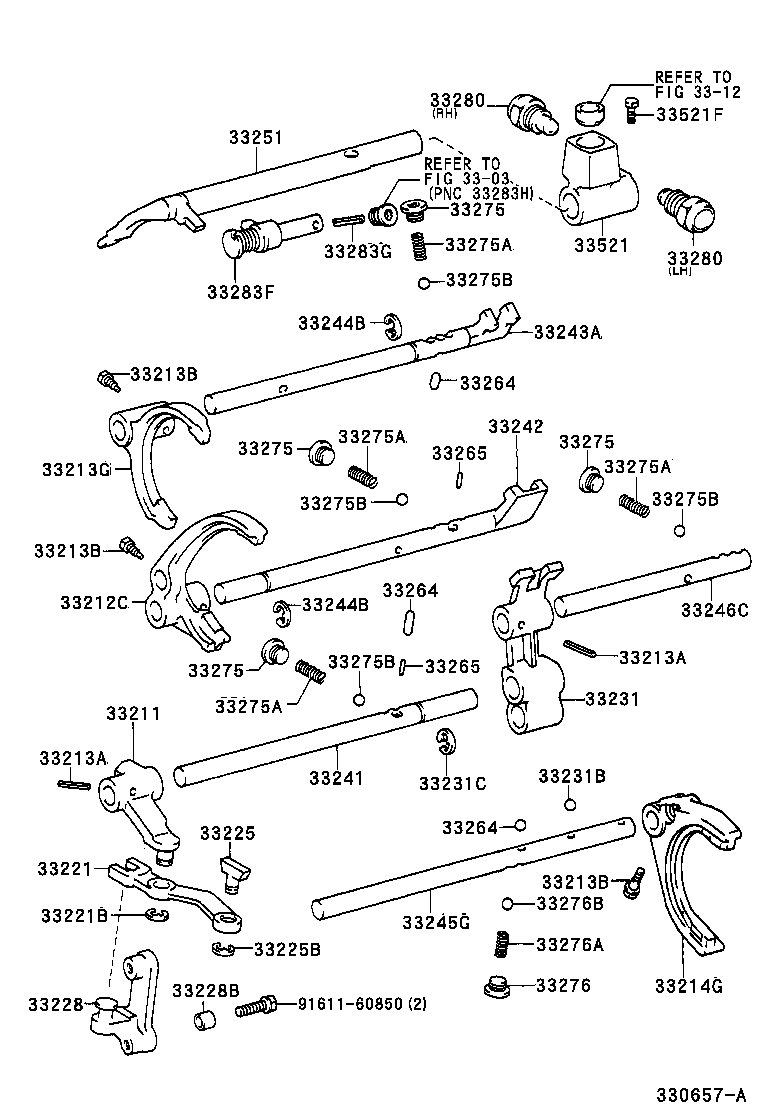

KDN145L-TRMDYW (2001)
Toyota Hilux
(9708- )KDN145,150,LN145,150
G50,G52,G58
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
KDN145,150 |
1 | ||
| 33212C - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-35023 |
KDN145,150 |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KDN145,150 |
2 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
KDN145,150 |
2 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
KDN145,150 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
KDN145,150 |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-06143 |
KDN145,150 |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33213-35033 |
KDN145,150 |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-35040 |
KDN145,150 |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
KDN145,150 |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
KDN145,150 |
1 | ||
| 33225 - SHOE, SHIFT ARM | ||||
| 33225-35030 |
KDN145,150 |
1 | ||
| 33225B - RING, E(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
KDN145,150 |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
KDN145,150 |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
KDN145,150 |
2 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-35070 |
KDN145,150 |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
KDN145,150 |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90520-12006 |
KDN145,150 |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35050 |
KDN145,150 |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-35022 |
KDN145,150 |
1 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-35042 |
KDN145,150 |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
KDN145,150 |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-12006 |
KDN145,150 |
2 | ||
| 33245G - SHAFT, GEAR SHIFT FORK, NO.4 | ||||
| 33245-35080 |
KDN145,150 |
1 | ||
| 33246C - SHAFT, GEAR SHIFT FORK, NO.5 | ||||
| 33246-35020 |
KDN145,150 |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35061 |
KDN145,150 |
1 | ||
| 33251-35060 |
KDN145,150 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
KDN145,150 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
KDN145,150 OD=9.52,STEEL |
1 | ||
| 90361-10002 |
KDN145,150 L=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
KDN145,150 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
KDN145,150 OD=9.52,STEEL |
1 | ||
| 90361-10002 |
KDN145,150 L=21.6,PIN |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
KDN145,150 L=13.6,OD=9.5 |
1 | ||
| 90360-10003 |
KDN145,150 OD=9.52,STEEL |
1 | ||
| 90361-10002 |
KDN145,150 L=21.6,PIN |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
KDN145,150 L=11.1,OD=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
KDN145,150 L=11.1,OD=4.8 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDN145,150 OD=18 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDN145,150 OD=18 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDN145,150 OD=18 |
4 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
KDN145,150 OD=18 |
4 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
KDN145,150 L=31 |
3 | ||
| 90501-14123 |
KDN145,150 L=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
KDN145,150 L=31 |
3 | ||
| 90501-14123 |
KDN145,150 L=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
KDN145,150 L=31 |
3 | ||
| 90501-14123 |
KDN145,150 L=20.2 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-14132 |
KDN145,150 L=31 |
3 | ||
| 90501-14123 |
KDN145,150 L=20.2 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KDN145,150 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KDN145,150 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KDN145,150 |
4 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
KDN145,150 |
4 | ||
| 33276 - SEAT, SHIFT DETENT BALL SPRING, NO.2 | ||||
| 90341-12008 |
KDN145,150 |
1 | ||
| 33276A - SPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL) | ||||
| 90501-10061 |
KDN145,150 |
1 | ||
| 33276B - BALL, SHIFT DETENT, NO.2 | ||||
| 90360-10003 |
KDN145,150 |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35072 |
KDN145,150 LH |
1 | ||
| 33280-35021 |
KDN145,150,165,170 RH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35072 |
KDN145,150 LH |
1 | ||
| 33280-35021 |
KDN145,150,165,170 RH |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35040 |
KDN145,150 |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
KDN145,150,165,170 |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35070 |
KDN145,150 |
1 | ||
| 33521-35071 |
KDN145,150 |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90105-08079 |
KDN145,150 |
1 | ||
| 90109-08305 |
KDN145,150 |
1 | ||
| Common parts | ||||
| 91611-60850 | ||||
| Linked diagrams | ||||
| 3303 | ||||
| 3312 | ||||
