KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )KDN145,150,LN145,150

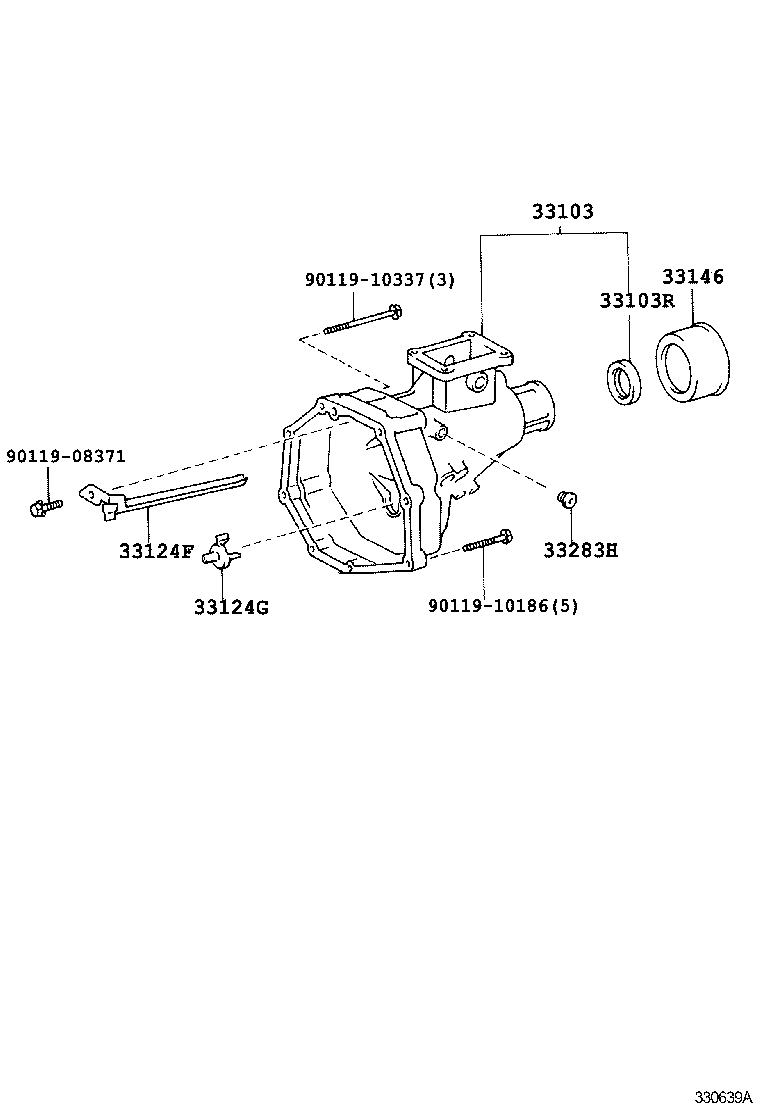

Click highlighted areas on diagram

G50,G58

diagram 33103 33103R 33124F 33124G 33146 33283H 9011908371 9011910186 9011910337
Part # Description Qty Price
33103 - HOUSING SUB-ASSY, EXTENSION(MTM)
33103-35141

KDN145,150

 1
33103R - SEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)
90311-38032

KDN145,150

 1
33124F - PIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)
33124-35011

KDN145,150

 1
33124G - PIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)
33124-36010

KDN145,150

 1
33146 - DEFLECTOR, EXTENSION HOUSING DUST(MTM)
33146-30020

KDN145,150

 1
33283H - PLUG, W/HEAD STRAIGHT SCREW
90341-12008

KDN145,150

 1
Common parts
90119-08371
90119-10186
90119-10337
