KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

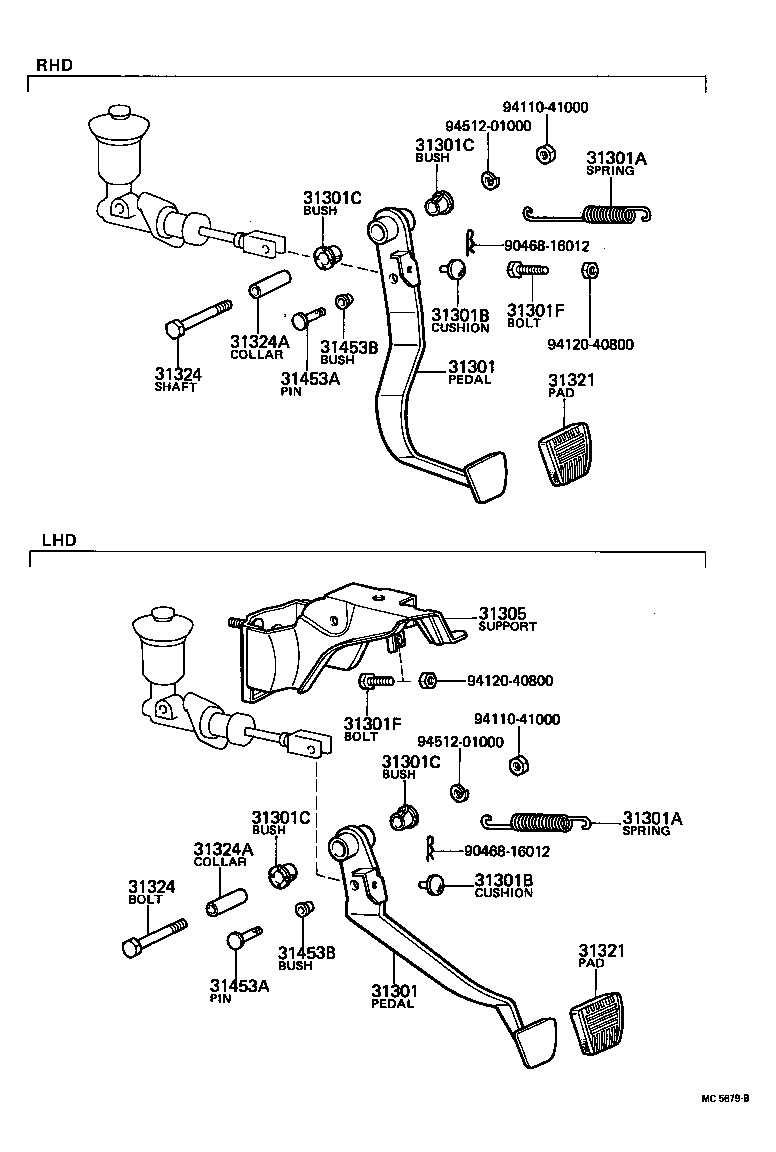

(7808- )

Click highlighted areas on diagram

diagram 31301 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301C 31301C 31301F 31301F 31305 31321 31321 31324 31324 31324A 31324A 31453A 31453A 31453B 31453B 9046816012 9046816012 9411041000 9411041000 9412040800 9412040800 9451201000 9451201000
Part # Description Qty Price
Common parts
90468-16012
94110-41000
94120-40800
94512-01000

(7808- )LHD

Click highlighted areas on diagram

diagram 31481 31481 31481 31481A 31481A 31481A 31482 31482 31482 31484 31484 31484 31485 31485 31485 9046104016 9046104196 9046104259 9046106048 9046106112 9046106112 9161140610 9161141016 9161141016 9161640816 9161640816 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
Common parts
90461-04016
90461-04196
90461-04259
90461-06048
90461-06112
91611-40610
91611-41016
91616-40816
96991-10080

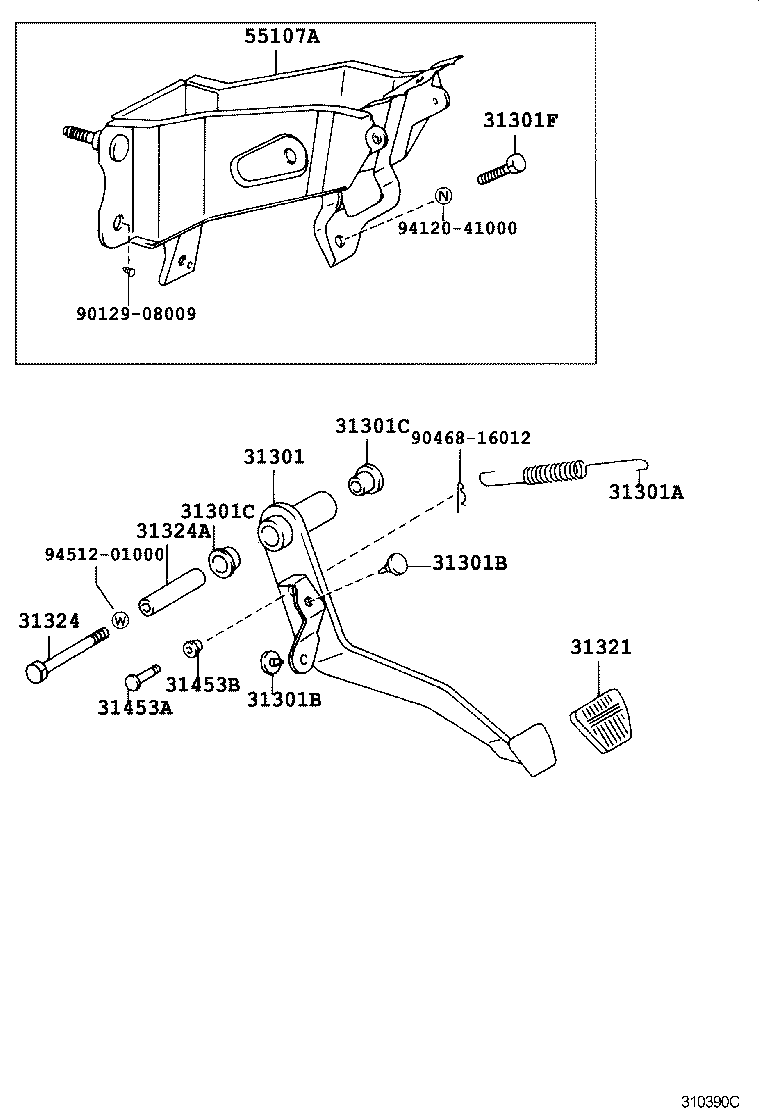

ILLUST NO. 1 OF 2(9708- )KDN145,150,LN145,150,165,170,RZN168,173..LHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31321 31324 31324A 31453A 31453B 55107A 9012908009 9046816012 9412041000 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-35251

KDN145,150..LHD

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14030

KDN145,150

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KDN145,150,165,170

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KDN145,150,165,170

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KDN165..LHD;KDN145,150,170

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13007

KDN165..LHD;KDN145,150,170

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KDN145,150,165,170

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KDN145,150,165,170..LHD

 1
31324 - SHAFT, CLUTCH PEDAL
91121-61070

KDN145,150..LHD

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10027

KDN145,150..LHD

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-34010

KDN145,150,165,170

L=27

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

KDN165..LHD;KDN145,150,170

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-35080

KDN145,150..LHD

 1
Common parts
90129-08009
90468-16012
94120-41000
94512-01000

ILLUST NO. 2 OF 2(0108- )LHD

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482D 31484C 31489 31490 9046112413 9046112413 9046808035 9046808035 91611B0812 91611B0812
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-35450

KDN145,150,165,170..LHD

 1
31481A - HOSE, CLUTCH, NO.1
90947-02953

KDN145,150,165,170

 1
31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR
31482-35430

KDN145,150,165,170

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-35340

KDN145,150,165,170

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31489-35070

KDN145,150,165,170

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-35080

KDN145,150,165,170

 1
Common parts
90461-12413
90468-08035
91611-B0812
Linked diagrams
3103
3105
