KDN145L-TRMDYW (2001)

Toyota Hilux

Production Aug 2001 - Aug 2005
Engine 2KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7808- )

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09140 09141 09141 09145 09150 09150 09155 09173
Part # Description Qty Price

(9708- )

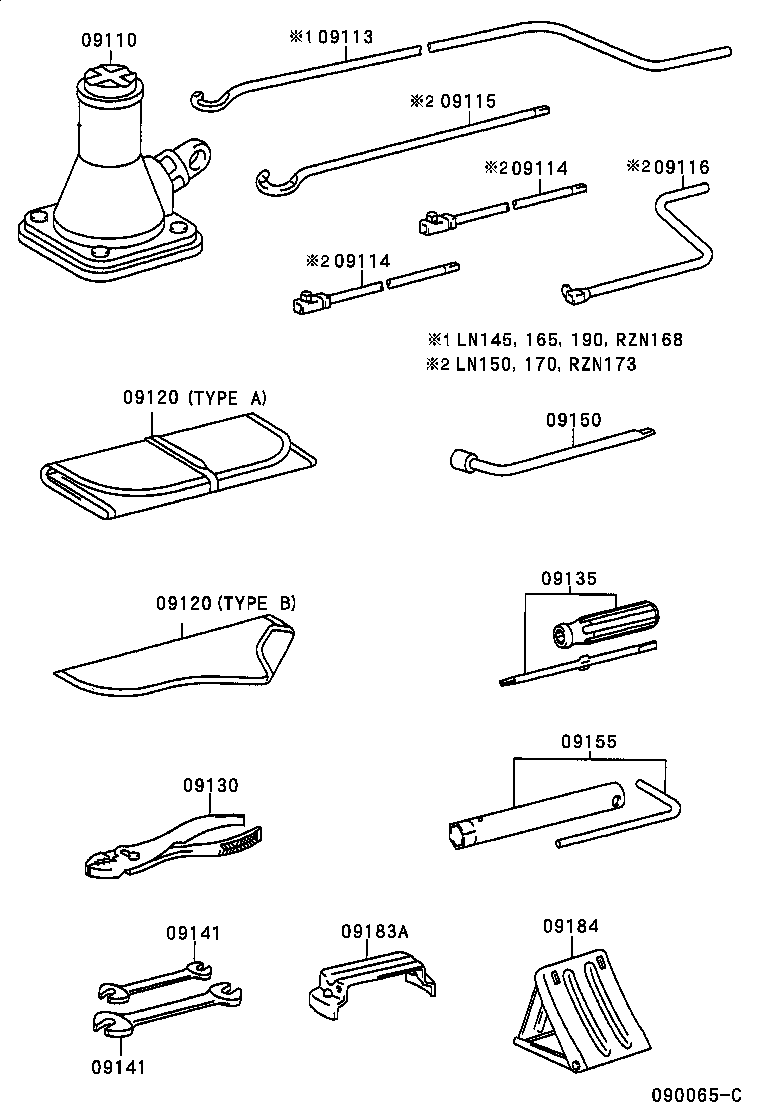

Click highlighted areas on diagram

diagram 09110 09113 09114 09114 09115 09116 09120 09120 09130 09135 09141 09141 09150 09155 09183A 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-35160

KDN145,150

 1
09113 - HANDLE, JACK
09113-35130

KDN145,165,190

 1
09120 - BAG, TOOL
09120-12011

KDN145,165,190

TYPE A:REFER TO ILLUSTRATION

 1
09120 - BAG, TOOL
09120-12011

KDN145,165,190

TYPE A:REFER TO ILLUSTRATION

 1
09130 - PLIERS
99913-11500

KDN145,150,165,170,190

 1
09135 - DRIVER, SCREW
99915-10700

KDN145,150,165,170,190

 1
09141 - SPANNER
99914-10810

KDN145,150,165,170,190

8 X 10

 1
99914-11214

KDN145,150,165,170,190

12 X 14

 1
09141 - SPANNER
99914-10810

KDN145,150,165,170,190

8 X 10

 1
99914-11214

KDN145,150,165,170,190

12 X 14

 1
09150 - WRENCH, HUB NUT BOX
09150-35070

KDN145,150,165,170,190

 1
