GUN135L-DTTMXW (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

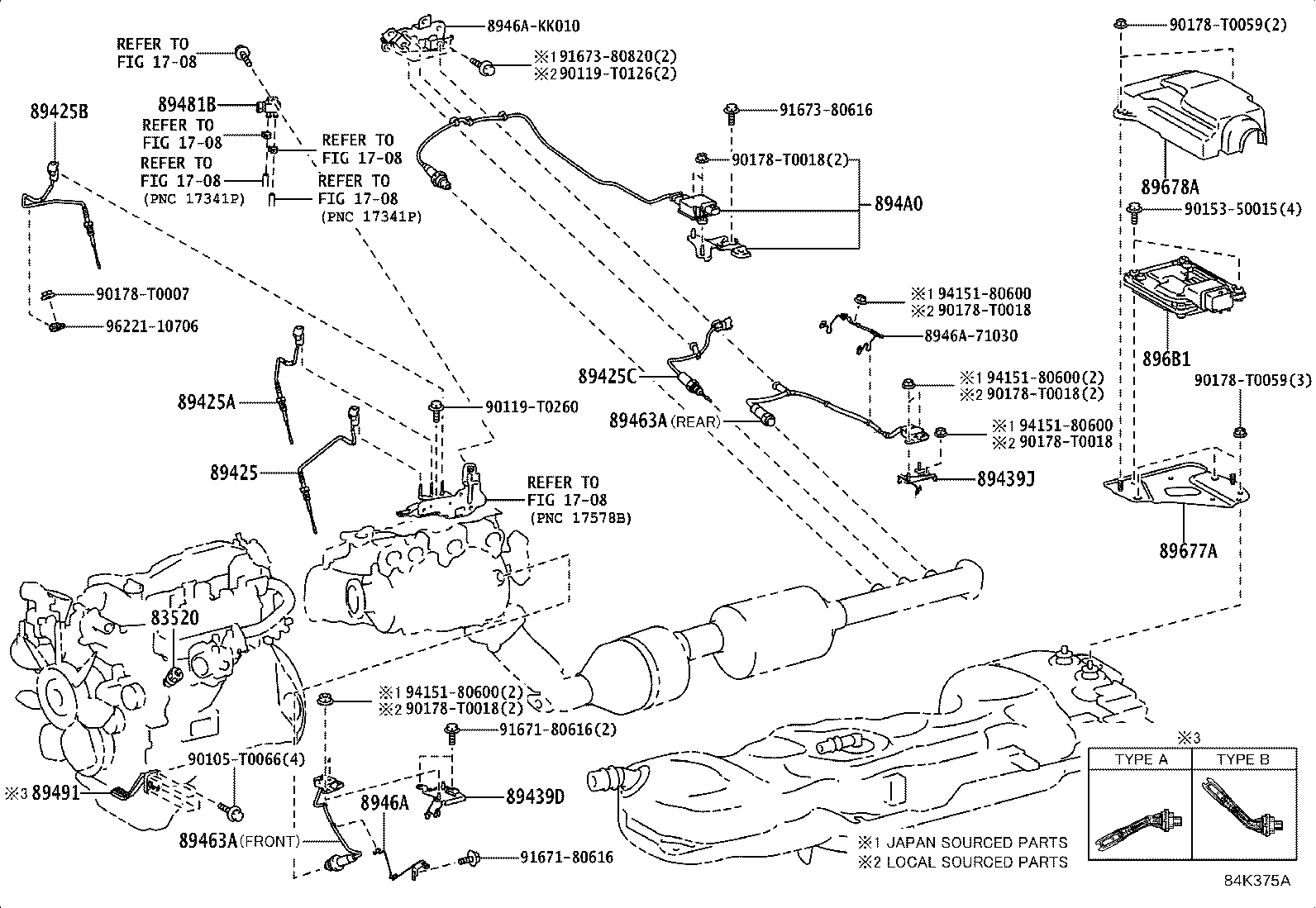

ILLUST NO. 1 OF10(1905- )DCRE

Click highlighted areas on diagram

ENGINE

diagram 1708 1708 1708 1708 1708 1708 83520 89425 89425A 89425B 89425C 89439D 89439J 89463A 89463A 8946A 8946A71030 8946AKK010 89481B 89491 894A0 89677A 89678A 896B1 90105T0066 90119T0126 90119T0260 9015350015 90178T0007 90178T0018 90178T0018 90178T0018 90178T0018 90178T0018 90178T0059 90178T0059 9167180616 9167180616 9167380616 9167380820 9415180600 9415180600 9415180600 9415180600 9622110706
Part # Description Qty Price
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-71070

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-71080

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3
89425-71090

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89481B - SENSOR, DIFFERENTIAL PRESSURE
89481-71010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89491 - SENSOR, ENGINE OIL LEVEL
89491-71010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

TYPE A:REFER ILLUST.

 1
89677A - BRACKET, UREA PUMP CONTROL, NO.1
89677-71010

GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE

 1
89678A - BRACKET, UREA PUMP CONTROL, NO.2
89678-0K010

GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE

 1
Common parts
8946A-71030
8946A-KK010
90105-T0066
90119-T0126
90119-T0260
90153-50015
90178-T0007
90178-T0018
90178-T0059
91671-80616
91673-80616
91673-80820
94151-80600
96221-10706
Linked diagrams
1708
