GUN135L-DTTMXW (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )LHD..DCRE

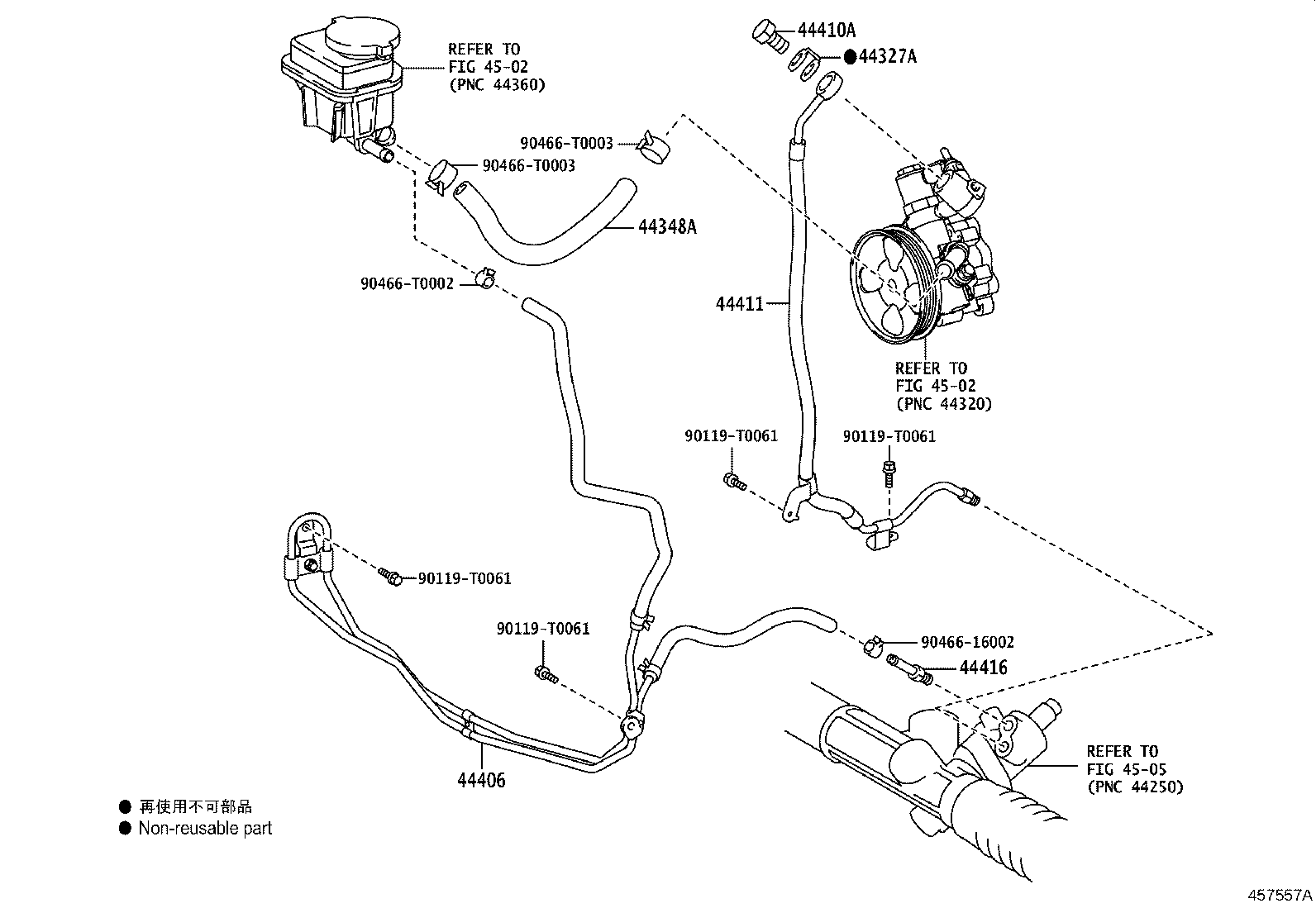

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44410A 44411 44416 4502 4502 4505 90119T0061 90119T0061 90119T0061 90119T0061 9046616002 90466T0002 90466T0003 90466T0003
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-0K100

GUN125..RHD;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB)

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-0K040

GUN125..RHD;GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..LHD..(SADCB,THDCB);GUN125..LHD..(SASCB,SAXTR)..DCRE

 1
Common parts
90119-T0061
90466-16002
90466-T0002
90466-T0003
Linked diagrams
4502
4505
