GUN135L-DTFSXW (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

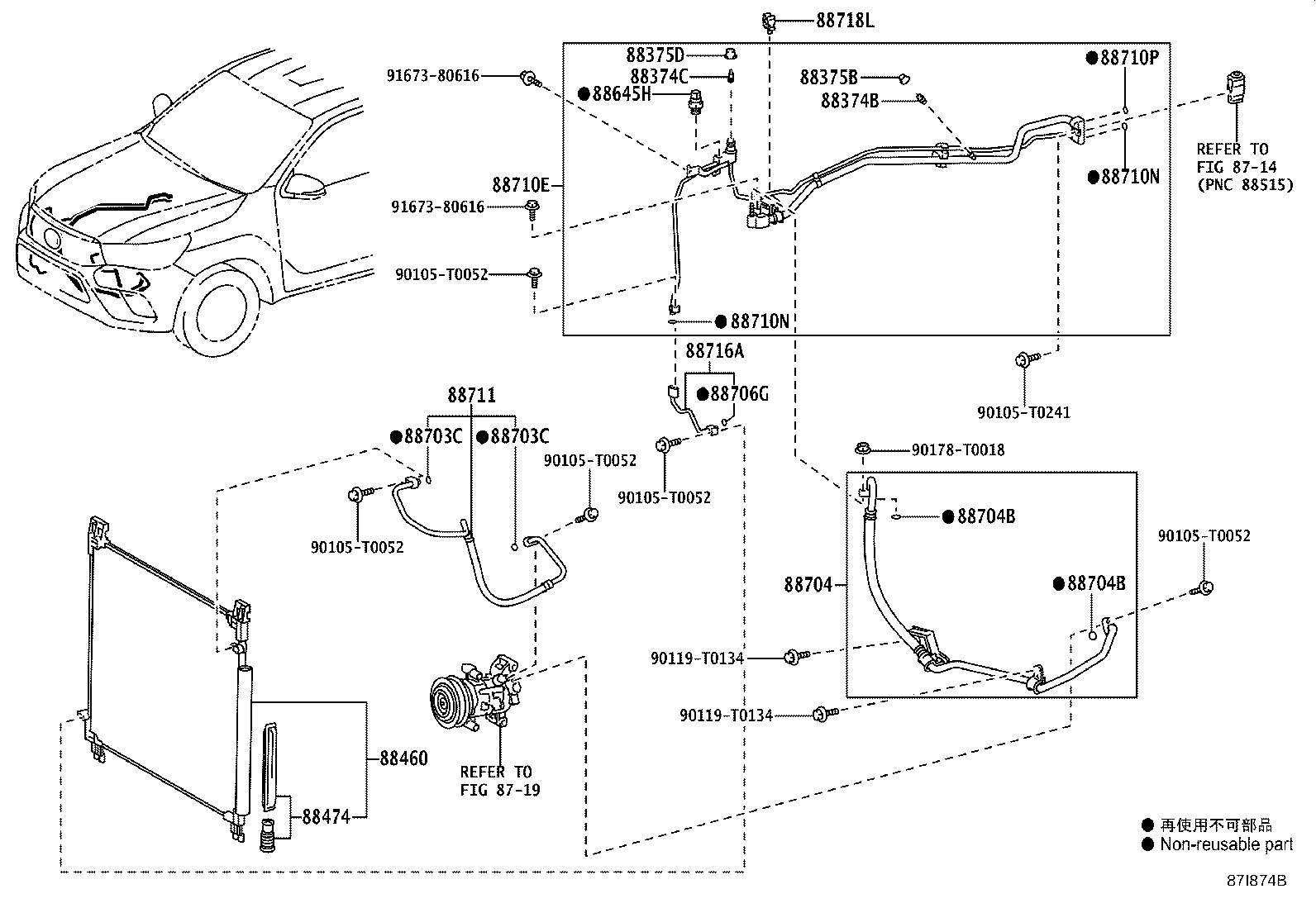

(2006- )THDCB

Click highlighted areas on diagram

EURO 5

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88703C 88703C 88704 88704B 88704B 88706G 88710E 88710N 88710N 88710P 88711 88716A 88718L 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GUN12#,135..THDCB

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GUN12#,135..THDCB

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN12#,135..THDCB

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GUN12#,135..THDCB

 1
88460 - CONDENSER ASSY, COOLER
88460-0K800

GUN125,135..THDCB

 1
88474 - DRYER, COOLER
88474-12010

GUN125,135..THDCB

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

GUN12#,135..THDCB

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90068-14044

GUN125,135..THDCB

ID=10.2,OD=15.0

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90068-14044

GUN125,135..THDCB

ID=10.2,OD=15.0

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0KF50

GUN12#,135..THDCB

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GUN12#,135..THDCB

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GUN12#,135..THDCB

ID=13.4,OD=18.2

 2
88706G - RING, O(FOR LIQUID TUBE)
90068-14042

GUN125,135..THDCB

ID=6.7,OD=10.3

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE70

GUN12#,135..THDCB

 1
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14119

GUN12#,135..THDCB

ID=6.7,OD=10.3

 2
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14119

GUN12#,135..THDCB

ID=6.7,OD=10.3

 2
88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14121

GUN12#,135..THDCB

ID=13.4,OD=18.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0KA20

GUN125,135..THDCB

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KL40

GUN125,135..THDCB

 1
88718L - CLAMP, PIPING
88718-0KF20

GUN12#,135..THDCB

 1
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719

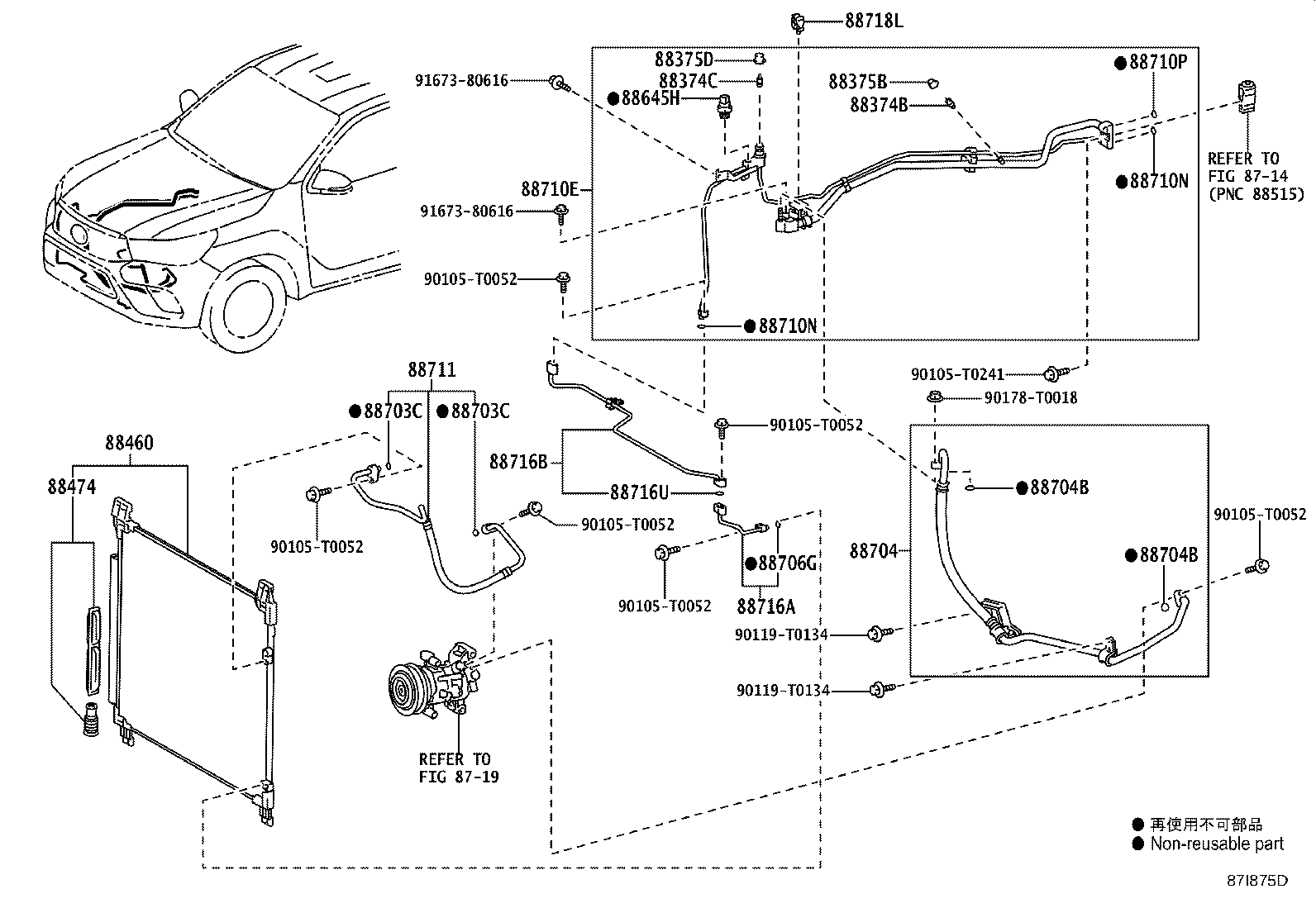

(2006- )THDCB

Click highlighted areas on diagram

EURO 6C OR EURO 6D-TEMP

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88645H 88703C 88703C 88704 88704B 88704B 88706G 88710E 88710N 88710N 88710P 88711 88716A 88716B 88716U 88718L 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0052 90105T0241 90119T0134 90119T0134 90178T0018 9167380616 9167380616
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GUN12#,135..THDCB

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

GUN12#,135..THDCB

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

GUN12#,135..THDCB

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

GUN12#,135..THDCB

 1
88460 - CONDENSER ASSY, COOLER
88460-0K800

GUN125,135..THDCB

 1
88474 - DRYER, COOLER
88474-12010

GUN125,135..THDCB

 1
88645H - SWITCH, PRESSURE NO.1
88645-0K030

GUN12#,135..THDCB

 1
88703C - RING, O(FOR DISCHARGE HOSE)
90068-14044

GUN125,135..THDCB

ID=10.2,OD=15.0

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90068-14044

GUN125,135..THDCB

ID=10.2,OD=15.0

 2
88704 - HOSE SUB-ASSY, SUCTION
88704-0KF50

GUN12#,135..THDCB

 1
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GUN12#,135..THDCB

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

GUN12#,135..THDCB

ID=13.4,OD=18.2

 2
88706G - RING, O(FOR LIQUID TUBE)
90068-14042

GUN125,135..THDCB

ID=6.7,OD=10.3

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-0KE70

GUN12#,135..THDCB

 1
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14119

GUN12#,135..THDCB

ID=6.7,OD=10.3

 2
88710N - RING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14119

GUN12#,135..THDCB

ID=6.7,OD=10.3

 2
88710P - RING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONE
90099-14121

GUN12#,135..THDCB

ID=13.4,OD=18.2

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0KA20

GUN125,135..THDCB

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-0KL40

GUN125,135..THDCB

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88710-0KN60

GUN125,135..THDCB

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90068-14042

GUN125,135..THDCB

 1
88718L - CLAMP, PIPING
88718-0KF20

GUN12#,135..THDCB

 1
Common parts
90105-T0052
90105-T0241
90119-T0134
90178-T0018
91673-80616
Linked diagrams
8714
8719
