GUN135L-DTFSXW (2020)
Toyota Hilux
ILLUST NO. 1 OF 3(2006- )
AUTO HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900H - CONTROL ASSY, AIR CONDITIONER(AUTO) | ||||
| 55900-0K850C0 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55900-0K850C0 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55900-0KB10C0 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55900H - CONTROL ASSY, AIR CONDITIONER(AUTO) | ||||
| 55900-0K850C0 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55900-0K850C0 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55900-0KB10C0 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
ILLUST NO. 3 OF 3(2006- )LHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88505 - DUCT SUB-ASSY,AIR CONDITIONER | ||||
| 88505-0K760 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,(J) |
1 | ||
| 88625-0K010 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,(L) |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-0K020 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,(L) |
1 | ||
| 88625-47021 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,(J) |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-0K010 |
GUN12#,135 (L) |
1 | ||
| 88790-28100 |
GUN12#,135 (J) |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||

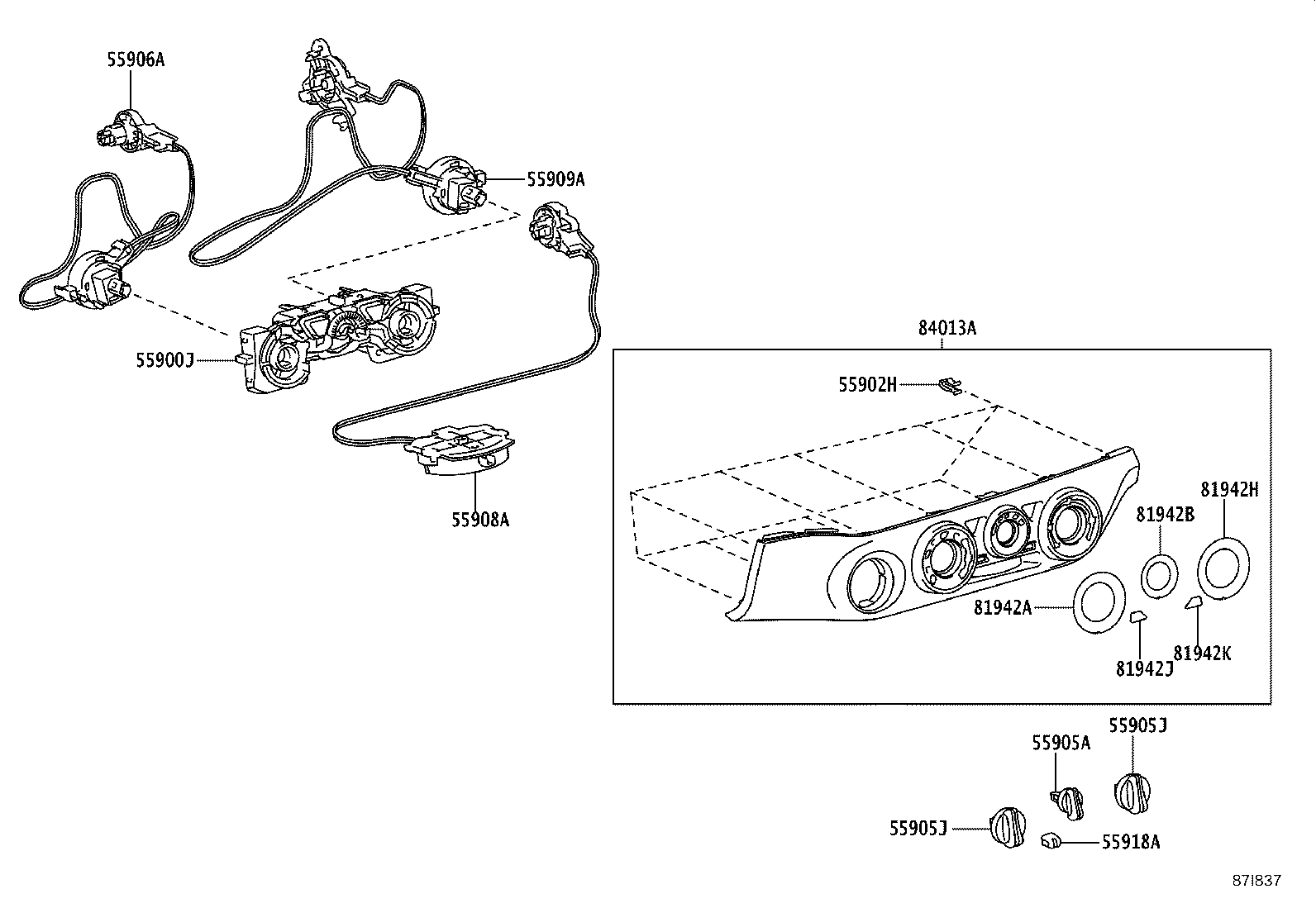

ILLUST NO. 1 OF 3(2006- )LHD
MANUAL HEATER CONTROL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900J - CONTROL ASSY, AIR CONDITIONER(MANUAL) | ||||
| 55900-0KC10 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE |
1 | ||
| 55900-0KC10 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER |
1 | ||
| 55900-0KF00 |
GUN125..S;GUN135..H,S;GUN125..SAXTR..H |
1 | ||
| 55900-0KF00 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55900-0KF00 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55900-0KF00 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55900-0KF00 |
GUN135..H;GUN125..SAXTR..H WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55902H - CLIP(FOR AIR CONDITIONER PANEL) | ||||
| 90467-05171 |
GUN135;GUN125..L,S;GUN125..SAXTR..H |
9 | ||
| 90467-05171 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
9 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55917-0K010 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55917-0K010 |
GUN135..H;GUN125..SAXTR..H WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55917-0K010 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55917-0K010 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55917-0K010 |
GUN125..S;GUN135..H,S;GUN125..SAXTR..H |
1 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-0K230 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN135..H;GUN125..SAXTR..H WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN125..S;GUN135..H,S;GUN125..SAXTR..H |
2 | ||
| 55905J - KNOB SUB-ASSY, CONTROL | ||||
| 55905-0K230 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN135..H;GUN125..SAXTR..H WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO |
2 | ||
| 55905-0K230 |
GUN125..S;GUN135..H,S;GUN125..SAXTR..H |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-0K060 |
GUN135;GUN125..L,S;GUN125..SAXTR..H |
1 | ||
| 55906-0K060 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-0K110 |
GUN135;GUN125..SAXTR..H;GUN125..LHD..(L,S) |
1 | ||
| 55908-0K110 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-0K060 |
GUN135;GUN125..L,S;GUN125..SAXTR..H |
1 | ||
| 55909-0K060 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55918A - LEVER, AIR INLET DAMPER CONTROL | ||||
| 55918-0K010 |
GUN125,135..THDCB..S STEERING WHEEL-LEATHER&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55918-0K010 |
GUN135..H;GUN125..SAXTR..H WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55918-0K010 |
GUN125,135..THDCB..S STEERING WHEEL-URETHANE&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55918-0K010 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 55918-0K010 |
GUN125..S;GUN135..H,S;GUN125..SAXTR..H |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81941-0K010 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81941-0K010 |
GUN125,135..THDCB..S |
1 | ||
| 81941-0K030 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81942B - SHEET, HEATER CONTROL NAME, NO.2 | ||||
| 81942-0K770 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81942-0K660 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81942-0K660 |
GUN125,135..THDCB..S |
1 | ||
| 81942H - SHEET, HEATER CONTROL NAME, NO.3 | ||||
| 81943-0K040 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81943-0K100 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81943-0K100 |
GUN125,135..THDCB..S |
1 | ||
| 81942J - SHEET, HEATER CONTROL NAME, NO.4 | ||||
| 81944-0K020 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81944-0K010 |
GUN125,135..THDCB..S |
1 | ||
| 81944-0K010 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81942K - SHEET, HEATER CONTROL NAME, NO.5 | ||||
| 81945-0K010 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81945-0K020 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 81945-0K010 |
GUN125,135..THDCB..S |
1 | ||
| 84013A - PANEL SUB-ASSY, INTEGRATION | ||||
| 55406-KK070C0 |
GUN125,135..THDCB..S BLACK,TRIM2# |
1 | ||
| 55406-KK070C0 |
GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||
| 55406-KK170C0 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2# |
1 | ||

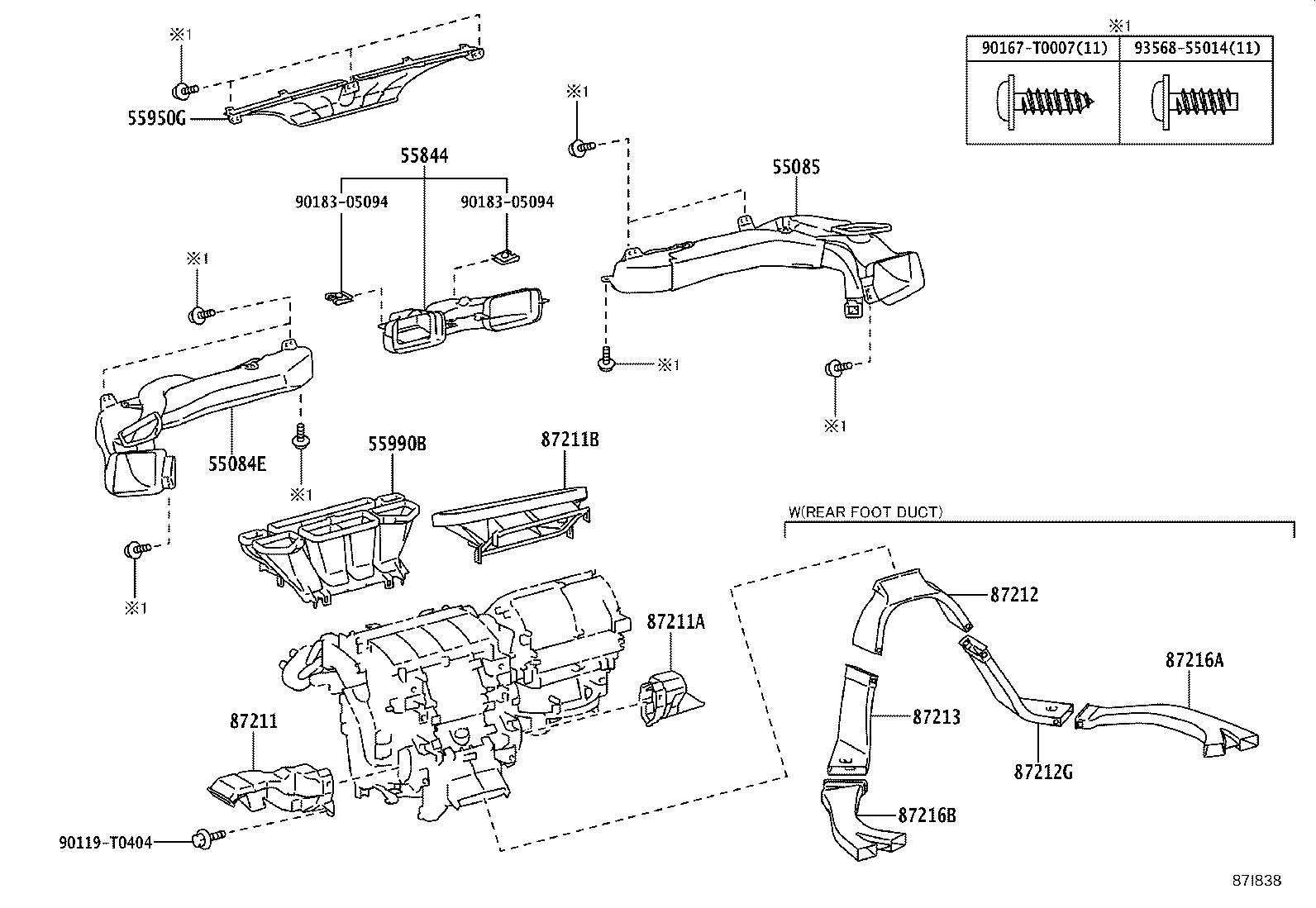

ILLUST NO. 2 OF 3(2006- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55084E - DUCT SUB-ASSY, HEATER TO REGISTER, NO.1 | ||||
| 55084-KK020 |
GUN12#,135..LHD |
1 | ||
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-KK150 |
GUN12#,135..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-KK040 |
GUN12#,135..LHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-KK030 |
GUN12#,135 |
1 | ||
| 55990B - NOZZLE ASSY, DEFROSTER, LOWER | ||||
| 55990-KK020 |
GUN12#,135 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-0K760 |
GUN12#,135..THDCB |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-0K780 |
GUN12#,135..THDCB |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-0KA80 |
GUN12#,135..THDCB |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87214-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 87212G - DUCT, AIR, REAR NO.3 | ||||
| 87212-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 87216A - DUCT, AIR, REAR NO.5 | ||||
| 87215-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| Common parts | ||||
| 90119-T0404 | ||||
| 90167-T0007 | ||||
| 90183-05094 | ||||
| 93568-55014 | ||||
