GUN135L-DTFSXW (2020)
Toyota Hilux
(2006- )THDCB

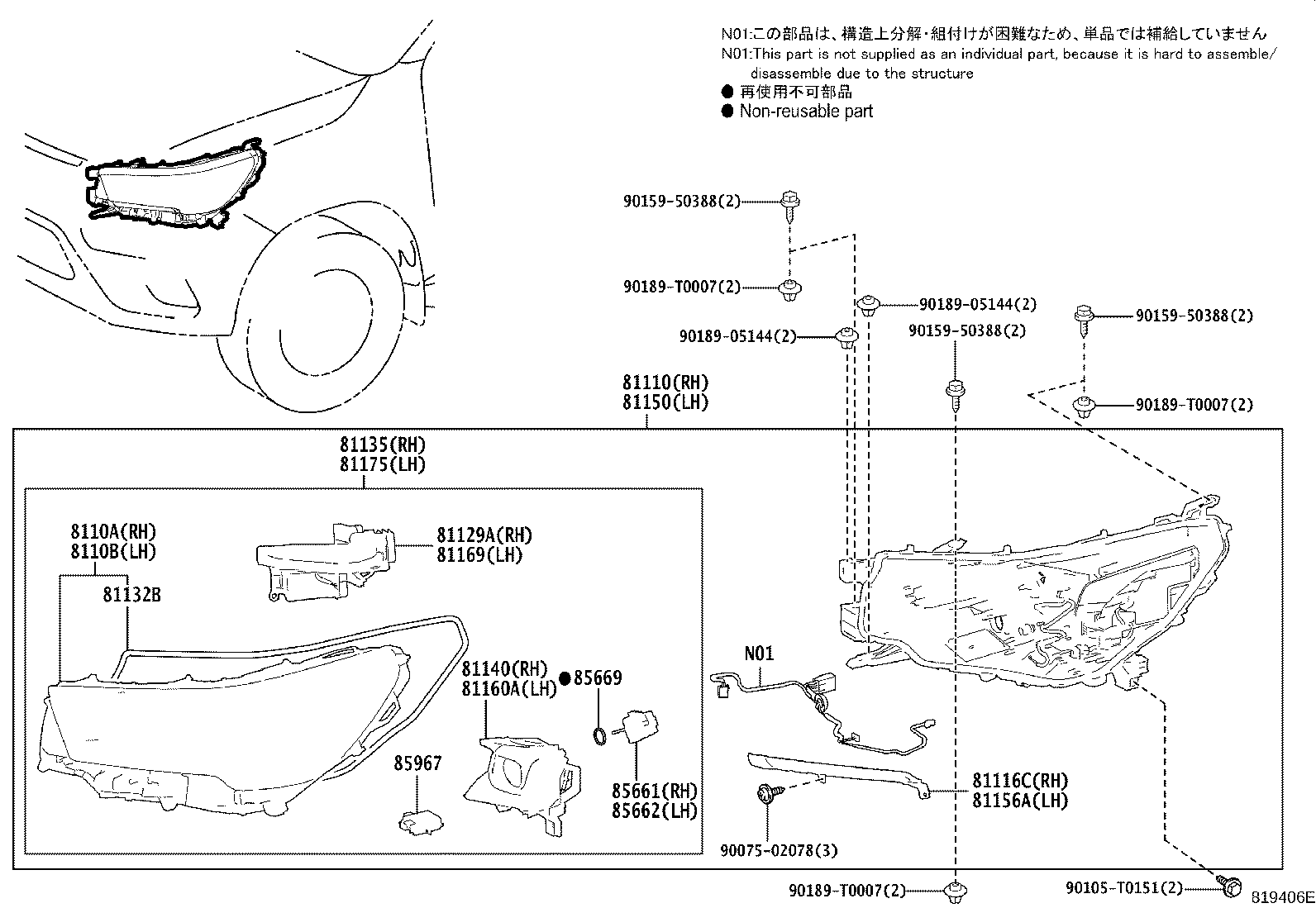

LED HEADLAMP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-0KE80 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-0KE80 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81110-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81110-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81116C - BRACKET, HEADLAMP, RH | ||||
| 81116-0KE80 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81129A - REFLECTOR, HEADLAMP, RH | ||||
| 81129-0KE80 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-48C30 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81130-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81145-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-0KK90 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81150-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81150-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81156A - BRACKET, HEADLAMP, LH | ||||
| 81156-0KE80 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-0KK90 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81169 - REFLECTOR, HEADLAMP, LH | ||||
| 81169-0KE80 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81185-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81185-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-02040 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-02040 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 85967 - COMPUTER, LIGHT CONTROL | ||||
| 85967-12050 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| Common parts | ||||
| 90075-02078 | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
(2006- )THDCB

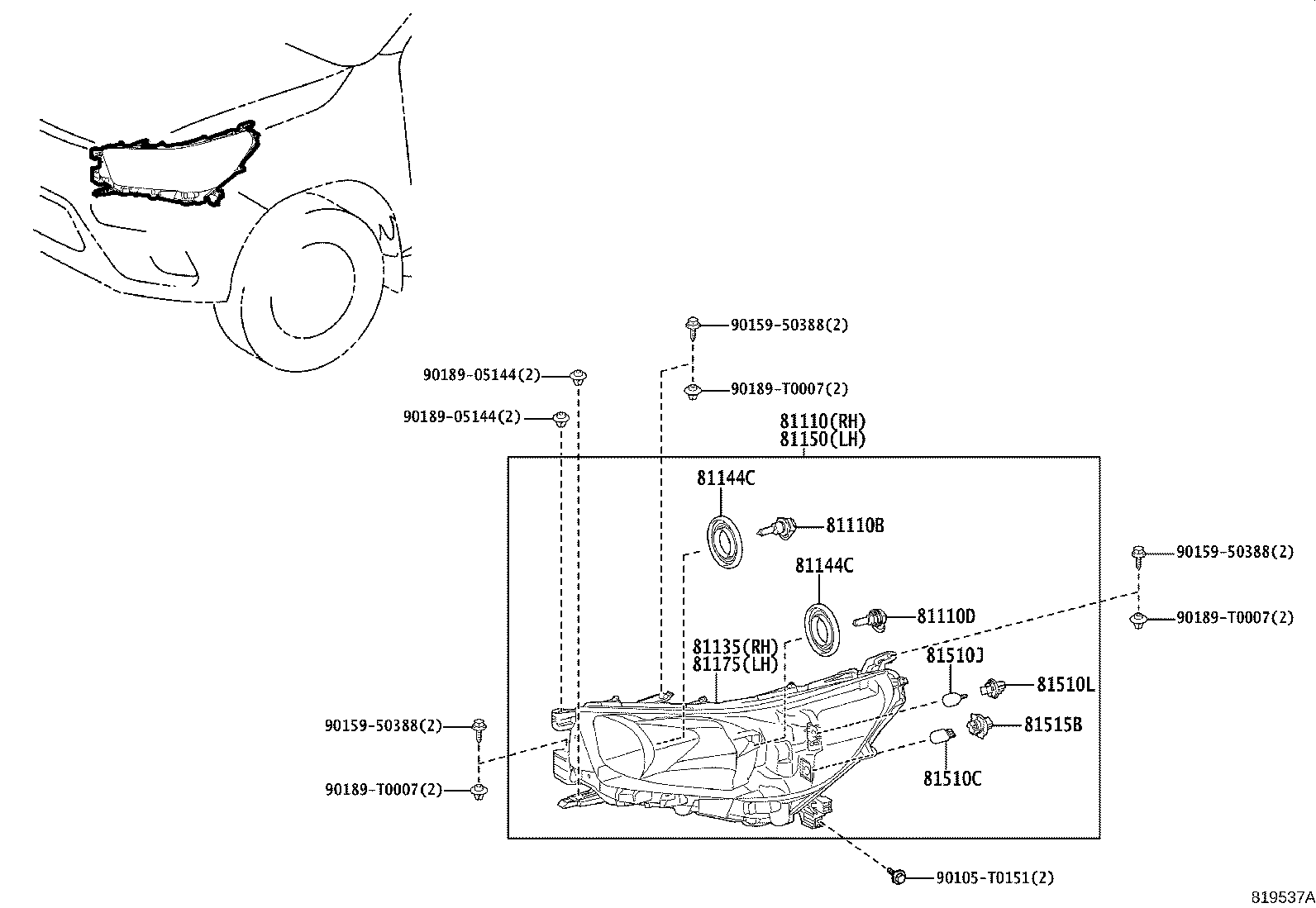

HALOGEN HEADLAMP(4BEAM TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81110-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81110-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13099 |
GUN12#,135..H 12V 65W(SAE),60W(UN),HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-13099 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) 12V 65W(SAE),60W(UN) |
2 | ||
| 81110D - BULB(FOR HEADLAMP, NO.2) | ||||
| 90981-13075 |
GUN12#,135..H 12V 55W,HALOGEN,HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-13075 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) 12V 55W,HALOGEN |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81130-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81145-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) |
4 | ||
| 90075-65006 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
4 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) |
4 | ||
| 90075-65006 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81150-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81150-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81185-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81185-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GUN12#,135..H 12V 21W,AMBER,HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-15021 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) 12V 21W,AMBER |
2 | ||
| 81510J - BULB(FOR DAYTIME RUNNING LAMP) | ||||
| 90981-13088 |
GUN12#,135..H 12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-13088 |
GUN12#,135..L,S 12V 21/5W |
2 | ||
| 81510L - SOCKET, DAYTIME RUNNING LAMP | ||||
| 90075-60086 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90075-60086 |
GUN12#,135..L,S |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) |
2 | ||
| 90075-60028 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
(2006- )
HALOGEN HEADLAMP(2BEAM TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81110 - HEADLAMP ASSY, RH | ||||
| 81110-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81110-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81110-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81110B - BULB(FOR HEADLAMP, NO.1) | ||||
| 90981-13099 |
GUN12#,135..H 12V 65W(SAE),60W(UN),HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-13099 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) 12V 65W(SAE),60W(UN) |
2 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81130-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81145-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81144C - COVER, HEADLAMP SOCKET | ||||
| 90075-65006 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) |
4 | ||
| 90075-65006 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
4 | ||
| 81150 - HEADLAMP ASSY, LH | ||||
| 81150-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81150-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81150-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81170-0KJ70 |
GUN12#,135..THDCB..S |
1 | ||
| 81185-0KL01 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81185-0KL00 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 81510C - BULB (FOR FRONT TURN SIGNAL LAMP) | ||||
| 90981-15021 |
GUN12#,135..H 12V 21W,AMBER,HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-15021 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) 12V 21W,AMBER |
2 | ||
| 81510J - BULB(FOR DAYTIME RUNNING LAMP) | ||||
| 90981-13088 |
GUN12#,135..H 12V 21/5W,HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90981-13088 |
GUN12#,135..L,S 12V 21/5W |
2 | ||
| 81510L - SOCKET, DAYTIME RUNNING LAMP | ||||
| 90075-60086 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 90075-60086 |
GUN12#,135..L,S |
2 | ||
| 81515B - SOCKET, FRONT TURN SIGNAL LAMP | ||||
| 90075-60028 |
GUN12#,135..(SADCB,SAXTR,THDCB)..(L,S) |
2 | ||
| 90075-60028 |
GUN12#,135..H HEADLAMP-4-BULB HALOGEN MULTI |
2 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-02040 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 85662 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85661-02040 |
GUN12#,135..THDCB..S HEADLAMP-LED |
1 | ||
| 85669 - PACKING, HEADLAMP LEVELING MOTOR BASE | ||||
| 90075-99120 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| Common parts | ||||
| 90105-T0151 | ||||
| 90159-50388 | ||||
| 90189-05144 | ||||
| 90189-T0007 | ||||
