GUN135L-DTFSXW (2020)

Toyota Hilux

Production Jun 2020 - Aug 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(2006- )

Click highlighted areas on diagram

SEAT COVER EDGE WIRE & CLIP

diagram 7114930050 711910K010 9046816019 9046818008
Part # Description Qty Price
Common parts
71149-30050
71191-0K010
90468-16019
90468-18008

(2006- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71875G 71876G 71910A 71931 71931 72020 72125S 72125T 72138H 72138J 72201B 72265 72266 72526E 73920A 79197A 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0K340

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71014-0K650

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71014-0K650

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71014-0K340

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71014-0K360

GUN12#,135..THDCB

 1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN12#,135..THDCB

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K030

GUN12#,135..THDCB

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KT40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KT30C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KT80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71072-0KU00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU20C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K63221

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074-0K59122

GUN125,135..THDCB

BLACK,TRIM2#

 1
71074-0KF32C8

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG31C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KE9120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K091

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-0K081

GUN12#,135..THDCB

 1
71512-0K571

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71512-0K571

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71512-0K091

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-02170C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71537-02170C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71537-02300C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-02120C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-02120C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71538-02230C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K200

GUN12#,135..THDCB

 1
71552-0K160

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71552-0K160

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71759B - HOOK, FRONT SEAT BACK
71759-0K140

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 4
71759-0K140

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

BLACK,TRIM2#

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K100C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71812-0K110C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71812-0K100C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71812-0K120C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71812-0K120C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN12#,135..THDCB

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K240C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71862-0K250C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71862-0K240C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71875-0K130C0

GUN125,135..THDCB;GUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,THDCB)

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71875-0K130C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K130C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71876-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71876-0K130C0

GUN125,135..THDCB;GUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,THDCB)

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0KB60C2

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71910-0KC00C2

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KB80C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71910-0KB60C2

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KC00C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
72020-0K070

GUN12#,135..THDCB

 1
72020-0K060

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72020-0K080

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
72020-0K080

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D160

GUN12#,135..THDCB

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
72526-0D260C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72526-06130C0

GUN126..LHD;GUN125,135..THDCB;GUN125,135..LHD..(SADCB,SAXTR)..H

BLACK,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-0K220

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K230

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-0K070

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )

Click highlighted areas on diagram

FRONT(LH MANUAL 6WAY)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71873 71874 71875G 71876G 71910A 71931 71931 72020 72125S 72125T 72138H 72138J 72201B 72265 72266 72495 72526E 73920A 79197A 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0K340

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71014-0K650

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71014-0K650

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71014-0K340

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71014-0K360

GUN12#,135..THDCB

 1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN12#,135..THDCB

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K030

GUN12#,135..THDCB

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KT40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KT30C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KT80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71072-0KU00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU20C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K63221

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074-0K59122

GUN125,135..THDCB

BLACK,TRIM2#

 1
71074-0KF32C8

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG31C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KE9120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K091

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-0K081

GUN12#,135..THDCB

 1
71512-0K571

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71512-0K571

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71512-0K091

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-02170C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71537-02170C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71537-02300C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-02120C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-02120C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71538-02230C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K200

GUN12#,135..THDCB

 1
71552-0K160

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71552-0K160

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71759B - HOOK, FRONT SEAT BACK
71759-0K140

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 4
71759-0K140

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

BLACK,TRIM2#

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K100C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71812-0K110C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71812-0K100C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71812-0K120C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71812-0K120C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN12#,135..THDCB

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K240C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71862-0K250C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71862-0K240C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06520

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-06520

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71873-06510

GUN12#,135..THDCB

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06480

GUN12#,135..THDCB

 1
71874-06490

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-06490

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71875-0K130C0

GUN125,135..THDCB;GUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,THDCB)

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71875-0K130C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K130C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71876-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71876-0K130C0

GUN125,135..THDCB;GUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,THDCB)

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0KB60C2

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71910-0KC00C2

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KB80C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71910-0KB60C2

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KC00C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
72020-0K070

GUN12#,135..THDCB

 1
72020-0K060

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72020-0K080

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
72020-0K080

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D160

GUN12#,135..THDCB

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72495 - HANDLE, VERTICAL ADJUSTING, LH
72495-02060C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
72526-0D260C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72526-06130C0

GUN126..LHD;GUN125,135..THDCB;GUN125,135..LHD..(SADCB,SAXTR)..H

BLACK,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-0K220

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K230

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-0K070

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )

Click highlighted areas on diagram

FRONT(LH POWER SEAT)

diagram 71014S 71052A 71054S 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71812D 71849 71862 71868A 71873 71874 71875G 71876G 71910A 71931 71931 72020 72125S 72125T 72138H 72138J 72265 72266 73920A 79197A 8202 8202 8401 8401 8401 8401 87510L 87510N 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9418560600
Part # Description Qty Price
71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH
71014-0K340

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71014-0K650

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71014-0K650

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71014-0K340

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71014-0K360

GUN12#,135..THDCB

 1
71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71051-06070

GUN12#,135..THDCB

 1
71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH
71053-0K030

GUN12#,135..THDCB

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KT40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KT30C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KT80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71072-0KU00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU20C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K63221

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074-0K59122

GUN125,135..THDCB

BLACK,TRIM2#

 1
71074-0KF32C8

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG31C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KE9120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K091

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-0K081

GUN12#,135..THDCB

 1
71512-0K571

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71512-0K571

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71512-0K091

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-02170C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71537-02170C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71537-02300C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-02120C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-02120C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71538-02230C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K200

GUN12#,135..THDCB

 1
71552-0K160

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71552-0K160

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71759B - HOOK, FRONT SEAT BACK
71759-0K140

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 4
71759-0K140

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

BLACK,TRIM2#

 2
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K100C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71812-0K110C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71812-0K100C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71812-0K120C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71812-0K120C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN12#,135..THDCB

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K240C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71862-0K250C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71862-0K240C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71868A - SHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
71868-0K030C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71868-0K030C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06520

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-06520

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71873-06510

GUN12#,135..THDCB

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06480

GUN12#,135..THDCB

 1
71874-06490

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-06490

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71875G - COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
71875-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71875-0K130C0

GUN125,135..THDCB;GUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,THDCB)

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71875-0K130C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71876G - COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
71876-0K130C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71876-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71876-0K130C0

GUN125,135..THDCB;GUN125,135..LHD..SADCB..H;GUN126..LHD..(SADCB,THDCB)

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0KB60C2

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71910-0KC00C2

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KB80C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71910-0KB60C2

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KC00C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
72020 - ADJUSTER ASSY, FRONT SEAT, LH
72020-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
72020-0K070

GUN12#,135..THDCB

 1
72020-0K060

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72020-0K080

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
72020-0K080

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
87510L - HEATER ASSY, FRONT SEAT CUSHION, LH
87510-0K220

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K230

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510N - HEATER ASSY, FRONT SEAT BACK, LH
87530-0K070

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
94185-60600
Linked diagrams
7152
8202
8401

(2006- )

Click highlighted areas on diagram

FRONT SEAT(RH MANUAL 4WAY)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759B 71759C 71759C 71759D 71811D 71848A 71861 71875F 71876F 71910A 71931 71931 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72525A 73910A 79197A 87510K 87510M 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-0K400

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71013-0K400

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71013-0K420

GUN12#,135..THDCB

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN12#,135..THDCB

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K030

GUN12#,135..THDCB

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KW80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71071-0KW50C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KW40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KX10C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71071-0KX00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KX30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KL2220

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71073-0KT7120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KU52C7

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KV71C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KV91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KK8121

GUN125,135..THDCB

BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K231

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71501-0K031

GUN12#,135..THDCB

 1
71501-0K231

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K230

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71551-0K230

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K270

GUN12#,135..THDCB

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71759B - HOOK, FRONT SEAT BACK
71759-0K140

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 4
71759-0K140

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

BLACK,TRIM2#

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

GUN12#,135..THDCB

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K210C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0KB60C2

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71910-0KC00C2

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KB80C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71910-0KB60C2

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KC00C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

GUN12#,135..THDCB

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN12#,135..THDCB

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

GUN126,135..LHD;GUN125..SADCB..(L,S);GUN125..LHD..SADCB..H;GUN125..SASCB,SAXTR,THDCB

BLACK,TRIM2#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-0K220

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87530-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )SADCB,THDCB

Click highlighted areas on diagram

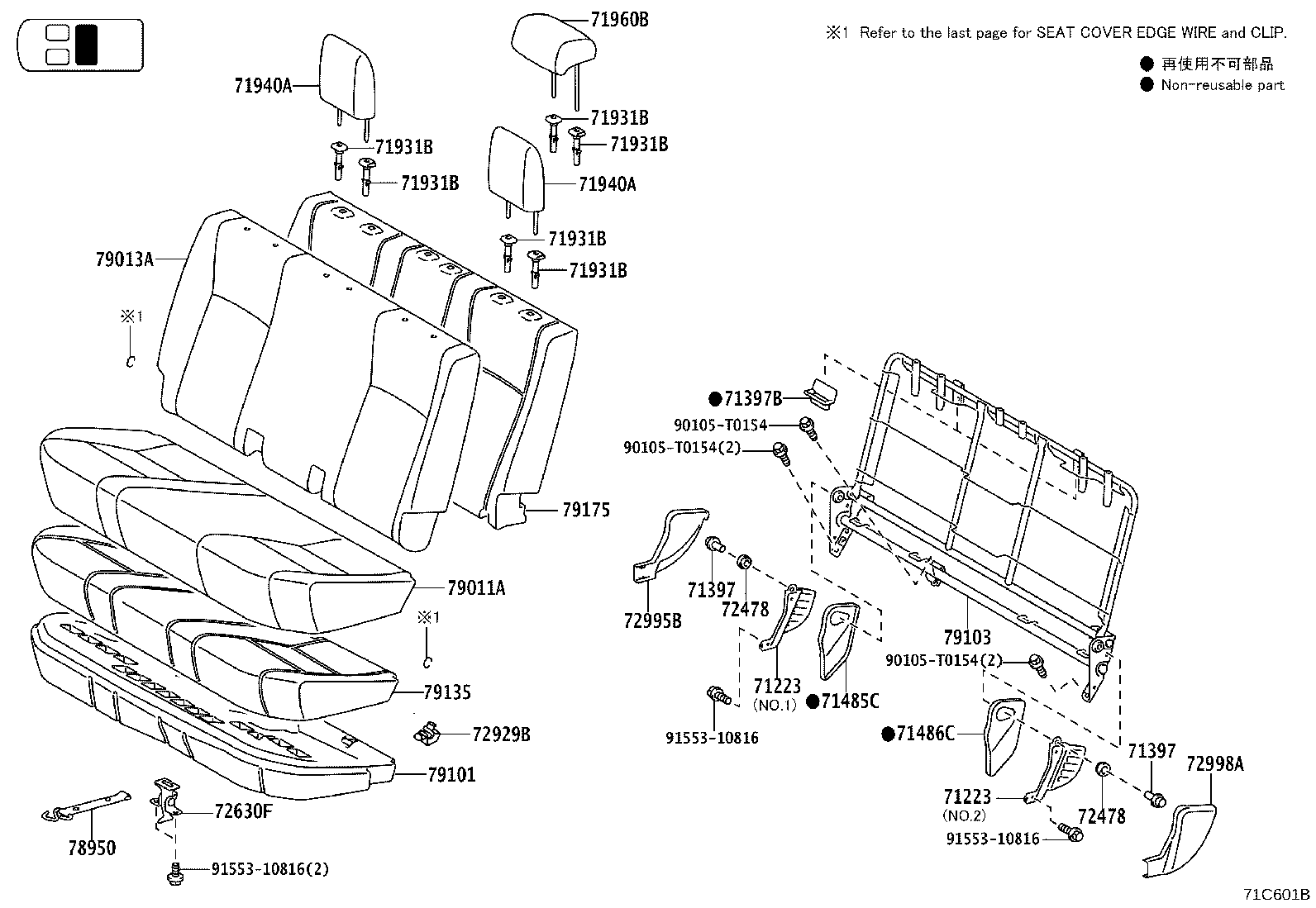

REAR SEAT(SEPARATE TYPE)

diagram 71223 71223 71303C 71304C 71397 71397 71397 71397 71397B 71485C 71486C 71830B 71830B 71931B 71931B 71931B 71931B 71931B 71931B 71940A 71940A 71960B 72478 72478 72630F 72630F 72806B 72830 72835 72836B 72995 72995B 72998A 72998B 73198B 78950 78950 79011 79012 79013A 79101B 79102 79103 79135A 79136B 79175 9008017114 90105T0154 90105T0154 90105T0154 90178T0099 90178T0099 9155310816 9155310816 9155310816 9155310816 9155310816 9155310816 9415120800 9415120800
Part # Description Qty Price
71223 - BRACKET, REAR SEAT CUSHION SIDE
71224-0K060

GUN12#,135..THDCB

NO.2:REFER ILLUST.

 1
71223-0K050

GUN12#,135..THDCB

NO.1:REFER ILLUST.

 1
71223 - BRACKET, REAR SEAT CUSHION SIDE
71224-0K060

GUN12#,135..THDCB

NO.2:REFER ILLUST.

 1
71223-0K050

GUN12#,135..THDCB

NO.1:REFER ILLUST.

 1
71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH
71304-0K090

GUN12#,135..THDCB

 1
71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH
71303-0K090

GUN12#,135..THDCB

 1
71397 - STOPPER, REAR SEAT
71397-0K090

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71397-0K090

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 4
71397 - STOPPER, REAR SEAT
71397-0K090

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71397-0K090

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 4
71397 - STOPPER, REAR SEAT
71397-0K090

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71397-0K090

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 4
71397 - STOPPER, REAR SEAT
71397-0K090

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71397-0K090

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 4
71397B - HOLDER, REAR SEAT BACK, RH
71398-KK010

GUN12#,135..SADCB,THDCB

 2
71485C - COVER, REAR SEAT HINGE, RH
71485-0K030C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71486C - COVER, REAR SEAT HINGE, LH
71486-0K030C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71830B - BUSH(FOR REAR SEAT ARMREST)
90386-12029

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 2
71830B - BUSH(FOR REAR SEAT ARMREST)
90386-12029

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 2
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0KK11C4

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71940-0K771C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71940-0KK01C1

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0KK11C4

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71940-0K771C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71940-0KK01C1

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0K431C0

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71960-0K331C3

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71960-0K781C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
72478 - BUSH, VERTICAL ADJUSTER
72478-0K010

GUN12#,135..SADCB,THDCB

 2
72478 - BUSH, VERTICAL ADJUSTER
72478-0K010

GUN12#,135..SADCB,THDCB

 2
72630F - LOCK ASSY, REAR NO.2 SEAT
72650-0K271

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72650-0K271

GUN12#,135..THDCB

 2
72630F - LOCK ASSY, REAR NO.2 SEAT
72650-0K271

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72650-0K271

GUN12#,135..THDCB

 2
72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP
72806-0K010C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72830 - ARMREST ASSY, REAR SEAT, CENTER
72830-0K520C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
72830-0K510C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72835 - ARM, RR SEAT ARMREST, RH
72835-0K030

GUN12#,135..THDCB

 1
72836B - ARM, REAR SEAT ARMREST, LH
72836-0K030

GUN12#,135..THDCB

 1
72995 - COVER, REAR SEAT CUSHION, RH
72995-0K130C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72995B - COVER, NO.1 SEAT CUSHION, RH
72995-0K110C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72998A - COVER, NO.1 SEAT CUSHION, LH
72998-0K020C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72998B - COVER, REAR SEAT CUSHION, LH
72998-0K040C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-0K211C0

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
78950-0K211C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-0K211C0

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
78950-0K211C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-0KD00C1

GUN12#,135..THDCB

BLACK,TRIM2#

 1
79011-0KD10C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-0KB20C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
79012-0KB10C1

GUN12#,135..THDCB

BLACK,TRIM2#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-0KD91C7

GUN12#,135..THDCB

BLACK,TRIM2#

 1
79013-0KF91C4

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
79013-0KE01C6

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
79101B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH
79101-0K260

GUN12#,135..THDCB

 1
79102 - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
79102-0K250

GUN12#,135..THDCB

 1
79103 - FRAME SUB-ASSY, NO.1 SEAT BACK
79010-0K020

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
79010-0K040

GUN12#,135..THDCB

 1
79135A - PAD, NO.1 SEAT CUSHION, RH
71611-0K010

GUN12#,135..THDCB

 1
79136B - PAD, NO.1 SEAT CUSHION, LH
71612-0K020

GUN12#,135..THDCB

 1
79175 - PAD, NO.1 SEAT BACK
79175-0K270

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
79175-0K290

GUN12#,135..THDCB

 1
Common parts
90080-17114
90105-T0154
90178-T0099
91553-10816
94151-20800

(2006- )SADCB,THDCB

Click highlighted areas on diagram

REAR SEAT(BENCH TYPE)

diagram 71223 71223 71397 71397 71397B 71485C 71486C 71931B 71931B 71931B 71931B 71931B 71931B 71940A 71940A 71960B 72478 72478 72630F 72929B 72995B 72998A 78950 79011A 79013A 79101 79103 79135 79175 90105T0154 90105T0154 90105T0154 9155310816 9155310816 9155310816
Part # Description Qty Price
71223 - BRACKET, REAR SEAT CUSHION SIDE
71224-0K060

GUN12#,135..THDCB

NO.2:REFER ILLUST.

 1
71223-0K050

GUN12#,135..THDCB

NO.1:REFER ILLUST.

 1
71223 - BRACKET, REAR SEAT CUSHION SIDE
71224-0K060

GUN12#,135..THDCB

NO.2:REFER ILLUST.

 1
71223-0K050

GUN12#,135..THDCB

NO.1:REFER ILLUST.

 1
71397 - STOPPER, REAR SEAT
71397-0K090

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71397-0K090

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 4
71397 - STOPPER, REAR SEAT
71397-0K090

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 2
71397-0K090

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

 4
71397B - HOLDER, REAR SEAT BACK, RH
71398-KK010

GUN12#,135..SADCB,THDCB

 2
71485C - COVER, REAR SEAT HINGE, RH
71485-0K030C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71486C - COVER, REAR SEAT HINGE, LH
71486-0K030C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST
71930-02370C0

GUN12#,135..THDCB

W(LOCK)&W(BUTTON),BLACK,TRIM2#

 3
71931-02130C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 3
71940A - HEADREST ASSY, REAR SEAT
71940-0KK11C4

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71940-0K771C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71940-0KK01C1

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0KK11C4

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71940-0K771C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71940-0KK01C1

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71960B - HEADREST ASSY, REAR SEAT, CENTER
71960-0K431C0

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71960-0K331C3

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71960-0K781C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
72478 - BUSH, VERTICAL ADJUSTER
72478-0K010

GUN12#,135..SADCB,THDCB

 2
72478 - BUSH, VERTICAL ADJUSTER
72478-0K010

GUN12#,135..SADCB,THDCB

 2
72630F - LOCK ASSY, REAR NO.2 SEAT
72650-0K271

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
72650-0K271

GUN12#,135..THDCB

 2
72995B - COVER, NO.1 SEAT CUSHION, RH
72995-0K110C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72998A - COVER, NO.1 SEAT CUSHION, LH
72998-0K020C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-0K211C0

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
78950-0K211C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
79011A - COVER SUB-ASSY, NO.1 SEAT CUSHION
79011-0KC90C1

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
79013A - COVER SUB-ASSY, NO.1 SEAT BACK
79013-0KD91C7

GUN12#,135..THDCB

BLACK,TRIM2#

 1
79013-0KF91C4

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
79013-0KE01C6

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
79101 - FRAME SUB-ASSY, NO.1 SEAT CUSHION
79101-0K240

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
79103 - FRAME SUB-ASSY, NO.1 SEAT BACK
79010-0K020

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
79010-0K040

GUN12#,135..THDCB

 1
79135 - PAD, NO.1 SEAT CUSHION
79135-0K250

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
79175 - PAD, NO.1 SEAT BACK
79175-0K270

GUN12#,135..THDCB..S

REAR SEAT-BENCH TYPE&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
79175-0K290

GUN12#,135..THDCB

 1
Common parts
90105-T0154
91553-10816

(2006- )

Click highlighted areas on diagram

FRONT(RH MANUAL 4WAY HIGH BACK)

diagram 71051A 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71630S 717510K070 71811D 71848A 71861 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72525A 73910A 79197A 8421 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN12#,135..THDCB

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KW80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71071-0KW50C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KW40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KX10C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71071-0KX00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KX30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KL2220

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71073-0KT7120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KU52C7

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KV71C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KV91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KK8121

GUN125,135..THDCB

BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K231

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71501-0K031

GUN12#,135..THDCB

 1
71501-0K231

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K230

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71551-0K230

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K270

GUN12#,135..THDCB

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

GUN12#,135..THDCB

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K210C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

GUN12#,135..THDCB

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN12#,135..THDCB

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

GUN126,135..LHD;GUN125..SADCB..(L,S);GUN125..LHD..SADCB..H;GUN125..SASCB,SAXTR,THDCB

BLACK,TRIM2#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152
8421

(2006- )

Click highlighted areas on diagram

FRONT(RH MANUAL 6WAY)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759C 71759C 71759D 71811D 71848A 71861 71873 71874 71875F 71876F 71910A 71931 71931 72010 72125S 72125T 72137J 72137K 72201A 72265 72266 72494 72525A 73910A 79197A 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-0K400

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71013-0K400

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71013-0K420

GUN12#,135..THDCB

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN12#,135..THDCB

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K030

GUN12#,135..THDCB

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KW80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71071-0KW50C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KW40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KX10C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71071-0KX00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KX30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KL2220

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71073-0KT7120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KU52C7

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KV71C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KV91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KK8121

GUN125,135..THDCB

BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K231

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71501-0K031

GUN12#,135..THDCB

 1
71501-0K231

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K230

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71551-0K230

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K270

GUN12#,135..THDCB

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

BLACK,TRIM2#

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

GUN12#,135..THDCB

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K210C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06520

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-06520

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71873-06510

GUN12#,135..THDCB

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06480

GUN12#,135..THDCB

 1
71874-06490

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-06490

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0KB60C2

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71910-0KC00C2

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KB80C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71910-0KB60C2

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KC00C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

GUN12#,135..THDCB

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72201A - HANDLE SUB-ASSY, SEAT TRACK RH
72211-0D160

GUN12#,135..THDCB

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0D270C0

GUN126,135..LHD;GUN125..SADCB..(L,S);GUN125..LHD..SADCB..H;GUN125..SASCB,SAXTR,THDCB

BLACK,TRIM2#

 1
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152

(2006- )

Click highlighted areas on diagram

FRONT(RH POWER SEAT)

diagram 71013S 71051A 71053S 71071S 71073S 71511S 7152 7152 7152 71537G 71538A 71551S 71587B 71587B 717510K070 71759C 71759C 71759D 71811D 71848A 71861 71867A 71873 71874 71875F 71876F 71910A 71931 71931 72010 72125S 72125T 72137J 72137K 72265 72266 73910A 79197A 8202 8202 8401 8401 8401 8401 8421 87510K 87510M 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9418560600
Part # Description Qty Price
71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH
71013-0K400

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71013-0K400

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71013-0K420

GUN12#,135..THDCB

 1
71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH
71051-06070

GUN12#,135..THDCB

 1
71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH
71053-0K030

GUN12#,135..THDCB

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-0KW80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71071-0KW50C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KW40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71071-0KX10C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71071-0KX00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71071-0KX30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-0KL2220

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71073-0KT7120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KU52C7

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KV71C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71073-0KV91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71073-0KK8121

GUN125,135..THDCB

BLACK,TRIM2#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71501-0K231

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71501-0K031

GUN12#,135..THDCB

 1
71501-0K231

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT)
71537-02170C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT)
71538-02120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-0K230

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71551-0K230

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71551-0K270

GUN12#,135..THDCB

 1
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71587B - PROTECTOR, FRONT SEAT BACK EDGE
71587-0K030

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759C - HOOK, FRONT SEAT BACK, NO.1
71759-0K060

GUN12#,135..THDCB

 4
71759D - HOOK, FRONT SEAT BACK, NO.2
71759-0K070C0

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

BLACK,TRIM2#

 2
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71848A - CAP, SEAT ADJUSTER COVER, RH
71848-47010

GUN12#,135..THDCB

 2
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-0K210C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH
71873-06520

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71873-06520

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71873-06510

GUN12#,135..THDCB

 1
71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH
71874-06480

GUN12#,135..THDCB

 1
71874-06490

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71874-06490

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
71875-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
71876-0K120C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-0KB60C2

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 2
71910-0KC00C2

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KB80C0

GUN12#,135..THDCB

BLACK,TRIM2#

 2
71910-0KB60C2

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 2
71910-0KC00C2

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
71931 - SUPPORT, FRONT SEAT HEADREST
71931-0K040C0

GUN12#,135..THDCB

W/O(LOCK),BLACK,TRIM2#

 2
71930-0K050C0

GUN12#,135..THDCB

W(LOCK),BLACK,TRIM2#

 2
72010 - ADJUSTER ASSY, FRONT SEAT, RH
72010-0K080

GUN12#,135..THDCB

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72137K - COVER, FRONT SEAT TRACK, RH REAR INNER
72157-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
73910A - AIR BAG ASSY, FRONT SEAT, RH
73910-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
87510K - HEATER ASSY, FRONT SEAT CUSHION, RH
87510-0K220

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510-0K220

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87510M - HEATER ASSY, FRONT SEAT BACK, RH
87530-0K060

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
87530-0K070

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
94185-60600
Linked diagrams
7152
8202
8401
8421

(2006- )

Click highlighted areas on diagram

FRONT(LH MANUAL 4WAY HIGH BACK)

diagram 71072S 71074S 71512S 7152 7152 7152 71537H 71538B 71552S 71620S 71640S 717510K070 71812D 71849 71862 72125S 72125T 72138H 72138J 72201B 72265 72266 72526E 73920A 79197A 8421 9011910601 9011910601 9011910921 9011910921 90119T0001 90119T0001 9098012373 9418560600
Part # Description Qty Price
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-0KT40C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KT30C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71072-0KT80C0

GUN125,135..THDCB

BLACK,TRIM2#

 1
71072-0KU00C0

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU30C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71072-0KU20C1

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-0K63221

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71074-0K59122

GUN125,135..THDCB

BLACK,TRIM2#

 1
71074-0KF32C8

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG31C7

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71074-0KE9120

GUN125,135..THDCB

SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71074-0KG91C3

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71512-0K091

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER

 1
71512-0K081

GUN12#,135..THDCB

 1
71512-0K571

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71512-0K571

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71512-0K091

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER)

 1
71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
71537-02170C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71537-02170C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71537-02300C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
71538-02120C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71538-02120C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71538-02230C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-0K200

GUN12#,135..THDCB

 1
71552-0K160

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)

 1
71552-0K160

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER)

 1
71812D - SHIELD, FRONT SEAT CUSHION, LH
71812-0K100C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
71812-0K110C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71812-0K100C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71812-0K120C0

GUN12#,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2#

 1
71812-0K120C0

GUN125,135..THDCB

SEAT COVER MATERIAL-NATURAL LEATHER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71849 - CAP, SEAT ADJUSTER COVER, LH
71848-47010

GUN12#,135..THDCB

 2
71862 - SHIELD, FRONT SEAT CUSHION, INNER LH
71862-0K240C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
71862-0K250C0

GUN12#,135..THDCB

BLACK,TRIM2#

 1
71862-0K240C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72125S - COVER, FRONT SEAT TRACK, UPPER REAR RH
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125T - COVER, FRONT SEAT TRACK, UPPER REAR LH
72125-0D030

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72125-0D030

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72125-0D030

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0K010

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR POWER SEAT

 1
72138H - COVER, FRONT SEAT TRACK, LH REAR INNER
72158-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER
72137-KK010C0

GUN12#,135..SADCB,SAXTR,THDCB

BLACK,TRIM2#

 1
72201B - HANDLE SUB-ASSY, SEAT TRACK LH
72211-0D160

GUN12#,135..THDCB

 1
72265 - COVER, SEAT TRACK UPPER RAIL, RH
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72266 - COVER, SEAT TRACK UPPER RAIL, LH
72265-0D080

GUN125,135..THDCB;GUN126..SADCB,THDCB;GUN125,135..SADCB..H

SEAT COVER MATERIAL-NATURAL LEATHER,FOR MANUAL SEAT

 1
72265-0D080

GUN12#,135..THDCB..S

SEAT COVER MATERIAL-FABRIC(BASIC),FOR MANUAL SEAT

 1
72265-0D080

GUN126;GUN125,135..THDCB;GUN125,135..(SADCB,SAXTR)..H

 2
72526E - HANDLE, RECLINING ADJUSTER RELEASE, LH
72526-0D260C0

GUN125,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC)&SEATHEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM2#

 1
72526-0D260C0

GUN12#,135..THDCB..S

FRONT SEAT-SEPARATE TYPE(SEAT COVER=BASIC)&SEAT COVER MATERIAL-FABRIC(BASIC),BLACK,TRIM2#

 1
72526-06130C0

GUN126..LHD;GUN125,135..THDCB;GUN125,135..LHD..(SADCB,SAXTR)..H

BLACK,TRIM2#

 1
73920A - AIR BAG ASSY, FRONT SEAT, LH
73920-0K050

GUN12#,135..THDCB

 1
79197A - RIVET
79197-0K010

GUN12#,135

 4
Common parts
71751-0K070
90119-10601
90119-10921
90119-T0001
90980-12373
94185-60600
Linked diagrams
7152
8421
