GUN135L-DTFSXW (2020)
Toyota Hilux
ILLUST NO. 1 OF 2(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-KK030 |
GUN12#,135 |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-KK030 |
GUN12#,135 |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-KK010 |
GUN12#,135 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0006 |
GUN12#,135..THDCB L=180 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0006 |
GUN12#,135..THDCB L=180 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-KK010 |
GUN12#,135 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0020 |
GUN12#,135 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0020 |
GUN12#,135 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0017 |
GUN12#,135 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0017 |
GUN12#,135 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-0K050 |
GUN135 |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-09B50 |
GUN135..THDCB MARK 48531-0K650,1 TON PAY LOAD PACKAGE |
1 | ||
| 48531-8Z032 |
GUN135..THDCB MARK 48531-0KA50 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
GUN12#,135 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
GUN12#,135 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
GUN12#,135 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
GUN12#,135 |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#,135 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#,135 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#,135 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0019 |
GUN12#,135 |
8 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-09510 |
GUN135..THDCB MARK 48541-0K470 |
1 | ||
| 48541-09220 |
GUN135..THDCB MARK 48541-0K180,1 TON PAY LOAD PACKAGE |
1 | ||
| Common parts | ||||
| 90105-T0128 | ||||
| 90105-T0146 | ||||
| 90178-T0027 | ||||
| 90178-T0061 | ||||
| 90178-T0140 | ||||
| 90179-14069 | ||||
| 90201-T0006 | ||||
| 90201-T0012 | ||||
| 90201-T0014 | ||||

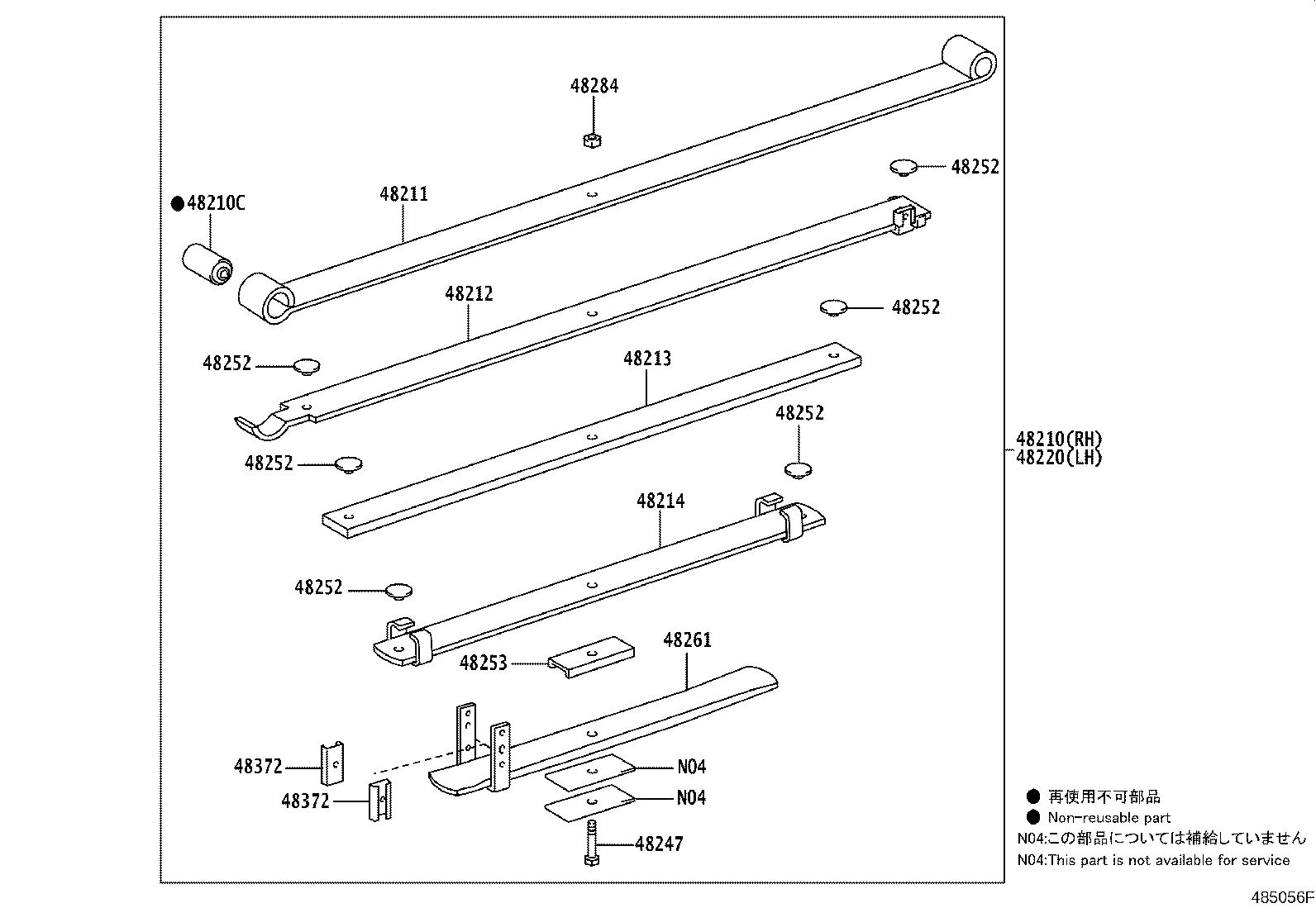

ILLUST NO. 2 OF 2(2006- )THDCB
5-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-0KC60 |
GUN12#,135..THDCB..S 5-LEAF,HEADLAMP-LED |
1 | ||
| 48210-0K860 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
1 | ||
| 48210-0KB60 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE |
1 | ||
| 48210-0KD20 |
GUN12#,135..THDCB..S 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-T0031 |
GUN12#,135..SADCB,SAXTR,THDCB |
4 | ||
| 90389-T0005 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 90389-T0005 |
GUN125..6FC..S;GUN135..SADCB,SAXTR,THDCB;GUN12#..LHD..(SADCB,SAXTR) 1 TON PAY LOAD PACKAGE |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48201-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48201-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48201-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48203-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48212-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48212-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48213-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48213-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48204-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48205-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48205-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-0KC60 |
GUN12#,135..THDCB..S 5-LEAF,HEADLAMP-LED |
1 | ||
| 48210-0KD20 |
GUN12#,135..THDCB..S 5-LEAF |
1 | ||
| 48210-0KB60 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE |
1 | ||
| 48210-0K860 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-0K540 |
GUN12#,135..THDCB |
2 | ||
| 48247-0K311 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-0K010 |
GUN12#,135..THDCB |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48261-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48207-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48207-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0K310 |
GUN12#,135..THDCB |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-0K030 |
GUN12#,135..THDCB |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-0K030 |
GUN12#,135..THDCB |
4 | ||
ILLUST NO. 2 OF 2(2006- )THDCB
5-LEAF, 1 TON PAY LOAD PACKAGE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-0KC60 |
GUN12#,135..THDCB..S 5-LEAF,HEADLAMP-LED |
1 | ||
| 48210-0K860 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
1 | ||
| 48210-0KB60 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE |
1 | ||
| 48210-0KD20 |
GUN12#,135..THDCB..S 5-LEAF |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-T0031 |
GUN12#,135..SADCB,SAXTR,THDCB |
4 | ||
| 90389-T0005 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 90389-T0005 |
GUN125..6FC..S;GUN135..SADCB,SAXTR,THDCB;GUN12#..LHD..(SADCB,SAXTR) 1 TON PAY LOAD PACKAGE |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48201-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48201-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48201-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48203-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48203-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48212-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48212-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48204-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48213-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48213-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48204-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-0KC60 |
GUN12#,135..THDCB..S 5-LEAF,HEADLAMP-LED |
1 | ||
| 48210-0KD20 |
GUN12#,135..THDCB..S 5-LEAF |
1 | ||
| 48210-0KB60 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE |
1 | ||
| 48210-0K860 |
GUN135..THDCB;GUN125..6FC..S 5-LEAF,1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-0K540 |
GUN12#,135..THDCB |
2 | ||
| 48247-0K311 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-0K020 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
4 | ||
| 48248-0K020 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
4 | ||
| 48248B - SPACER, REAR SPRING, NO.3 | ||||
| 48248-0K020 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
4 | ||
| 48248-0K020 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
4 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
8 | ||
| 48252-0KC60 |
GUN12#,135..THDCB |
12 | ||
| 48252-0K010 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-0K010 |
GUN12#,135..THDCB |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48261-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48261-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48207-0KC60 |
GUN12#,135..THDCB..S HEADLAMP-LED |
2 | ||
| 48207-0KD20 |
GUN12#,135..THDCB..S |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48026-0KB60 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE |
2 | ||
| 48026-0K860 |
GUN135..THDCB;GUN125..6FC..S 1 TON PAY LOAD PACKAGE&HEADLAMP-LED |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0K310 |
GUN12#,135..THDCB |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-0K030 |
GUN12#,135..THDCB |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-0K030 |
GUN12#,135..THDCB |
4 | ||
Part Price Details
Loading price information...
Part Number:
Price:
