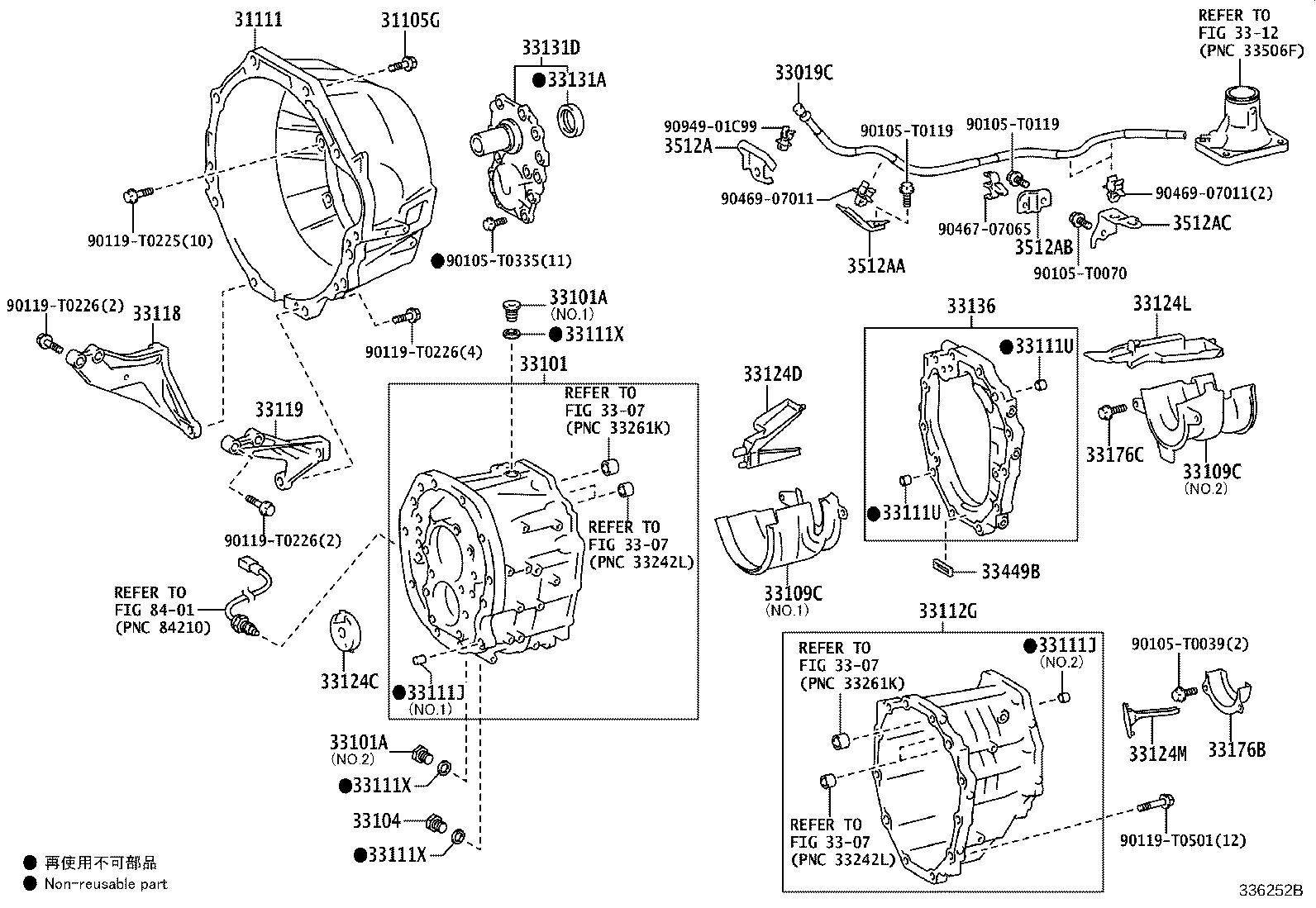

GUN135L-DTFSXW (2020)
Toyota Hilux
(2006- )GUN135..6F
RC60
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING) | ||||
| 90119-T0227 |
GUN12#,135..6F *12-1.25PX50-30 |
5 | ||
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K150 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 31111-0K150 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 31111-0K150 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 31111-0K140 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-0K090 |
GUN135..6F |
1 | ||
| 33101 - CASE SUB-ASSY, MANUAL TRANSMISSION | ||||
| 33101-0K081 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 33101-0K080 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 33101-0K080 |
GUN12#..6F;GUN135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33101-0K081 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33101-0K081 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33101-0K080 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33101-0K070 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18032 |
GUN12#..6F;GUN135..THDCB..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 90341-18032 |
GUN12#,135..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 90341-18033 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.2 |
1 | ||
| 90341-18033 |
GUN12#,135..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 90341-18033 |
GUN125,135..THDCB..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 90341-18032 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1 |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18032 |
GUN12#..6F;GUN135..THDCB..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 90341-18032 |
GUN12#,135..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 90341-18033 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.2 |
1 | ||
| 90341-18033 |
GUN12#,135..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 90341-18033 |
GUN125,135..THDCB..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 90341-18032 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18034 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 90341-18034 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 90341-18034 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 90341-18006 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K040 |
GUN125,135..THDCB..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109-0K040 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN125,135..THDCB..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109-0K020 |
GUN12#,135..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109-0K010 |
GUN12#,135..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 33109C - SEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL | ||||
| 33109-0K040 |
GUN125,135..THDCB..6F T/P B:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109-0K040 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN125,135..THDCB..6F T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109-0K020 |
GUN12#,135..6F T/P A:SEE 33-01,NO.2 |
1 | ||
| 33109-0K030 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),T/P B:SEE 33-01,NO.1 |
1 | ||
| 33109-0K010 |
GUN12#,135..6F T/P A:SEE 33-01,NO.1 |
1 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-11003 |
GUN125,135..THDCB..6F L=11,OD=11,T/P B:SEE 33-01,NO.2 |
2 | ||
| 90250-T0020 |
GUN125,135..THDCB..6F L=16,OD=12,T/P B:SEE 33-01,NO.1 |
2 | ||
| 90250-T0020 |
GUN135..THDCB..6F L=16,OD=12,CRUISE CONTROL-WITH (HIGH SPEED *ACC),T/P B:SEE 33-01,NO.1 |
2 | ||
| 90250-11003 |
GUN135..H L=11,OD=11,TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.2 |
2 | ||
| 90250-11003 |
GUN12#,135..6F L=11,OD=11,T/PA:SEE33-01NO.2(J) |
2 | ||
| 90250-T0020 |
GUN135..H L=16,OD=12,TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1 |
2 | ||
| 90250-12002 |
GUN12#,135..6F L=16,OD=12,T/P A:SEE 33-01,NO.1 |
2 | ||
| 90250-T0029 |
GUN12#,135..6F L=11,OD=11,T/PA:SEE33-01NO.2(L) |
2 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-11003 |
GUN125,135..THDCB..6F L=11,OD=11,T/P B:SEE 33-01,NO.2 |
2 | ||
| 90250-T0020 |
GUN125,135..THDCB..6F L=16,OD=12,T/P B:SEE 33-01,NO.1 |
2 | ||
| 90250-T0020 |
GUN135..THDCB..6F L=16,OD=12,CRUISE CONTROL-WITH (HIGH SPEED *ACC),T/P B:SEE 33-01,NO.1 |
2 | ||
| 90250-11003 |
GUN135..H L=11,OD=11,TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.2 |
2 | ||
| 90250-11003 |
GUN12#,135..6F L=11,OD=11,T/PA:SEE33-01NO.2(J) |
2 | ||
| 90250-T0020 |
GUN135..H L=16,OD=12,TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,T/P B:SEE 33-01,NO.1 |
2 | ||
| 90250-12002 |
GUN12#,135..6F L=16,OD=12,T/P A:SEE 33-01,NO.1 |
2 | ||
| 90250-T0029 |
GUN12#,135..6F L=11,OD=11,T/PA:SEE33-01NO.2(L) |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN125,135..THDCB..6F L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
GUN135..H L=14,OD=15,TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
GUN12#,135..6F L=14,OD=15,TYPE A:SEE 33-01,(J) |
4 | ||
| 90253-T0011 |
GUN12#,135..6F L=14,OD=15,TYPE A:SEE 33-01,(L) |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GUN125,135..THDCB..6F L=14,OD=15,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
GUN135..H L=14,OD=15,TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
4 | ||
| 90253-15001 |
GUN12#,135..6F L=14,OD=15,TYPE A:SEE 33-01,(J) |
4 | ||
| 90253-T0011 |
GUN12#,135..6F L=14,OD=15,TYPE A:SEE 33-01,(L) |
4 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GUN12#..6F;GUN135..THDCB..6F TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
2 | ||
| 90430-T0025 |
GUN12#,135..6F TYPE A:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GUN12#..6F;GUN135..THDCB..6F TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
2 | ||
| 90430-T0025 |
GUN12#,135..6F TYPE A:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-T0021 |
GUN12#..6F;GUN135..THDCB..6F TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
2 | ||
| 90430-T0025 |
GUN12#,135..6F TYPE A:REFER 33-01 |
3 | ||
| 90430-T0021 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
2 | ||
| 33112G - CASE, TRANSMISSION, REAR | ||||
| 33102-0K060 |
GUN135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33102-0K060 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33102-0K060 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 33102-0K050 |
GUN135..6F TYPE A:REFER 33-01 |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-0K030 |
GUN125,135..THDCB..6F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
GUN125,135..THDCB..6F |
1 | ||
| 33124C - PIPE, OIL RECEIVER, NO.1(MTM) | ||||
| 33124-0K070 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33124-0K070 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33124-0K070 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33124D - PIPE, OIL RECEIVER, NO.2(MTM) | ||||
| 33124-0K080 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33124-0K080 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33124-0K080 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33124L - PIPE, OIL RECEIVER, N0.3(MTM) | ||||
| 33124-0K090 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33124-0K090 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33124-0K090 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33124M - PIPE, OIL RECEIVER, N0.4(MTM) | ||||
| 33124-0K100 |
GUN135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33124-0K100 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33124-0K100 |
GUN135..6F TYPE A:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0066 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 90311-T0066 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 90311-T0066 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33131D - RETAINER, BEARING, FRONT | ||||
| 33108-0K020 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33108-0K020 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33108-0K020 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 33108-0K010 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33136 - PLATE, TRANSMISSION INTERMEDIATE | ||||
| 33106-0K020 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33106-0K010 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 33106-0K020 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33106-0K020 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 33176B - SEPARATOR, TRANSMISSION OIL(MTM) | ||||
| 33176-0K060 |
GUN135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33176-0K060 |
GUN135..THDCB..6F CRUISE CONTROL-WITH (HIGH SPEED *ACC),TYPE B:REFER 33-01 |
1 | ||
| 33176-0K060 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33176-0K050 |
GUN135..6F TYPE A:REFER 33-01 |
1 | ||
| 33176C - BOLT(FOR TRANSMISSION OIL SEPARATOR) | ||||
| 90105-T0334 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
2 | ||
| 90105-T0334 |
GUN12#,135..6F TYPE A:REFER 33-01 |
2 | ||
| 90105-T0334 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
2 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-60010 |
GUN125,135..THDCB..6F TYPE B:REFER 33-01 |
1 | ||
| 33449-60010 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&ACTIVE SAFETY PACKAGE-WITHOUT,TYPE B:REFER 33-01 |
1 | ||
| 33449-60010 |
GUN12#,135..6F TYPE A:REFER 33-01 |
1 | ||
| 3512A - BRACKET, TRANSMISSION BREATHER, NO.1 | ||||
| 3512A-0K010 |
GUN125,135..THDCB..6F |
1 | ||
| 3512AA - BRACKET, TRANSMISSION BREATHER, NO.2 | ||||
| 3512A-0K030 |
GUN125,135..THDCB..6F |
1 | ||
| 3512AB - BRACKET, TRANSMISSION BREATHER, NO.3 | ||||
| 3512A-0K050 |
GUN125,135..THDCB..6F |
1 | ||
| 3512AC - BRACKET, TRANSMISSION BREATHER, NO.4 | ||||
| 3512A-0K170 |
GUN135..6F |
1 | ||
| Common parts | ||||
| 90105-T0039 | ||||
| 90105-T0070 | ||||
| 90105-T0119 | ||||
| 90105-T0335 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0501 | ||||
| 90467-07065 | ||||
| 90469-07011 | ||||
| 90949-01C99 | ||||
| Linked diagrams | ||||
| 3307 | ||||
| 3312 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
