GUN135L-DTFMXW (2019)

Toyota Hilux

Production May 2019 - May 2020
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

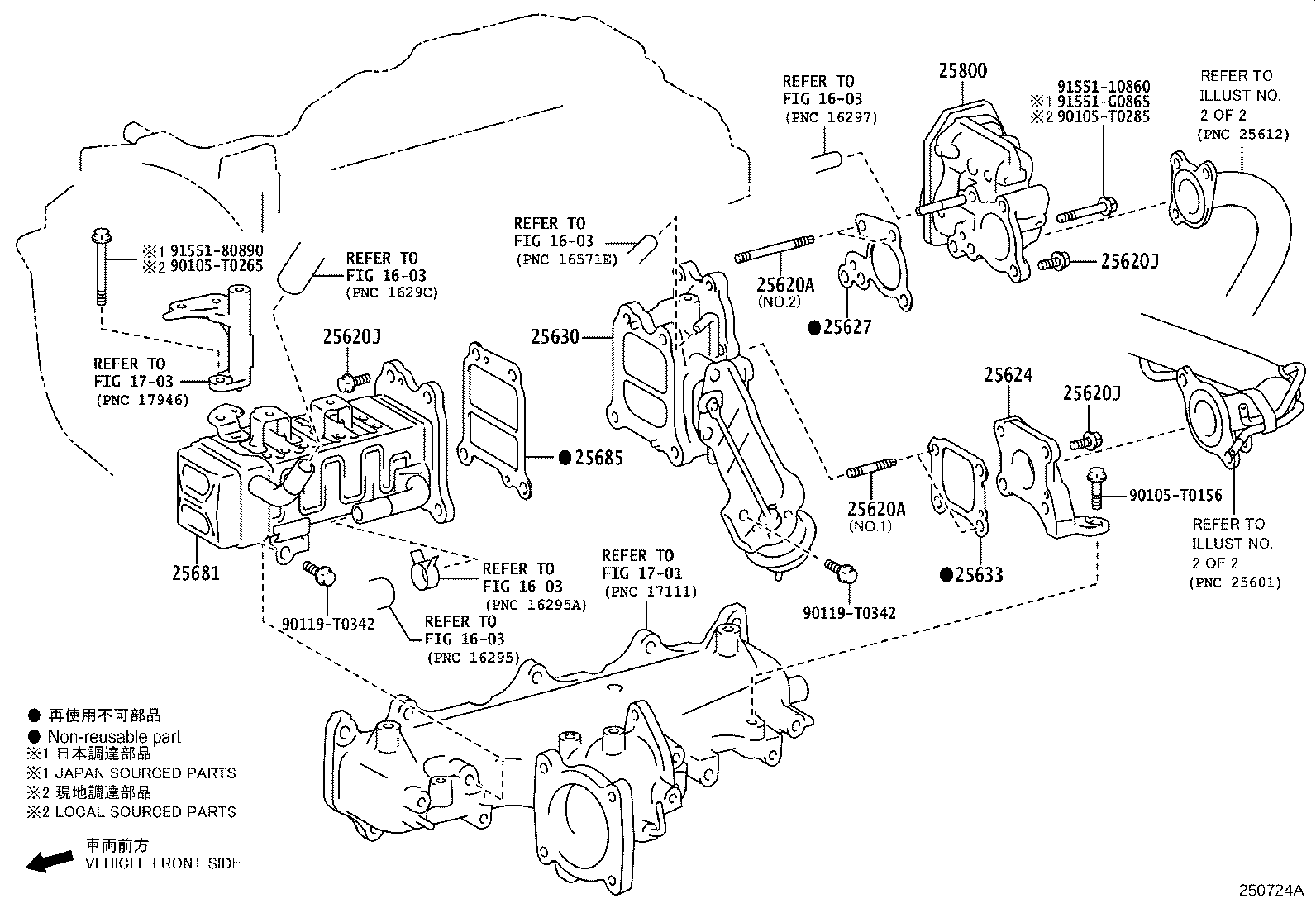

ILLUST NO. 1 OF 2(1905- )2GDFTV..DCRE

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1701 1703 25620A 25620A 25620J 25620J 25620J 25624 25627 25630 25633 25681 25685 25800 90105T0156 90105T0265 90105T0285 90119T0342 90119T0342 9155110860 9155180890 91551G0865
Part # Description Qty Price
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08047

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

NO.1

 2
90126-T0018

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),NO.2

 2
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08047

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

NO.1

 2
90126-T0018

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L),NO.2

 2
25620J - BOLT(FOR EGR VALVE)
90119-T0238

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L)

 7
25620J - BOLT(FOR EGR VALVE)
90119-T0238

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L)

 7
25620J - BOLT(FOR EGR VALVE)
90119-T0238

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L)

 7
25624 - ADAPTER, EGR VALVE
25624-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25627 - GASKET, EGR VALVE
25627-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25630 - VALVE ASSY, EGR, NO.2
25630-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

IDN SOURCED PARTS

 1
25633 - GASKET, EGR VALVE
25633-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25685 - GASKET, EGR COOLER, NO.1
25685-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

THA SOURCED PARTS

 1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

(L)

 1
Common parts
90105-T0156
90105-T0265
90105-T0285
90119-T0342
91551-10860
91551-80890
91551-G0865
Linked diagrams
1603
1701
1703
