GUN135L-DTFMHW (2015)
Toyota Hilux
ILLUST NO. 3 OF 3(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K540 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 41101G - WASHER, SPRING(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 94621-11000 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
10 | ||
| 41101H - NUT, HEXAGON(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-T0017 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
10 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10074 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB S=16 & 12.5,L=40.5 |
10 | ||
| 41171 - PROTECTOR, DIFFERENTIAL, REAR | ||||
| 41171-0K010 |
GUN12#,135..H,M |
1 | ||
| 41171-0K010 |
GUN125..SADCB..(H,M);GUN135..THDCB..M..HDCR DIFFERENTIAL LOCK-WITHOUT |
1 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-KK110 |
GUN125..6FC..S;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN125..THDCB..6F..DCRE;GUN125..SADCB,SASCB,SAXTR;GUN135..SADCB,SASCB,THDCB;GUN125..THDCB..6FC..(H,M)..DCRE |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90105-T0053 | ||||
| 90119-T0314 | ||||
| Linked diagrams | ||||
| 8202 | ||||
ILLUST NO. 2 OF 3(1506- )
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-0K010 |
GUN12#,135..H,M |
1 | ||
| 41302 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41302-0K020 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41303E - CASE SUB-ASSY, ELECTRONIC DIFFERENTIAL LOCK | ||||
| 41303-0K010 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K080 |
GUN12#,135..H,M |
1 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-0K090 |
GUN12#,135..H,M |
2 | ||
| 41342M - SHAFT, REAR DIFFERENTIAL PINION, NO.2 | ||||
| 41342-0K090 |
GUN12#,135..H,M |
2 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-0K010 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 41343 - PIN, REAR DIFFERENTIAL PINION SHAFT | ||||
| 41343-0K010 |
GUN12#,135..THDCB..(H,M) |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K050 |
GUN12#,135..H,M |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K050 |
GUN12#,135..H,M |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K050 |
GUN12#,135..H,M |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K050 |
GUN12#,135..H,M |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K400 |
GUN12#,135..THDCB..(H,M) T=1.3 |
1 | ||
| 41361-0K390 |
GUN12#,135..THDCB..(H,M) T=1.2 |
1 | ||
| 41361-0K380 |
GUN12#,135..THDCB..(H,M) T=1.1 |
1 | ||
| 41361-0K410 |
GUN12#,135..THDCB..(H,M) T=1.4 |
1 | ||
| 41362 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.2 | ||||
| 41361-0K430 |
GUN12#,135..THDCB..(H,M) T=1.2 |
1 | ||
| 41361-0K450 |
GUN12#,135..THDCB..(H,M) T=1.4 |
1 | ||
| 41361-0K420 |
GUN12#,135..THDCB..(H,M) T=1.1 |
1 | ||
| 41361-0K440 |
GUN12#,135..THDCB..(H,M) T=1.3 |
1 | ||
| 41363 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.3 | ||||
| 41361-0K450 |
GUN12#,135..THDCB..(H,M) T=1.4 |
1 | ||
| 41367 - WASHER, DIFFERENTIAL SOLENOID | ||||
| 41367-0K010 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41417 - SPRING, DIFFERENTIAL LOCK | ||||
| 41417-0K010 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41433A - RING, DIFFERENTIAL LOCK CAM | ||||
| 41433-0K010 |
GUN12#,135..H,M |
1 | ||
| 41451H - COIL, DIFFERENTIAL LOCK | ||||
| 41451-0K010 |
GUN12#,135..H,M |
1 | ||
| 41474A - PLATE, DIFFERENTIAL LOCK POSITION | ||||
| 41474-0K010 |
GUN12#,135..H,M |
1 | ||
| Common parts | ||||
| 41245-0K010 | ||||
| 90148-T0021 | ||||
| 90151-A0006 | ||||
| 90151-T0004 | ||||

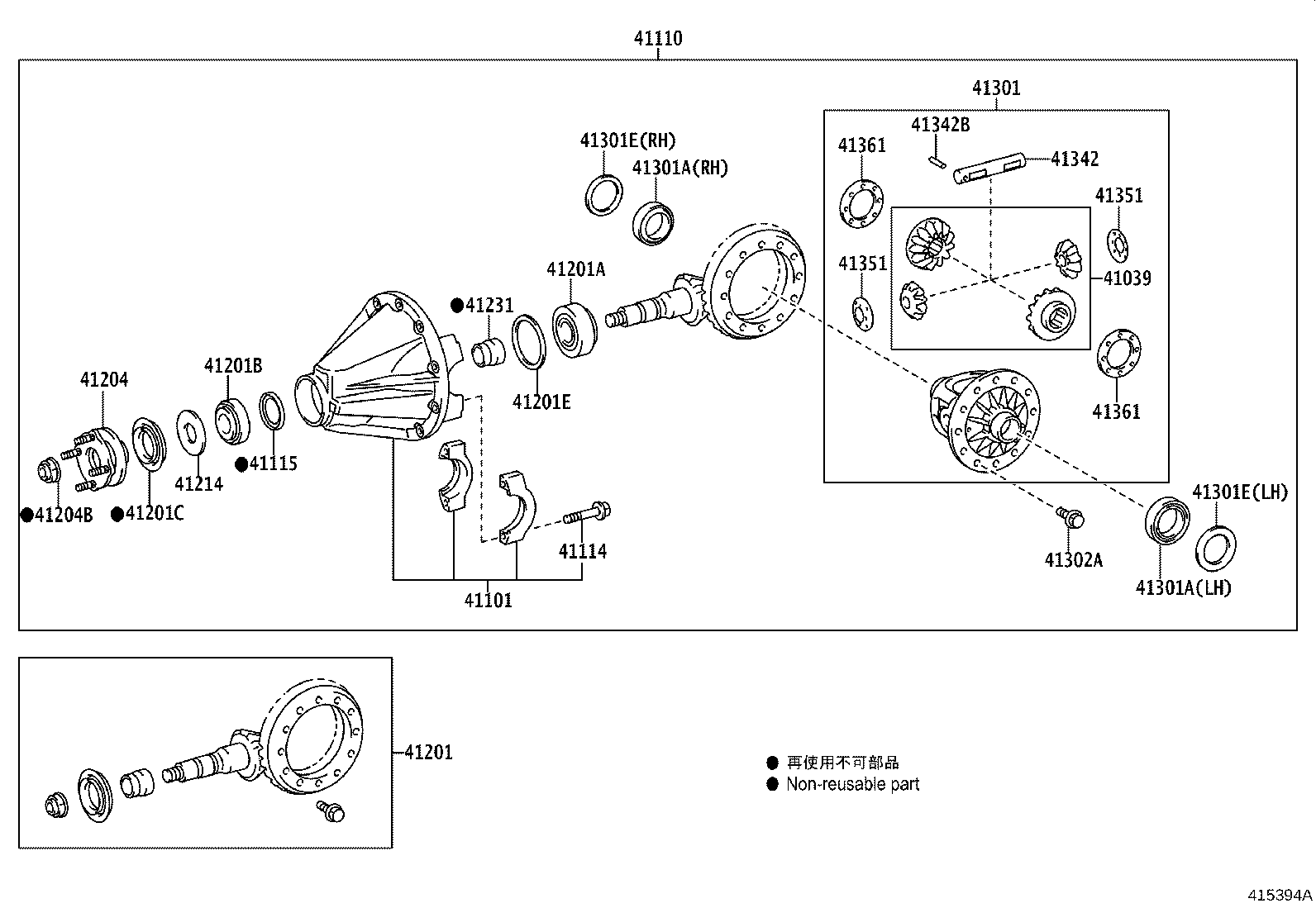

ILLUST NO. 1 OF 3(1506- )THDCB
W/O(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-0K010 |
GUN12#,135..H,M |
1 | ||
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K080 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K620 |
GUN125,135..THDCB..6F..M *FGR=43:12=3.583 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90109-T0030 |
GUN12#,135..THDCB |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K020 |
GUN12#,135..THDCB |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B60 |
GUN125,135..THDCB..6F *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0065 |
GUN12#,135..THDCB |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0062 |
GUN12#,135..THDCB |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0065 |
GUN12#,135..THDCB |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-78021 |
GUN12#,135..THDCB T=2.12 |
1 | ||
| 90564-78007 |
GUN12#,135..THDCB T=1.84 |
1 | ||
| 90564-78001 |
GUN12#,135..THDCB T=1.72 |
1 | ||
| 90564-78002 |
GUN12#,135..THDCB T=1.74 |
1 | ||
| 90564-78003 |
GUN12#,135..THDCB T=1.76 |
1 | ||
| 90564-78005 |
GUN12#,135..THDCB T=1.80 |
1 | ||
| 90564-78011 |
GUN12#,135..THDCB T=1.92 |
1 | ||
| 90564-78012 |
GUN12#,135..THDCB T=1.94 |
1 | ||
| 90564-78009 |
GUN12#,135..THDCB T=1.88 |
1 | ||
| 90564-78006 |
GUN12#,135..THDCB T=1.82 |
1 | ||
| 90564-78013 |
GUN12#,135..THDCB T=1.96 |
1 | ||
| 90564-78015 |
GUN12#,135..THDCB T=2.00 |
1 | ||
| 90564-78004 |
GUN12#,135..THDCB T=1.78 |
1 | ||
| 90564-78008 |
GUN12#,135..THDCB T=1.86 |
1 | ||
| 90564-78010 |
GUN12#,135..THDCB T=1.90 |
1 | ||
| 90564-78020 |
GUN12#,135..THDCB T=2.10 |
1 | ||
| 90564-78014 |
GUN12#,135..THDCB T=1.98 |
1 | ||
| 90564-78019 |
GUN12#,135..THDCB T=2.08 |
1 | ||
| 90564-78023 |
GUN12#,135..THDCB T=2.16 |
1 | ||
| 90564-78022 |
GUN12#,135..THDCB T=2.14 |
1 | ||
| 90564-78018 |
GUN12#,135..THDCB T=2.06 |
1 | ||
| 90564-78017 |
GUN12#,135..THDCB T=2.04 |
1 | ||
| 90564-78016 |
GUN12#,135..THDCB T=2.02 |
1 | ||
| 90564-78024 |
GUN12#,135..THDCB T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K110 |
GUN12#,135..THDCB |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
GUN12#,135..THDCB OD=43 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-0K040 |
GUN12#,135..THDCB |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-71010 |
GUN12#,135..THDCB |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0068 |
GUN12#,135..THDCB LH |
1 | ||
| 90366-T0071 |
GUN12#,135..THDCB RH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0068 |
GUN12#,135..THDCB LH |
1 | ||
| 90366-T0071 |
GUN12#,135..THDCB RH |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59101 |
GUN12#,135..THDCB T=2.58,RH |
1 | ||
| 90564-59104 |
GUN12#,135..THDCB T=2.64,RH |
1 | ||
| 90564-59102 |
GUN12#,135..THDCB T=2.60,RH |
1 | ||
| 90564-59089 |
GUN12#,135..THDCB T=2.34,RH |
1 | ||
| 90564-59103 |
GUN12#,135..THDCB T=2.62,RH |
1 | ||
| 90564-59045 |
GUN12#,135..THDCB T=2.10,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59044 |
GUN12#,135..THDCB T=2.08,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59057 |
GUN12#,135..THDCB T=2.34,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59060 |
GUN12#,135..THDCB T=2.40,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59051 |
GUN12#,135..THDCB T=2.22,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59046 |
GUN12#,135..THDCB T=2.12,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59048 |
GUN12#,135..THDCB T=2.16,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59052 |
GUN12#,135..THDCB T=2.24,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59056 |
GUN12#,135..THDCB T=2.32,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59054 |
GUN12#,135..THDCB T=2.28,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59047 |
GUN12#,135..THDCB T=2.14,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59053 |
GUN12#,135..THDCB T=2.26,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59049 |
GUN12#,135..THDCB T=2.18,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59061 |
GUN12#,135..THDCB T=2.42,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59055 |
GUN12#,135..THDCB T=2.30,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59070 |
GUN12#,135..THDCB T=2.60,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59058 |
GUN12#,135..THDCB T=2.36,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59050 |
GUN12#,135..THDCB T=2.20,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59062 |
GUN12#,135..THDCB T=2.44,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59063 |
GUN12#,135..THDCB T=2.46,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59074 |
GUN12#,135..THDCB T=2.68,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59072 |
GUN12#,135..THDCB T=2.64,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59059 |
GUN12#,135..THDCB T=2.38,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59064 |
GUN12#,135..THDCB T=2.48,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59075 |
GUN12#,135..THDCB T=2.06,RH |
1 | ||
| 90564-59065 |
GUN12#,135..THDCB T=2.50,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59066 |
GUN12#,135..THDCB T=2.52,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59071 |
GUN12#,135..THDCB T=2.62,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59067 |
GUN12#,135..THDCB T=2.54,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59068 |
GUN12#,135..THDCB T=2.56,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59069 |
GUN12#,135..THDCB T=2.58,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59078 |
GUN12#,135..THDCB T=2.12,RH |
1 | ||
| 90564-59076 |
GUN12#,135..THDCB T=2.08,RH |
1 | ||
| 90564-59079 |
GUN12#,135..THDCB T=2.14,RH |
1 | ||
| 90564-59084 |
GUN12#,135..THDCB T=2.24,RH |
1 | ||
| 90564-59081 |
GUN12#,135..THDCB T=2.18,RH |
1 | ||
| 90564-59077 |
GUN12#,135..THDCB T=2.10,RH |
1 | ||
| 90564-59085 |
GUN12#,135..THDCB T=2.26,RH |
1 | ||
| 90564-59082 |
GUN12#,135..THDCB T=2.20,RH |
1 | ||
| 90564-59092 |
GUN12#,135..THDCB T=2.40,RH |
1 | ||
| 90564-59080 |
GUN12#,135..THDCB T=2.16,RH |
1 | ||
| 90564-59086 |
GUN12#,135..THDCB T=2.28,RH |
1 | ||
| 90564-59073 |
GUN12#,135..THDCB T=2.66,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59088 |
GUN12#,135..THDCB T=2.32,RH |
1 | ||
| 90564-59093 |
GUN12#,135..THDCB T=2.42,RH |
1 | ||
| 90564-59087 |
GUN12#,135..THDCB T=2.30,RH |
1 | ||
| 90564-59094 |
GUN12#,135..THDCB T=2.44,RH |
1 | ||
| 90564-59098 |
GUN12#,135..THDCB T=2.52,RH |
1 | ||
| 90564-59091 |
GUN12#,135..THDCB T=2.38,RH |
1 | ||
| 90564-59083 |
GUN12#,135..THDCB T=2.22,RH |
1 | ||
| 90564-59090 |
GUN12#,135..THDCB T=2.36,RH |
1 | ||
| 90564-59095 |
GUN12#,135..THDCB T=2.46,RH |
1 | ||
| 90564-59100 |
GUN12#,135..THDCB T=2.56,RH |
1 | ||
| 90564-59096 |
GUN12#,135..THDCB T=2.48,RH |
1 | ||
| 90564-59106 |
GUN12#,135..THDCB T=2.68,RH |
1 | ||
| 90564-59105 |
GUN12#,135..THDCB T=2.66,RH |
1 | ||
| 90564-59097 |
GUN12#,135..THDCB T=2.50,RH |
1 | ||
| 90564-59099 |
GUN12#,135..THDCB T=2.54,RH |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59101 |
GUN12#,135..THDCB T=2.58,RH |
1 | ||
| 90564-59104 |
GUN12#,135..THDCB T=2.64,RH |
1 | ||
| 90564-59102 |
GUN12#,135..THDCB T=2.60,RH |
1 | ||
| 90564-59089 |
GUN12#,135..THDCB T=2.34,RH |
1 | ||
| 90564-59103 |
GUN12#,135..THDCB T=2.62,RH |
1 | ||
| 90564-59045 |
GUN12#,135..THDCB T=2.10,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59044 |
GUN12#,135..THDCB T=2.08,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59057 |
GUN12#,135..THDCB T=2.34,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59060 |
GUN12#,135..THDCB T=2.40,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59051 |
GUN12#,135..THDCB T=2.22,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59046 |
GUN12#,135..THDCB T=2.12,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59048 |
GUN12#,135..THDCB T=2.16,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59052 |
GUN12#,135..THDCB T=2.24,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59056 |
GUN12#,135..THDCB T=2.32,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59054 |
GUN12#,135..THDCB T=2.28,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59047 |
GUN12#,135..THDCB T=2.14,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59053 |
GUN12#,135..THDCB T=2.26,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59049 |
GUN12#,135..THDCB T=2.18,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59061 |
GUN12#,135..THDCB T=2.42,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59055 |
GUN12#,135..THDCB T=2.30,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59070 |
GUN12#,135..THDCB T=2.60,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59058 |
GUN12#,135..THDCB T=2.36,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59050 |
GUN12#,135..THDCB T=2.20,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59062 |
GUN12#,135..THDCB T=2.44,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59063 |
GUN12#,135..THDCB T=2.46,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59074 |
GUN12#,135..THDCB T=2.68,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59072 |
GUN12#,135..THDCB T=2.64,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59059 |
GUN12#,135..THDCB T=2.38,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59064 |
GUN12#,135..THDCB T=2.48,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59075 |
GUN12#,135..THDCB T=2.06,RH |
1 | ||
| 90564-59065 |
GUN12#,135..THDCB T=2.50,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59066 |
GUN12#,135..THDCB T=2.52,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59071 |
GUN12#,135..THDCB T=2.62,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59067 |
GUN12#,135..THDCB T=2.54,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59068 |
GUN12#,135..THDCB T=2.56,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59069 |
GUN12#,135..THDCB T=2.58,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59078 |
GUN12#,135..THDCB T=2.12,RH |
1 | ||
| 90564-59076 |
GUN12#,135..THDCB T=2.08,RH |
1 | ||
| 90564-59079 |
GUN12#,135..THDCB T=2.14,RH |
1 | ||
| 90564-59084 |
GUN12#,135..THDCB T=2.24,RH |
1 | ||
| 90564-59081 |
GUN12#,135..THDCB T=2.18,RH |
1 | ||
| 90564-59077 |
GUN12#,135..THDCB T=2.10,RH |
1 | ||
| 90564-59085 |
GUN12#,135..THDCB T=2.26,RH |
1 | ||
| 90564-59082 |
GUN12#,135..THDCB T=2.20,RH |
1 | ||
| 90564-59092 |
GUN12#,135..THDCB T=2.40,RH |
1 | ||
| 90564-59080 |
GUN12#,135..THDCB T=2.16,RH |
1 | ||
| 90564-59086 |
GUN12#,135..THDCB T=2.28,RH |
1 | ||
| 90564-59073 |
GUN12#,135..THDCB T=2.66,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59088 |
GUN12#,135..THDCB T=2.32,RH |
1 | ||
| 90564-59093 |
GUN12#,135..THDCB T=2.42,RH |
1 | ||
| 90564-59087 |
GUN12#,135..THDCB T=2.30,RH |
1 | ||
| 90564-59094 |
GUN12#,135..THDCB T=2.44,RH |
1 | ||
| 90564-59098 |
GUN12#,135..THDCB T=2.52,RH |
1 | ||
| 90564-59091 |
GUN12#,135..THDCB T=2.38,RH |
1 | ||
| 90564-59083 |
GUN12#,135..THDCB T=2.22,RH |
1 | ||
| 90564-59090 |
GUN12#,135..THDCB T=2.36,RH |
1 | ||
| 90564-59095 |
GUN12#,135..THDCB T=2.46,RH |
1 | ||
| 90564-59100 |
GUN12#,135..THDCB T=2.56,RH |
1 | ||
| 90564-59096 |
GUN12#,135..THDCB T=2.48,RH |
1 | ||
| 90564-59106 |
GUN12#,135..THDCB T=2.68,RH |
1 | ||
| 90564-59105 |
GUN12#,135..THDCB T=2.66,RH |
1 | ||
| 90564-59097 |
GUN12#,135..THDCB T=2.50,RH |
1 | ||
| 90564-59099 |
GUN12#,135..THDCB T=2.54,RH |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12365 |
GUN12#,135..THDCB |
12 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-0K080 |
GUN12#,135..H,M |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K050 |
GUN12#,135..H,M |
4 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-0K050 |
GUN12#,135..H,M |
4 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K400 |
GUN12#,135..THDCB..(H,M) T=1.3 |
1 | ||
| 41361-0K390 |
GUN12#,135..THDCB..(H,M) T=1.2 |
1 | ||
| 41361-0K380 |
GUN12#,135..THDCB..(H,M) T=1.1 |
1 | ||
| 41361-0K410 |
GUN12#,135..THDCB..(H,M) T=1.4 |
1 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-0K400 |
GUN12#,135..THDCB..(H,M) T=1.3 |
1 | ||
| 41361-0K390 |
GUN12#,135..THDCB..(H,M) T=1.2 |
1 | ||
| 41361-0K410 |
GUN12#,135..THDCB..(H,M) T=1.4 |
1 | ||
| 41361-0K380 |
GUN12#,135..THDCB..(H,M) T=1.1 |
1 | ||
ILLUST NO. 1 OF 3(1506- )THDCB
W(DIFFERENTIAL LOCK)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101 - CARRIER SUB-ASSY, DIFFERENTIAL, REAR | ||||
| 41101-0K080 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41101J - CONNECTOR, WIRING HARNESS | ||||
| 82824-0K060 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K620 |
GUN125,135..THDCB..6F..M *FGR=43:12=3.583 |
1 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90109-T0030 |
GUN12#,135..THDCB |
4 | ||
| 41115 - RING, DIFFERENTIAL OIL STORAGE | ||||
| 41115-0K020 |
GUN12#,135..THDCB |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09B60 |
GUN125,135..THDCB..6F *FGR=43:12=3.583 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-T0065 |
GUN12#,135..THDCB |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-T0062 |
GUN12#,135..THDCB |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-T0065 |
GUN12#,135..THDCB |
1 | ||
| 41201E - SHIM (FOR REAR DIFF DRIVE PINION SPACER FRONT ADJUST) | ||||
| 90564-78021 |
GUN12#,135..THDCB T=2.12 |
1 | ||
| 90564-78007 |
GUN12#,135..THDCB T=1.84 |
1 | ||
| 90564-78001 |
GUN12#,135..THDCB T=1.72 |
1 | ||
| 90564-78002 |
GUN12#,135..THDCB T=1.74 |
1 | ||
| 90564-78003 |
GUN12#,135..THDCB T=1.76 |
1 | ||
| 90564-78005 |
GUN12#,135..THDCB T=1.80 |
1 | ||
| 90564-78011 |
GUN12#,135..THDCB T=1.92 |
1 | ||
| 90564-78012 |
GUN12#,135..THDCB T=1.94 |
1 | ||
| 90564-78009 |
GUN12#,135..THDCB T=1.88 |
1 | ||
| 90564-78006 |
GUN12#,135..THDCB T=1.82 |
1 | ||
| 90564-78013 |
GUN12#,135..THDCB T=1.96 |
1 | ||
| 90564-78015 |
GUN12#,135..THDCB T=2.00 |
1 | ||
| 90564-78004 |
GUN12#,135..THDCB T=1.78 |
1 | ||
| 90564-78008 |
GUN12#,135..THDCB T=1.86 |
1 | ||
| 90564-78010 |
GUN12#,135..THDCB T=1.90 |
1 | ||
| 90564-78020 |
GUN12#,135..THDCB T=2.10 |
1 | ||
| 90564-78014 |
GUN12#,135..THDCB T=1.98 |
1 | ||
| 90564-78019 |
GUN12#,135..THDCB T=2.08 |
1 | ||
| 90564-78023 |
GUN12#,135..THDCB T=2.16 |
1 | ||
| 90564-78022 |
GUN12#,135..THDCB T=2.14 |
1 | ||
| 90564-78018 |
GUN12#,135..THDCB T=2.06 |
1 | ||
| 90564-78017 |
GUN12#,135..THDCB T=2.04 |
1 | ||
| 90564-78016 |
GUN12#,135..THDCB T=2.02 |
1 | ||
| 90564-78024 |
GUN12#,135..THDCB T=2.18 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K110 |
GUN12#,135..THDCB |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-22029 |
GUN12#,135..THDCB OD=43 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-0K040 |
GUN12#,135..THDCB |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-71010 |
GUN12#,135..THDCB |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0068 |
GUN12#,135..THDCB LH |
1 | ||
| 90366-T0071 |
GUN12#,135..THDCB RH |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-T0068 |
GUN12#,135..THDCB LH |
1 | ||
| 90366-T0071 |
GUN12#,135..THDCB RH |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59101 |
GUN12#,135..THDCB T=2.58,RH |
1 | ||
| 90564-59104 |
GUN12#,135..THDCB T=2.64,RH |
1 | ||
| 90564-59102 |
GUN12#,135..THDCB T=2.60,RH |
1 | ||
| 90564-59089 |
GUN12#,135..THDCB T=2.34,RH |
1 | ||
| 90564-59103 |
GUN12#,135..THDCB T=2.62,RH |
1 | ||
| 90564-59045 |
GUN12#,135..THDCB T=2.10,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59044 |
GUN12#,135..THDCB T=2.08,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59057 |
GUN12#,135..THDCB T=2.34,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59060 |
GUN12#,135..THDCB T=2.40,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59051 |
GUN12#,135..THDCB T=2.22,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59046 |
GUN12#,135..THDCB T=2.12,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59048 |
GUN12#,135..THDCB T=2.16,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59052 |
GUN12#,135..THDCB T=2.24,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59056 |
GUN12#,135..THDCB T=2.32,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59054 |
GUN12#,135..THDCB T=2.28,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59047 |
GUN12#,135..THDCB T=2.14,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59053 |
GUN12#,135..THDCB T=2.26,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59049 |
GUN12#,135..THDCB T=2.18,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59061 |
GUN12#,135..THDCB T=2.42,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59055 |
GUN12#,135..THDCB T=2.30,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59070 |
GUN12#,135..THDCB T=2.60,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59058 |
GUN12#,135..THDCB T=2.36,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59050 |
GUN12#,135..THDCB T=2.20,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59062 |
GUN12#,135..THDCB T=2.44,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59063 |
GUN12#,135..THDCB T=2.46,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59074 |
GUN12#,135..THDCB T=2.68,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59072 |
GUN12#,135..THDCB T=2.64,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59059 |
GUN12#,135..THDCB T=2.38,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59064 |
GUN12#,135..THDCB T=2.48,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59075 |
GUN12#,135..THDCB T=2.06,RH |
1 | ||
| 90564-59065 |
GUN12#,135..THDCB T=2.50,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59066 |
GUN12#,135..THDCB T=2.52,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59071 |
GUN12#,135..THDCB T=2.62,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59067 |
GUN12#,135..THDCB T=2.54,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59068 |
GUN12#,135..THDCB T=2.56,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59069 |
GUN12#,135..THDCB T=2.58,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59078 |
GUN12#,135..THDCB T=2.12,RH |
1 | ||
| 90564-59076 |
GUN12#,135..THDCB T=2.08,RH |
1 | ||
| 90564-59079 |
GUN12#,135..THDCB T=2.14,RH |
1 | ||
| 90564-59084 |
GUN12#,135..THDCB T=2.24,RH |
1 | ||
| 90564-59081 |
GUN12#,135..THDCB T=2.18,RH |
1 | ||
| 90564-59077 |
GUN12#,135..THDCB T=2.10,RH |
1 | ||
| 90564-59085 |
GUN12#,135..THDCB T=2.26,RH |
1 | ||
| 90564-59082 |
GUN12#,135..THDCB T=2.20,RH |
1 | ||
| 90564-59092 |
GUN12#,135..THDCB T=2.40,RH |
1 | ||
| 90564-59080 |
GUN12#,135..THDCB T=2.16,RH |
1 | ||
| 90564-59086 |
GUN12#,135..THDCB T=2.28,RH |
1 | ||
| 90564-59073 |
GUN12#,135..THDCB T=2.66,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59088 |
GUN12#,135..THDCB T=2.32,RH |
1 | ||
| 90564-59093 |
GUN12#,135..THDCB T=2.42,RH |
1 | ||
| 90564-59087 |
GUN12#,135..THDCB T=2.30,RH |
1 | ||
| 90564-59094 |
GUN12#,135..THDCB T=2.44,RH |
1 | ||
| 90564-59098 |
GUN12#,135..THDCB T=2.52,RH |
1 | ||
| 90564-59091 |
GUN12#,135..THDCB T=2.38,RH |
1 | ||
| 90564-59083 |
GUN12#,135..THDCB T=2.22,RH |
1 | ||
| 90564-59090 |
GUN12#,135..THDCB T=2.36,RH |
1 | ||
| 90564-59095 |
GUN12#,135..THDCB T=2.46,RH |
1 | ||
| 90564-59100 |
GUN12#,135..THDCB T=2.56,RH |
1 | ||
| 90564-59096 |
GUN12#,135..THDCB T=2.48,RH |
1 | ||
| 90564-59106 |
GUN12#,135..THDCB T=2.68,RH |
1 | ||
| 90564-59105 |
GUN12#,135..THDCB T=2.66,RH |
1 | ||
| 90564-59097 |
GUN12#,135..THDCB T=2.50,RH |
1 | ||
| 90564-59099 |
GUN12#,135..THDCB T=2.54,RH |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90564-59101 |
GUN12#,135..THDCB T=2.58,RH |
1 | ||
| 90564-59104 |
GUN12#,135..THDCB T=2.64,RH |
1 | ||
| 90564-59102 |
GUN12#,135..THDCB T=2.60,RH |
1 | ||
| 90564-59089 |
GUN12#,135..THDCB T=2.34,RH |
1 | ||
| 90564-59103 |
GUN12#,135..THDCB T=2.62,RH |
1 | ||
| 90564-59045 |
GUN12#,135..THDCB T=2.10,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59044 |
GUN12#,135..THDCB T=2.08,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59057 |
GUN12#,135..THDCB T=2.34,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59060 |
GUN12#,135..THDCB T=2.40,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59051 |
GUN12#,135..THDCB T=2.22,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59046 |
GUN12#,135..THDCB T=2.12,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59048 |
GUN12#,135..THDCB T=2.16,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59052 |
GUN12#,135..THDCB T=2.24,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59056 |
GUN12#,135..THDCB T=2.32,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59054 |
GUN12#,135..THDCB T=2.28,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59047 |
GUN12#,135..THDCB T=2.14,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59053 |
GUN12#,135..THDCB T=2.26,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59049 |
GUN12#,135..THDCB T=2.18,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59061 |
GUN12#,135..THDCB T=2.42,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59055 |
GUN12#,135..THDCB T=2.30,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59070 |
GUN12#,135..THDCB T=2.60,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59058 |
GUN12#,135..THDCB T=2.36,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59050 |
GUN12#,135..THDCB T=2.20,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59062 |
GUN12#,135..THDCB T=2.44,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59063 |
GUN12#,135..THDCB T=2.46,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59074 |
GUN12#,135..THDCB T=2.68,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59072 |
GUN12#,135..THDCB T=2.64,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59059 |
GUN12#,135..THDCB T=2.38,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59064 |
GUN12#,135..THDCB T=2.48,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59075 |
GUN12#,135..THDCB T=2.06,RH |
1 | ||
| 90564-59065 |
GUN12#,135..THDCB T=2.50,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59066 |
GUN12#,135..THDCB T=2.52,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59071 |
GUN12#,135..THDCB T=2.62,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59067 |
GUN12#,135..THDCB T=2.54,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59068 |
GUN12#,135..THDCB T=2.56,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59069 |
GUN12#,135..THDCB T=2.58,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59078 |
GUN12#,135..THDCB T=2.12,RH |
1 | ||
| 90564-59076 |
GUN12#,135..THDCB T=2.08,RH |
1 | ||
| 90564-59079 |
GUN12#,135..THDCB T=2.14,RH |
1 | ||
| 90564-59084 |
GUN12#,135..THDCB T=2.24,RH |
1 | ||
| 90564-59081 |
GUN12#,135..THDCB T=2.18,RH |
1 | ||
| 90564-59077 |
GUN12#,135..THDCB T=2.10,RH |
1 | ||
| 90564-59085 |
GUN12#,135..THDCB T=2.26,RH |
1 | ||
| 90564-59082 |
GUN12#,135..THDCB T=2.20,RH |
1 | ||
| 90564-59092 |
GUN12#,135..THDCB T=2.40,RH |
1 | ||
| 90564-59080 |
GUN12#,135..THDCB T=2.16,RH |
1 | ||
| 90564-59086 |
GUN12#,135..THDCB T=2.28,RH |
1 | ||
| 90564-59073 |
GUN12#,135..THDCB T=2.66,LH,TYPE B:REF.ILL. |
1 | ||
| 90564-59088 |
GUN12#,135..THDCB T=2.32,RH |
1 | ||
| 90564-59093 |
GUN12#,135..THDCB T=2.42,RH |
1 | ||
| 90564-59087 |
GUN12#,135..THDCB T=2.30,RH |
1 | ||
| 90564-59094 |
GUN12#,135..THDCB T=2.44,RH |
1 | ||
| 90564-59098 |
GUN12#,135..THDCB T=2.52,RH |
1 | ||
| 90564-59091 |
GUN12#,135..THDCB T=2.38,RH |
1 | ||
| 90564-59083 |
GUN12#,135..THDCB T=2.22,RH |
1 | ||
| 90564-59090 |
GUN12#,135..THDCB T=2.36,RH |
1 | ||
| 90564-59095 |
GUN12#,135..THDCB T=2.46,RH |
1 | ||
| 90564-59100 |
GUN12#,135..THDCB T=2.56,RH |
1 | ||
| 90564-59096 |
GUN12#,135..THDCB T=2.48,RH |
1 | ||
| 90564-59106 |
GUN12#,135..THDCB T=2.68,RH |
1 | ||
| 90564-59105 |
GUN12#,135..THDCB T=2.66,RH |
1 | ||
| 90564-59097 |
GUN12#,135..THDCB T=2.50,RH |
1 | ||
| 90564-59099 |
GUN12#,135..THDCB T=2.54,RH |
1 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12365 |
GUN12#,135..THDCB |
12 | ||
| 84222Q - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-0K010 |
GUN12#,135..THDCB..(H,M) |
1 | ||
| Common parts | ||||
| 90105-T0066 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
