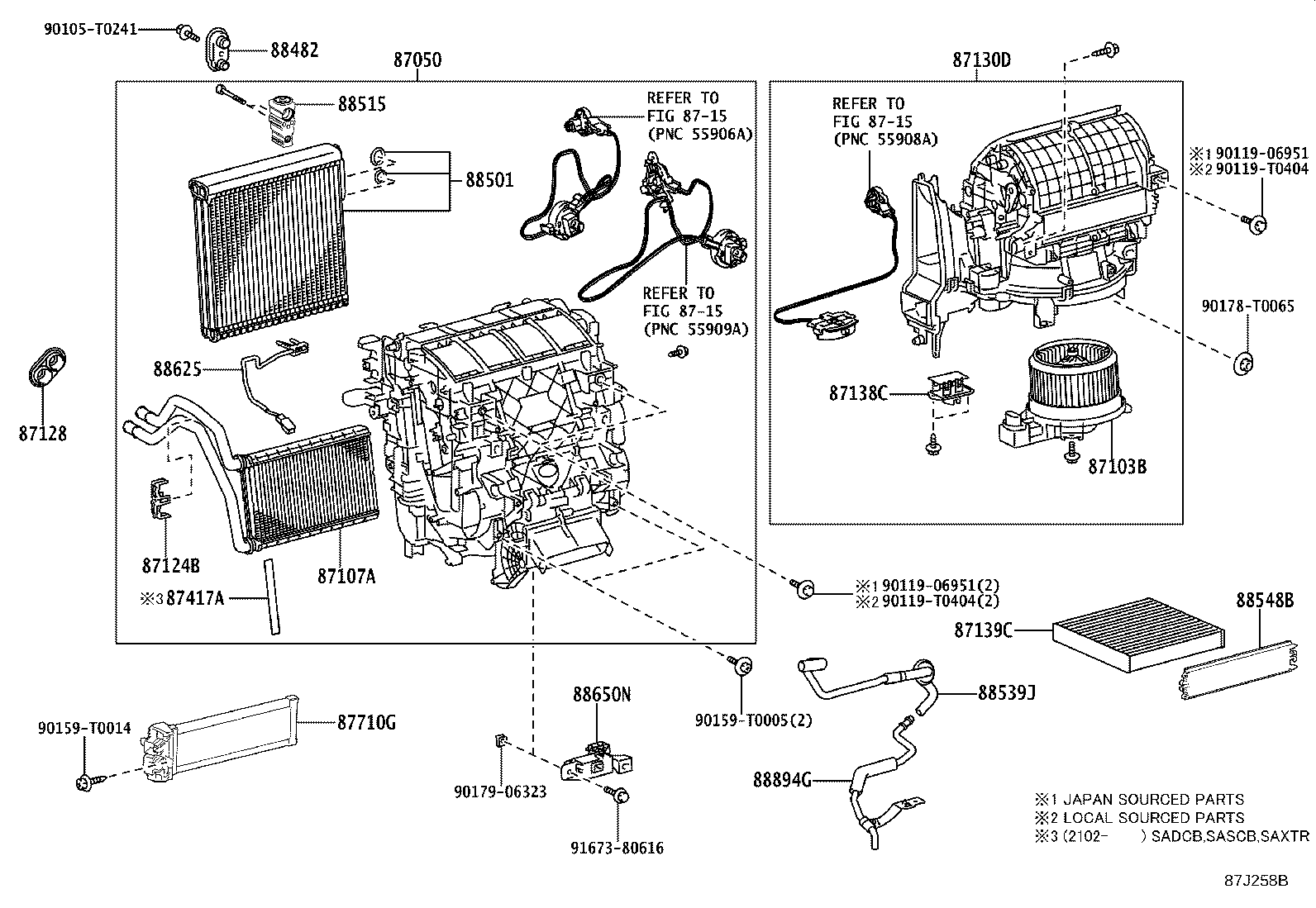

GUN135L-DNFSXW (2020)
Toyota Hilux
(2009- )LHD
MANUAL HEATER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-0KB90 |
GUN125,135..LHD..SADCB..(L,S) FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 87050-0KB80 |
GUN125,135..LHD..SADCB..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 87050-0KN00 |
GUN135..SADCB;GUN125..LHD..SADCB..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT |
1 | ||
| 87050-0KN60 |
GUN135..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050-0KN20 |
GUN125,135..LHD..SADCB..(L,S) FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 87050-0KN20 |
GUN135..SADCB;GUN125..LHD..SADCB..(L,S) |
1 | ||
| 87050-0KN40 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87050-0KN20 |
GUN125,135..LHD..SADCB..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-0K501 |
GUN12#,135..LHD..(SADCB,SASCB,SAXTR) |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-0K170 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 87124B - CLAMP, HEATER | ||||
| 87124-0K230 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-0K200 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-0K761 |
GUN135..SADCB,SASCB,SAXTR;GUN125..LHD..SADCB..(L,S);GUN125..LHD..(SASCB,SAXTR) |
1 | ||
| 87130-0K601 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87130-0K601 |
GUN135..H;GUN125..SAXTR..H FRONT AIR CONDITIONER-AUTO |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-0K350 |
GUN135;GUN125..SAXTR..H;GUN125..LHD..(L,S) |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-0K090 |
GUN12#,135..SADCB,SASCB,SAXTR POLLEN FILTER |
1 | ||
| 87139-58010 |
GUN12#,135 DEODORANT FILTER |
1 | ||
| 87417A - PACKING, AIR DUCT | ||||
| 87417-0K050 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-0K110 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-0K030 |
GUN135..SADCB..S;GUN125..LHD..(SADCB,SAXTR)..(L,S) FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88482-0K030 |
GUN125,135..LHD..SADCB..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-0K380 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88501-0K400 |
GUN135..SADCB..S;GUN125..LHD..(SADCB,SAXTR)..(L,S) FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88501-0K380 |
GUN135..SADCB;GUN125..LHD..SADCB..H;GUN126..LHD..SADCB..6FC;GUN125..LHD..(SADCB,SAXTR)..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT |
1 | ||
| 88501-0K540 |
GUN135..SADCB;GUN12#..LHD..(SADCB,SAXTR) |
1 | ||
| 88501-0K540 |
GUN135..SADCB..S;GUN125..LHD..(SADCB,SAXTR)..(L,S) FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88501-0K540 |
GUN135..SADCB..S;GUN125..LHD..(SADCB,SAXTR)..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88501-0K420 |
GUN125,135..LHD..SADCB..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-0K600 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-0K420 |
GUN12#,135..LHD..(SADCB,SASCB,SAXTR) |
1 | ||
| 88548B - CASE, AIR FILTER | ||||
| 88548-0K121 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-0K010 |
GUN135..H TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88620-0K010 |
GUN135..SADCB;GUN125..LHD..SADCB..H;GUN126..LHD..SADCB..6FC;GUN125..(SADCB,SAXTR)..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT |
1 | ||
| 88620-0K020 |
GUN135..SADCB;GUN12#..SADCB,SAXTR |
1 | ||
| 88620-0K020 |
GUN135..SADCB..S;GUN125..LHD..(SADCB,SAXTR)..(L,S) FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88620-0K020 |
GUN135..SADCB..S;GUN125..LHD..(SADCB,SAXTR)..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88620-0K010 |
GUN125,135..LHD..SADCB..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-0K520 |
GUN125,135..LHD..(SADCB,SASCB,SAXTR)..S WINDSHIELD DEICER-WITHOUT&FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88650-0K420 |
GUN135;GUN125..L,S;GUN125..SAXTR..H |
1 | ||
| 88650-0K710 |
GUN135..H;GUN125..SAXTR..H;GUN125,135..THDCB..S FRONT AIR CONDITIONER-AUTO |
1 | ||
| 88650-0K520 |
GUN125,135..L FRONT AIR CONDITIONER-COOLER LESS |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-0K100 |
GUN135..SADCB;GUN125..LHD..SADCB..H;GUN126..LHD..SADCB..6FC;GUN125..LHD..(SADCB,SAXTR)..(L,S) TOYOTA STOP & START SYSTEM-WITHOUT |
1 | ||
| 88894-0K190 |
GUN135..SADCB;GUN12#..LHD..(SADCB,SAXTR) |
1 | ||
| Common parts | ||||
| 90105-T0241 | ||||
| 90119-06951 | ||||
| 90119-T0404 | ||||
| 90159-T0005 | ||||
| 90159-T0014 | ||||
| 90178-T0065 | ||||
| 90179-06323 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
