GUN135L-BNFXXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

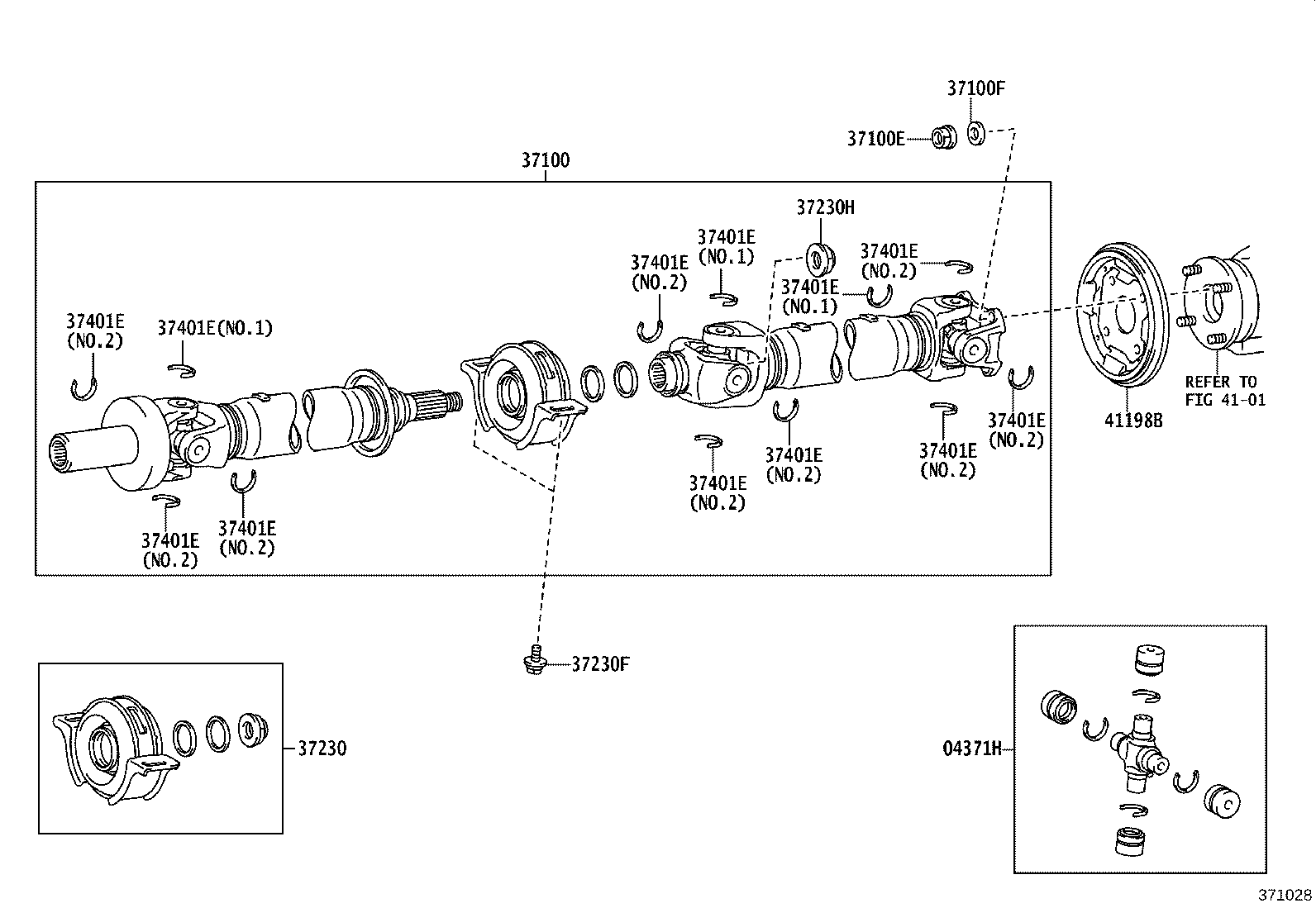

(2005- )GUN135..DCRE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K170 |
GUN135..DCRE |
3 | ||
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K170 |
GUN135..DCRE |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KD21 |
GUN135..DCRE |
1 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 41198B - DAMPER, DIFFERENTIAL MASS | ||||
| 41197-0K020 |
GUN135..6F |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||

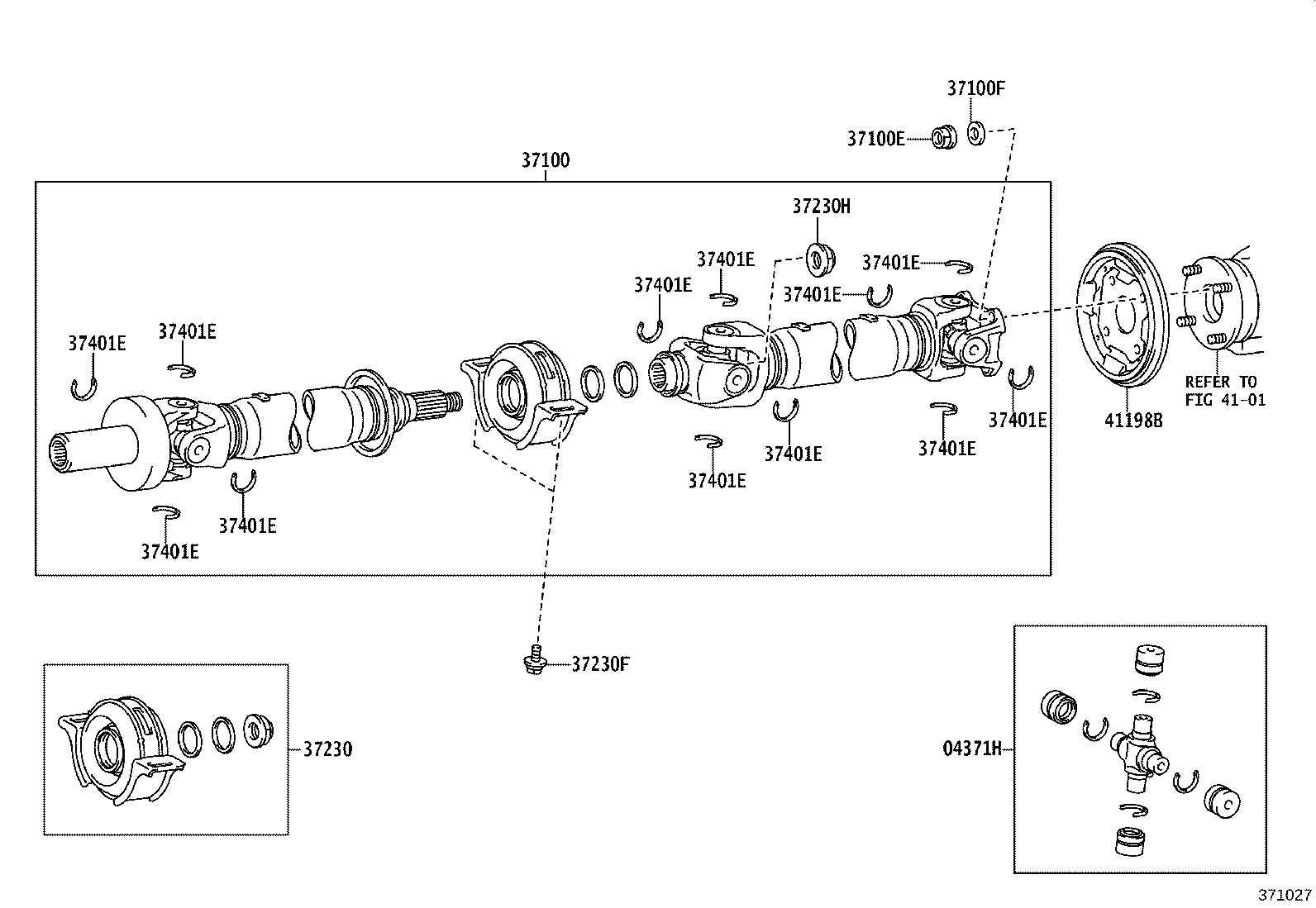

(1906-2005)GUN135..SADCB,SASCB,SAXTR..DCRE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K170 |
GUN135..DCRE |
3 | ||
| 04371H - SPIDER KIT, REAR PROPELLER SHAFT UNIVERSAL JOINT | ||||
| 04371-0K170 |
GUN135..DCRE |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0KD21 |
GUN135..DCRE |
1 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 41198B - DAMPER, DIFFERENTIAL MASS | ||||
| 41197-0K020 |
GUN135..6F |
1 | ||
| Linked diagrams | ||||
| 4101 | ||||
(2006- )GUN135
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4101 | ||||
