GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

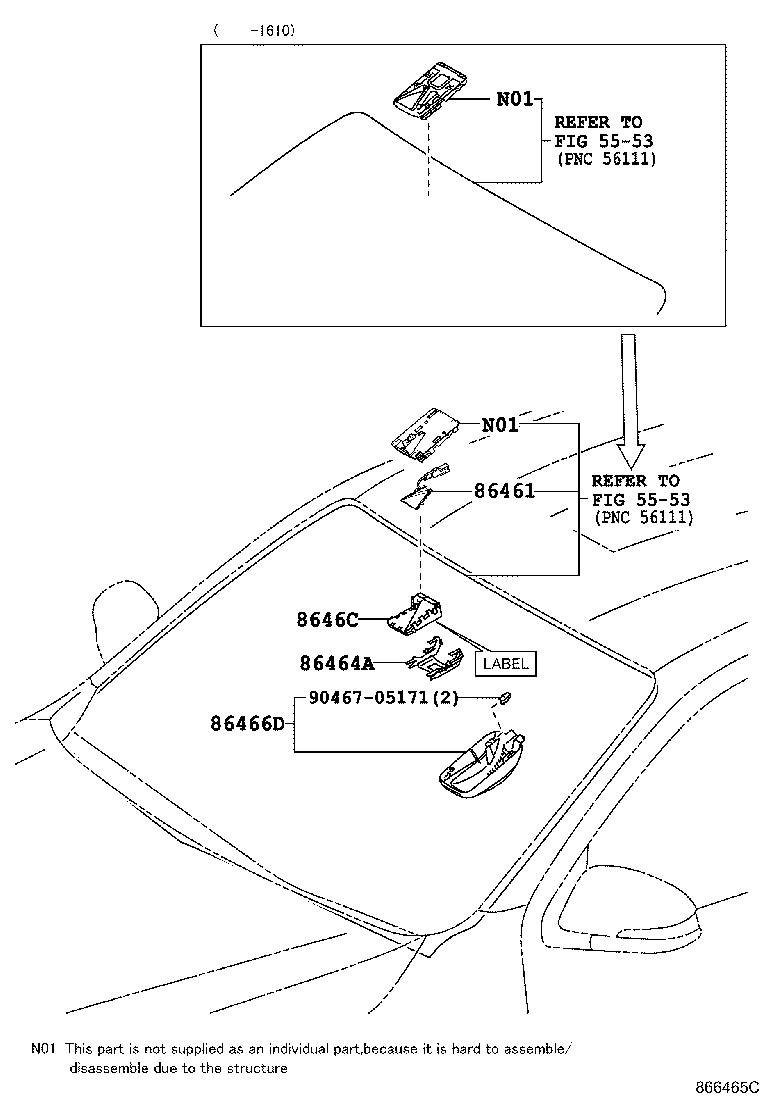

ILLUST NO. 1 OF 2(1604- )

Click highlighted areas on diagram

WINDSHIELD GLASS

diagram 5553 5553 5553 86461 86464A 86464A 86466D 86466D 8646C 8646C 9046705171 9046705171
Part # Description Qty Price
86461 - HOOD, FORWARD RECOGNITION
86461-71020

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86464A - LATCH, FORWARD RECOGNITION
86464-71010

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86464A - LATCH, FORWARD RECOGNITION
86464-71010

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-71010

GUN125,135..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86466-71011

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646671011

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-71010

GUN125,135..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86466-71011

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646671011

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-0K010

GUN125,135..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646C0K010

 1
8646C-0K011

GUN125,135..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646C0K011

 1
8646C-0K020

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646C0K020

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-0K010

GUN125,135..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646C0K010

 1
8646C-0K011

GUN125,135..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646C0K011

 1
8646C-0K020

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH,P/N LABEL=8646C0K020

 1
Common parts
90467-05171
Linked diagrams
5553

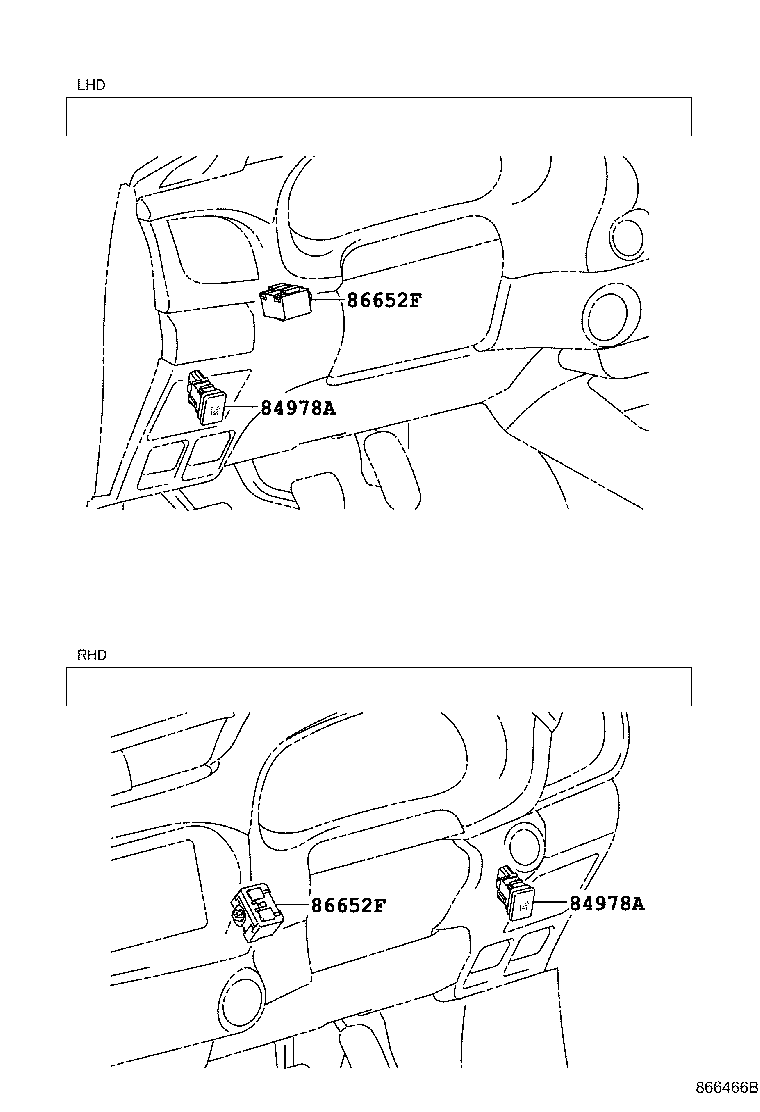

ILLUST NO. 2 OF 2(1604- )HDCR

Click highlighted areas on diagram

COWL

diagram 84978A 84978A 86652F 86652F
Part # Description Qty Price
84978A - SWITCH, LANE-KEEPING ASSIST MAIN
84978-0K020

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
84978A - SWITCH, LANE-KEEPING ASSIST MAIN
84978-0K020

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86652F - BUZZER, SKID CONTROL
86652-50010

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
86652F - BUZZER, SKID CONTROL
86652-50010

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

PRE-COLLISION SYSTEM-WITH

 1
