GUN135L-BNFXHW (2016)
Toyota Hilux
(1604- )SADCB,SASCB,SAXTR ; (1708- )THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0K070 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE 0 |
2 | ||
| 85381-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE -2 |
2 | ||
| 85381-0K090 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0K070 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE 0 |
2 | ||
| 85381-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE -2 |
2 | ||
| 85381-0K090 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE +2 |
2 | ||
| 85035 - NOZZLE SUB-ASSY, WASHER | ||||
| 85381-0K070 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE 0 |
2 | ||
| 85381-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE -2 |
2 | ||
| 85381-0K090 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB ANGLE +2 |
2 | ||
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-0K190 |
GUN12#,135..SADCB,SASCB,SAXTR |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-0K021 |
GUN12#,135 |
1 | ||
| 85330-0K020 |
GUN12#,135 |
1 | ||
| 85319D - PACKING, FRONT WASHER | ||||
| 85319-33230 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85355-71030 |
GUN12#,135..H,M |
1 | ||
| 85315-71040 |
GUN125..S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..(S,X) |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32089 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-YE011 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85377-0D040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 85369 - CLAMP | ||||
| 82711-0K070 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
3 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90068-33278 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB L=1635 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33251 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB L=235 |
2 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90068-33251 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB L=235 |
2 | ||
| 85397 - SWITCH ASSY,LEVEL WARNING | ||||
| 85397-30400 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 82711-3A640 | ||||
| 90119-T0144 | ||||

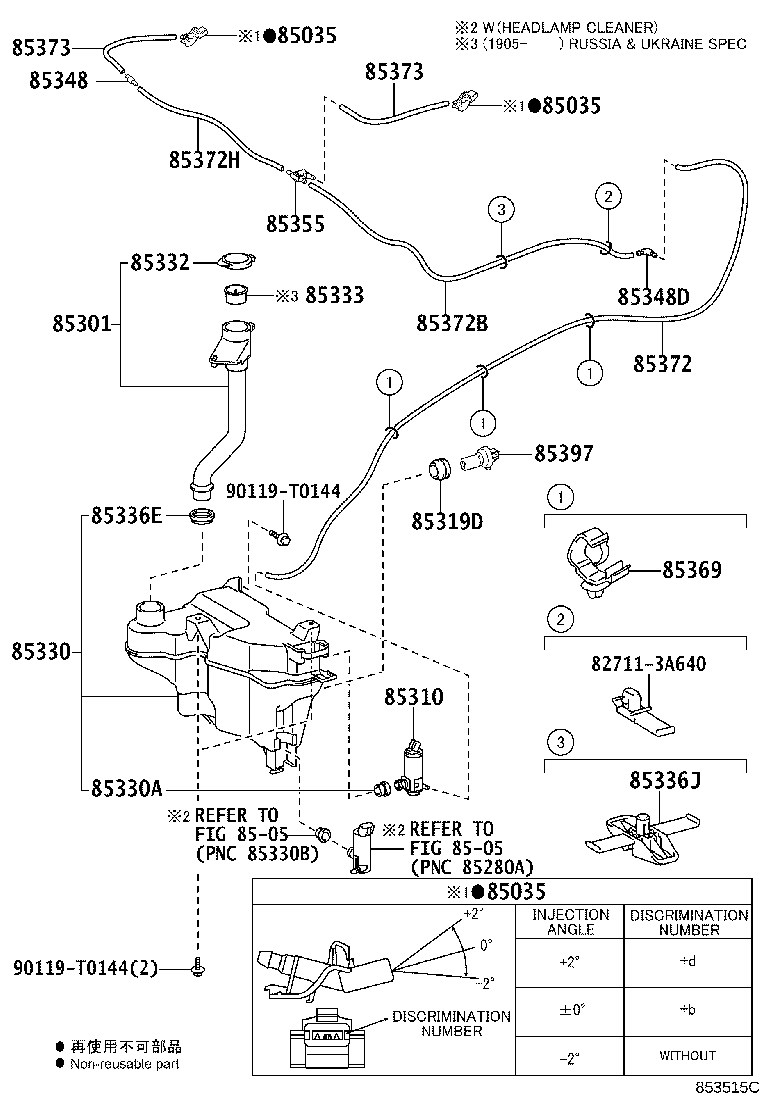

| Linked diagrams | ||||
| 8505 | ||||
