GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(1604- )SASCB,SAXTR

Click highlighted areas on diagram

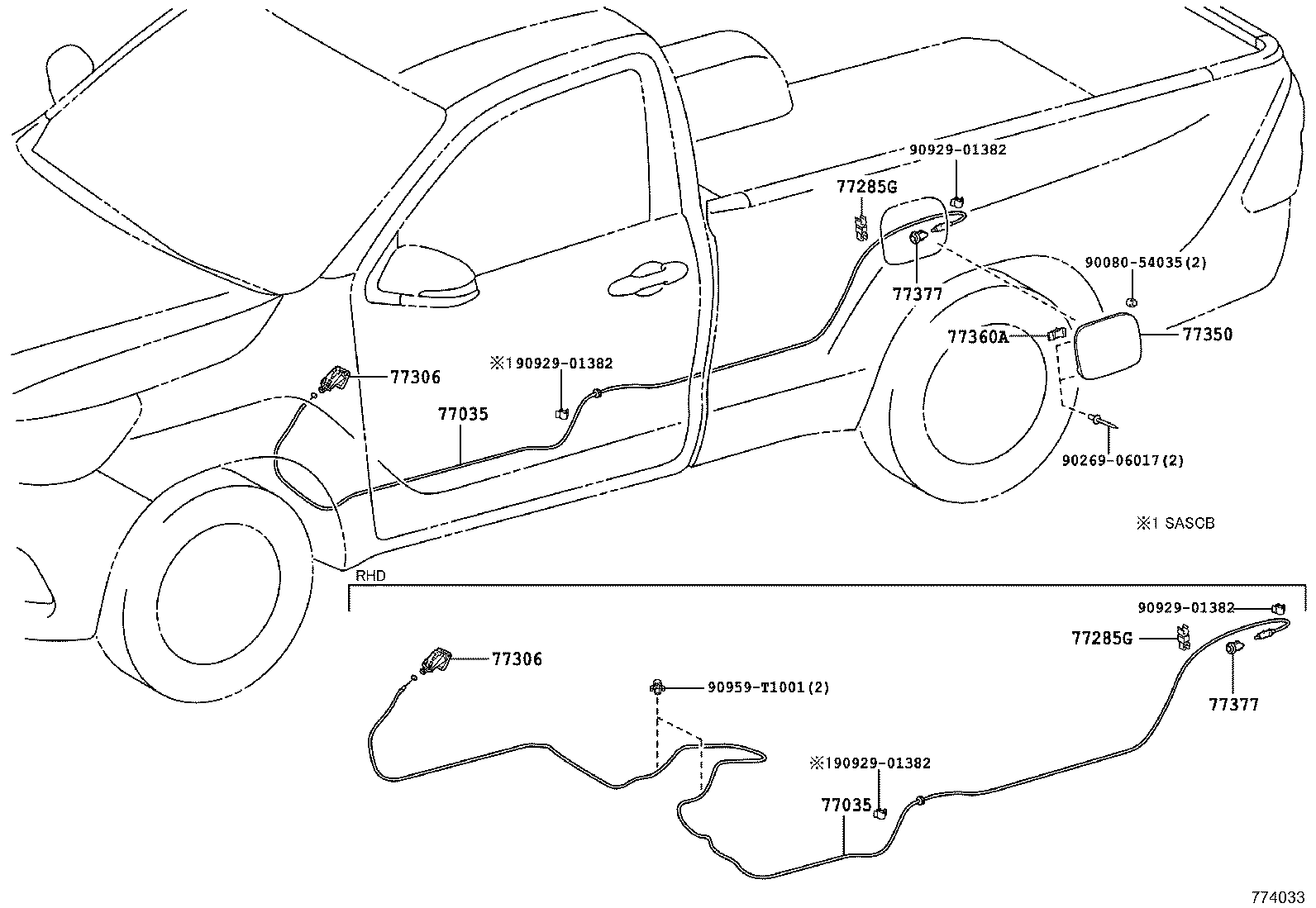

FUEL LID OPENER

diagram 77035 77035 77285G 77285G 77306 77306 77350 77360A 77377 77377 9008054035 9026906017 9092901382 9092901382 9092901382 9092901382 90959T1001
Part # Description Qty Price
77285G - CLAMP, FUEL TUBE, NO.1
77285-0K190

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 1
77285G - CLAMP, FUEL TUBE, NO.1
77285-0K190

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 1
77360A - SPRING ASSY, FUEL FILLER OPENING LID
77360-0K010

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 1
Common parts
90080-54035
90269-06017
90929-01382
90959-T1001
