GUN135L-BNFXHW (2016)
Toyota Hilux
Production
Apr 2016
-
May 2019
Engine
2GDFTV
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(1604- )SASCB

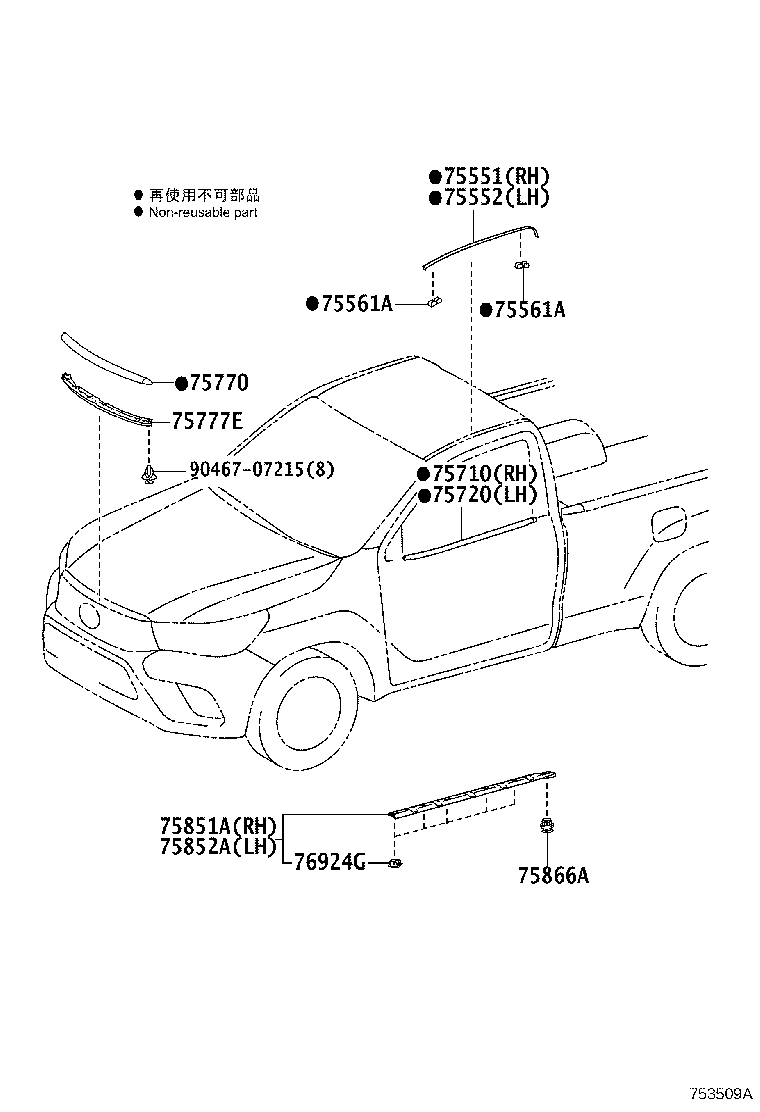

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-33030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-33030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
4 | ||
| 75770 - MOULDING ASSY, HOOD, FRONT | ||||
| 75770-0K400 |
GUN125,135..(SADCB,SASCB,SAXTR)..(S,X) NO PAINT REQ. |
1 | ||
| 75866A - RETAINER, ROCKER PANEL MOULDING | ||||
| 76923-52021 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| Common parts | ||||
| 90467-07215 | ||||
