GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(1604- )

Click highlighted areas on diagram

DOOR TRIM,W/O(POWER WINDOW)

diagram 67491A 67491A 67491F 67491F 67492A 67492A 67601 67601B 67602 68171B 68172A 7451 9015960370 90159T0039 9090189021
Part # Description Qty Price
67491F - CLIP(FOR DOOR TRIM)
90467-T0019

GUN125..RHD;GUN125..LHD..SADCB..M;GUN126,135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SASCB,SAXTR)..(H,S,X)

 1
67491F - CLIP(FOR DOOR TRIM)
90467-T0019

GUN125..RHD;GUN125..LHD..SADCB..M;GUN126,135..SADCB,SASCB,SAXTR;GUN125..LHD..(SADCB,SASCB,SAXTR)..(H,S,X)

 1
Common parts
90159-60370
90159-T0039
90901-89021
Linked diagrams
7451

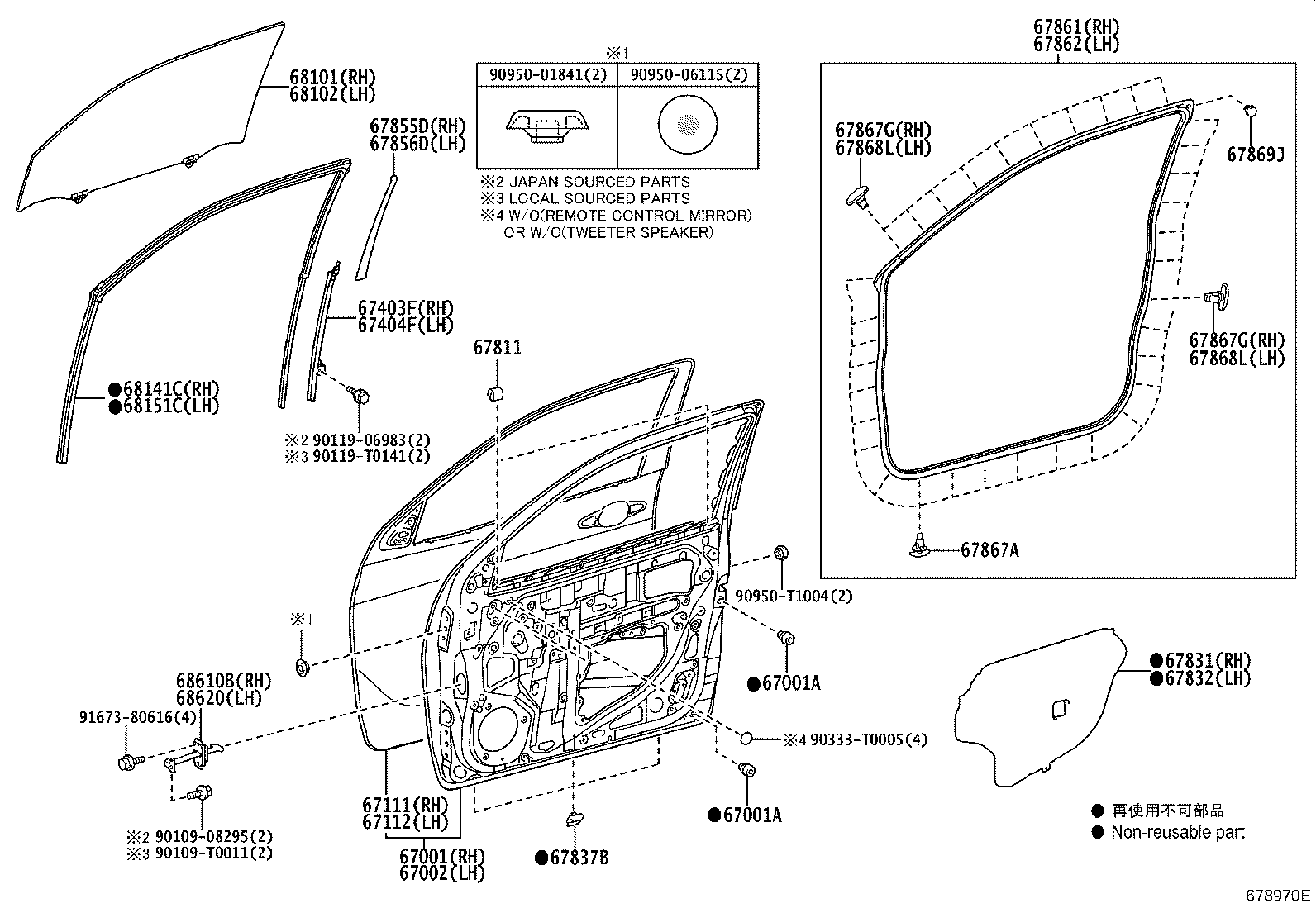

ILLUST NO. 1 OF 2(1604- )SASCB

Click highlighted areas on diagram

DOOR PANEL

diagram 67001 67001A 67001A 67002 67111 67112 67403F 67404F 67811 67831 67832 67837B 67855D 67856D 67861 67862 67867A 67867G 67867G 67868L 67868L 67869J 68101 68102 68141C 68151C 68610B 68620 9010908295 90109T0011 9011906983 90119T0141 90333T0005 9095001841 9095006115 90950T1004 9167380616
Part # Description Qty Price
67001A - CUSHION, FRONT DOOR PANEL
90541-09131

GUN12#,135..SADCB,SASCB,THDCB

 4
67001A - CUSHION, FRONT DOOR PANEL
90541-09131

GUN12#,135..SADCB,SASCB,THDCB

 4
67811 - PAD, FRONT DOOR SILENCER
69759-0K030

GUN12#,135..SADCB,SASCB,SAXTR

 4
67837B - SEAL, FRONT DOOR DUST PROOF
67837-0K100

GUN12#,135..SADCB,SASCB,SAXTR

 6
67837-0K101

GUN12#,135..SADCB,SASCB,SAXTR

 6
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867-12150

GUN12#,135..SADCB,SASCB,THDCB

 48
Common parts
90109-08295
90109-T0011
90119-06983
90119-T0141
90333-T0005
90950-01841
90950-06115
90950-T1004
91673-80616
