GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )SASCB..CBU

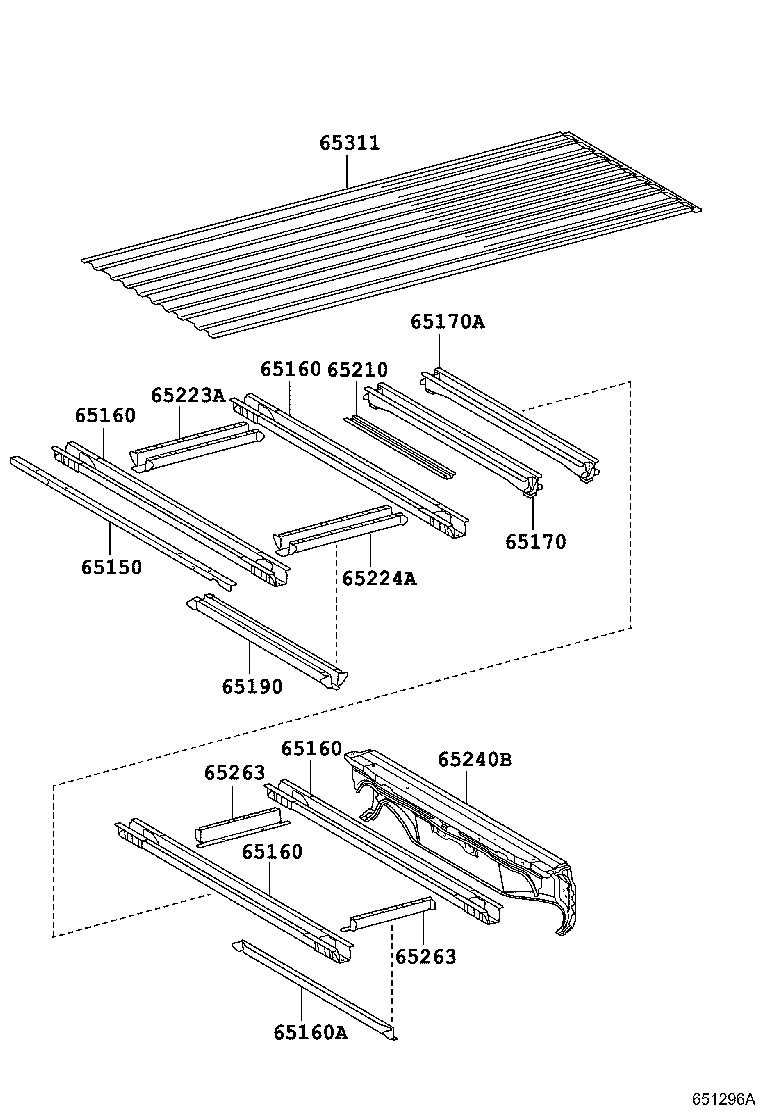

Click highlighted areas on diagram

diagram 65150 65160 65160 65160 65160 65160A 65170 65170A 65190 65210 65223A 65224A 65240B 65263 65263 65311
Part # Description Qty Price
65160A - SILL ASSY, CROSS, NO.2
65261-0K011

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 1
65170 - SILL ASSY, CROSS, NO.2
65170-KK010

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 1
65170A - SILL ASSY, CROSS, NO.3
65170-KK010

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 1
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-KK010

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 2
65263 - REINFORCEMENT, FLOOR SIDE FRAME
65263-KK010

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

 2
