GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )SASCB

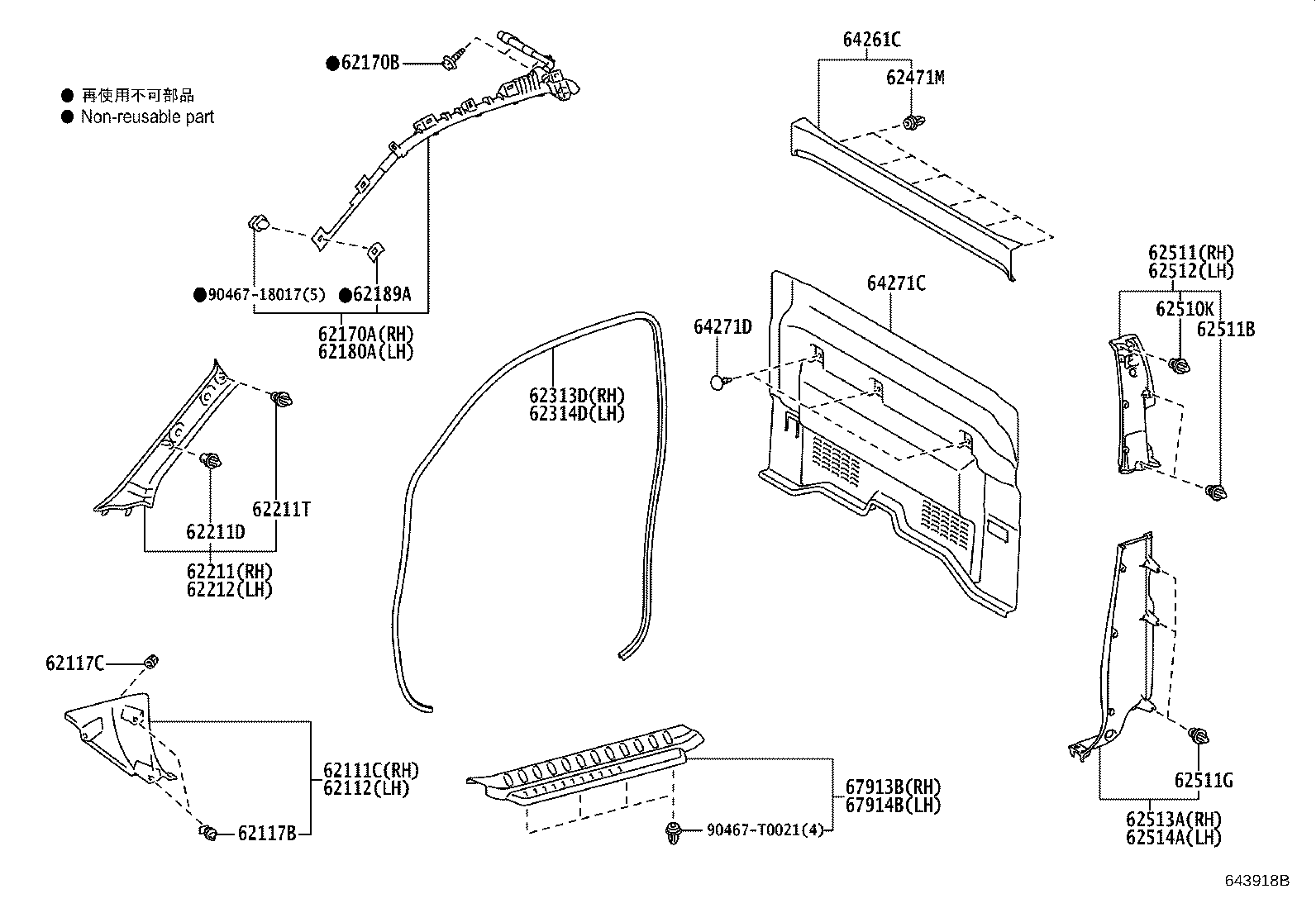

Click highlighted areas on diagram

diagram 62111C 62112 62117B 62117C 62170A 62170B 62180A 62189A 62211 62211D 62211T 62212 62313D 62314D 62471M 62510K 62511 62511B 62511G 62512 62513A 62514A 64261C 64271C 64271D 67913B 67914B 9046718017 90467T0021
Part # Description Qty Price
62117B - CLIP, NO.1(FOR COWL SIDE TRIM)
90467-11089A0

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

IVORY

 4
62117C - CLIP, NO.2(FOR COWL SIDE TRIM)
90467-06147

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
62170B - BOLT, W/WASHER
91673-80616

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 4
62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP
62189-42010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 4
62211 - GARNISH, FRONT PILLAR, RH
62211-KK030B0

GUN135..IV3;GUN135..SADCB..S;GUN125,135..(SASCB,SAXTR)..(M,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

LT.GRAY,TRIM2#

 1
62211-KK030C0

GUN135..IV3;GUN135..SADCB;GUN125..6F..H;GUN126,135..(SADCB,SASCB)..(H,X);GUN125..(SADCB,SASCB,SAXTR)..(M,S,X)

BLACK,TRIM20

 1
62211D - CLIP(FOR FRONT BODY PILLAR GARNISH)
90467-T0021

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
62211T - CLIP(FOR FRONT PILLAR GARNISH)
90467-T0021

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
62212 - GARNISH, FRONT PILLAR, LH
62212-KK030B0

GUN135..IV3;GUN135..SADCB..S;GUN125,135..(SASCB,SAXTR)..(M,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

LT.GRAY,TRIM2#

 1
62212-KK030C0

GUN135..IV3;GUN135..SADCB;GUN125..6F..H;GUN126,135..(SADCB,SASCB)..(H,X);GUN125..(SADCB,SASCB,SAXTR)..(M,S,X)

BLACK,TRIM20

 1
62471M - CLIP
90467-T0021

GUN12#,135..SADCB,SASCB,THDCB

 6
62510K - CLIP(FOR QUARTER TRIM FRONT PANEL)
90467-10188

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 2
62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD)
90467-T0021

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 4
64271D - CLIP(FOR BACK PANEL TRIM)
90467-T0004C1

GUN125..SASCB;GUN135..SASCB..X;GUN135..SASCB..IV3

BLACK,TRIM2#

 3
Common parts
90467-18017
90467-T0021
