GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )SASCB

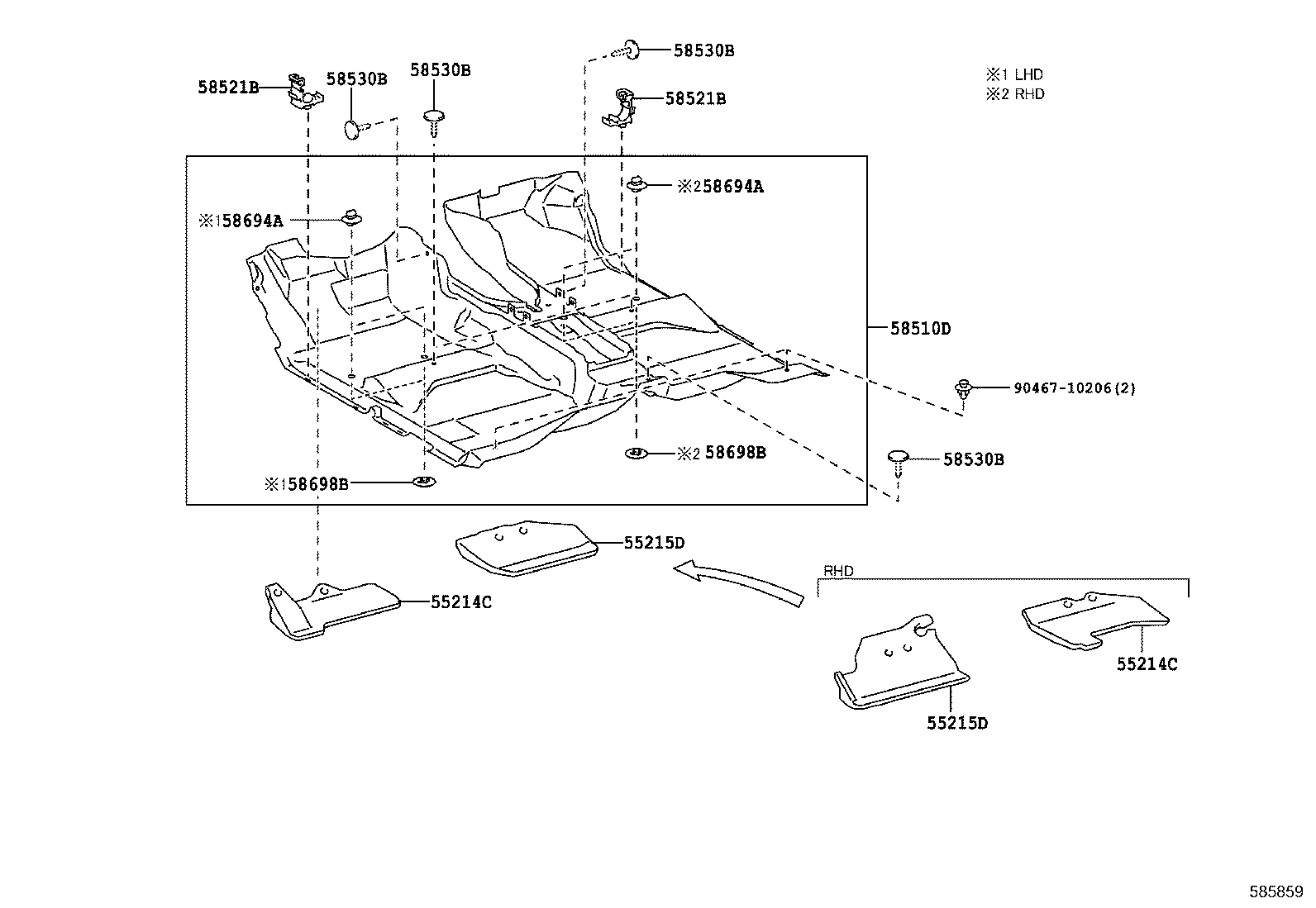

Click highlighted areas on diagram

diagram 55214C 55214C 55215D 55215D 58510D 58521B 58521B 58530B 58530B 58530B 58530B 58694A 58694A 58698B 58698B 9046710206
Part # Description Qty Price
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-KK010

GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55214C - PAD, DASH PANEL INSULATOR, NO.2
55214-KK010

GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-KK010

GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
55215D - PAD, DASH PANEL INSULATOR, NO.3
55215-KK010

GUN12#..LHD;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
58694A - PLATE, MAT SET, UPPER
58694-76010

GUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR

 2
58694A - PLATE, MAT SET, UPPER
58694-76010

GUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN12#..SADCB,SASCB,SAXTR

 2
Common parts
90467-10206
