GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )

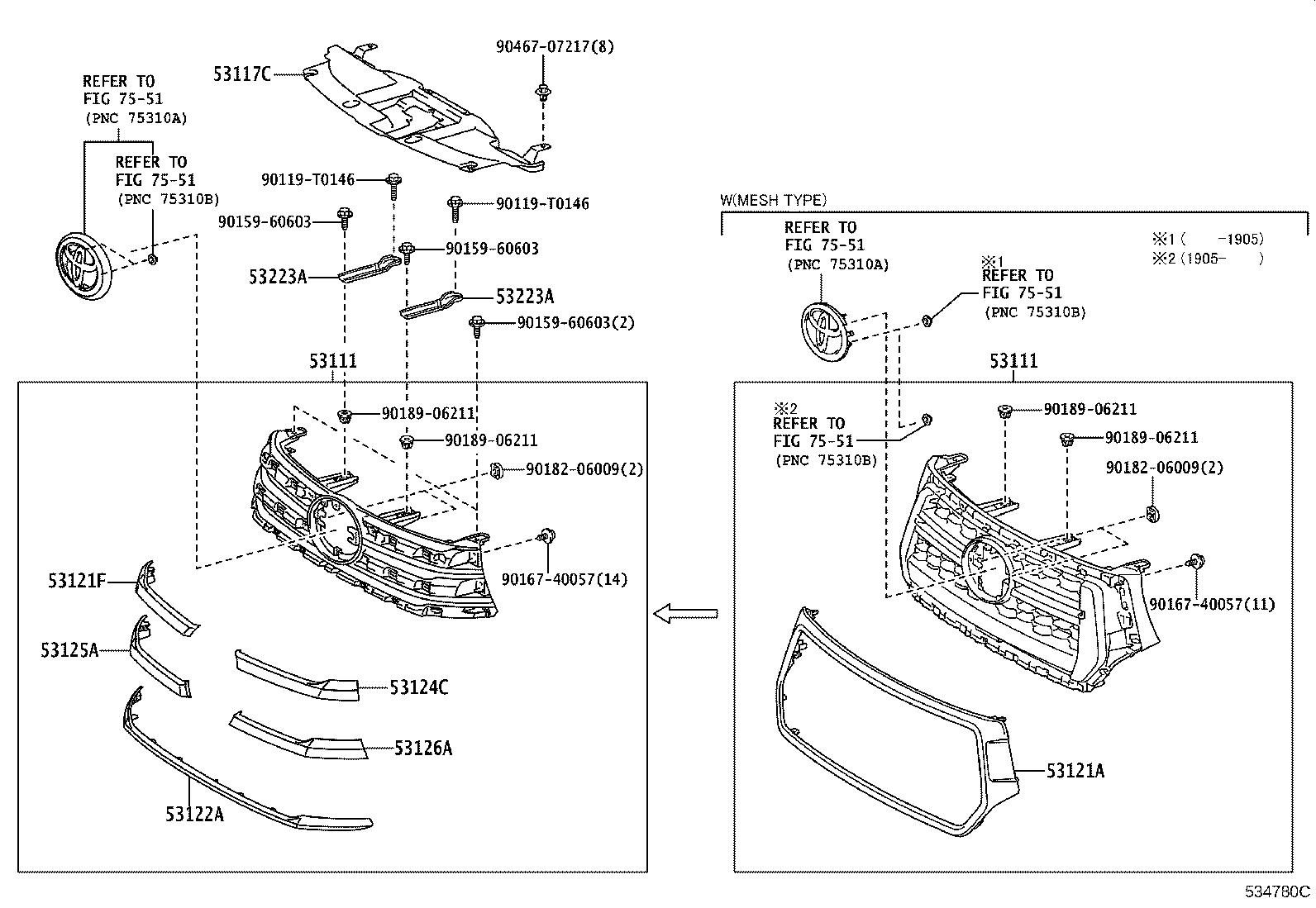

Click highlighted areas on diagram

W(PRE-COLLISION SYSTEM)

diagram 53111 53111 53117C 53121A 53121F 53122A 53124C 53125A 53126A 53223A 53223A 7551 7551 7551 7551 7551 90119T0146 90119T0146 9015960603 9015960603 9015960603 9016740057 9016740057 9018206009 9018206009 9018906211 9018906211 9018906211 9018906211 9046707217
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53100-0KA70

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

NO PAINT REQ.

 1
53100-0K900

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH

 1
53111 - GRILLE, RADIATOR
53100-0KA70

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

NO PAINT REQ.

 1
53100-0K900

GUN135..SAXTR..S;GUN135..(SADCB,SASCB)..(S,X);GUN125..(SADCB,SASCB,SAXTR)..(S,X)

NO PAINT REQ.,PRE-COLLISION SYSTEM-WITH

 1
Common parts
90119-T0146
90159-60603
90167-40057
90182-06009
90189-06211
90467-07217
Linked diagrams
7551
