GUN135L-BNFXHW (2016)
Toyota Hilux

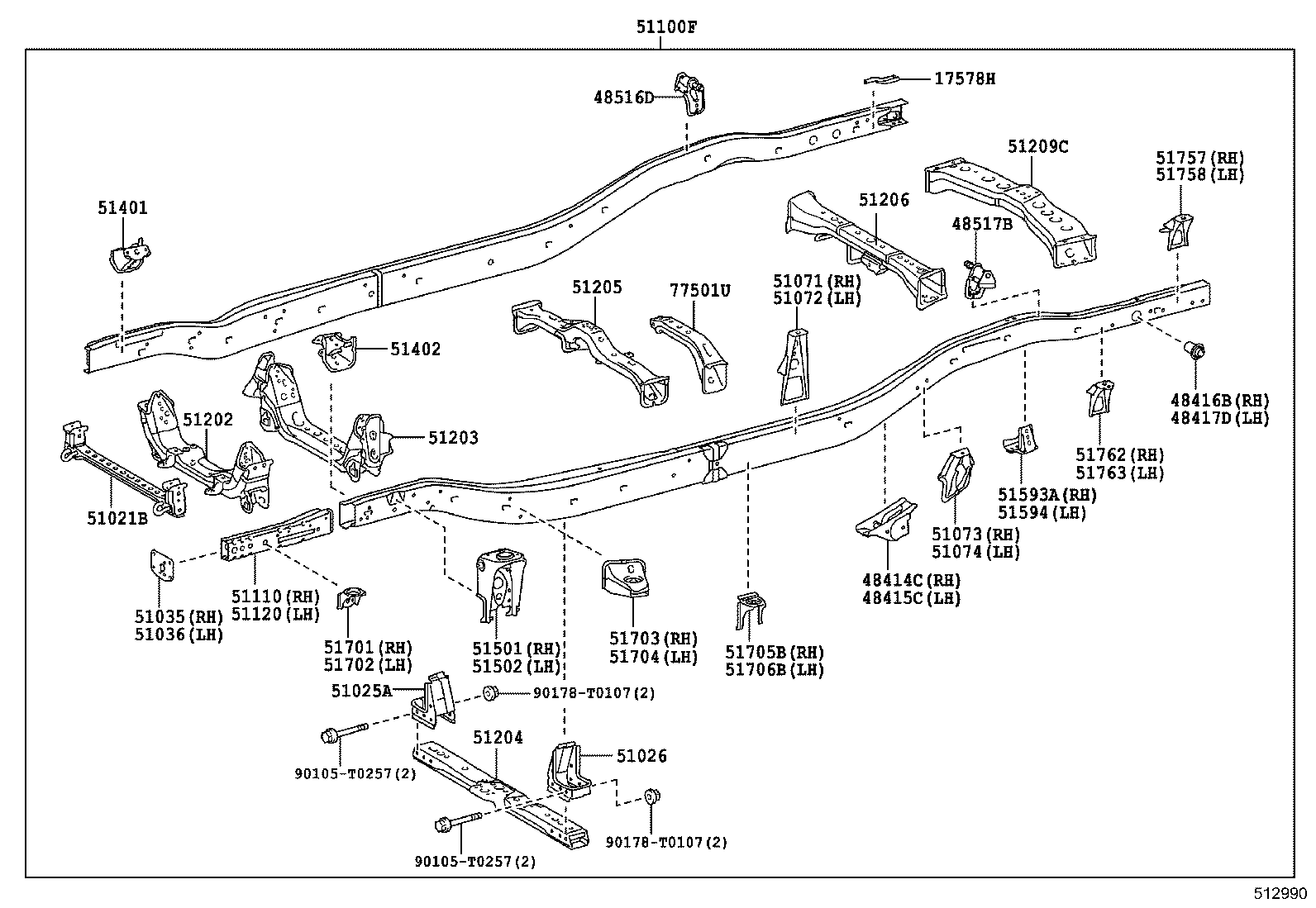

ILLUST NO. 1 OF 2(1604- )SASCB
FRAME
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17578H - BRACKET, EXHAUST PIPE SUPPORT, NO.10 | ||||
| 17505-0L020 |
1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48414C - BRACKET, SPRING, NO.3 RH | ||||
| 48404-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48415C - BRACKET, SPRING, NO.3 LH | ||||
| 48407-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48416B - BRACKET, SPRING, NO.4 RH | ||||
| 48405-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48417D - BRACKET, SPRING, NO.4 LH | ||||
| 48405-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH | ||||
| 48506-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51021B - CROSSMEMBER SUB-ASSY, FRAME AUXILIARY | ||||
| 51021-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51025A - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, RH | ||||
| 51025-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51026 - BRACKET SUB-ASSY, FRAME NO.3 CROSS MEMBER, LH | ||||
| 51026-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51035 - PLATE SUB-ASSY, FRAME SIDE RAIL, RH | ||||
| 51035-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51036 - PLATE SUB-ASSY, FRAME SIDE RAIL, LH | ||||
| 51036-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51110 - EXTENSION ASSY, SIDE RAIL, RH | ||||
| 51110-KK901 |
GUN125,135..SASCB,SAXTR |
1 | ||
| 51120 - EXTENSION ASSY, SIDE RAIL, LH | ||||
| 51122-KK901 |
GUN125,135..SASCB,SAXTR |
1 | ||
| 51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1 | ||||
| 51201-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-KK030 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-KK050 |
GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51205-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR | ||||
| 51209-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51401-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51402-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51501 - SUPPORT SUB-ASSY, SUSPENSION ARM, RH | ||||
| 51501-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51502 - SUPPORT SUB-ASSY, SUSPENSION ARM, LH | ||||
| 51502-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51593A - BRACKET, REAR SPRING BUMPER, RH | ||||
| 57081-KK020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51594 - BRACKET, REAR SPRING BUMPER, LH | ||||
| 57082-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH | ||||
| 51701-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH | ||||
| 51701-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51757 - BRACKET, BODY SUPPORT, NO.4 RH | ||||
| 51077-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51758 - BRACKET, BODY SUPPORT, NO.4 LH | ||||
| 51078-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51762 - BRACKET, BODY SUPPORT, NO.5 RH | ||||
| 51075-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 51763 - BRACKET, BODY SUPPORT, NO.5 LH | ||||
| 51076-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 77501U - BRACKET SUB-ASSY, FUEL TANK | ||||
| 77501-0K020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90105-T0257 | ||||
| 90178-T0107 | ||||
