GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )SADCB,SASCB,SAXTR

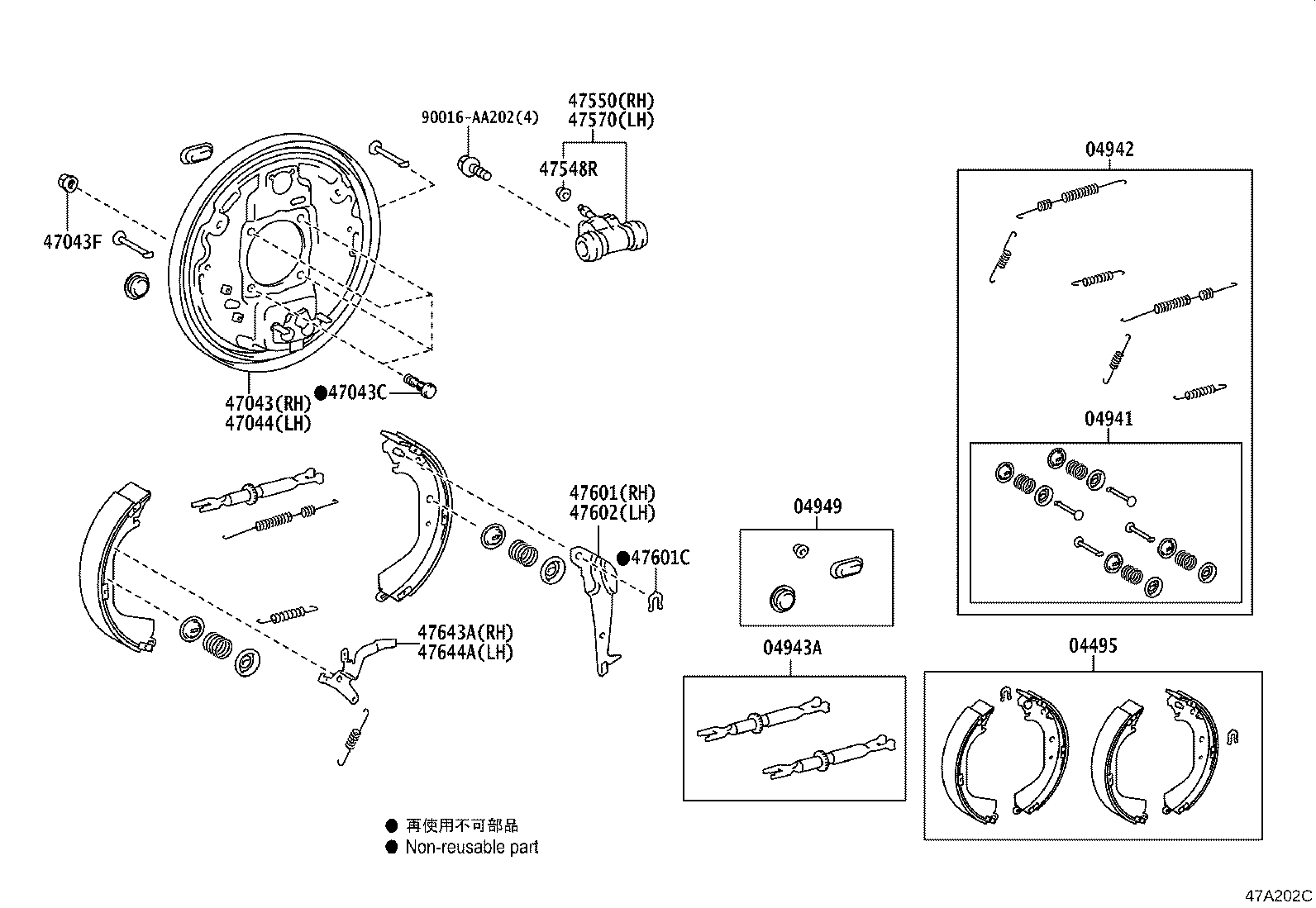

Click highlighted areas on diagram

diagram 04495 04941 04942 04943A 04949 47043 47043C 47043F 47044 47548R 47550 47570 47601 47601C 47602 47643A 47644A 90016AA202
Part # Description Qty Price
47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90114-T0011

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

*10-1.25PX54.5-30

 8
47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)
90178-T0077

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 8
Common parts
90016-AA202
