GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1810- )

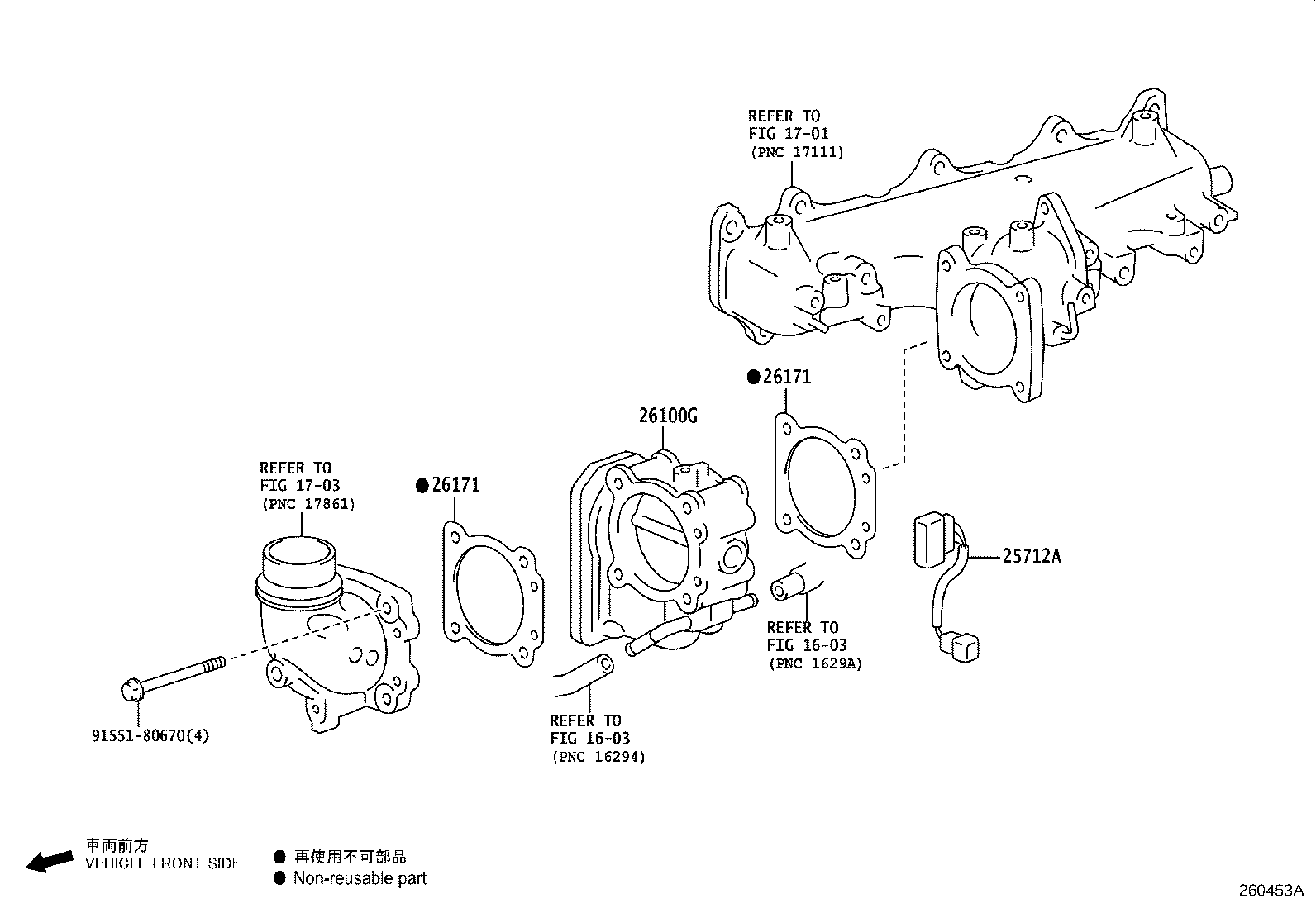

Click highlighted areas on diagram

diagram 1603 1603 1701 1703 25712A 26100G 26171 26171 9155180670
Part # Description Qty Price
25712A - WIRE, EMISSION CONTROL VALVE
25712-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26100G - BODY ASSY, DIESEL THROTTLE
26100-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26171 - GASKET, VENTURI
26171-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
26171 - GASKET, VENTURI
26171-0E010

2GDFTV..GUN125;1GDFTV..GUN126..THDCB;2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB,THDCB

*582

 1
Common parts
91551-80670
Linked diagrams
1603
1701
1703
