GUN135L-BNFXHW (2016)

Toyota Hilux

Production Apr 2016 - May 2019
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1604- )

Click highlighted areas on diagram

W(UREA TANK)

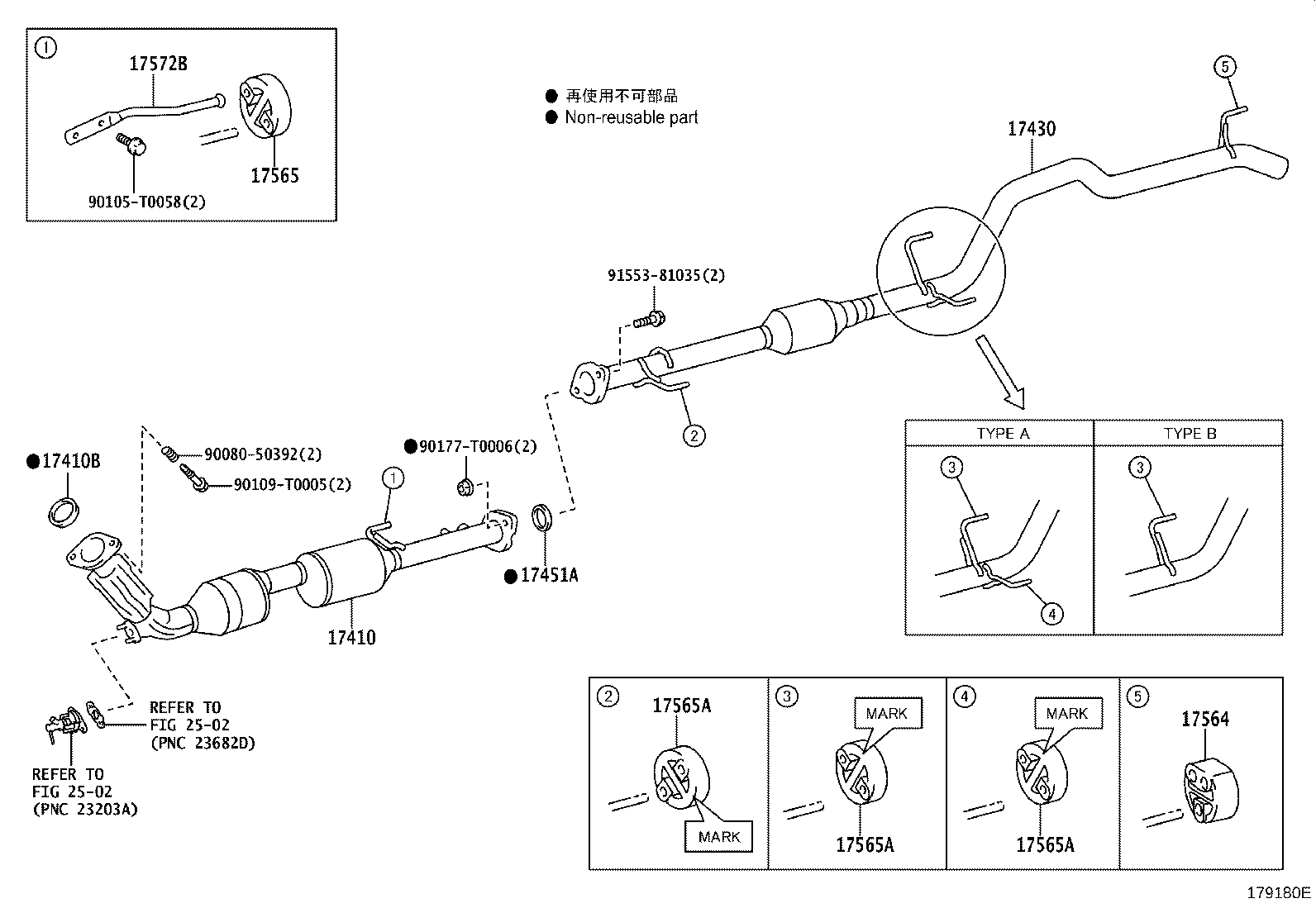

diagram 17410 17410B 17430 17451A 17564 17565 17565A 17565A 17565A 17572B 2502 2502 9008050392 90105T0058 90109T0005 90177T0006 9155381035
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17401-0L201

2GDFTV..GUN135..SAXTR..S;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN125..SADCB,SASCB,SAXTR

*114=TOYOTA/ZC3ZC4/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-0L050

2GDFTV..GUN125..6FC..S;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN125..THDCB..6F..DCRE;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN125..THDCB..6F..M..HDCR;2GDFTV..GUN125..THDCB..6FC..(H,M)..DCRE;1GDFTV,2GDFTV..GUN126,135..SADCB,SASCB,THDCB

 1
17564 - SUPPORT,EXHAUST PIPE, NO.4
17565-0L100

1GDFTV..GUN126;2GDFTV..GUN135..SADCB,SASCB;2GDFTV..GUN135..SAXTR..DCRE;2GDFTV..GUN125..6FC..S..HDCR;2GDFTV..GUN125..SADCB,SASCB,SAXTR;2GDFTV..GUN135..(SAXTR,THDCB)..(M,S)..HDCR

 1
Common parts
90080-50392
90105-T0058
90109-T0005
90177-T0006
91553-81035
Linked diagrams
2502
