GUN135L-BNFLXW (2020)

Toyota Hilux

Production Sep 2020 - Sep 2021
Engine 2GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(2009- )CBU

Click highlighted areas on diagram

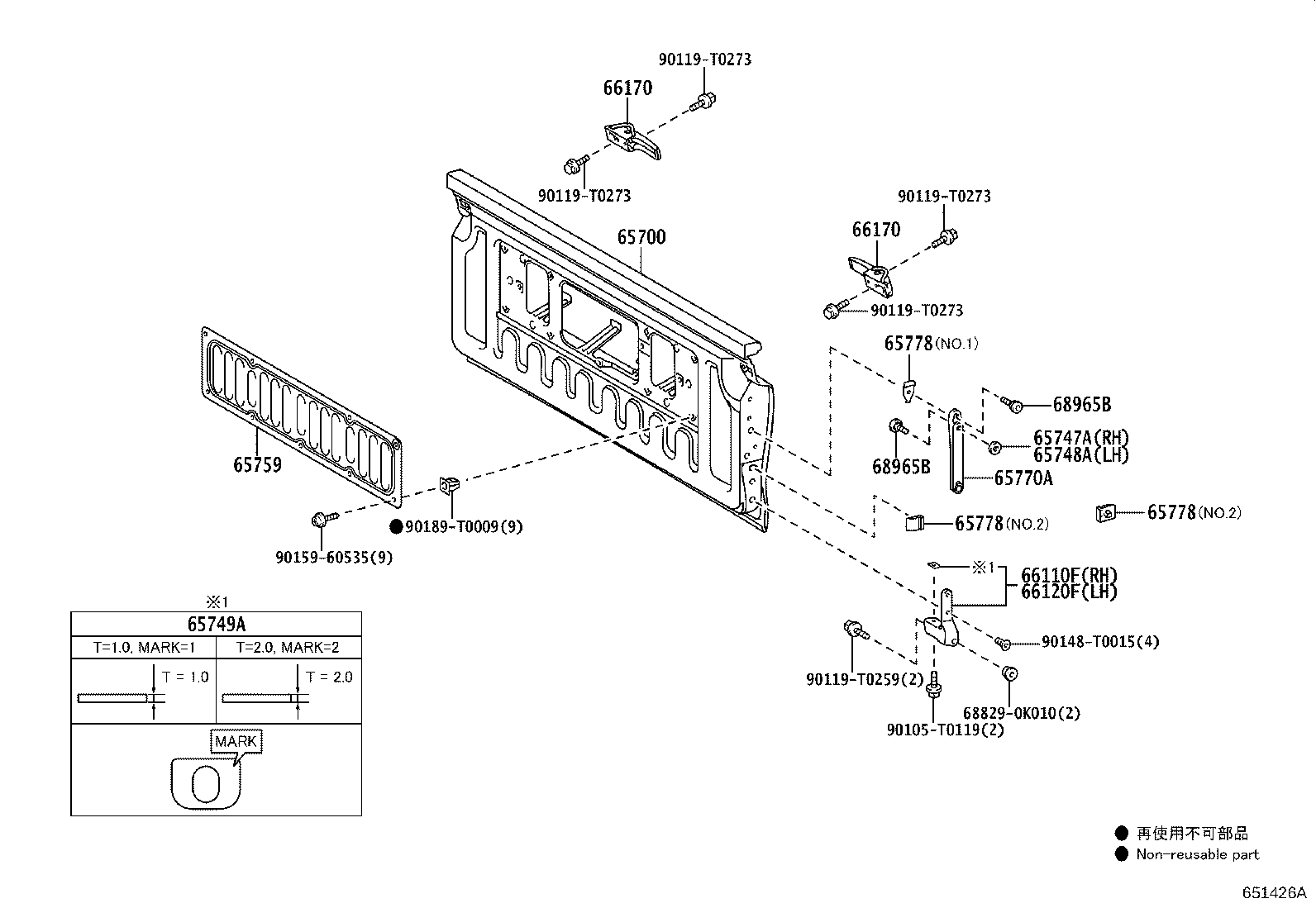

TAIL GATE(LATCH TYPE)

diagram 65700 65747A 65748A 65749A 65759 65770A 65778 65778 65778 66110F 66120F 66170 66170 688290K010 68965B 68965B 90105T0119 90119T0259 90119T0273 90119T0273 90119T0273 90119T0273 90148T0015 9015960535 90189T0009
Part # Description Qty Price
65700 - GATE ASSY, REAR BODY TAIL
65700-KK100

GUN125,135..SASCB..CBU

 1
65747A - PLATE, TAIL GATE SEAL, RH
65747-0K020

GUN12#,135..CBU

 1
65748A - PLATE, TAIL GATE SEAL, LH
65747-0K020

GUN12#,135..CBU

 1
65749A - PAD, TAIL GATE HINGE
65749-0K080

GUN12#,135..(SADCB,SASCB,SAXTR)..CBU

T=2.0, MARK 2

 1
65749-0K030

GUN12#,135..(SADCB,SASCB,SAXTR)..CBU

T=1.0, MARK 1

 1
65759 - COVER, TAIL GATE SERVICE HOLE
65759-KK020

GUN125,135..SASCB..CBU

 1
65770A - STAY ASSY, TAIL GATE
65770-0K030

GUN12#,135..CBU

 2
65778 - STOPPER, TAIL GATE STAY
65778-0K020

GUN12#,135..CBU

NO.1

 2
65778-0K030

GUN12#,135..CBU

NO.2

 4
65778 - STOPPER, TAIL GATE STAY
65778-0K020

GUN12#,135..CBU

NO.1

 2
65778-0K030

GUN12#,135..CBU

NO.2

 4
65778 - STOPPER, TAIL GATE STAY
65778-0K020

GUN12#,135..CBU

NO.1

 2
65778-0K030

GUN12#,135..CBU

NO.2

 4
66110F - HINGE ASSY, TAIL GATE, RH
66110-0K070

GUN12#,135..(SADCB,SASCB,SAXTR)..CBU

 1
66120F - HINGE ASSY, TAIL GATE, LH
66120-0K070

GUN12#,135..(SADCB,SASCB,SAXTR)..CBU

 1
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-KK011

GUN125,135..SASCB..CBU

 2
66170 - LATCH ASSY, REAR BODY TAIL GATE
66170-KK011

GUN125,135..SASCB..CBU

 2
68965B - SHAFT, TAIL GATE STAY
68965-0K020

GUN12#,135..CBU

 4
68965B - SHAFT, TAIL GATE STAY
68965-0K020

GUN12#,135..CBU

 4
Common parts
68829-0K010
90105-T0119
90119-T0259
90119-T0273
90148-T0015
90159-60535
90189-T0009
