GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

Click highlighted areas on diagram

diagram 87810 87901B 87906B 87910 87915 87940 87945 90178T0023
Part # Description Qty Price
Common parts
90178-T0023

(1506- )

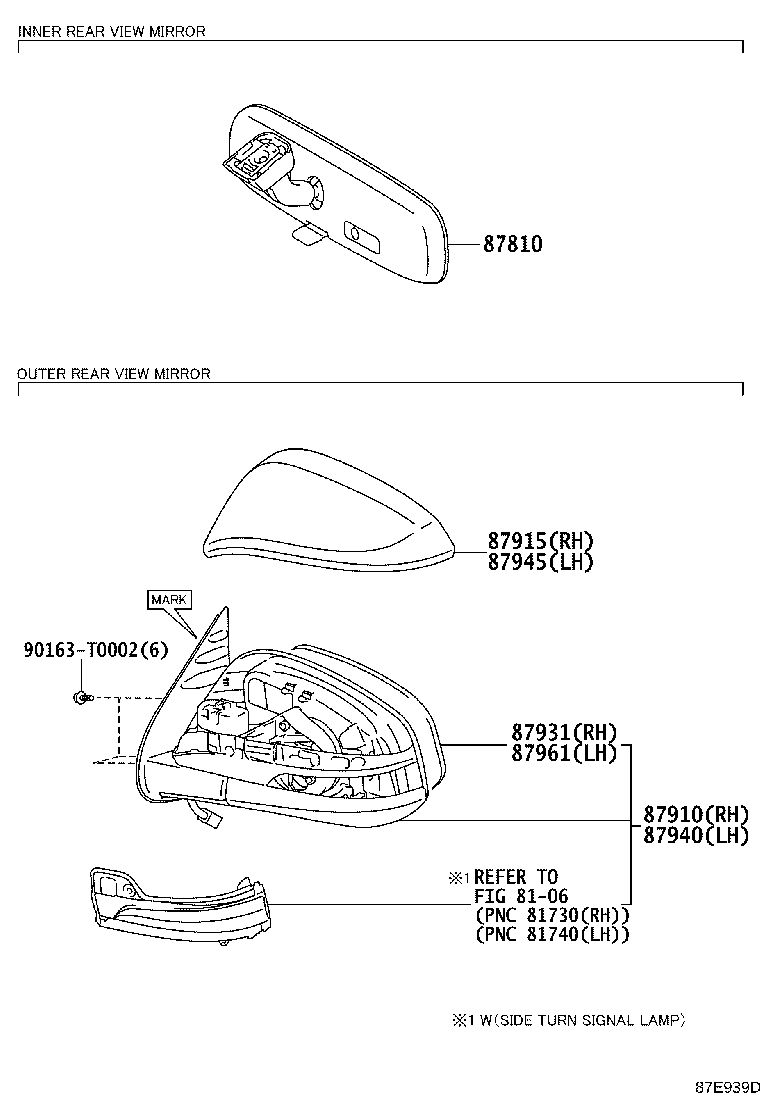

Click highlighted areas on diagram

diagram 8106 87810 87910 87915 87931 87940 87945 87961 90163T0002
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0KG22

GUN125,135..(SADCB,SAXTR)..X..DCRE

 1
87910-0K832

GUN125..RHD..(SADCB,SAXTR)..S

 1
87910-0K722

GUN125..RHD..(H,M)

 1
87910-0K832

GUN125..RHD..M;GUN125..RHD..SASCB

OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

 1
87915 - COVER, OUTER MIRROR, RH
87915-0K620

GUN125,135..(SADCB,SAXTR)..(H,M)

*CR

 1
87915-0K916

GUN125..(SADCB,SAXTR)..(H,M)

OUTSIDE REAR VIEW MIRROR-*273(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

 1
87915-0K390

GUN125..S,X;GUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..(S,X)

NO PAINT REQ.

 1
87931 - OUTER MIRROR, RH
87931-0KC80

GUN125..SASCB;GUN135..(M,S)..DCRE;GUN125,135..(H,M)..HDCR;GUN135..SASCB..S..HDCR..CBU;GUN125..(SADCB,SAXTR,THDCB)..(H,M,S)..DCRE

 1
87931-0KC80

GUN126;GUN125..(SADCB,SAXTR,THDCB)..S;GUN135..(SADCB,SAXTR,THDCB)..S..CBU

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0K702

GUN125..RHD..(H,M)

 1
87940-0KF22

GUN125..RHD..(SADCB,SAXTR)..S

 1
87940-0KF92

GUN125,135..(SADCB,SAXTR)..X..DCRE

 1
87940-0KF22

GUN125..RHD..M;GUN125..RHD..SASCB

OUTSIDE REAR VIEW MIRROR-*RCM(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

 1
87945 - COVER, OUTER MIRROR, LH
87945-0K390

GUN125..S,X;GUN135..SAXTR..S;GUN135..(SADCB,SASCB,THDCB)..(S,X)

NO PAINT REQ.

 1
87945-0K620

GUN125,135..(SADCB,SAXTR)..(H,M)

*CR

 1
87945-0K916

GUN125..(SADCB,SAXTR)..(H,M)

OUTSIDE REAR VIEW MIRROR-*273(BLACK)&W(*MIH)&W(SIDE TURN LAMP)

 1
87961 - MIRROR OUTER, LH
87961-0KB40

GUN126;GUN125..(SADCB,SAXTR,THDCB)..S;GUN135..(SADCB,SAXTR,THDCB)..S..CBU

 1
87961-0KB40

GUN125..SASCB;GUN135..(M,S)..DCRE;GUN125,135..(H,M)..HDCR;GUN135..SASCB..S..HDCR..CBU;GUN125..(SADCB,SAXTR,THDCB)..(H,M,S)..DCRE

 1
Common parts
90163-T0002
Linked diagrams
8106

(2006- )

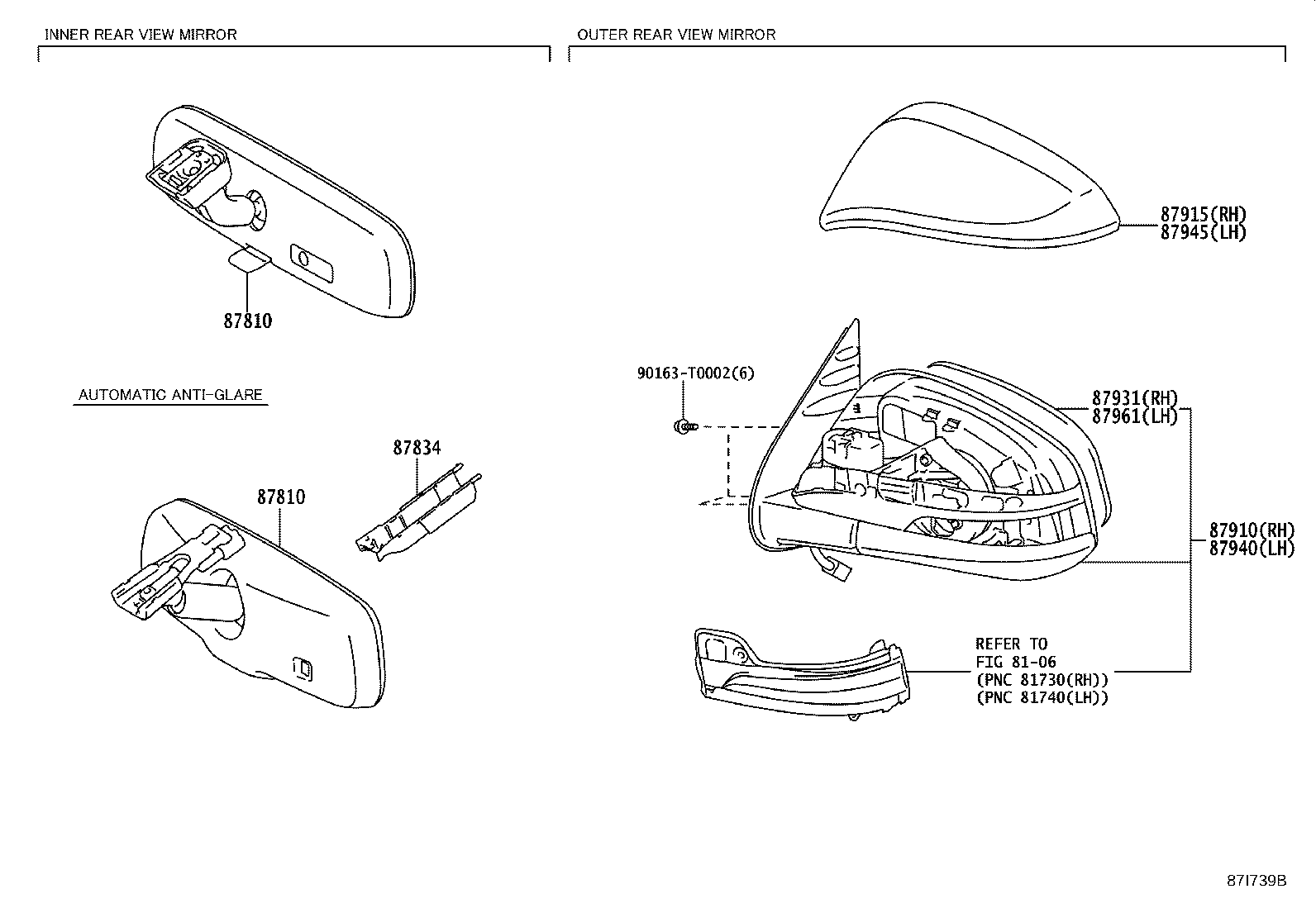

Click highlighted areas on diagram

diagram 8106 87810 87810 87834 87910 87915 87931 87940 87945 87961 90163T0002
Part # Description Qty Price
Common parts
90163-T0002
Linked diagrams
8106
