GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )

Click highlighted areas on diagram

diagram 8271152010 86101 86300 9015040011
Part # Description Qty Price
Common parts
82711-52010
90150-40011

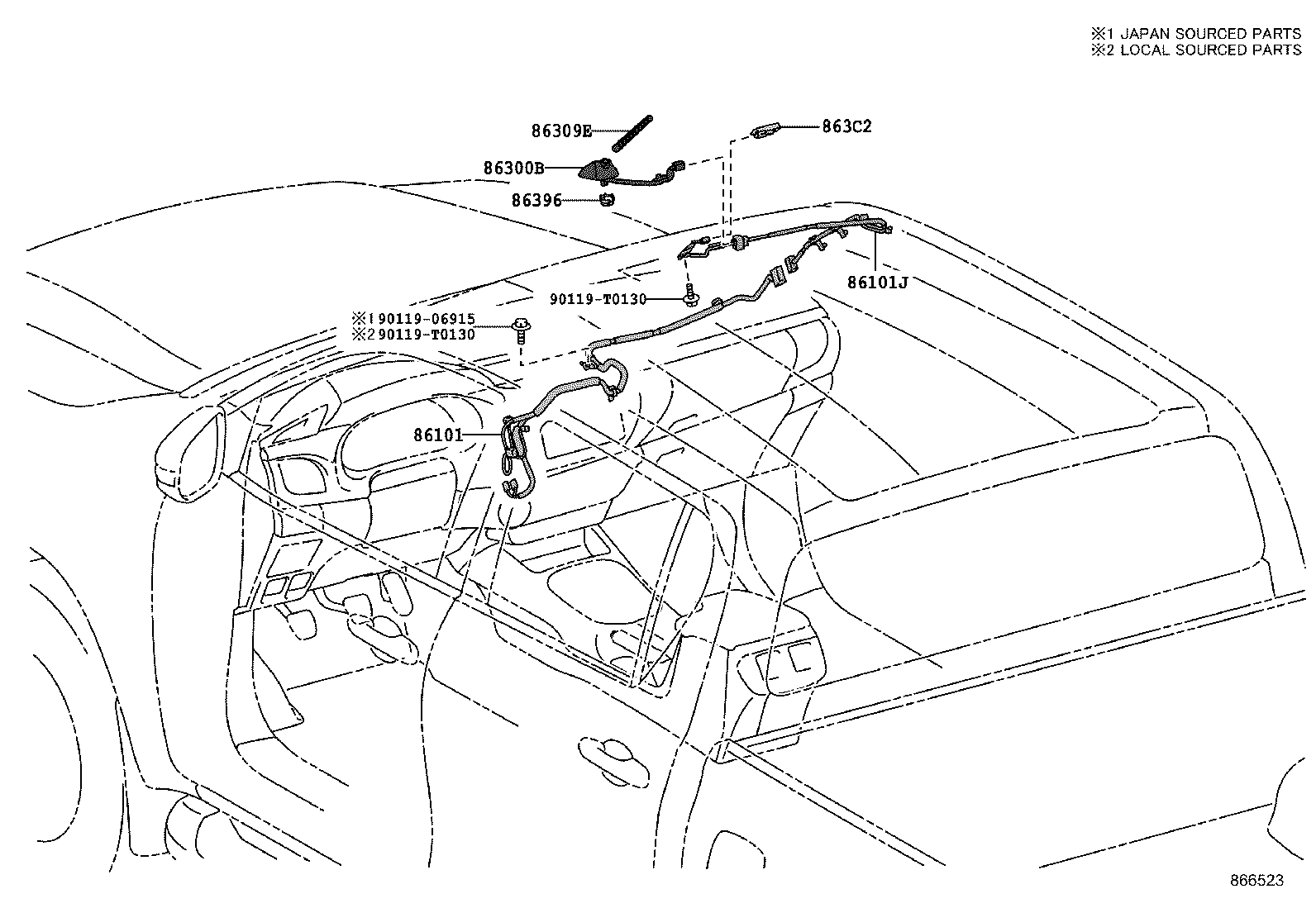

(1506- )

Click highlighted areas on diagram

diagram 86101 86101J 86300B 86309E 86396 863C2 9011906915 90119T0130 90119T0130
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-0KE11

GUN125..RHD..(H,M)

AUDIO-*DA & CD & *BT & RDS & DAB

 1
86101-0KJ91

GUN125..RHD

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-0KK51

GUN125,135..(SADCB,SAXTR)..(H,M)

AUDIO-*DA & CD & *BT & RDS & DAB

 1
86101-0KK41

GUN125,135..(SADCB,SASCB,SAXTR)..DCRE

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-0K260

GUN125,135..(SADCB,SASCB,SAXTR)..DCRE

 1
86309E - POLE SUB-ASSY, ROOF ANTENNA
86309-0K090

GUN125,135..(SADCB,SASCB,SAXTR)..DCRE

 1
86396 - NUT, ANTENNA
86396-47010

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
Common parts
90119-06915
90119-T0130

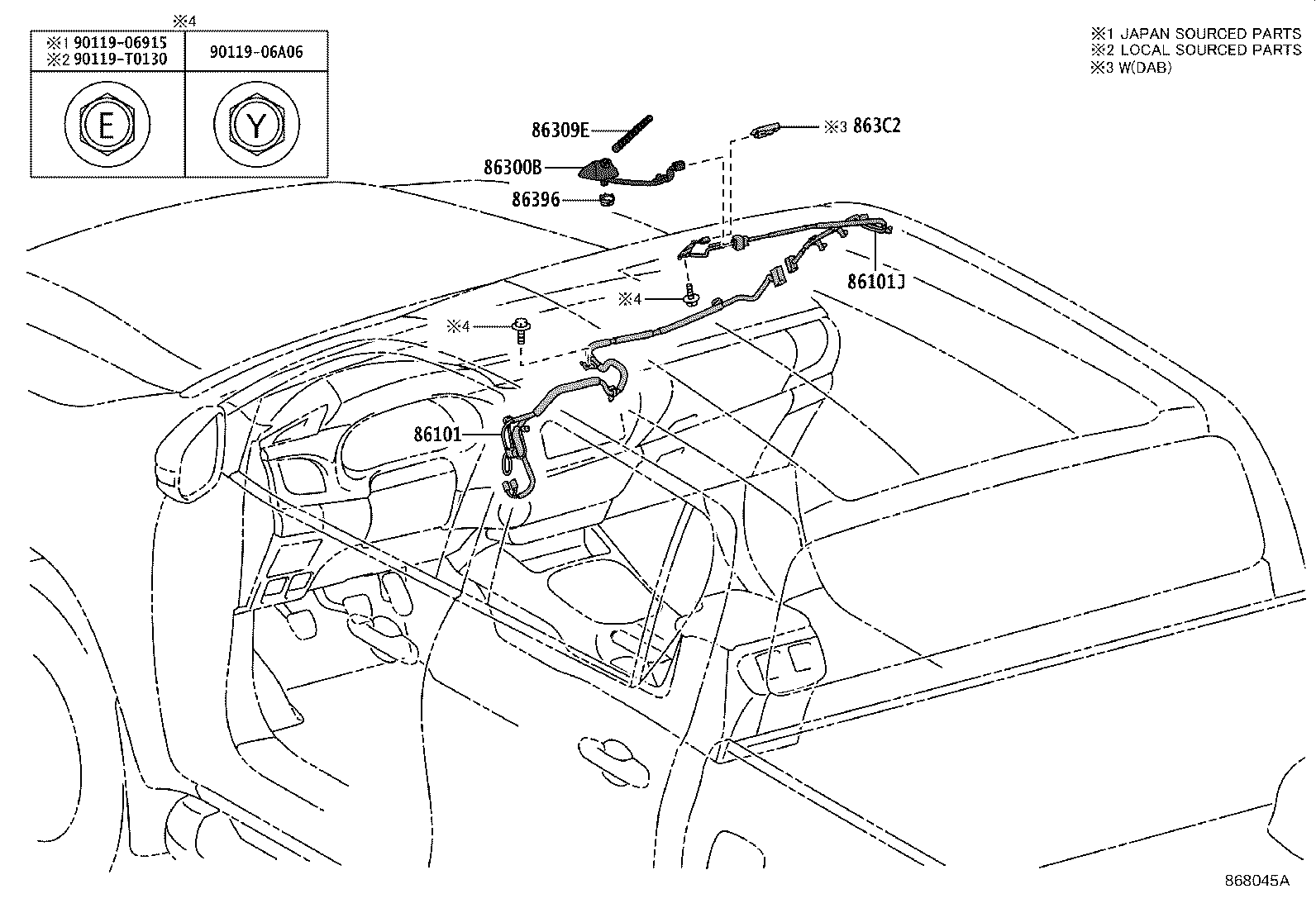

(2006- )

Click highlighted areas on diagram

diagram 86101 86101J 86300B 86309E 86396 863C2 9011906915 9011906A06 90119T0130
Part # Description Qty Price
Common parts
90119-06915
90119-06A06
90119-T0130
