GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

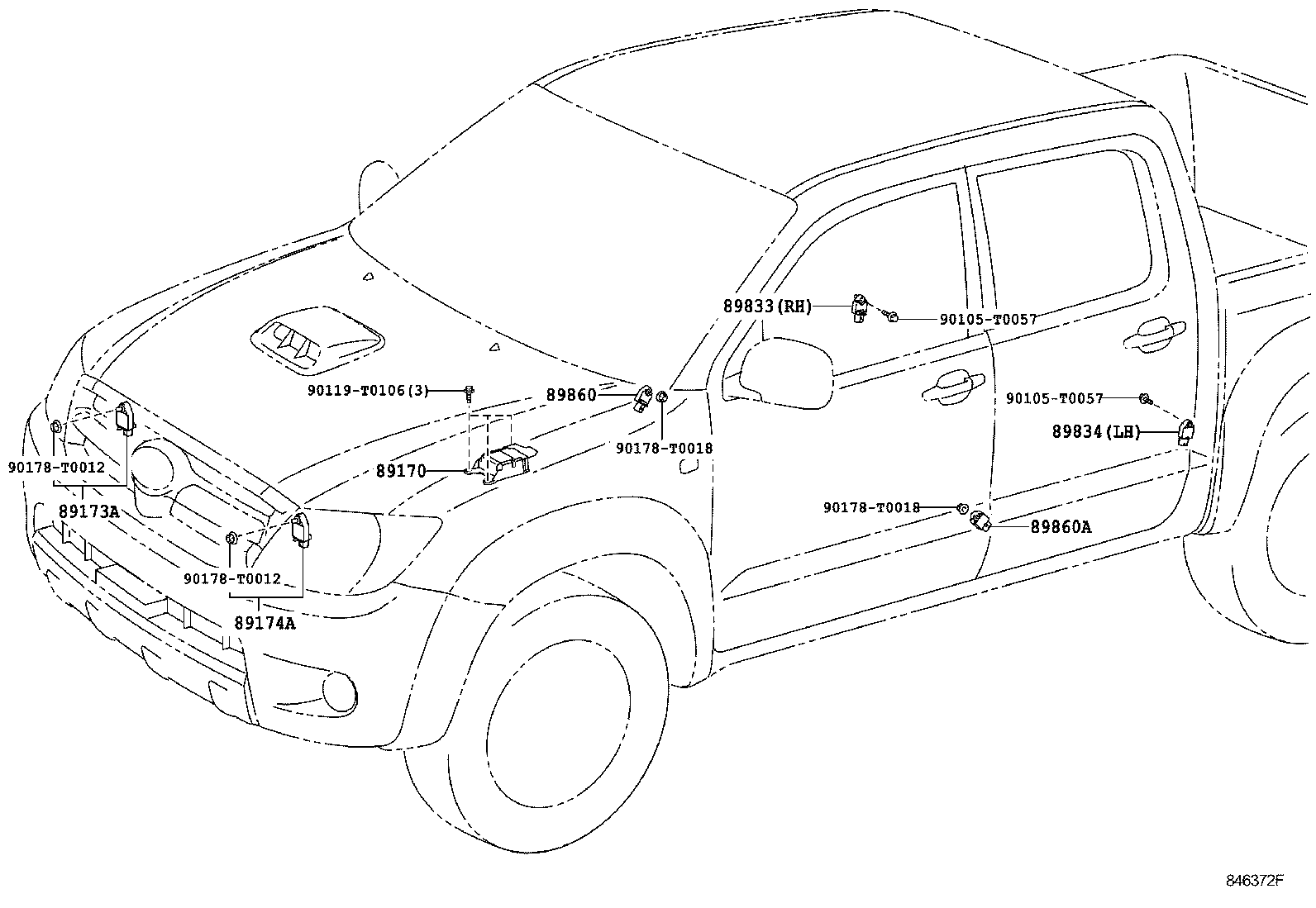

(0507- )

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89833 89834 89860 89860A 90105T0057 90105T0057 90119T0106 90178T0012 90178T0012 90178T0018 90178T0018
Part # Description Qty Price
Common parts
90105-T0057
90119-T0106
90178-T0012
90178-T0018

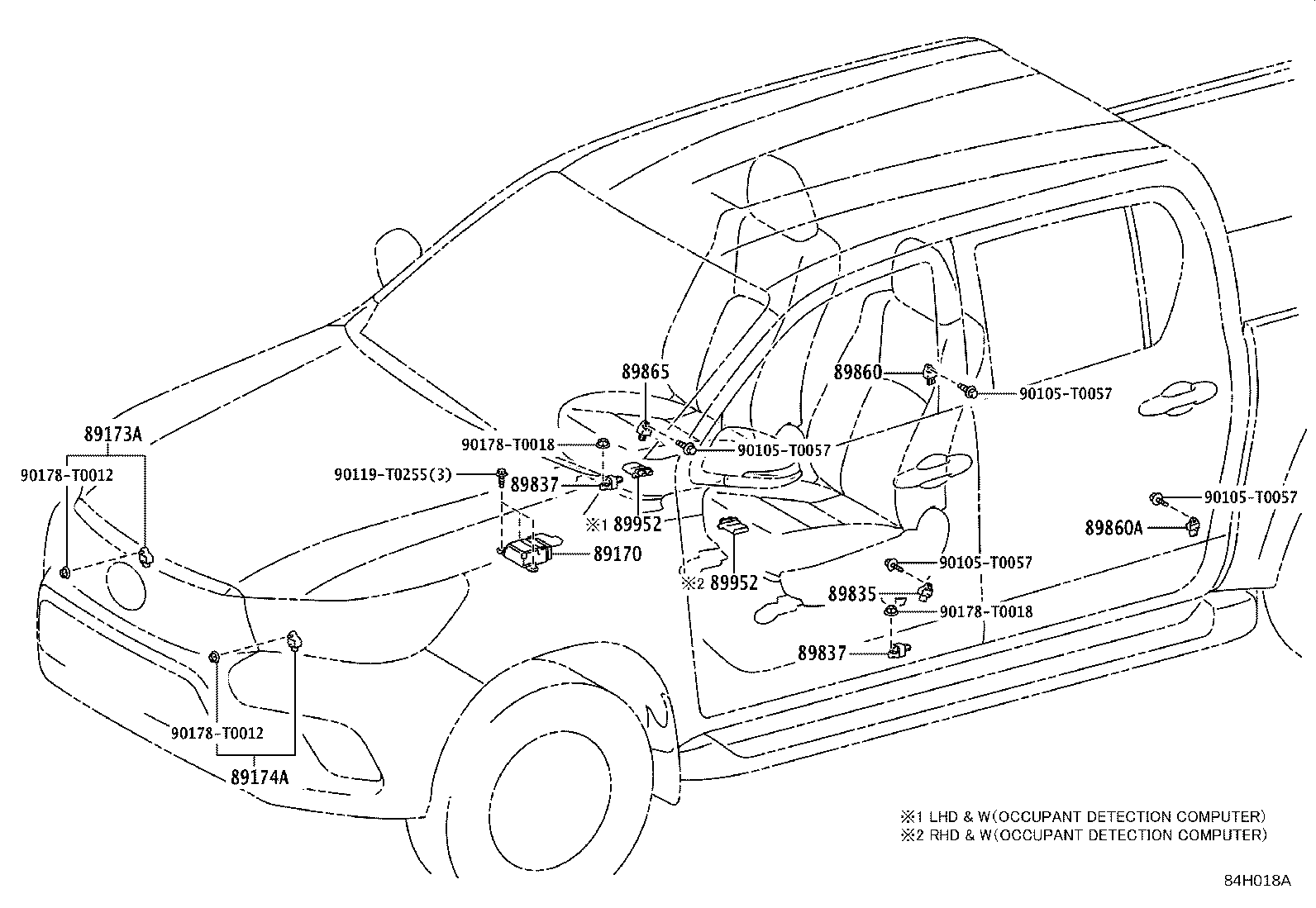

(1506- )SADCB,THDCB

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89835 89837 89837 89860 89860A 89865 89952 89952 90105T0057 90105T0057 90105T0057 90105T0057 90119T0255 90178T0012 90178T0012 90178T0018 90178T0018
Part # Description Qty Price
89173A - SENSOR, AIR BAG, FRONT RH
89173-09B20

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-09B20

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-0K040

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
89860 - SENSOR ASSY, SIDE AIR BAG, RH
89831-0K050

GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S)

 1
89860A - SENSOR ASSY, SIDE AIR BAG, LH
89831-0K050

GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S)

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-0K040

GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB

 1
Common parts
90105-T0057
90119-T0255
90178-T0012
90178-T0018

(2006- )SADCB,THDCB

Click highlighted areas on diagram

diagram 89170 89173A 89174A 89835 89837 89860 89860A 89865 89952 90105T0057 90105T0057 90119T0255 90178T0012 90178T0018
Part # Description Qty Price
Common parts
90105-T0057
90119-T0255
90178-T0012
90178-T0018
