GUN125R-DNTMXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0507- )CBU

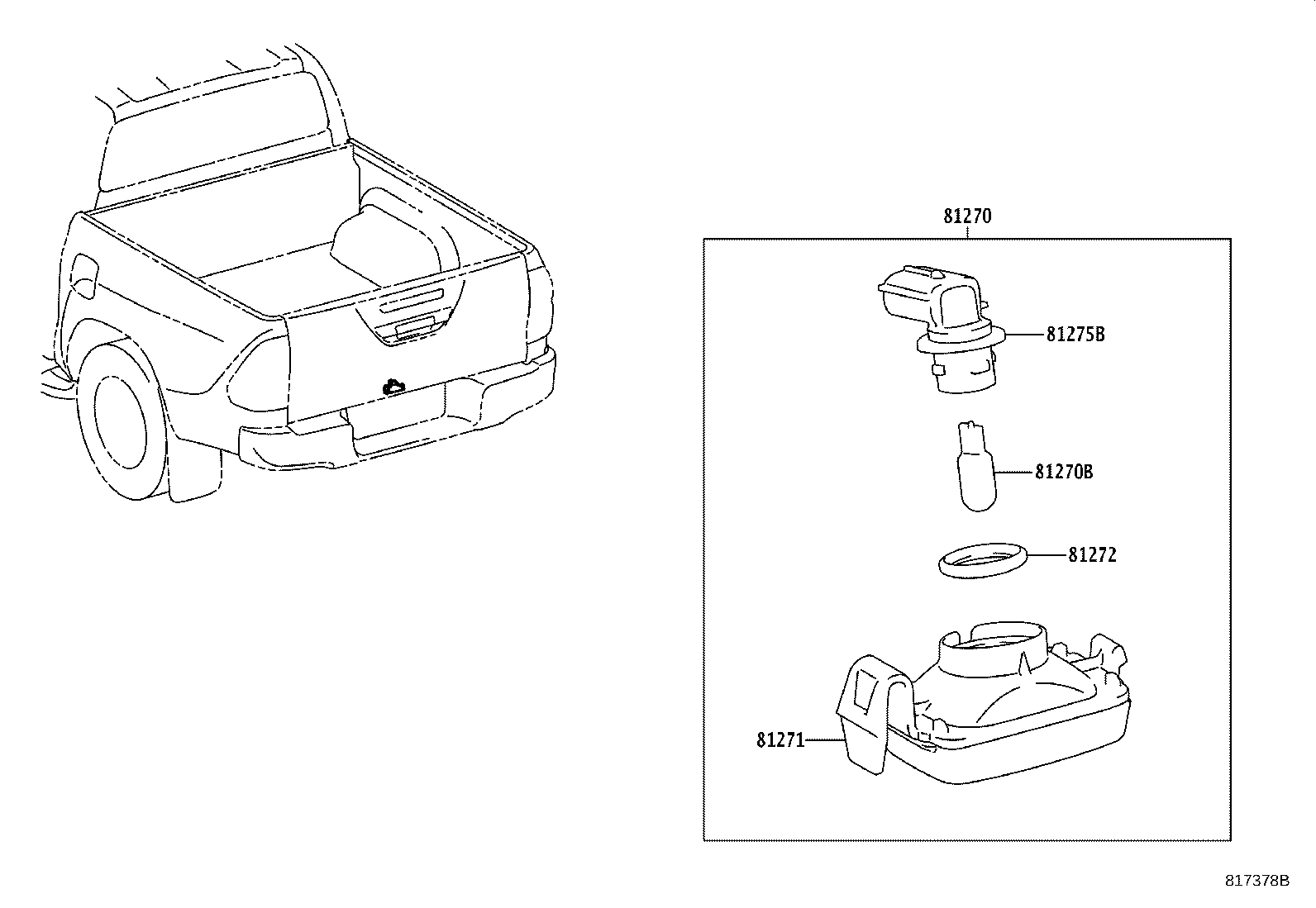

Click highlighted areas on diagram
FLAT BUMPER
| Part # | Description | Qty | Price |
|---|
(1506- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-TB003 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB 12V 5W |
1 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 90069-38039 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 81275B - SOCKET PLUG, LICENSE PLATE LAMP | ||||
| 90069-81108 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
(2006- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
