GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

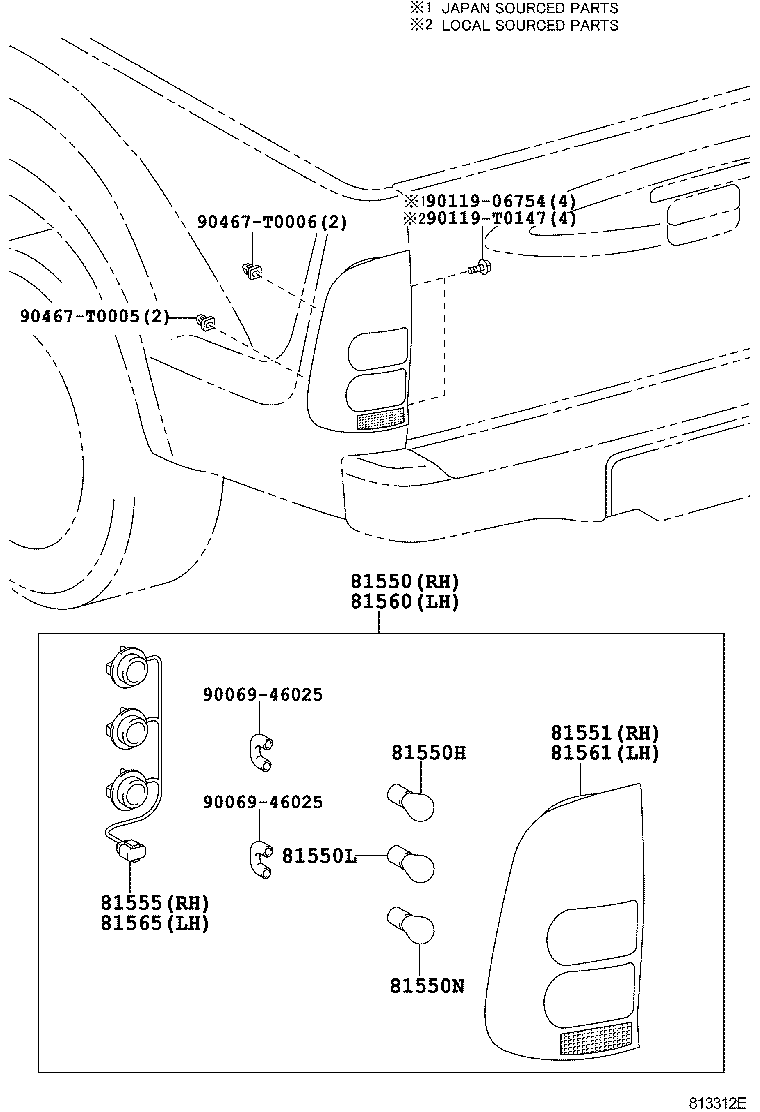

(0507- )CBU

Click highlighted areas on diagram

diagram 81550 81550H 81550L 81550N 81551 81555 81560 81561 81565 9006946025 9006946025 9011906754 90119T0147 90467T0005 90467T0006
Part # Description Qty Price
Common parts
90069-46025
90119-06754
90119-T0147
90467-T0005
90467-T0006

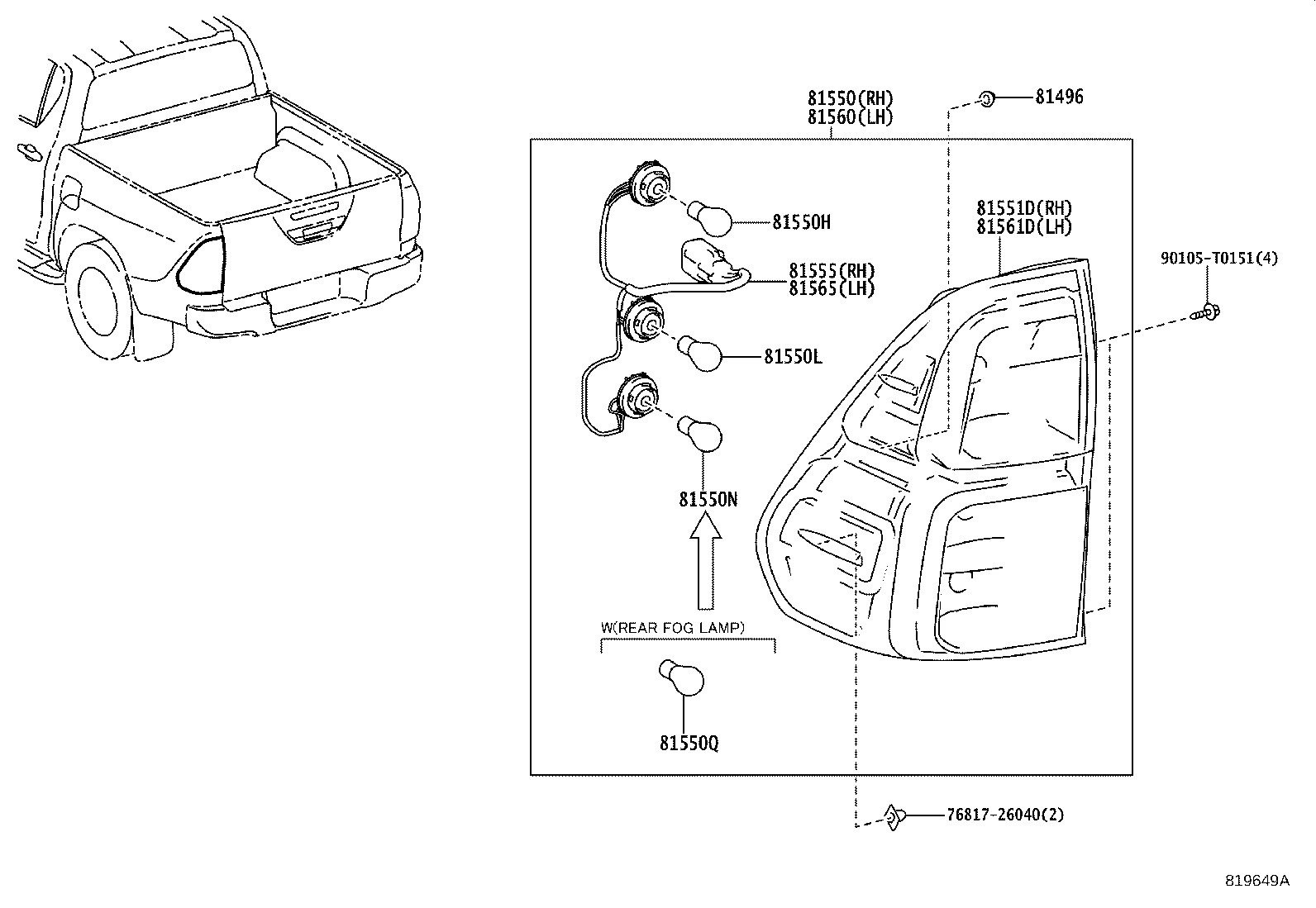

(1506- )CBU

Click highlighted areas on diagram

diagram 7681726040 81496 81550 81550H 81550L 81550N 81550Q 81551D 81555 81560 81561D 81565 90105T0151
Part # Description Qty Price
81496 - GUIDE, REAR COMBINATION LAMP
81496-52020

GUN12#,135..CBU

 2
81550H - BULB, TAIL & STOP LAMP
90981-13094

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

12V 21/5W

 2
81550L - BULB, REAR TURN SIGNAL LAMP
90981-15028

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

12V 21W,AMBER

 2
81550N - BULB, BACK UP LAMP
90981-13093

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

12V 21W

 1
81550Q - BULB, REAR FOG LAMP, NO.1
90981-13093

GUN12#..CBU;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..CBU

12V 21W

 1
Common parts
76817-26040
90105-T0151

(2005- )CBU ; (2005- )GUN135..SAXTR..IV3

Click highlighted areas on diagram

REAR TAIL & STOP LAMP = BLUB TYPE

diagram 7681726040 81496 81550 81550H 81550L 81550N 81550Q 81551D 81555 81560 81561D 81565 90105T0151
Part # Description Qty Price
Common parts
76817-26040
90105-T0151

(2005- )CBU ; (2005- )GUN135..SAXTR..IV3

Click highlighted areas on diagram

REAR TAIL & STOP LAMP = LED TYPE

diagram 7681726040 81496 81536E 81536G 81550 81550L 81551D 81555 81560 81561D 81565 8158AD 90105T0151
Part # Description Qty Price
Common parts
76817-26040
90105-T0151
