GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0507- )

Click highlighted areas on diagram

diagram 23923A 36369 41991A 47939A 69339A 74541 74567A 74596A 74598C 87529B 88723E
Part # Description Qty Price

ILLUST NO. 2 OF 2(0507- )

Click highlighted areas on diagram

diagram 41991A 74389 74559A
Part # Description Qty Price

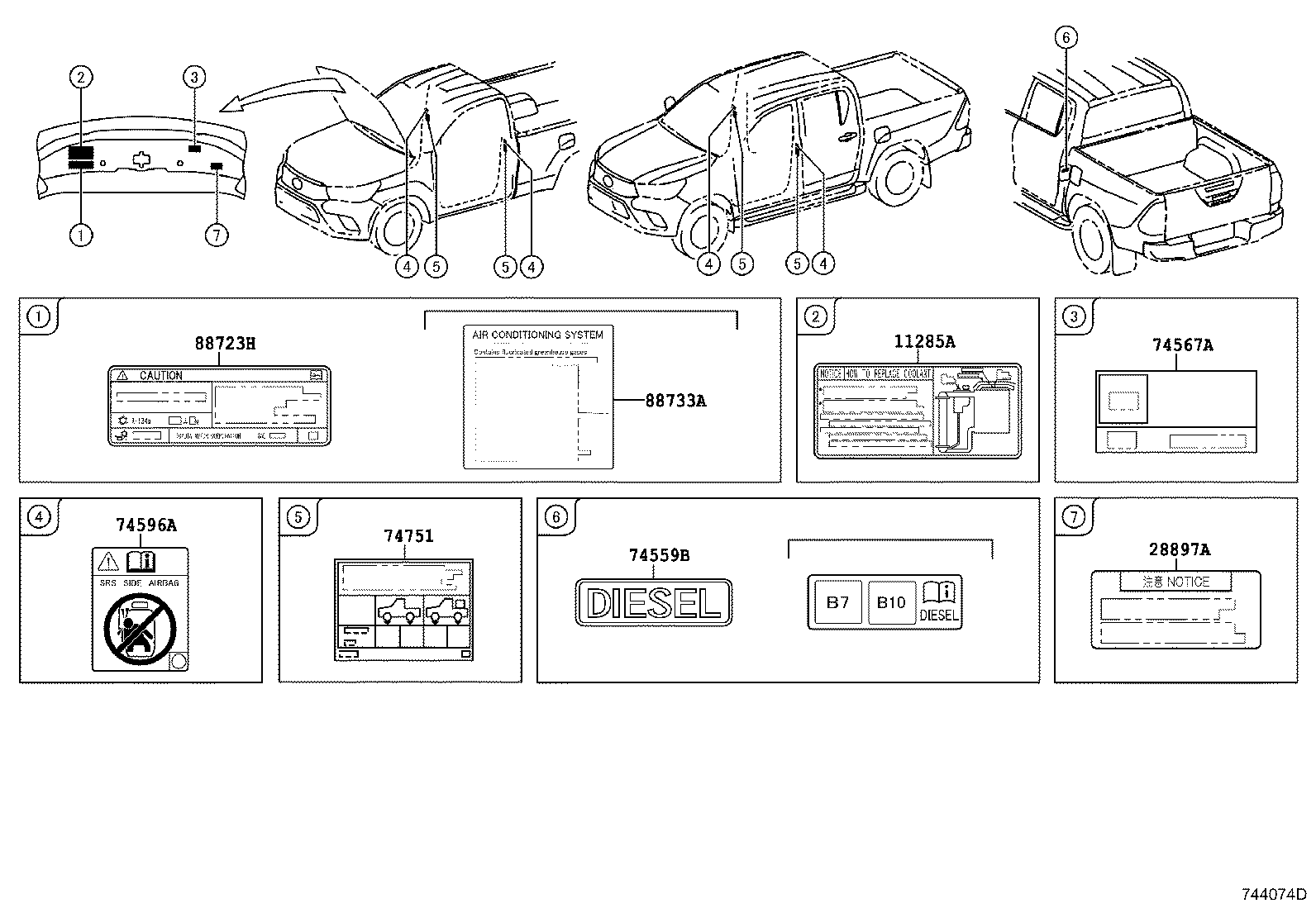

ILLUST NO. 1 OF 3(1506- )

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 28897A 74559B 74567A 74596A 74751 88723H 88733A
Part # Description Qty Price
11285A - LABEL, COOLANT SYSTEM NOTICE
11285-0E010

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

 1
74559B - LABEL, FUEL INFORMATION
74559-89101

GUN125,135

 1
74567A - PLATE, E.C.E APPROVED NUMBER
74567-71020

GUN125..H,S;GUN125..6FC..M

 1
74751 - LABEL, TIRE PRESSURE INFORMATION
42661-0KK10

GUN125,135..(SADCB,SAXTR)..(H,M)

TIRE & DISC WHEEL-265/60R18 ALUMINUM

 1
42661-0KJ80

GUN125,135..(SADCB,SAXTR)..DCRE

 1
88723H - LABEL, COOLER SERVICE CAUTION
88723-0K450

GUN125,135..(SADCB,SASCB,SAXTR)..(M,S,X)..DCRE

FRONT AIR CONDITIONER-MANUAL

 1
88723-0K450

GUN125,135..(SADCB,SAXTR)..(H,M)

FRONT AIR CONDITIONER-AUTO

 1

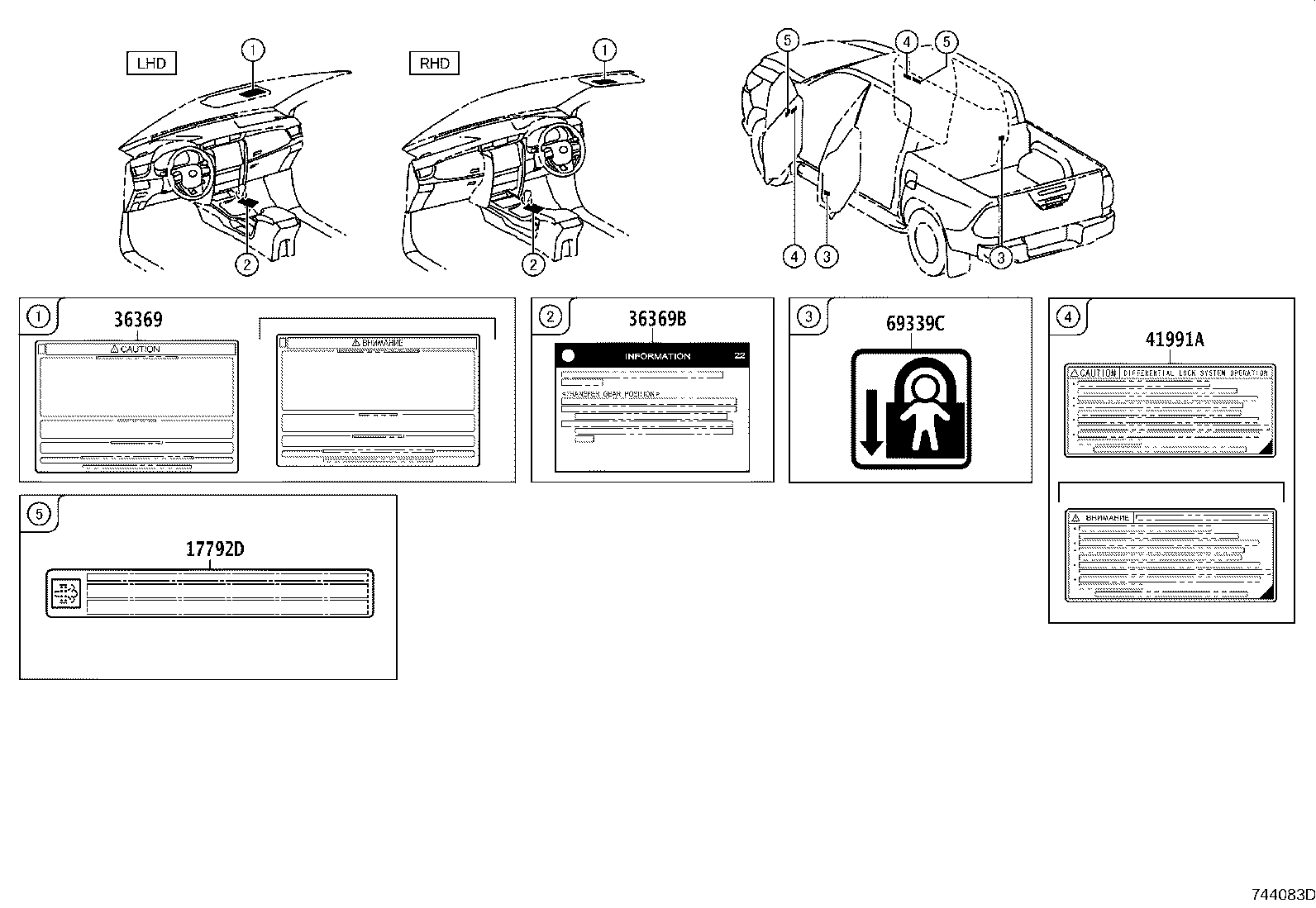

ILLUST NO. 2 OF 3(1506- )

Click highlighted areas on diagram

INTERIOR

diagram 17792D 36369 36369B 41991A 69339C
Part # Description Qty Price
17792D - LABEL, EMISSION CONTROL DEVICE INFORMATION
17792-30020

1GDFTV,2GDFTV..GUN12#;2GDFTV..GUN135..SAXTR..IV3;2GDFTV..GUN135..SAXTR..S..CBU;2GDFTV..GUN135..SADCB,SASCB,THDCB

EXCEPT JAPAN

 1
36369 - LABEL, TRANSFER INFORMATION
36369-0K230

GUN125

 1
36369B - LABEL, TRANSFER INFORMATION
36369-0K290

GUN125

 1
41991A - PLATE, CAUTION
41991-0K020

GUN135..M..HDCR;GUN125..SADCB..(H,M);GUN125..SAXTR..M..HDCR

DIFFERENTIAL LOCK-WITHOUT

 1
41991-0K020

GUN125..S,X;GUN135..IV3;GUN135..SASCB..CBU

DIFFERENTIAL LOCK-WITH

 1
41991-0K020

GUN125,135..H,M

 1

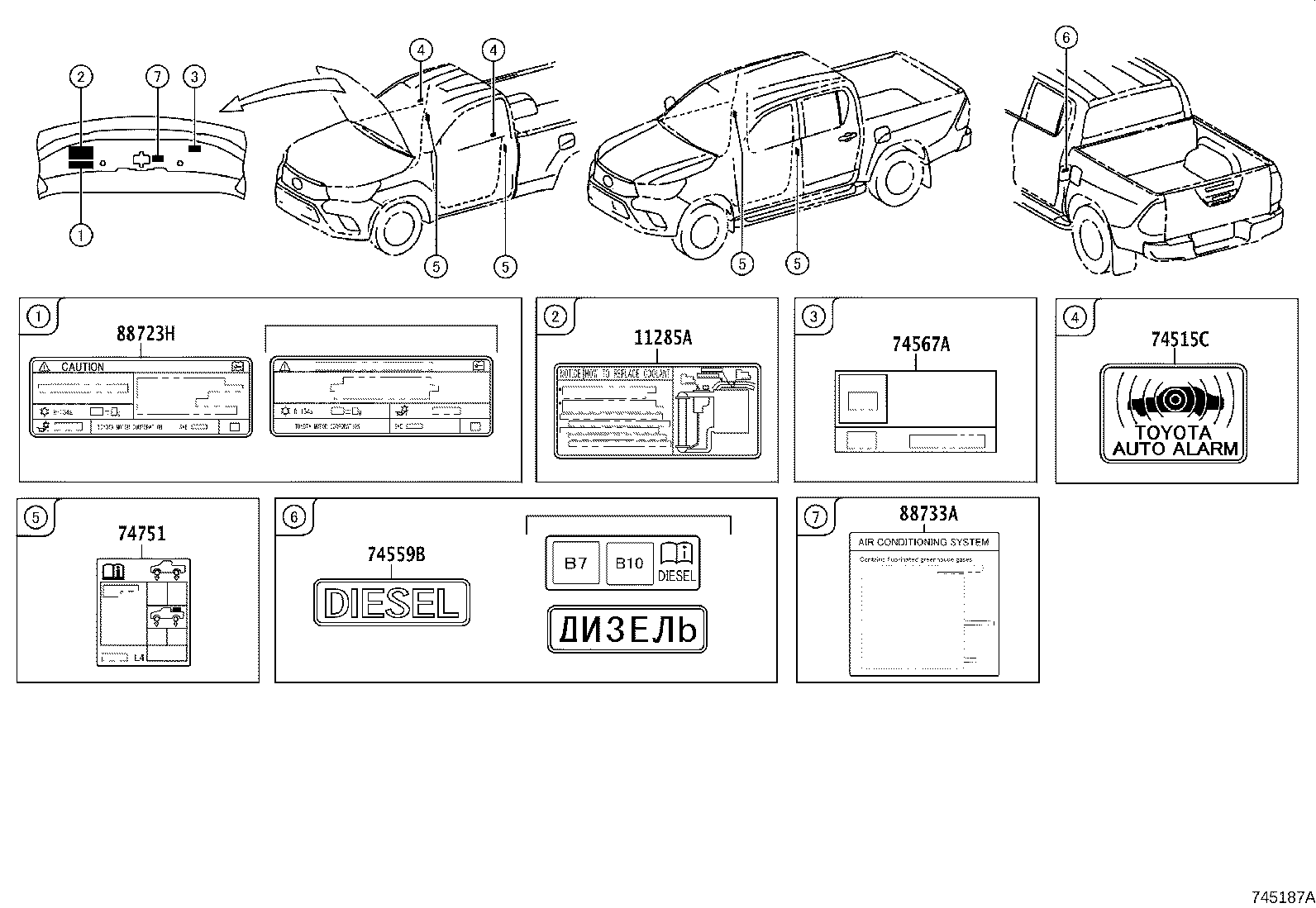

ILLUST NO. 1 OF 2(2006- )

Click highlighted areas on diagram

ENGINE ROOM & EXTERIOR

diagram 11285A 74515C 74559B 74567A 74751 88723H 88733A
Part # Description Qty Price

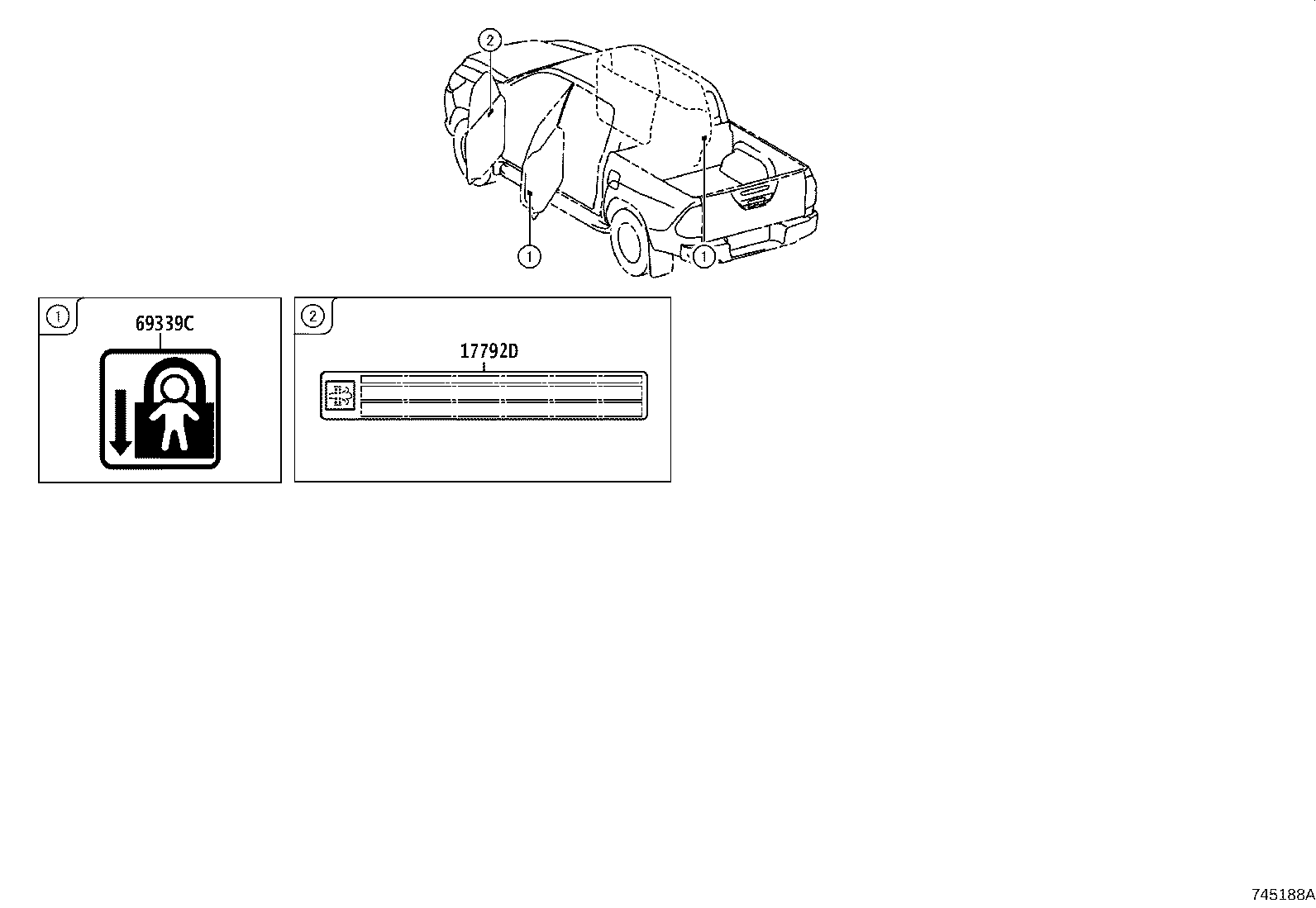

ILLUST NO. 2 OF 2(2006- )

Click highlighted areas on diagram

INTERIOR

diagram 17792D 69339C
Part # Description Qty Price
