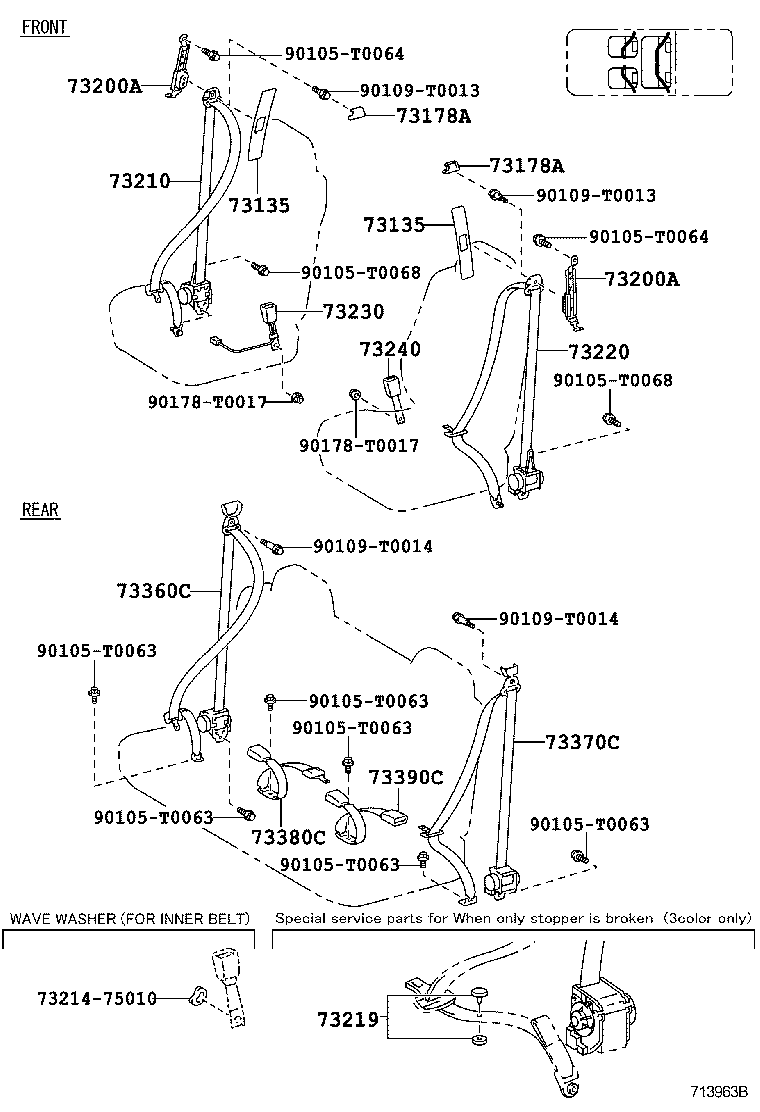

GUN125R-DNTMXW (2019)
Toyota Hilux
(0507- )DCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 73214-75010 | ||||
| 90105-T0063 | ||||
| 90105-T0064 | ||||
| 90105-T0068 | ||||
| 90109-T0013 | ||||
| 90109-T0014 | ||||
| 90178-T0017 | ||||

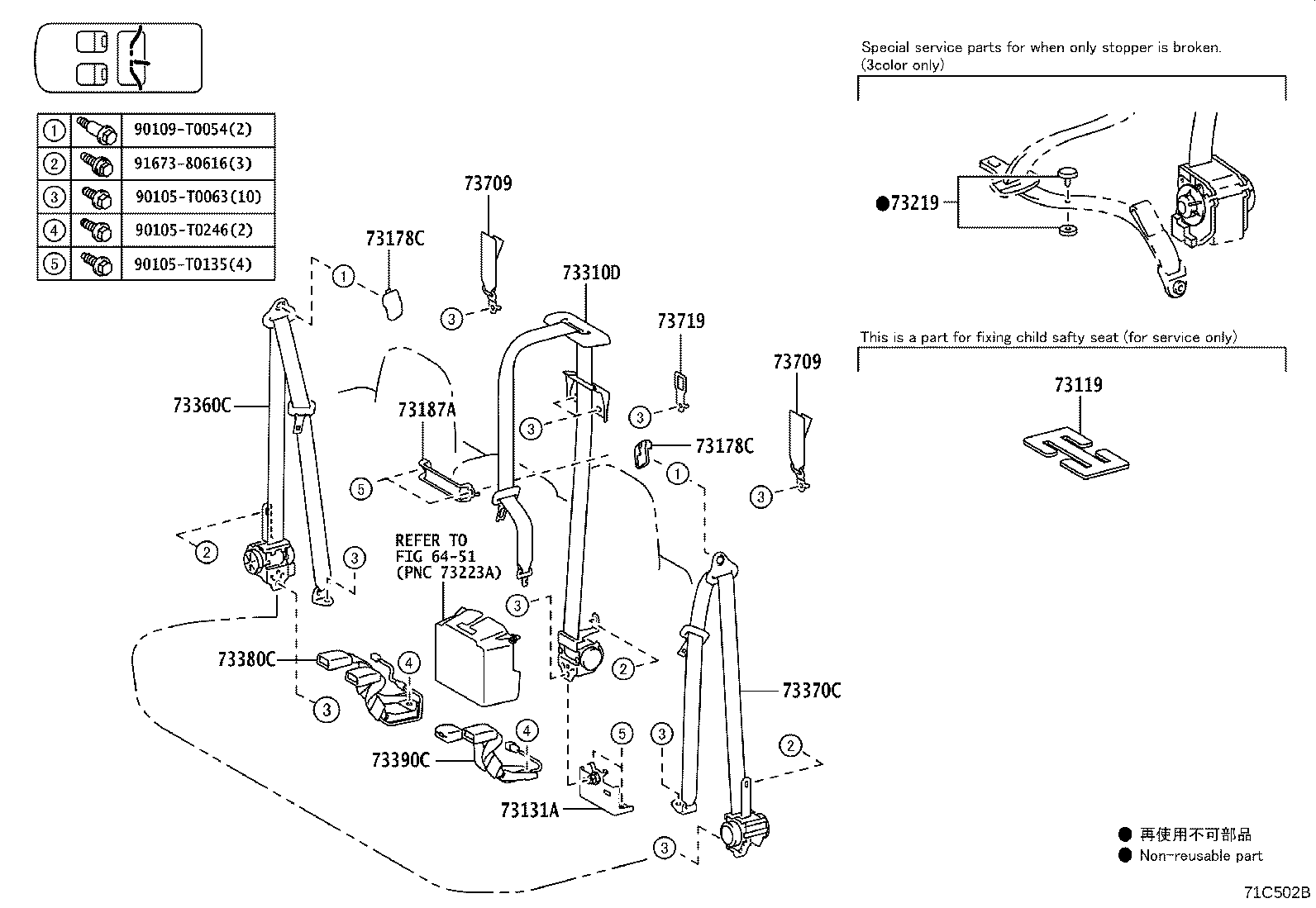

ILLUST NO. 2 OF 2(1506- )SADCB,THDCB
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN125..SAXTR..M..HDCR;GUN135..(SADCB,SAXTR,THDCB)..S;GUN125..(SADCB,SAXTR,THDCB)..(S,X);GUN135..(SADCB,SAXTR)..(M,X)..DCRE LT.GRAY,TRIM2# |
2 | ||
| 73178C - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK020B0 |
GUN125..SAXTR..M..HDCR;GUN135..(SADCB,SAXTR,THDCB)..S;GUN125..(SADCB,SAXTR,THDCB)..(S,X);GUN135..(SADCB,SAXTR)..(M,X)..DCRE LT.GRAY,TRIM2# |
2 | ||
| 73187A - GUIDE, REAR SEAT SHOULDER BELT | ||||
| 73187-KK020 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB BLACK |
1 | ||
| 73219-33020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB GRAY |
1 | ||
| 73219-33030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB BEIGE |
1 | ||
| 73310D - BELT ASSY, REAR SEAT 3 POINT TYPE, CENTER | ||||
| 73310-0K020C0 |
GUN125..SADCB..(H,M) BLACK,TRIM20 |
1 | ||
| 73360C - BELT ASSY, REAR NO.1 SEAT, OUTER RH | ||||
| 73360-0K360C0 |
GUN125..SADCB..(H,M) BLACK,TRIM20 |
1 | ||
| 73370C - BELT ASSY, REAR NO.1 SEAT, OUTER LH | ||||
| 73370-0K260C0 |
GUN125..SADCB..(H,M) BLACK,TRIM20 |
1 | ||
| 73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH | ||||
| 73380-0K400 |
GUN125,135..SADCB |
1 | ||
| Common parts | ||||
| 90105-T0063 | ||||
| 90105-T0135 | ||||
| 90105-T0246 | ||||
| 90109-T0054 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6451 | ||||

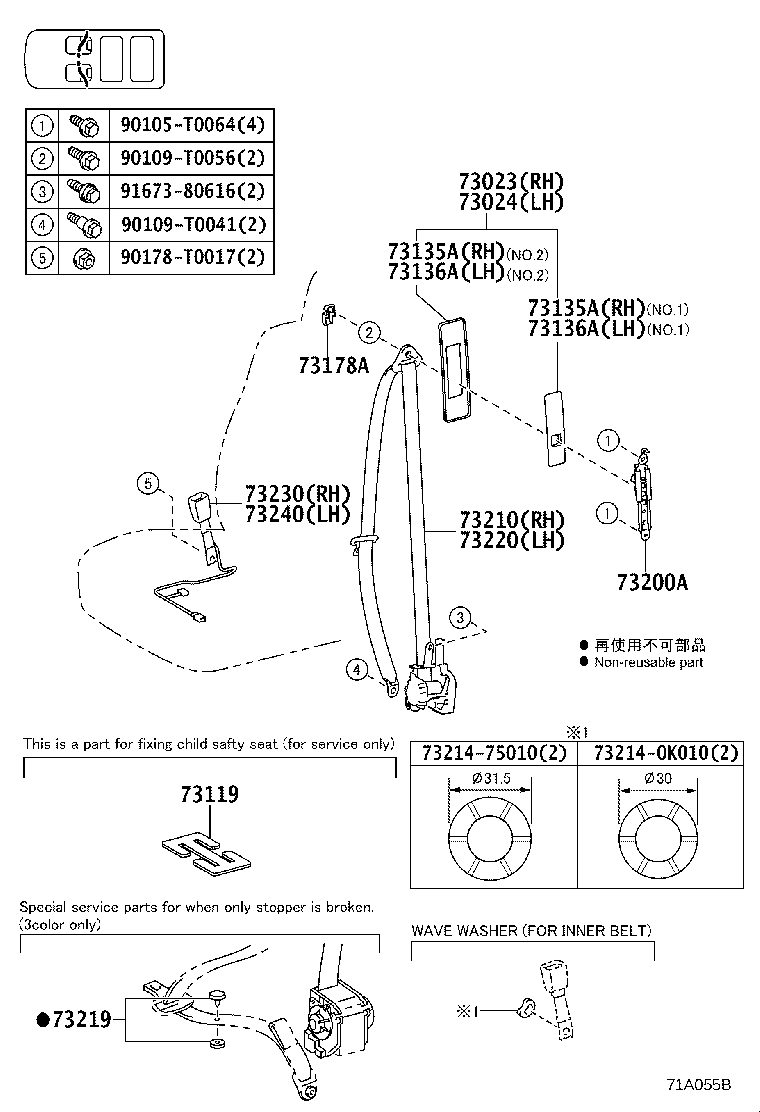

ILLUST NO. 1 OF 2(1506- )SADCB,THDCB
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH | ||||
| 73023-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2# |
1 | ||
| 73023-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2# |
1 | ||
| 73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH | ||||
| 73023-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2# |
1 | ||
| 73023-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2# |
1 | ||
| 73119 - PLATE, SEAT BELT WEBBING CLIP | ||||
| 73119-22010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-KK020B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73023-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM20 |
2 | ||
| 73135-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73135A - COVER, SHOULDER BELT ANCHOR, RH | ||||
| 73135-KK020B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73023-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM20 |
2 | ||
| 73135-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73135-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73136A - COVER, SHOULDER BELT ANCHOR, LH | ||||
| 73135-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK020B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 73135-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 73178A - CAP, SEAT BELT ANCHOR COVER | ||||
| 73178-KK010B0 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2# |
2 | ||
| 73178-KK010B0 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2# |
2 | ||
| 73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR | ||||
| 73200-0D051B2 |
GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X) LT.GRAY,TRIM2# |
2 | ||
| 73200-0D051B2 |
GUN125..SADCB..(H,M) LT.GRAY,TRIM2# |
2 | ||
| 73210 - BELT ASSY, FRONT SEAT OUTER, RH | ||||
| 73210-0K860C0 |
GUN125..SADCB..(H,M) BLACK,TRIM20 |
1 | ||
| 73219 - STOPPER, TONGUE PLATE | ||||
| 73219-33010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB BLACK |
1 | ||
| 73219-33020 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB GRAY |
1 | ||
| 73219-33030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB BEIGE |
1 | ||
| 73220 - BELT ASSY, FRONT SEAT OUTER, LH | ||||
| 73220-0K570C0 |
GUN125..SADCB..(H,M) BLACK,TRIM20 |
1 | ||
| 73230 - BELT ASSY, FRONT SEAT INNER, RH | ||||
| 73230-0KC40C0 |
GUN125..RHD..H SEAT COVER MATERIAL-PERFORATED LEATHER(MLM),BLACK,TRIM2# |
1 | ||
| 73230-0KC30C0 |
GUN125..RHD..(H,M) BLACK,TRIM2# |
1 | ||
| 73230-0KC40C0 |
GUN125..RHD..(H,M) SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 73214-0K010 | ||||
| 73214-75010 | ||||
| 90105-T0064 | ||||
| 90109-T0041 | ||||
| 90109-T0056 | ||||
| 90178-T0017 | ||||
| 91673-80616 | ||||

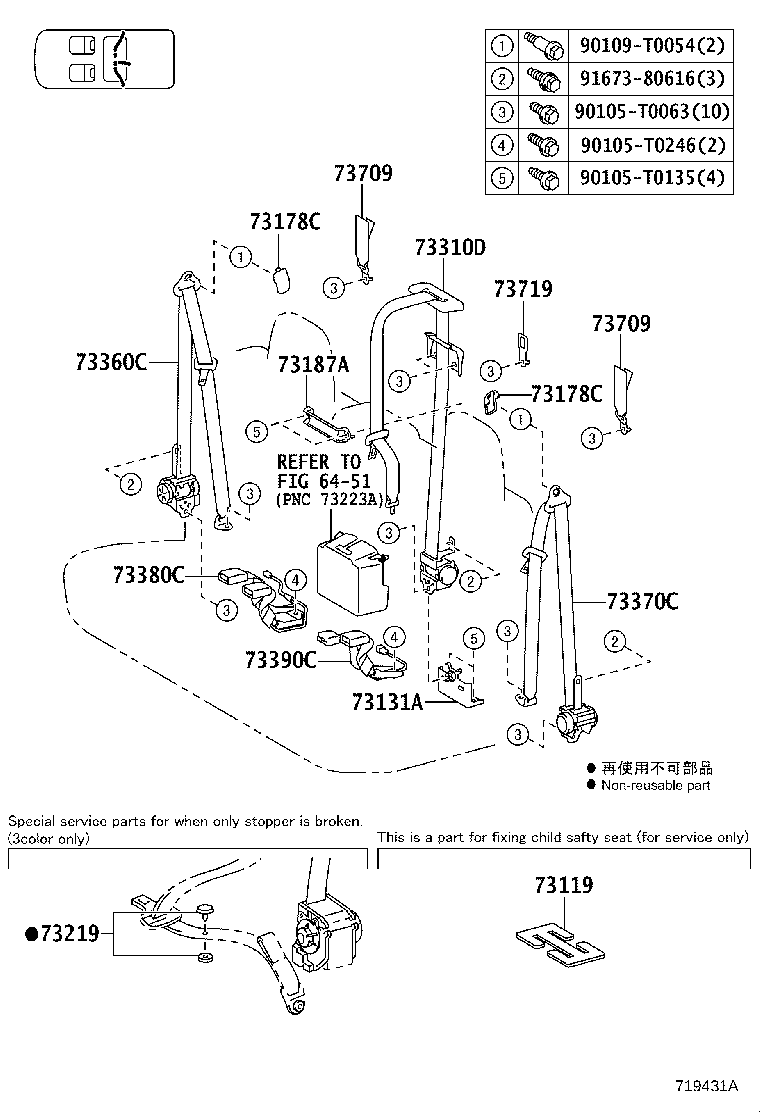

ILLUST NO. 2 OF 2(2005- )SADCB,THDCB
REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0063 | ||||
| 90105-T0135 | ||||
| 90105-T0246 | ||||
| 90109-T0054 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6451 | ||||

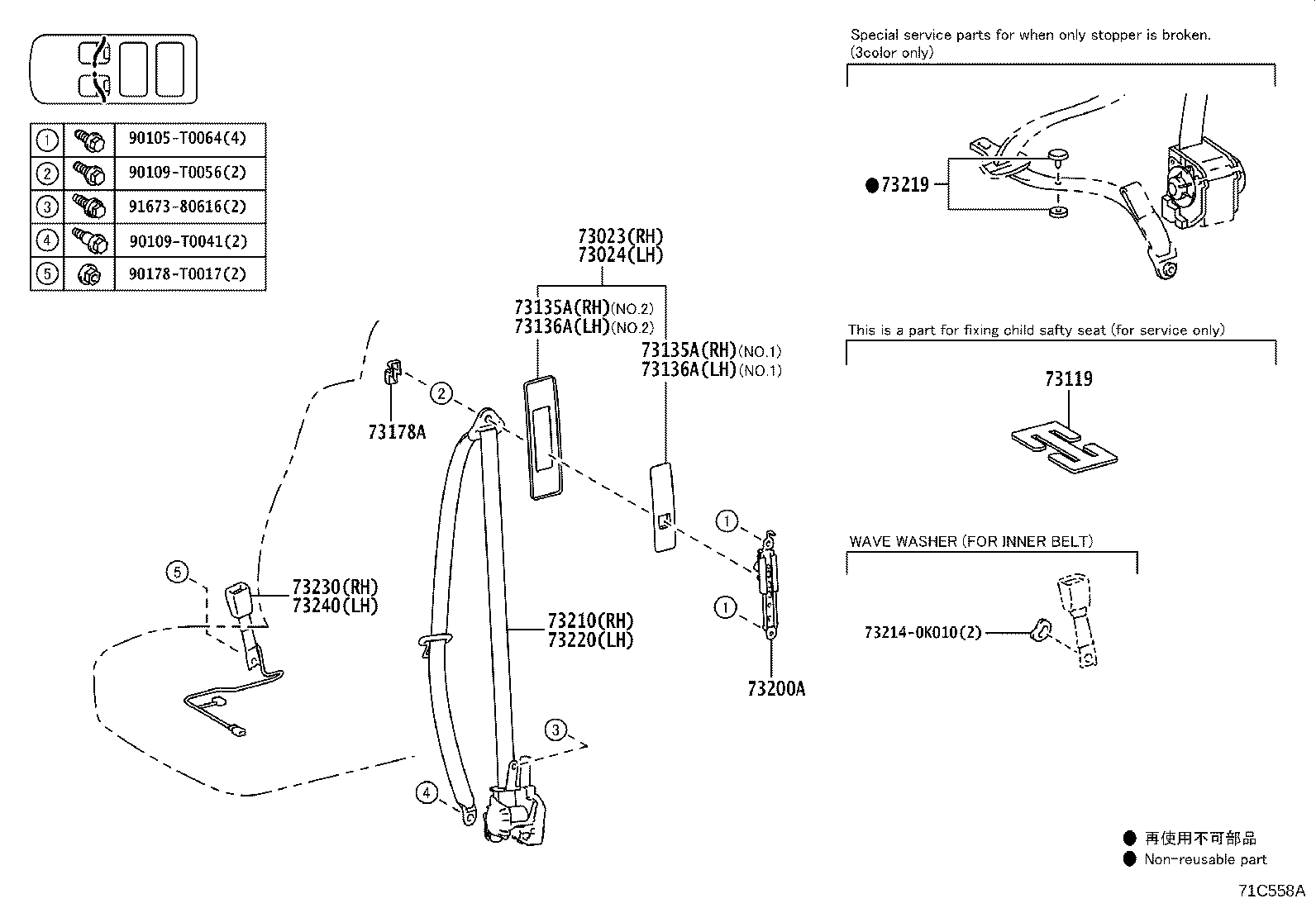

ILLUST NO. 1 OF 2(2005- )SADCB,THDCB
FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 73214-0K010 | ||||
| 90105-T0064 | ||||
| 90109-T0041 | ||||
| 90109-T0056 | ||||
| 90178-T0017 | ||||
| 91673-80616 | ||||
