GUN125R-DNTMXW (2019)
Toyota Hilux
(0507- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-60022 | ||||
| 90148-T0010 | ||||
| 90148-T0015 | ||||
| 90541-04027 | ||||
| Linked diagrams | ||||
| 6751 | ||||

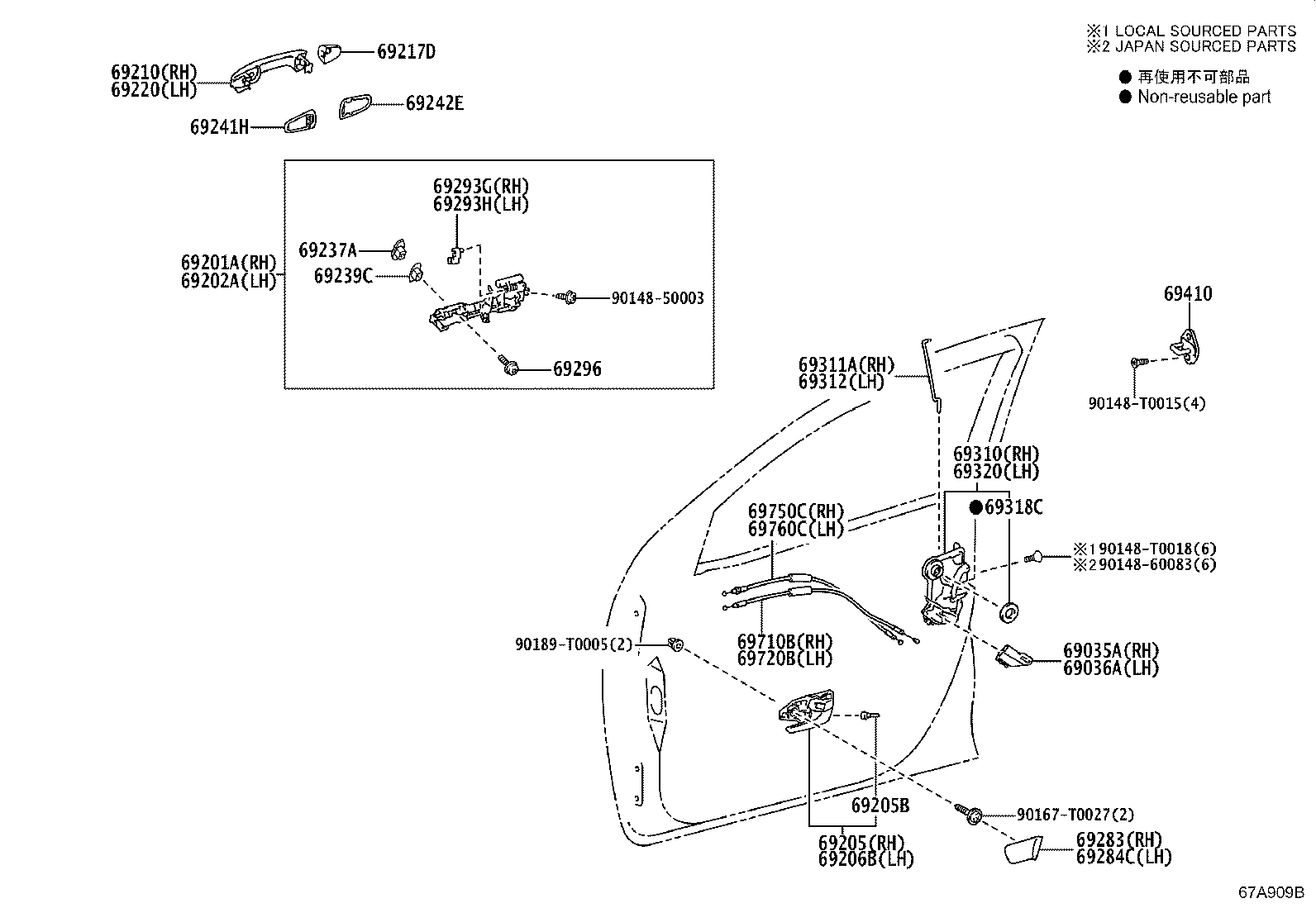

(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69035A - COVER SUB-ASSY, FRONT DOOR LOCK, RH | ||||
| 69035-02040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 69036A - COVER SUB-ASSY, FRONT DOOR LOCK, LH | ||||
| 69036-02040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 69201A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69201-0K061 |
GUN12#..SADCB..H;GUN12#,135..THDCB |
1 | ||
| 69202A - FRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69202-0K061 |
GUN12#..SADCB..H;GUN12#,135..THDCB |
1 | ||
| 69205B - CUSHION(FOR FRONT DOOR INSIDE HANDLE) | ||||
| 90541-04027 |
GUN125..H,S,X;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN125..(SADCB,THDCB)..M;GUN126,135..SADCB,SASCB,THDCB |
2 | ||
| 69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH | ||||
| 69210-0K340 |
GUN125..SADCB..M DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),BLACK PAINT |
1 | ||
| 69210-0K060 |
GUN125..H..DCRE;GUN125..SADCB..H..HDCR PLATED |
1 | ||
| 69210-0K250 |
GUN125,135..(SADCB,SAXTR)..M NO PAINT REQ.,DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY) |
1 | ||
| 69217D - COVER, FRONT DOOR OUTSIDE HANDLE | ||||
| 69217-0K370 |
GUN135..M;GUN125..(H,M)..DCRE;GUN125..(SADCB,SAXTR)..(H,M)..HDCR *CR,DRIVER SIDE |
1 | ||
| 69217-0K380 |
GUN135..M;GUN125..(H,M)..DCRE;GUN125..(SADCB,SAXTR)..(H,M)..HDCR *CR,PASSENGER SIDE |
1 | ||
| 69217-0K450 |
GUN125,135..(SADCB,SAXTR)..M BLACK MATERIAL,DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),DRIVER SIDE |
1 | ||
| 69217-0K630 |
GUN125..SADCB..M BLACK PAINTED,DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),PASSENGER SIDE |
1 | ||
| 69217-0K460 |
GUN125,135..(SADCB,SAXTR)..M BLACK MATERIAL,DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY),PASSENGER SIDE |
1 | ||
| 69217-0K620 |
GUN125..SADCB..M BLACK PAINTED,DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),DRIVER SIDE |
1 | ||
| 69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH | ||||
| 69210-0K060 |
GUN125..H..DCRE;GUN125..SADCB..H..HDCR PLATED |
1 | ||
| 69210-0K250 |
GUN125,135..(SADCB,SAXTR)..M NO PAINT REQ.,DOOR OUTSIDE HANDLE-PIGMENT(KEY CYLINDER DRIVER SIDE ONLY) |
1 | ||
| 69210-0K340 |
GUN125..SADCB..M DOOR OUTSIDE HANDLE-BLACK PAINTED,W/O(*PSD KEY CYLINDER),BLACK PAINT |
1 | ||
| 69237A - NUT, FRONT DOOR HANDLE | ||||
| 69237-0E010 |
GUN125..SADCB..H..DCRE;GUN125,135..THDCB..DCRE;GUN125..THDCB..6F..S..HDCR;GUN12#..THDCB..(H,M)..HDCR |
2 | ||
| 69237-0K040 |
GUN125..SADCB..H;GUN12#,135..THDCB |
2 | ||
| 69237-0E010 |
GUN135..SAXTR..DCRE;GUN125..6FC..S..HDCR;GUN125..SADCB..H..HDCR;GUN126,135..SADCB,SASCB;GUN135..(SAXTR,THDCB)..(M,S)..HDCR;GUN125..(SADCB,SASCB,SAXTR)..(M,S,X) |
2 | ||
| 69239C - BUSH, FRONT DOOR HANDLE | ||||
| 69239-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 69241H - PAD, FRONT DOOR OUTSIDE HANDLE, FRONT | ||||
| 69241-0K041 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 69242E - PAD, FRONT DOOR OUTSIDE HANDLE, REAR | ||||
| 69242-0K030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 69293G - SNAP, FRONT DOOR OUTSIDE HANDLE, RH | ||||
| 69293-12030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 69293H - SNAP, FRONT DOOR OUTSIDE HANDLE, LH | ||||
| 69293-12040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 69296 - SCREW, DOOR INSIDE HANDLE | ||||
| 69296-0M010 |
GUN12#..SADCB..H;GUN12#,135..THDCB |
2 | ||
| 69311A - ROD, FRONT DOOR LOCK OPEN, RH | ||||
| 69311-0K120 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 69312 - ROD, FRONT DOOR LOCK OPEN, LH | ||||
| 69312-0K120 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 69318C - SEAL, DOOR LOCK WIRING HARNESS | ||||
| 69318-51010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER | ||||
| 69410-0K070 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 69710B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH | ||||
| 69710-0K160 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 69720B - CABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH | ||||
| 69710-0K160 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 69750C - CABLE ASSY, FRONT DOOR INSIDE LOCKING, RH | ||||
| 69750-0K160 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 69760C - CABLE ASSY, FRONT DOOR INSIDE LOCKING LH | ||||
| 69750-0K160 |
GUN12#,135..SADCB,THDCB |
1 | ||
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90167-T0027 | ||||
| 90189-T0005 | ||||
(2006- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90148-50003 | ||||
| 90148-60083 | ||||
| 90148-T0015 | ||||
| 90148-T0018 | ||||
| 90167-T0027 | ||||
| 90189-T0005 | ||||
