GUN125R-DNTMXW (2019)

Toyota Hilux

Production Jun 2019 - Sep 2020
Engine 2GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0507- )DCB,THDCB

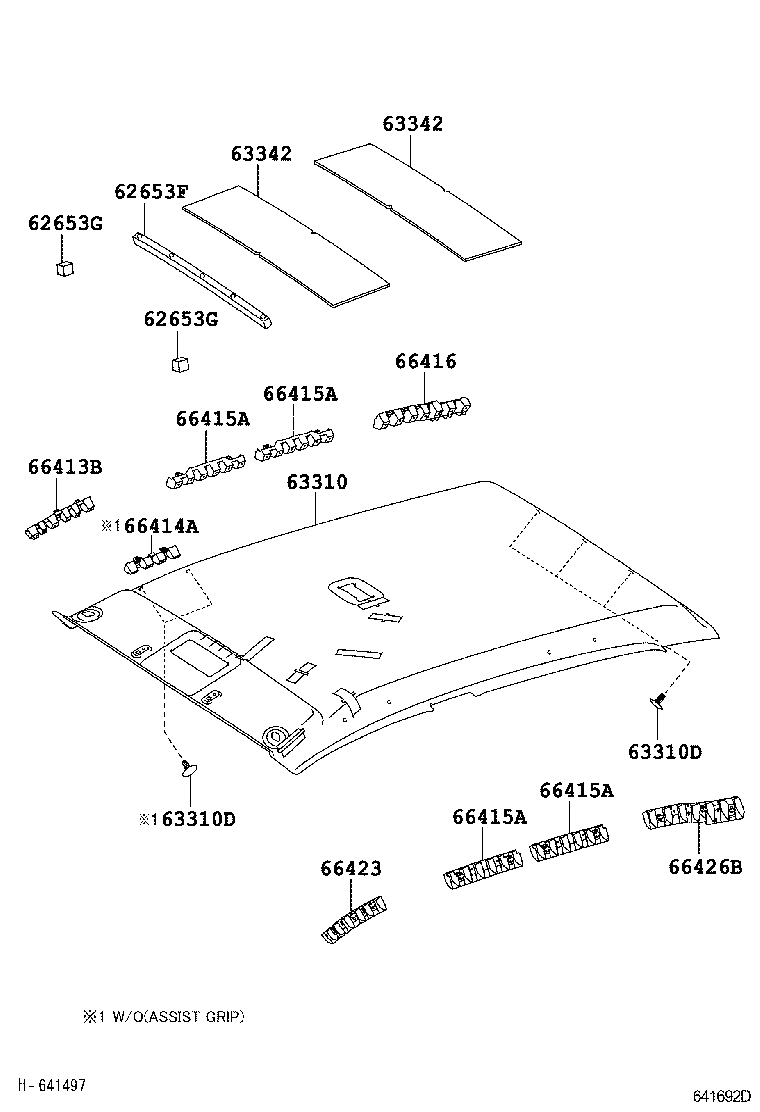

Click highlighted areas on diagram

diagram 62653F 62653G 62653G 63310 63310D 63310D 63342 63342 66413B 66414A 66415A 66415A 66415A 66415A 66416 66423 66426B
Part # Description Qty Price

(1506- )SADCB,THDCB

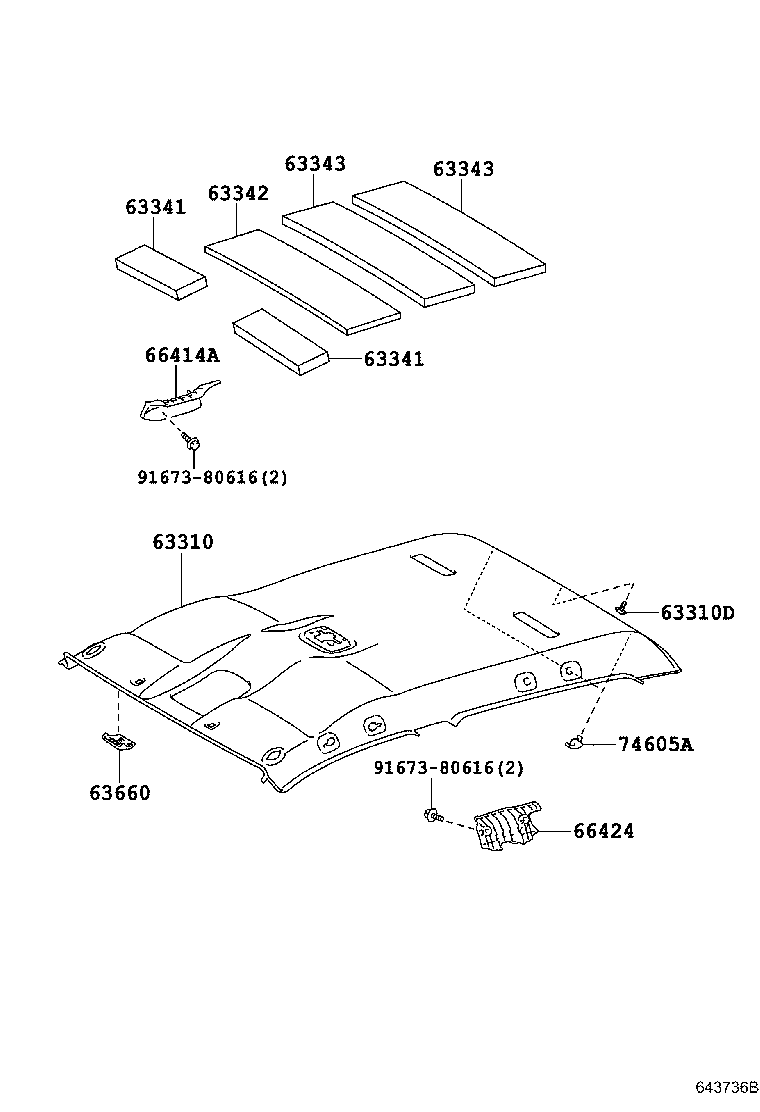

Click highlighted areas on diagram

diagram 63310 63310D 63341 63341 63342 63343 63343 63660 66414A 66424 74605A 9167380616 9167380616
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-0KG50B0

GUN125..SADCB..(H,M)

ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB,LT. GRAY,TRIM20

 1
63310-0KF90B0

GUN135..SADCB;GUN125..SADCB..(S,X)

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM2#

 1
63310-0KF90B0

GUN125..SADCB..(H,M)

ACTIVE SAFETY PACKAGE-WITHOUT,LT. GRAY,TRIM20

 1
63310-0KG50C0

GUN125..SADCB..(H,M)

ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB,BLACK,TRIM21

 1
63310-0KF90C0

GUN125..SADCB..(H,M)

ACTIVE SAFETY PACKAGE-WITHOUT,BLACK,TRIM21

 1
63310-0KP21B0

GUN125..RHD..(H,M)

LT. GRAY,TRIM20

 1
63310-0KP01B0

GUN125..RHD..(H,M)

AUDIO-*DA & CD & *BT & RDS & DAB,LT. GRAY,TRIM20

 1
63310-0KP21B0

GUN125..RHD..SADCB..S

LT. GRAY,TRIM2#

 1
63310D - CLIP, ROOF HEADLINING
90467-T0004B0

GUN12#..THDCB..(H,M);GUN125..SADCB..6FC..H

LT.GRAY,TRIM2#,3#

 1
90467-T0004B0

GUN135..M;GUN126..SADCB;GUN125..6F..H;GUN125..SADCB..M

LT.GRAY,TRIM2#,3#

 1
90467-T0004B0

GUN135..SADCB..M..DCRE;GUN125,135..(SADCB,THDCB)..(S,X)

LT.GRAY,TRIM2#

 1
63660 - COVER ASSY, ROOF HEADLINING TRIM, NO.1
63359-KK010B0

GUN125..(SADCB,SAXTR)..(H,M)

AUDIO-*DA & CD & *BT & RDS & DAB,LT.GRAY,TRIM20

 1
63359-KK010B0

GUN125..(SADCB,SAXTR)..(H,M)

ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB,LT.GRAY,TRIM20

 1
63359-KK010C0

GUN125..(SADCB,SAXTR)..(H,M)

ACTIVE SAFETY PACKAGE-WITHOUT&AUDIO-*DA & CD & *BT & RDS & DAB,BLACK,TRIM21

 1
66414A - SPACER, SIDE RAIL, REAR RH
66414-KK010

GUN12#,135..SADCB,THDCB

 1
66424 - SPACER, SIDE RAIL, REAR LH
66424-KK010

GUN12#,135..SADCB,THDCB

 1
74605A - HOOK SUB-ASSY, COAT
74631-KK020B0

GUN125..SADCB..(H,M)

LT.GRAY,TRIM20

 2
Common parts
91673-80616

(2005- )SADCB,THDCB

Click highlighted areas on diagram

diagram 63310 63310D 63341 63341 63342 63343 63343 63415B 63660 66414A 66424 74605A 9167380616 9167380616
Part # Description Qty Price
Common parts
91673-80616
