GUN125R-DNTMXW (2019)
Toyota Hilux
(0507- )DCB,THDCB
| Part # | Description | Qty | Price |
|---|
(1506- )SADCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

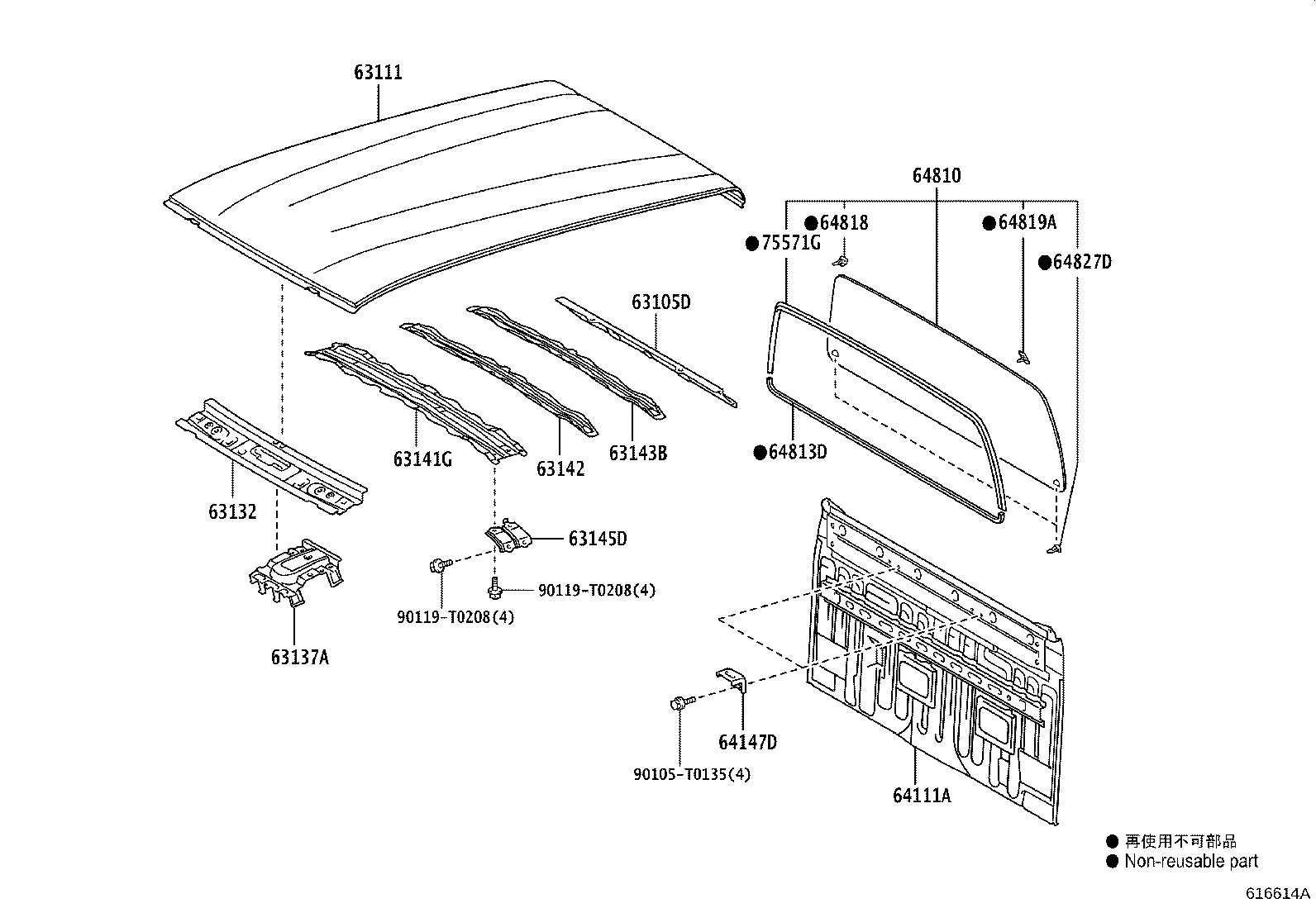

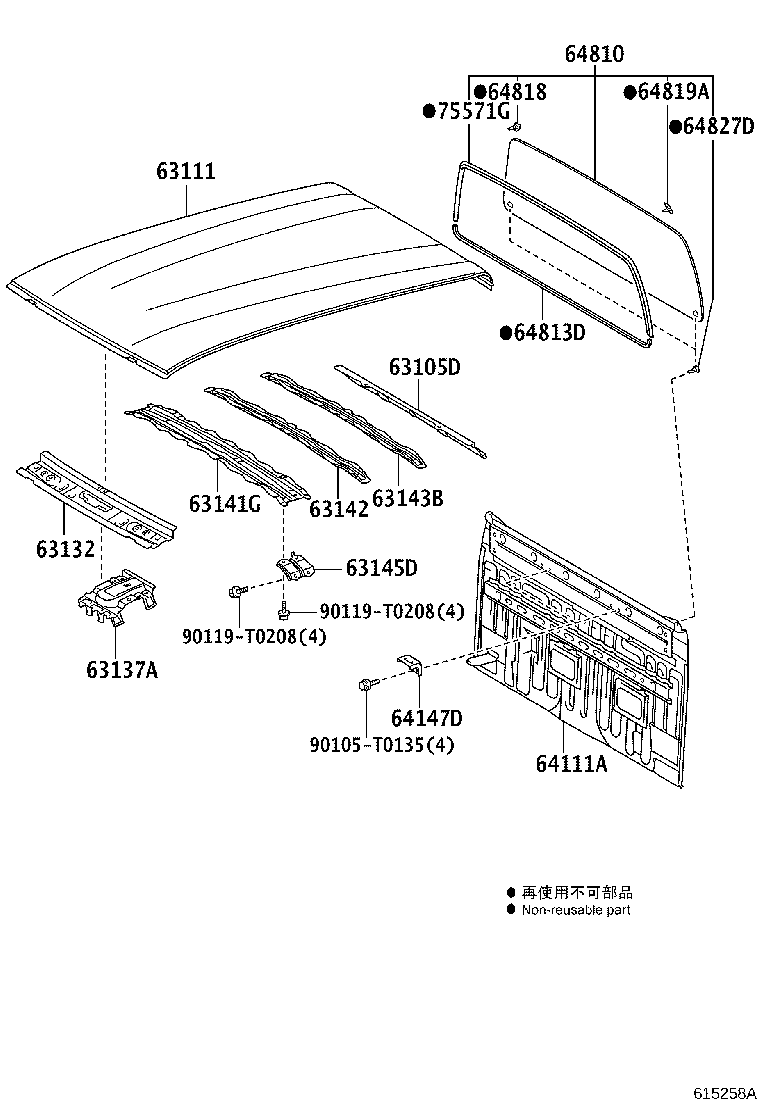

| 63105D - FRAME SUB-ASSY, BACK WINDOW, UPPER | ||||
| 63135-KK010 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63132-KK900 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 63137A - BRACKET, DOME LAMP, NO.1 | ||||
| 63137-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-KK020 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 63142 - REINFORCEMENT, ROOF PANEL, NO.2 | ||||
| 63142-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-KK010 |
GUN12#,135..SADCB,THDCB |
1 | ||
| 63145D - BRACKET, ROOF REINFORCEMENT | ||||
| 63145-KK010 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
2 | ||
| 64111A - PANEL, BACK | ||||
| 64101-KK010 |
GUN12#,135..SADCB |
1 | ||
| 64147D - PLATE, BACK PANEL CORNER, UPPER | ||||
| 64147-KK010 |
GUN12#,135..SADCB,THDCB |
2 | ||
| 64813D - DAM, BACK WINDOW GLASS ADHESIVE | ||||
| 56117-KK040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 75571G - MOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1 | ||||
| 75571-0K080 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90105-T0135 | ||||
| 90119-T0208 | ||||
(2005- )SADCB,THDCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0135 | ||||
| 90119-T0208 | ||||
