GUN125R-DNTMXW (2019)
Toyota Hilux

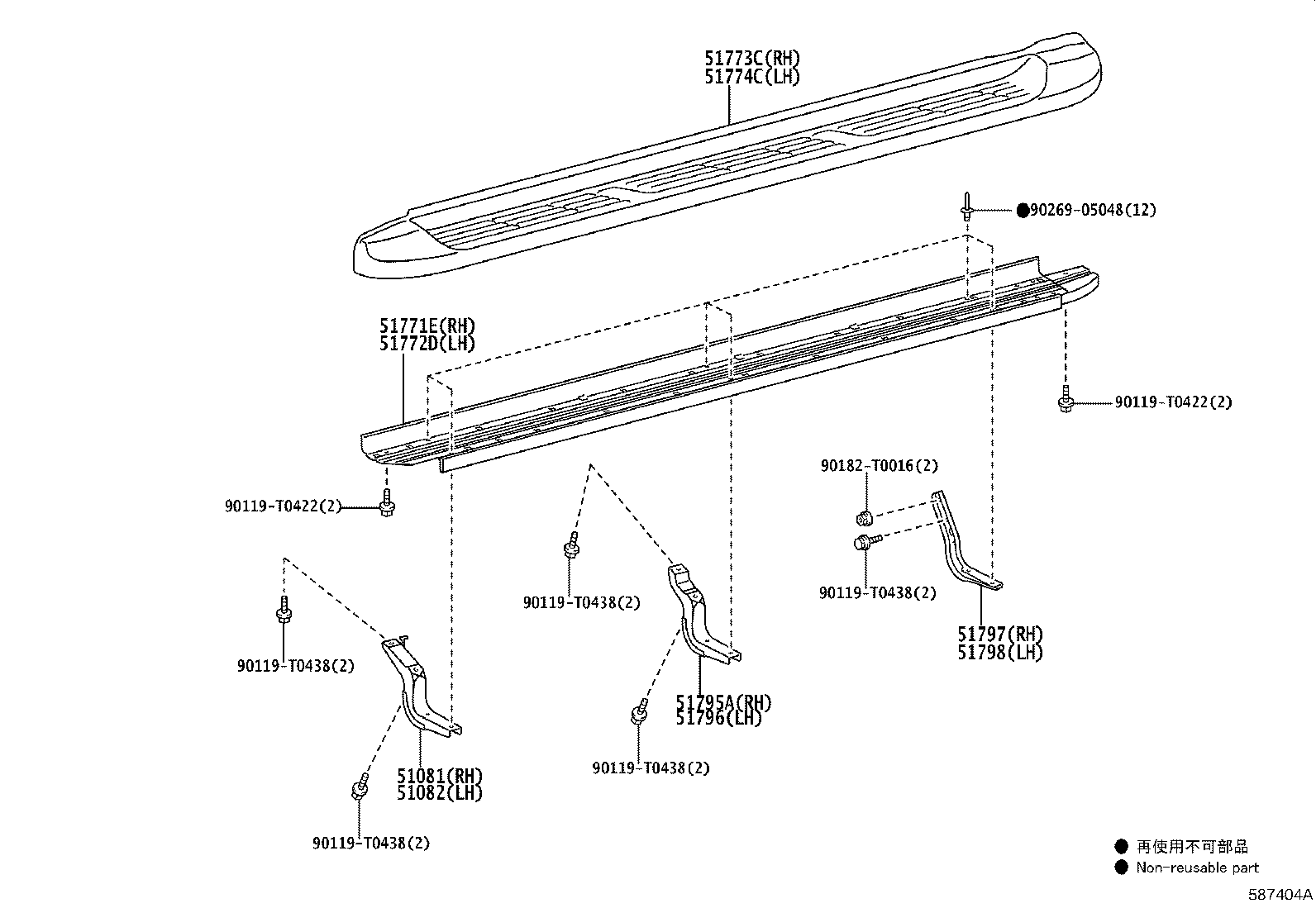

ILLUST NO. 3 OF 3(1506- )SADCB,THDCB
SIDE STEP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0422 | ||||
| 90119-T0438 | ||||
| 90182-T0016 | ||||
| 90269-05048 | ||||
ILLUST NO. 2 OF 3(1506- )6F
SHIFT LEVER BOOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58280A - BOOT ASSY, SHIFT LEVER | ||||
| 58280-KK010 |
GUN125..6F |
1 | ||
| Common parts | ||||
| 58267-0K010 | ||||
| 90159-T0014 | ||||
| 90189-T0013 | ||||
| 90467-T0018 | ||||

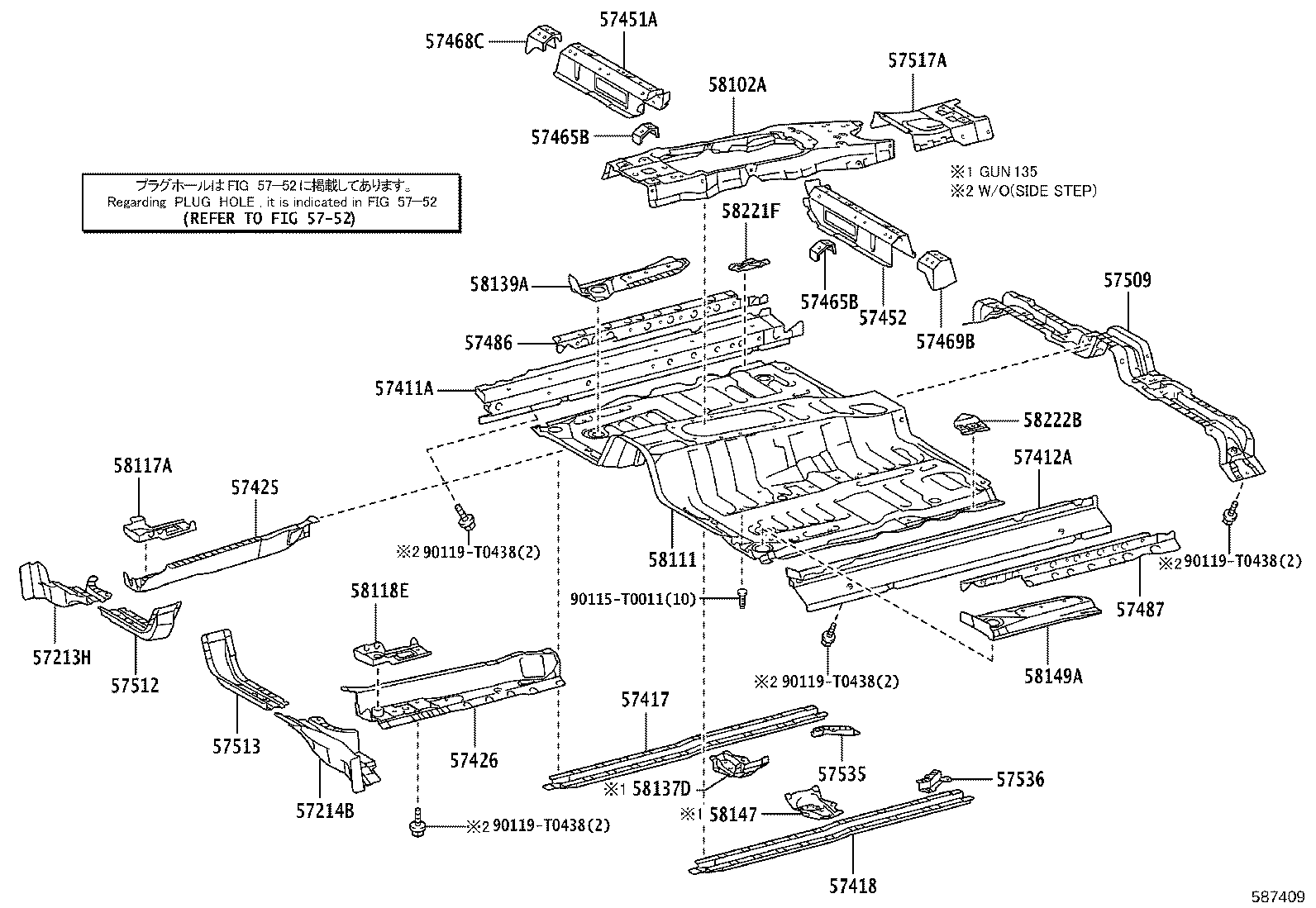

ILLUST NO. 1 OF 3(1506- )
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57213H - BRACKET, BODY MOUNTING, NO.2 RH | ||||
| 57213-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57214B - BRACKET, BODY MOUNTING, NO.2 LH | ||||
| 57214-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-KK020 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-KK020 |
GUN125..H,S,X;GUN125,135..6FC..M;GUN135..SADCB,SASCB;GUN135..SAXTR..S..HDCR;GUN125..THDCB..6F..M..DCRE;GUN125..(SADCB,SAXTR)..6F..M;GUN135..(SAXTR,THDCB)..6F..DCRE |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-0K011 |
GUN12#;GUN135..DCRE |
1 | ||
| 57418-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57451A - MEMBER, FRONT FLOOR CROSS, RH | ||||
| 57451-KK010 |
GUN12#,135 |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-KK010 |
GUN12#,135 |
1 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 57468C - BRACKET, FRONT SEAT, OUTSIDE, RH | ||||
| 57468-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57469B - BRACKET, FRONT SEAT, OUTSIDE LH | ||||
| 57469-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57486 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH | ||||
| 57486-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 57487 - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH | ||||
| 57487-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..(SADCB,SASCB,THDCB)..6F |
1 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-KK020 |
GUN12# |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57512-0K030 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-0K010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57535 - BRACE, FRONT FLOOR, RH | ||||
| 57535-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 57536 - BRACE, FRONT FLOOR, LH | ||||
| 57536-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-KK010 |
GUN12#,135 |
1 | ||
| 58118E - BRACKET, JACK SET | ||||
| 58118-KK010 |
GUN12#,135 |
1 | ||
| 58139A - PLATE, FRONT FLOOR SIDE, REAR RH | ||||
| 58139-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 58149A - PLATE, FRONT FLOOR SIDE, REAR LH | ||||
| 58149-KK010 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 58221F - REINFORCEMENT, FLOOR PANEL, FRONT RH | ||||
| 58221-KK010 |
GUN12#,135 |
1 | ||
| 58221-KK010 |
GUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR |
1 | ||
| 58222B - REINFORCEMENT, FLOOR PANEL, FRONT LH | ||||
| 58222-KK010 |
GUN12#,135 |
1 | ||
| 58222-KK010 |
GUN135..SAXTR..IV3;GUN135..SADCB,SASCB;GUN135..SAXTR..S..CBU;GUN125..SADCB,SASCB,SAXTR |
1 | ||
| Common parts | ||||
| 90115-T0011 | ||||
| 90119-T0438 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 3(2005- )6F
SHIFT LEVER BOOT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 58267-0K010 | ||||
| 90159-T0014 | ||||
| 90189-T0013 | ||||
| 90467-T0018 | ||||

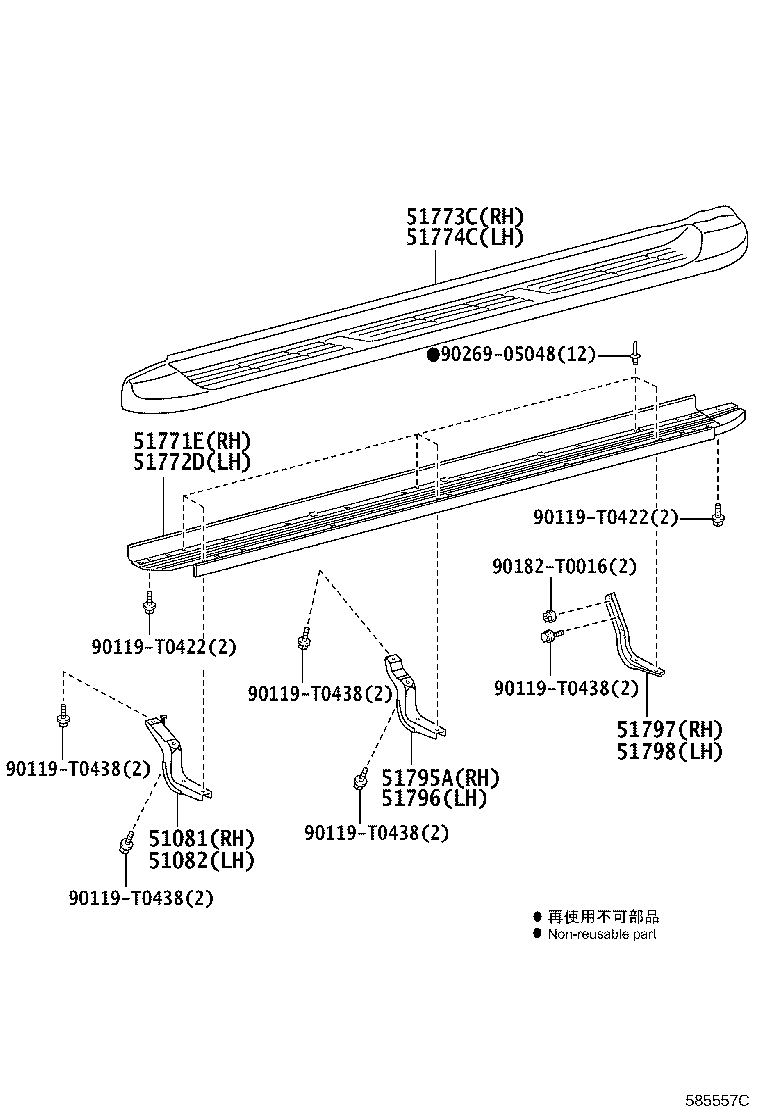

ILLUST NO. 3 OF 3(2005- )SADCB,THDCB
SIDE STEP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0422 | ||||
| 90119-T0438 | ||||
| 90182-T0016 | ||||
| 90269-05048 | ||||
ILLUST NO. 1 OF 3(2005- )
FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90115-T0011 | ||||
| 90119-T0438 | ||||
| Linked diagrams | ||||
| 5752 | ||||
