GUN125R-DNTMXW (2019)
Toyota Hilux

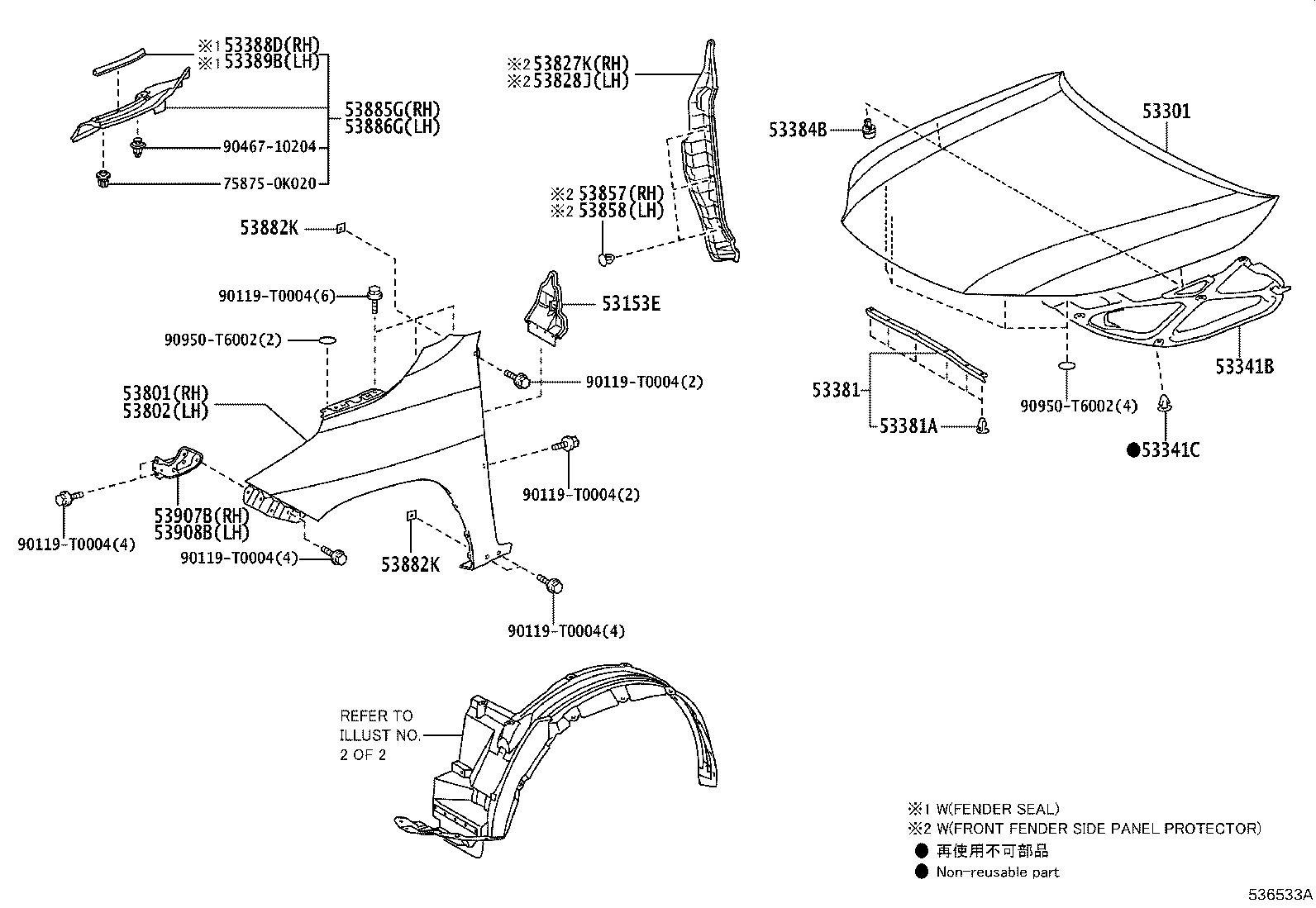

ILLUST NO. 1 OF 2(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-KK010 |
GUN12#,135 |
1 | ||
| 53301-KK010 |
GUN125..6FC..S |
1 | ||
| 53341C - CLIP(FOR HOOD INSULATOR) | ||||
| 90467-T0014 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
12 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-0K120 |
GUN125,135..(SADCB,SASCB,SAXTR)..DCRE |
1 | ||
| 53381-0K080 |
GUN125,135..(SADCB,SASCB,SAXTR)..DCRE |
1 | ||
| 53381A - CLIP(FOR HOOD TO RADIATOR SUPPORT SEAL) | ||||
| 90467-T0013 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
6 | ||
| 53384B - CUSHION, HOOD, CENTER | ||||
| 53384-0K040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
2 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53811-KK030 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53812-KK030 |
GUN12#..SADCB,SAXTR;GUN135..SAXTR..DCRE..IV3;GUN135..(SADCB,SAXTR)..(M,S) |
1 | ||
| 53857 - RETAINER, FRONT WHEEL OPENING EXTENSION, RH | ||||
| 53857-0K010 |
GUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M) |
3 | ||
| 53857-47011 |
GUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..(SADCB,THDCB)..(H,M) |
3 | ||
| 53857-06030 |
GUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M) (L) |
3 | ||
| 53857-47011 |
GUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M) (J) |
3 | ||
| 53858 - RETAINER, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53857-47011 |
GUN125..SAXTR;GUN135..SAXTR..S..CBU;GUN12#,135..(SADCB,THDCB)..(H,M) |
3 | ||
| 53857-47011 |
GUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M) (J) |
3 | ||
| 53857-06030 |
GUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M) (L) |
3 | ||
| 53857-0K010 |
GUN125,135..SAXTR..(M,S);GUN125,135..SADCB..(H,M) |
3 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
6 | ||
| 53882K - SEAL, FRONT FENDER | ||||
| 53882-33060 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
6 | ||
| 53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH | ||||
| 53907-KK020 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 53907B - EXTENSION SUB-ASSY, FRONT END PANEL, RH | ||||
| 53907-KK020 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH | ||||
| 53908-KK020 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 53908B - EXTENSION SUB-ASSY, FRONT END PANEL, LH | ||||
| 53908-KK020 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| Common parts | ||||
| 75875-0K020 | ||||
| 90119-T0004 | ||||
| 90467-10204 | ||||
| 90950-T6002 | ||||

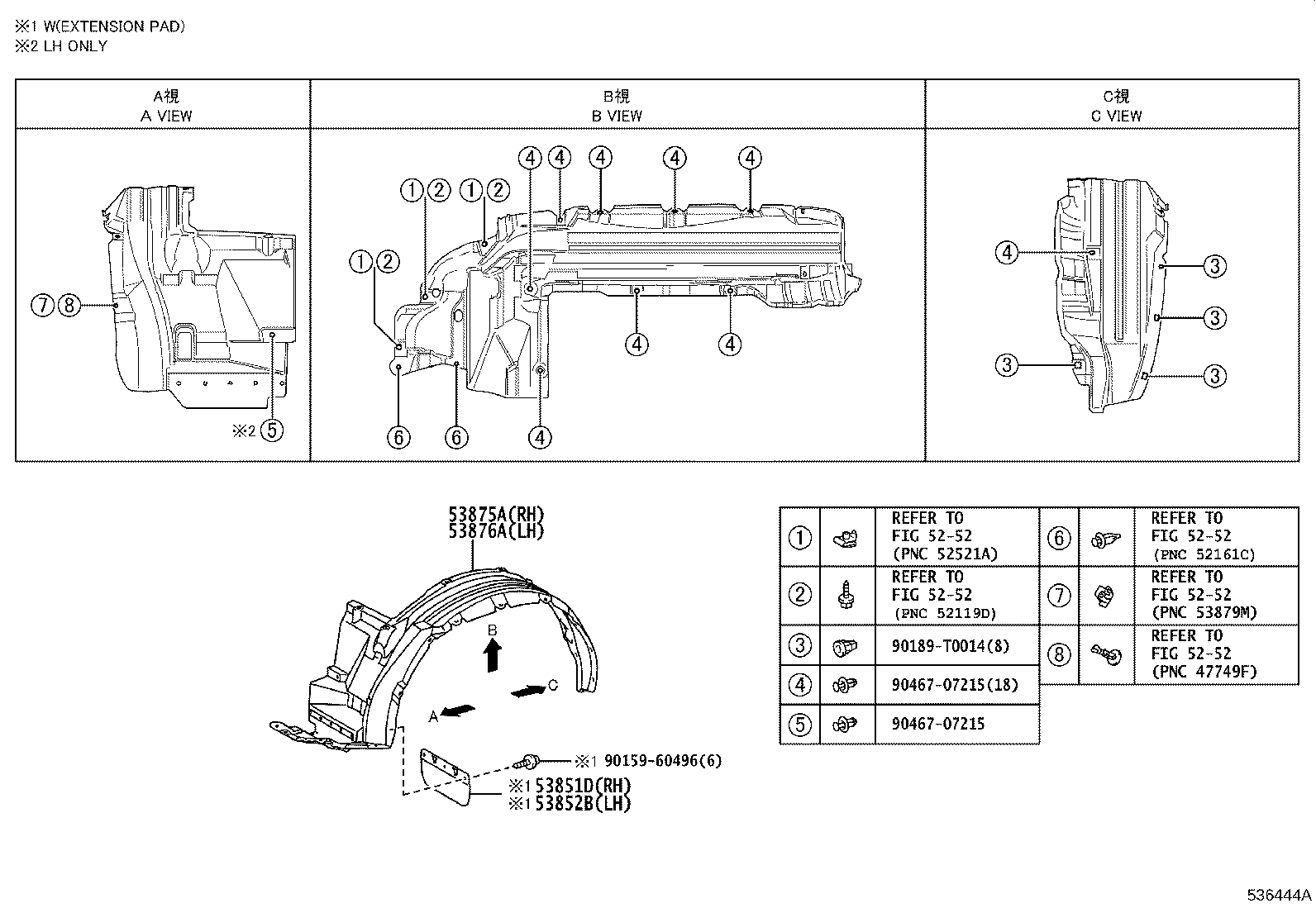

ILLUST NO. 2 OF 2(1506- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-YP060 |
GUN125..(SADCB,SAXTR)..(H,M) "BLACK RALLY EDITION"*(B) |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-YP060 |
GUN125..(SADCB,SAXTR)..(H,M) "BLACK RALLY EDITION"*(B) |
1 | ||
| Common parts | ||||
| 90159-60496 | ||||
| 90189-T0014 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5252 | ||||

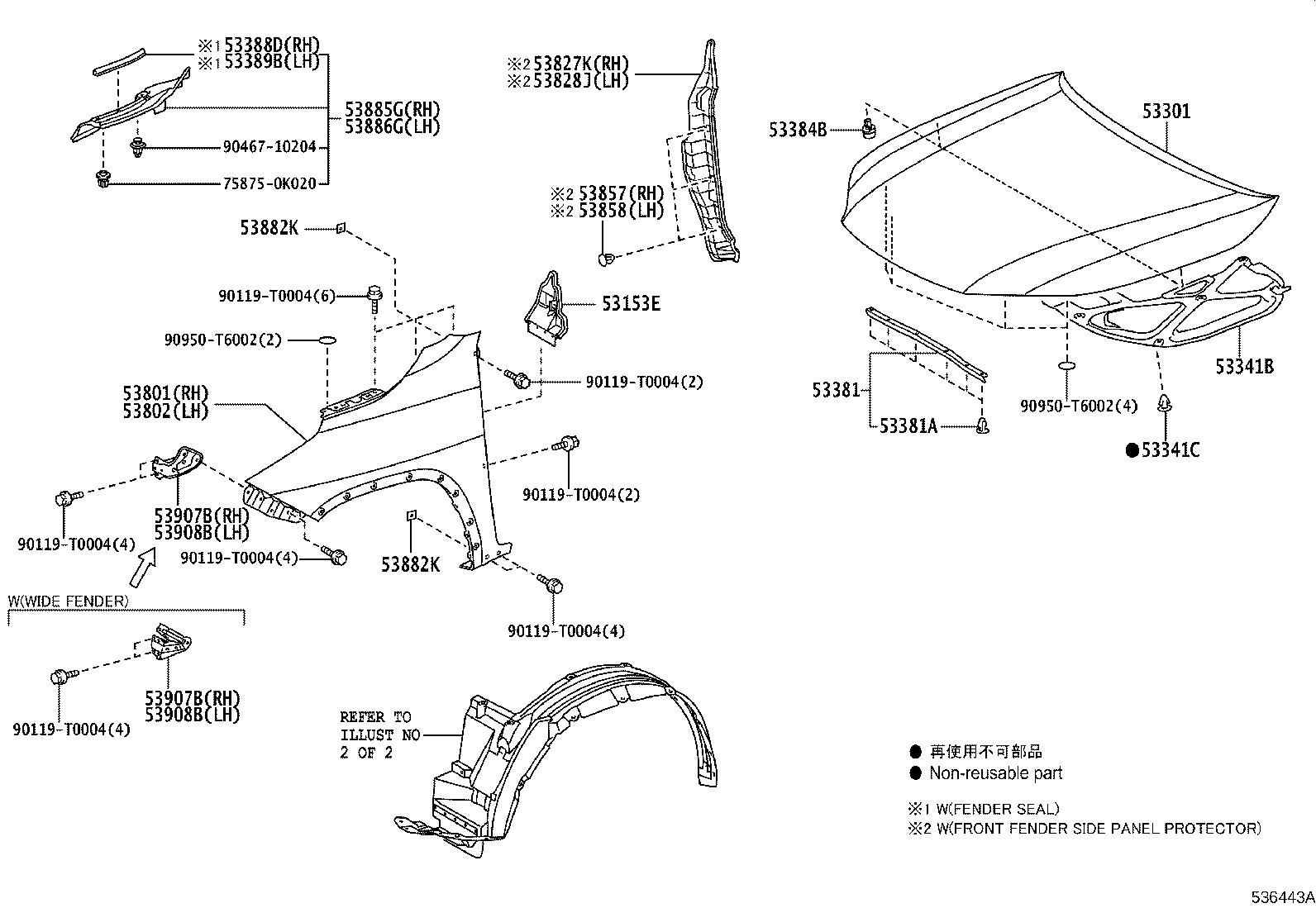

ILLUST NO. 1 OF 2(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 75875-0K020 | ||||
| 90119-T0004 | ||||
| 90467-10204 | ||||
| 90950-T6002 | ||||

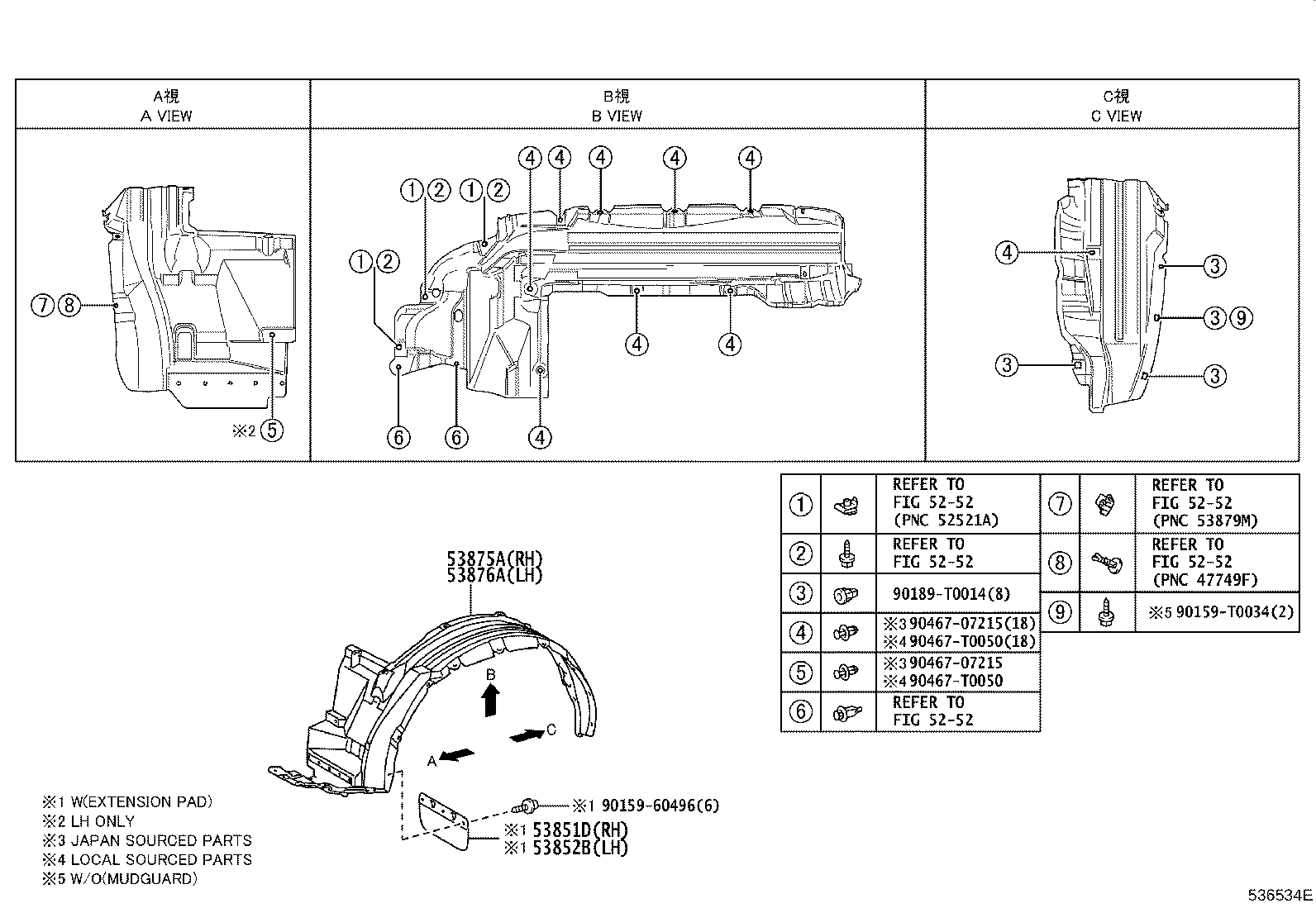

ILLUST NO. 2 OF 2(2005- )
FENDER LINER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90159-60496 | ||||
| 90159-T0034 | ||||
| 90189-T0014 | ||||
| 90467-07215 | ||||
| 90467-T0050 | ||||
| Linked diagrams | ||||
| 5252 | ||||
