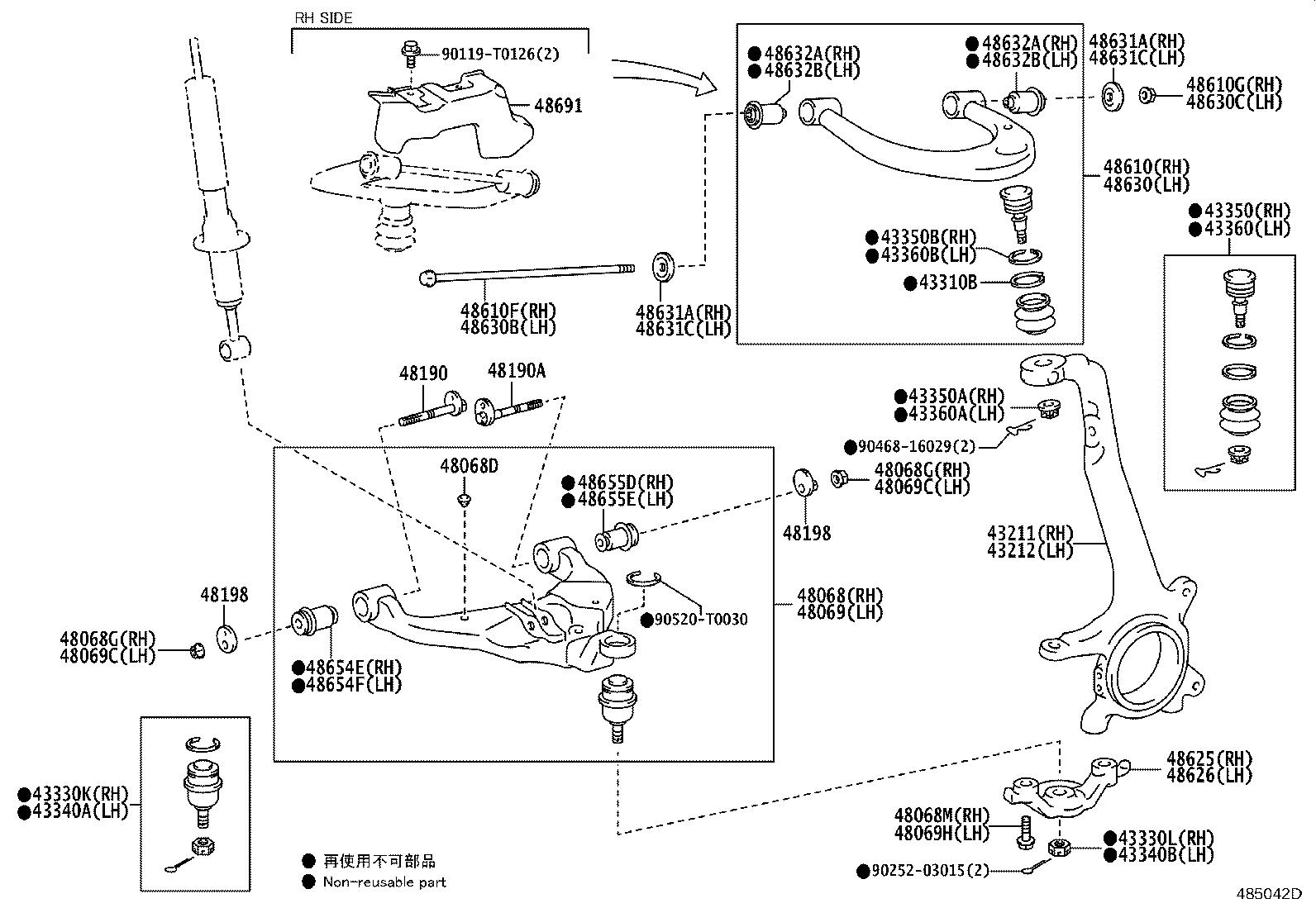

GUN125R-DNTMXW (2019)
Toyota Hilux
(1506- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-KK010 |
GUN12#;GUN135..X..DCRE;GUN135..(M,S)..CBU |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43310B - RING, SET (FOR DUST COVER) | ||||
| 90580-10001 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-09510 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-T0003 |
GUN12#;GUN135..X..DCRE;GUN135..(M,S)..CBU |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43330-09510 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-T0003 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43350 - JOINT ASSY, FRONT UPPER BALL, RH | ||||
| 43310-09015 |
GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB |
1 | ||
| 43350A - NUT (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90171-T0001 |
GUN12#;GUN135..X..DCRE;GUN135..(M,S)..CBU |
1 | ||
| 43350B - RING, SNAP (FOR FRONT UPPER BALL JOINT RH) | ||||
| 90520-T0029 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43360 - JOINT ASSY, FRONT UPPER BALL, LH | ||||
| 43310-09015 |
GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB |
1 | ||
| 43360A - NUT (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90171-T0001 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43360B - RING, SNAP (FOR FRONT UPPER BALL JOINT LH) | ||||
| 90520-T0029 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-0K090 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48068D - PLUG, HOLE(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90950-T1018 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90178-T0073 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90178-T0073 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-T0305 |
GUN12#;GUN135..X..DCRE;GUN135..(M,S)..CBU |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-0K090 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90178-T0073 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90178-T0073 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-T0305 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48190 - CAM ASSY, CAMBER ADJUST | ||||
| 48190-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48190A - CAM ASSY, CAMBER ADJUST, NO.2 | ||||
| 48190-0K050 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-0K030 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
4 | ||
| 48198 - CAM, CAMBER ADJUST, NO.2 | ||||
| 48198-0K030 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
4 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90105-T0114 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90178-T0027 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48625 - ATTACHMENT, FRONT LOWER BALL JOINT, RH | ||||
| 48625-KK010 |
GUN12#;GUN135..X..DCRE;GUN135..(M,S)..CBU |
1 | ||
| 48626 - ATTACHMENT, FRONT LOWER BALL JOINT, LH | ||||
| 48626-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48630-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90105-T0114 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90178-T0027 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-T2007 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48631A - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90948-T2007 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-T2007 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48631C - RETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90948-T2007 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH | ||||
| 48632-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH | ||||
| 48632-0K040 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
2 | ||
| 48654E - BUSH, FRONT LOWER ARM, NO.1 RH | ||||
| 48654-0K080 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48654F - BUSH, FRONT LOWER ARM, NO.1 LH | ||||
| 48654-0K080 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-0K080 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-0K080 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 48691 - INSULATOR, UPPER ARM BUSH, HEAT | ||||
| 48691-KK010 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| Common parts | ||||
| 90119-T0126 | ||||
| 90252-03015 | ||||
| 90468-16029 | ||||
| 90520-T0030 | ||||

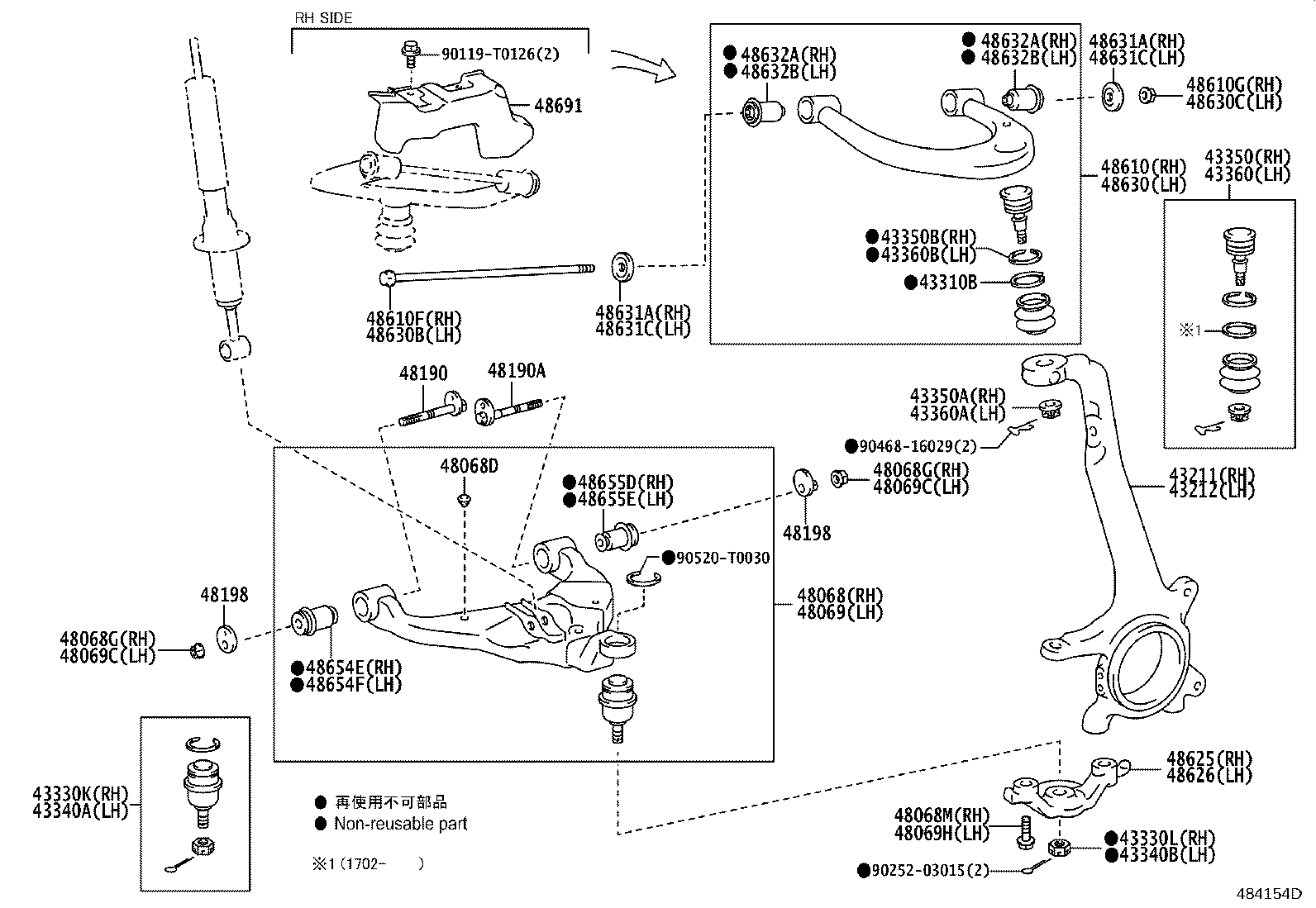

(2005- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0126 | ||||
| 90252-03015 | ||||
| 90468-16029 | ||||
| 90520-T0030 | ||||
