GUN125R-DNTMXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )

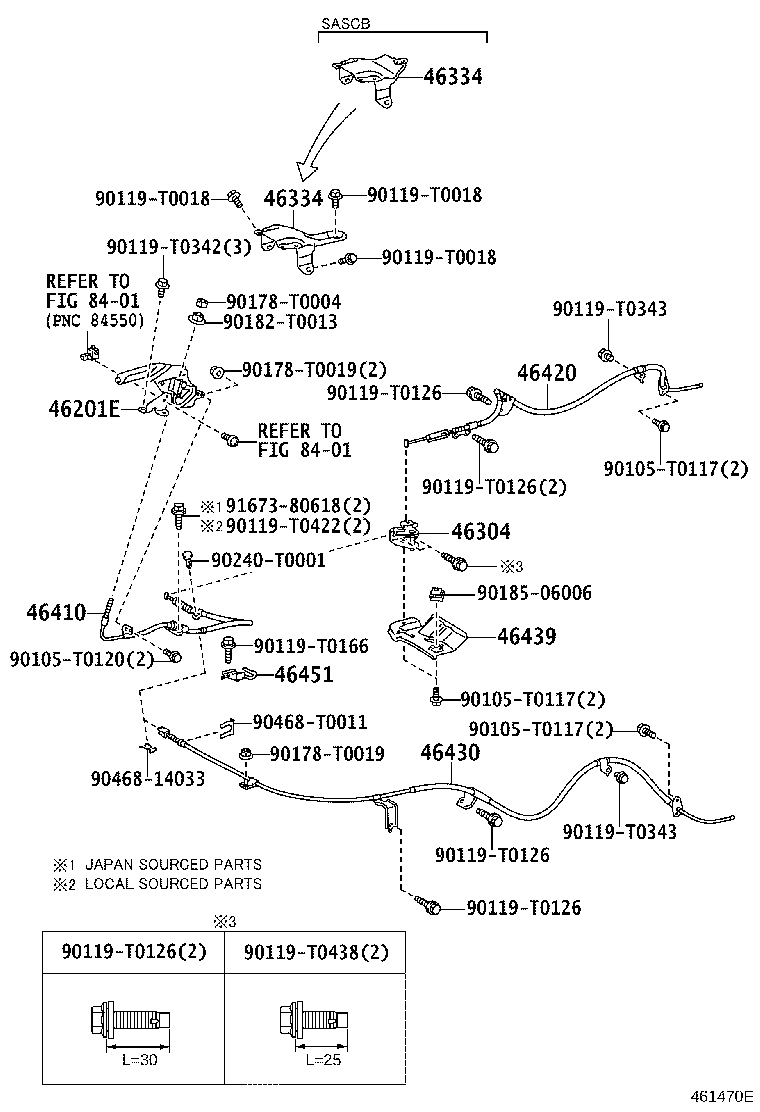

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-0K050 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 46334 - PROTECTOR, INTERMEDIATE LEVER | ||||
| 46334-0K010 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 46334 - PROTECTOR, INTERMEDIATE LEVER | ||||
| 46334-0K010 |
GUN135..SAXTR..DCRE..IV3;GUN12#..SADCB,SAXTR,THDCB;GUN135..(SADCB,SAXTR,THDCB)..(M,S) |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-0K120 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-0K060 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-0K040 |
GUN12#;GUN135..SAXTR..IV3;GUN135..SAXTR..S..CBU;GUN135..SADCB,SASCB,THDCB |
1 | ||
| Common parts | ||||
| 90105-T0117 | ||||
| 90105-T0120 | ||||
| 90119-T0018 | ||||
| 90119-T0126 | ||||
| 90119-T0166 | ||||
| 90119-T0342 | ||||
| 90119-T0343 | ||||
| 90119-T0422 | ||||
| 90119-T0438 | ||||
| 90178-T0004 | ||||
| 90178-T0019 | ||||
| 90182-T0013 | ||||
| 90185-06006 | ||||
| 90240-T0001 | ||||
| 90468-14033 | ||||
| 90468-T0011 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(2006- )

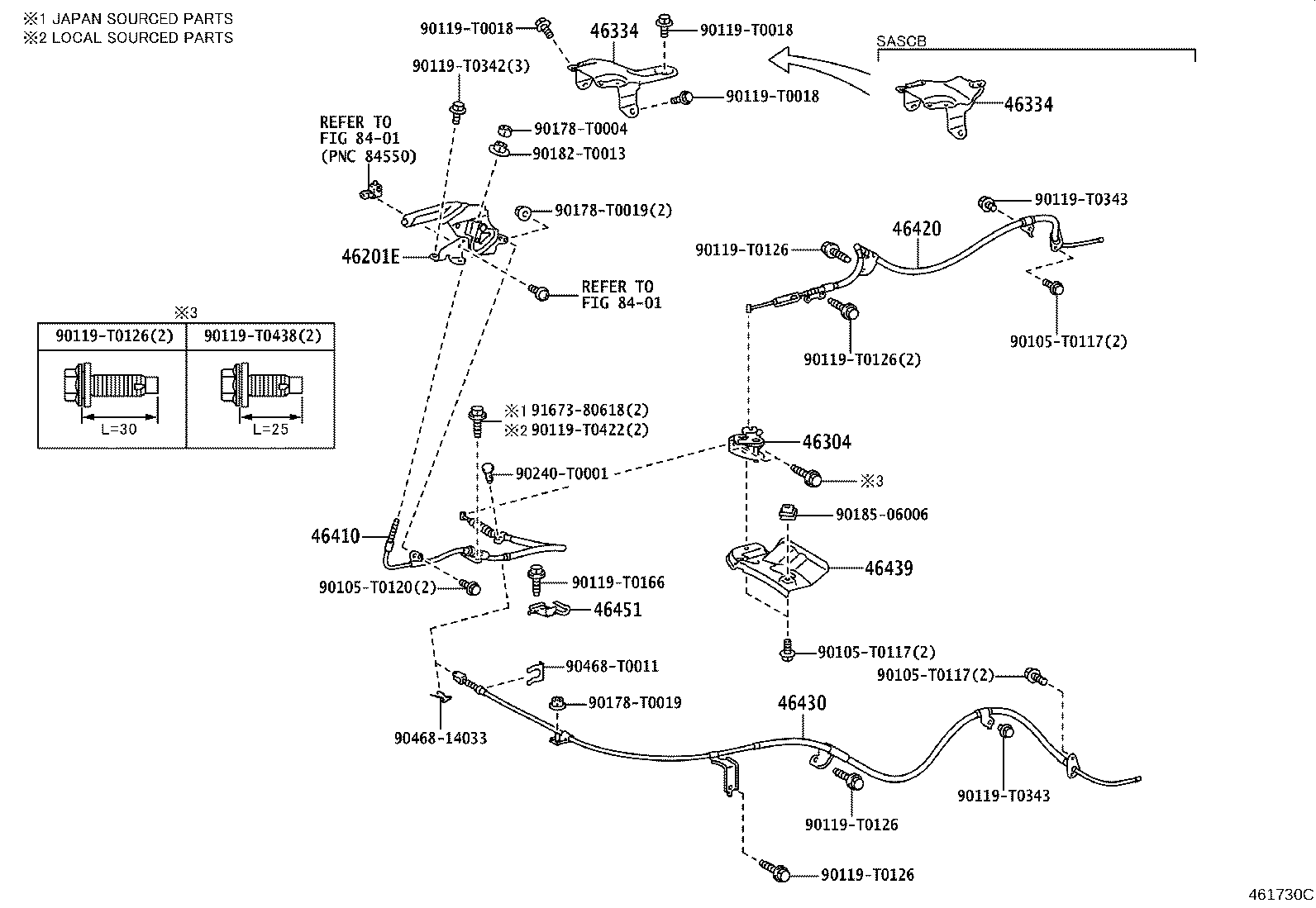

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0117 | ||||
| 90105-T0120 | ||||
| 90119-T0018 | ||||
| 90119-T0126 | ||||
| 90119-T0166 | ||||
| 90119-T0342 | ||||
| 90119-T0343 | ||||
| 90119-T0422 | ||||
| 90119-T0438 | ||||
| 90178-T0004 | ||||
| 90178-T0019 | ||||
| 90182-T0013 | ||||
| 90185-06006 | ||||
| 90240-T0001 | ||||
| 90468-14033 | ||||
| 90468-T0011 | ||||
| 91673-80618 | ||||
| Linked diagrams | ||||
| 8401 | ||||
