GUN125R-DNTMXW (2019)
Toyota Hilux
Production
Jun 2019
-
Sep 2020
Engine
2GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

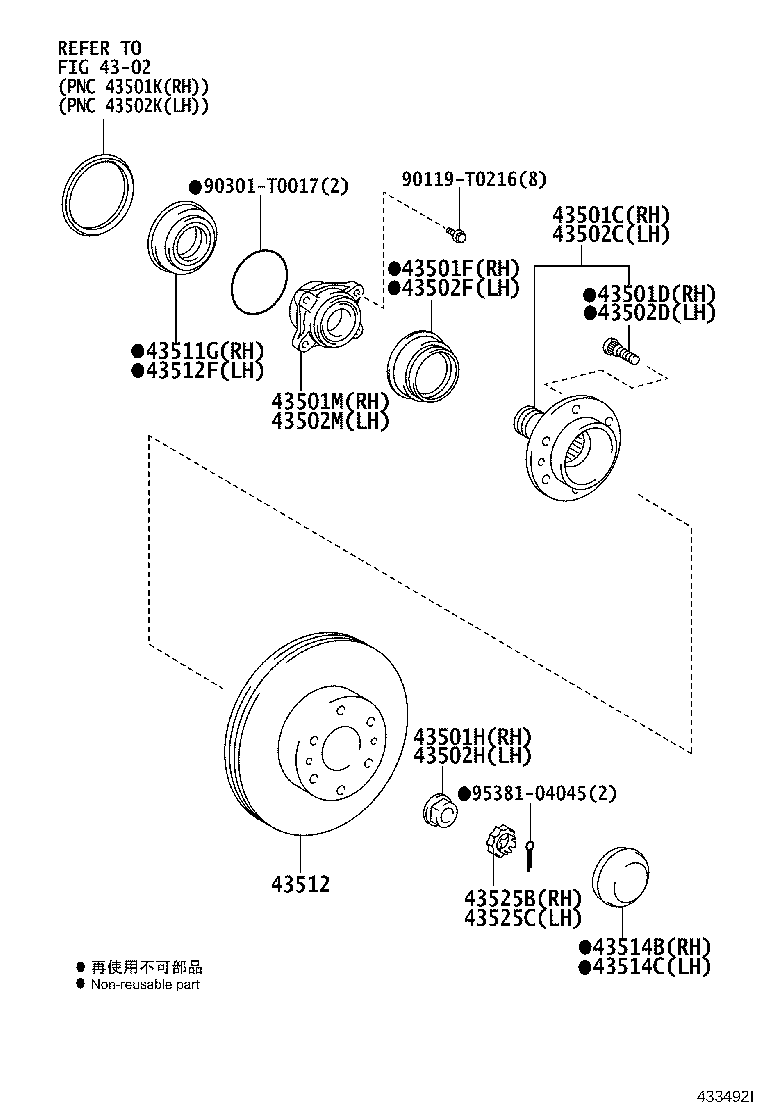

(1506- )GUN12#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43501C - HUB SUB-ASSY, FRONT AXLE, RH | ||||
| 43502-KK010 |
GUN12# |
1 | ||
| 43501D - BOLT, HUB (FOR FRONT AXLE RH) | ||||
| 90942-02081 |
GUN12#;GUN135..THDCB..HDCR;GUN135..SADCB,SASCB,SAXTR |
6 | ||
| 43501F - SEAL, OIL (FOR FRONT AXLE HUB RH) | ||||
| 90312-T0001 |
GUN12#;GUN135..X..DCRE;GUN135..(M,S)..CBU |
1 | ||
| 43501H - NUT (FOR FRONT AXLE SHAFT RH) | ||||
| 90178-T0113 |
GUN12# |
1 | ||
| 43502C - HUB SUB-ASSY, FRONT AXLE, LH | ||||
| 43502-KK010 |
GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43502D - BOLT, HUB (FOR FRONT AXLE LH) | ||||
| 90942-02081 |
GUN12#;GUN135..THDCB..HDCR;GUN135..SADCB,SASCB,SAXTR |
6 | ||
| 43502F - SEAL, OIL (FOR FRONT AXLE HUB LH) | ||||
| 90312-T0001 |
GUN135..X..DCRE;GUN135..(M,S)..CBU;GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43502H - NUT (FOR FRONT AXLE SHAFT LH) | ||||
| 90178-T0113 |
GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43511G - SEAL, OIL (FOR FRONT AXLE HUB OUTER RH) | ||||
| 90316-T0002 |
GUN12# |
1 | ||
| 43512F - SEAL, OIL (FOR FRONT AXLE HUB OUTER LH) | ||||
| 90316-T0002 |
GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43514B - CAP, FRONT AXLE HUB GREASE, RH | ||||
| 43514-0K010 |
GUN12# |
1 | ||
| 43514C - CAP, FRONT AXLE HUB GREASE, LH | ||||
| 43514-0K010 |
GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| 43525B - CAP, FRONT WHEEL ADJUSTING LOCK, RH | ||||
| 43525-71010 |
GUN12# |
1 | ||
| 43525C - CAP, FRONT WHEEL ADJUSTING LOCK, LH | ||||
| 43525-71010 |
GUN12#..SADCB,THDCB;GUN125..(SASCB,SAXTR)..DCRE |
1 | ||
| Common parts | ||||
| 90119-T0216 | ||||
| 90301-T0017 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||
(2006- )GUN12#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0216 | ||||
| 90301-T0017 | ||||
| 95381-04045 | ||||
| Linked diagrams | ||||
| 4302 | ||||
